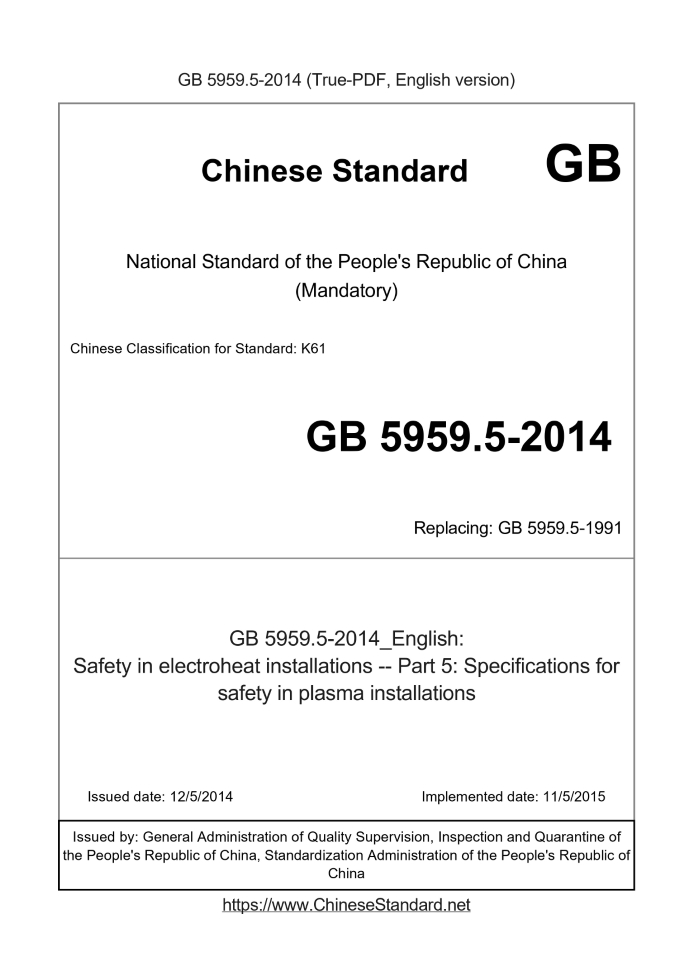

GB 5959.5-2014 English PDFUS$369.00 · In stock
Delivery: <= 3 days. True-PDF full-copy in English will be manually translated and delivered via email. GB 5959.5-2014: Safety in electroheat installations -- Part 5: Specifications for safety in plasma installations Status: Valid GB 5959.5: Historical versions
Basic dataStandard ID: GB 5959.5-2014 (GB5959.5-2014)Description (Translated English): Safety in electroheat installations -- Part 5: Specifications for safety in plasma installations Sector / Industry: National Standard Classification of Chinese Standard: K61 Classification of International Standard: 25.180.10 Word Count Estimation: 16,187 Date of Issue: 12/5/2014 Date of Implementation: 11/5/2015 Older Standard (superseded by this standard): GB 5959.5-1991 Quoted Standard: GB/T 2900.23-2008; GB 4824-2004; GB 5959.1-2005; GB/T 10066.5-2014 Regulation (derived from): Announcement of Newly Approved National Standards 2014 No. 27 Issuing agency(ies): General Administration of Quality Supervision, Inspection and Quarantine of the People's Republic of China, Standardization Administration of the People's Republic of China Summary: This Standard applies to: a) thermal plasma torch systems: arc plasma system; induction plasma system. b) using a plasma torch system means: spraying equipment; solid, liquid and gaseous charge heating and chemical treatment equipment. This section provid GB 5959.5-2014: Safety in electroheat installations -- Part 5: Specifications for safety in plasma installations---This is a DRAFT version for illustration, not a final translation. Full copy of true-PDF in English version (including equations, symbols, images, flow-chart, tables, and figures etc.) will be manually/carefully translated upon your order. Safety in electroheat installations - Part 5. Specifications for safety in plasma installations ICS 25.180.10 K61 National Standards of People's Republic of China Replacing GB 5959.5-1991 Electric safety device Part 5. Particular requirements for plasma unit Safetyinelectroheatinstalations-Part 5. Particular Issued on. 2014-12-05 2015-11-05 implementation Administration of Quality Supervision, Inspection and Quarantine of People's Republic of China Standardization Administration of China released Table of ContentsIntroduction Ⅲ 1 Scope 1 2 Normative references 1 3 Terms and definitions Safety requirements for thermal plasma system --- 4 design and characteristics of the device 1 4.1 arc plasma torch system 4.1.1 General requirements 1 4.1.2 Circuit 1 4.1.3 DC arc power supply 2 4.1.4 torch sockets, plugs and connection cables 2 4.1.5 Torch 2 4.1.6 cooling circuit 2 4.1.7 manifold 3 4.1.8 squib 3 4.1.9 arc plasma system control 3 4.2 induction plasma system 3 4.2.1 General requirements 3 4.2.2 Circuit 4 4.2.3 Power 4 4.2.4 torch sockets, plugs and connecting cables 4 4.2.5 torch 4 4.2.6 cooling circuit 4 4.2.7 manifold 5 4.2.8 squib 5 4.2.9 Induction plasma system control 5 Safety requirements 5 using a plasma torch apparatus --- the design and characteristics of the device 6 5.1 General requirements 6 5.2 spraying equipment 6 5.3 heating and chemical treatment equipment 6 6 operating system and a plasma device 6 6.1 General requirements 6 6.2 Operating personnel protective equipment 6 6.3 Starting and stopping 7 6.4 Protection torch run is easy to produce toxic substances 7 6.5 overheat protection 7 6.6 Sound proof 7 6.7 Electromagnetic radiation protection 7 6.8 Particle Protection 7 6.9 UV radiation protection 7 6.10 Fire 7 6.11 cable, liquid cooling and hydraulic lines 7 Loss Prevention Maintenance 87 plasma systems and devices 7.1 General requirements 8 7.2 Special Requirements 8 8 brand, marking and technical documentation 8 Appendix A (informative) torch system running around the electromagnetic radiation threshold 9 Reference 10ForewordAll technical content in this section is mandatory. GB 5959 "electric safety device" has the following 13 sections. --- Part 1. General requirements; --- Part 2. Particular requirements for arc furnace apparatus; --- Part 3. Particular requirements for induction and conduction heating and induction melting apparatus means; --- Part 4. Particular requirements for resistance heating apparatus; --- Part 41. Particular requirements for resistance heating and melting glass heating apparatus; --- Part 5. Particular requirements for plasma unit; --- Part 6. Industrial microwave heating equipment safety regulations; --- Part 7. A device having an electron gun of special requirements; --- Part 8. Particular requirements for electroslag remelting furnaces; --- Part 9. Particular requirements for high-frequency dielectric heating apparatus; --- Part 10. Resistance to industrial and commercial heating systems profiling specific requirements; --- Part 11. Liquid metal for electromagnetic stirring, transport or pouring of special equipment requirements; --- Part 13. Electric apparatus for explosive atmosphere of special requirements. This Part replaces GB 5959.5-1991 "Safety in electroheat installations Part V. plasma equipment and other safety procedures", as compared with the latter The main changes are as follows. --- Full text of the "standard" to "this Part"; --- The "plasma gun" to "plasma torch"; --- This section is no longer suitable for welding, cutting and welding equipment (see Chapter 1, last paragraph); --- Removed the references arc welding equipment; --- Standard structure changes. the plasma torch equipment, power supplies, and cooling the working gas components and control units as A whole into a plasma torch system, and then were based on ignition and the presence of the chamber (reactor), the plasma torch system Equipment and systems are classified, respectively, the provisions to which they apply test and measurement; --- Increased circuit security requirements (see 4.1.2 and 4.2.2); --- Increased the power of the security requirements (see 4.1.3 and 4.2.3); --- Increased ignition device security requirements (see 4.1.8 and 4.2.8); --- Increased plasma control system security requirements (see 4.1.9 and 4.2.9); --- Delete "radio interference" (see 1991 version 4.8); --- Increased noise, electromagnetic radiation, particle, ultraviolet radiation protection and fire protection requirements (see 6.6 to 6.10); Remove plasma furnace equipment --- safety requirements for a chapter (see Chapter 6, 1991 edition); --- Add "plasma systems and equipment maintenance" (see Chapter 7); --- Delete the original Appendix A "measurement of the insulation resistance and dielectric strength test"; --- Add a new Appendix A "torch system running around the electromagnetic radiation threshold"; --- Increased by reference. This part is proposed by the China Electrical Equipment Industrial Association. This part of the National Electric Equipment Industry Standardization Technical Committee (SAC/TC121) centralized. This section is drafted. Xi'an Institute Ltd. furnace, furnace Metallurgical Engineering Technology Center, the State Quality Supervision and Inspection Center Furnace, Shaanxi Province electric engineering and technology research center. The main drafters of this section. Huangkui Gang, Ge Hua, Zhu Lin. This part of the standard replaces the previous editions. --- GB 5959.5-1991. Electric safety device Part 5. Particular requirements for plasma unit1 ScopeGB 5959 safety requirements specified in this section applies to. a) thermal plasma torch systems. --- Arc plasma system; --- Induction plasma system. b) the use of means of a plasma torch system. --- Spraying equipment; --- Solid, liquid and gaseous charge heating and chemical treatment equipment. This section defines the security requirements for all components of the plasma torch system and apparatus using plasma torch systems, including electrical equipment Equipment, cooling lines, gas pipes, furnaces and furnace or reactor or reactor with the use of all other related equipment. The plasma torch for welding, cutting and allied processes safety and structural requirements in GB/T 15579.7-2005 specified.2 Normative referencesThe following documents for the application of this document is essential. For dated references, only the dated version suitable for use herein Member. For undated references, the latest edition (including any amendments) applies to this document. GB/T 2900.23-2008 Electrotechnical terminology industrial electric equipment (IEC 60050-841.2004, IDT) GB 4824-2004 industrial, scientific and medical (ISM) radio-frequency equipment - Electromagnetic disturbance characteristics - Limits and methods of measurement (CISPR 11.2003, IDT) GB 5959.1-2005 Safety of electric devices - Part 1. General requirements (IEC 60519-1.2003, IDT) Test methods GB/T 10066.5-2014 electric installations - Part 5. electric and electrochemical devices using plasma (IEC /T S60680.2008, IDT)3 Terms and DefinitionsGB/T 2900.23-2008, terms and definitions GB 5959.1-2005 and GB/T 10066.5-2014 defined apply to this file. Safety requirements --- 4 thermal plasma system design and equipment characteristics 4.1 arc plasma torch system 4.1.1 General requirements See GB 5959.1-2005. 4.1.2 Circuit See Chapter 6 GB 5959.1-2005. In addition, GB 5959.1-2005 6.4.1 applies to the entire device. 4.1.3 DC arc power supply The following requirements apply to the specific system of a DC arc power supply. 4.1.3.1 Power Ground DC arc power supply side of a pole (positive or negative, depending on the polarity of the torch), the system shall be used independently of the main ground wire grounding wire grounding, To avoid possible leakage current flows to the circuit, for example as a torch control circuit. 4.1.3.2 Power connection with torch When the torch is disconnected, the DC cables should be grounded through the grounding switch, in order to safely operate the torch. Before the arc ignition should be required operating procedures, can be manually locking/unlocking means to achieve (usually operated by security key) and to special Do not confirm the main circuit breaker is on line and the grounding switch has been disconnected. In addition, the operator can use the key to start the ignition eventually remove the program. This program It should comply with regulations of the country of installation. 4.1.4 torch sockets, plugs and connection cables See Chapter 8 GB 5959.1-2005. 4.1.5 torch Any design arc plasma torch has the following salient features. high-temperature gas, high pressure (usually) and liquid cooling (usually water). Therefore, for safe operation, the torch design and structure should meet the following criteria. a) Electrical Characteristics. --- Design between parts of the same voltage in the operation should be fixed electrical connections, including electrode holders, and ground components, To prevent overheating; --- High voltage torch, if the leakage current flowing through the torch body exceeds 10mA, the torch should be automatically shut down; --- Between different voltage components (especially between the electrodes) should be fixed electrical insulation, so that under normal operating conditions do not Unexpected electrical breakdown occurs. b) cooling liquid characteristics. --- Resistivity coolant of the cooling circuit and the torch design make different voltages member running between the electrodes in particular Maintain insulation required; --- If the electrode breakage (accidents or normal wear and tear) appears, first electrode material through the design and/or electrodes, followed by Using the electrode detection signal to turn off the torch, so this phenomenon under control. 4.1.6 cooling circuit The following specific requirements for cooling equipment. a) Mechanical properties. --- Fixed or manually operated torch coolant hoses shall be of sufficient length, flexible and suitable radius of curvature (if any) to To withstand the stresses generated by the high-pressure coolant and allow special operating manual torch; --- Taking into account a predetermined flow rate to obtain the desired high pressure in the hose, the hose should not be due to the mechanical strength of occasional or prolonged exposure to Hot particles (from the furnace hot material), and by the torch itself, or heating process heat and material significantly influenced by influences; --- If the flow direction of the cooling liquid is important, it should be on the torch and hose connection fitting by an arrow and/or color-coded label Out. It should be used not interchangeable connector; --- When using a predetermined flow rate, even if there is an impact or flow pipe blockage, torch coolant hoses, pipes and fittings should also be Holding no leakage, taking into account also the hose heat and the impact of possible radiation and ultraviolet radiation. Coolant Importers and bending angle of the torch connections --- torch body should be as small as possible, joints should be taken at least basic insulation measures Shi, torch body to reduce the likelihood of electrical breakdown. b) Electrical characteristics. --- Torch high pressure hose shall be of insulating material, and its length should limit the leakage current is less than 10mA; --- When the cooling circuit is disconnected or flow is below a predetermined value, the torch should be automatically cut off the power supply; --- The operator should be able to close the cooling circuit control and monitoring devices to read them and take the necessary number is shown if necessary Measures. 4.1.7 manifold The following specific requirements apply to pneumatic equipment. a) General characteristics. --- Should comply with the safety rules for the use of high-pressure gas container industry, taking into account the ongoing work of the country of installation procedures; b) Mechanical properties. --- Gas hose fixed or manual operation of the device shall be of sufficient length, flexible and suitable radius of curvature (if any), To withstand the high pressure gas generated by certain restrictions and allows the operator to manually torch; --- Intake hose shall be designed to withstand the pressure required to achieve a predetermined flow rate, due to its strength should not be occasional or long-term exposure to heat Hot particles or material significantly decreased. Their heat and UV radiation should meet under normal operating conditions Claim; --- Gas hose and pipe connections with fixed fittings shall withstand the gas pressure in the pipeline when the resulting blockage. c) Electrical Characteristics. --- Torch high pressure hose shall be of insulating material, its length should be able to limit the leakage current of less than 10mA; --- When pneumatics shutdown or gas torch minimum flow specified by the manufacturer does not meet the safety devices should be able to prevent the torch ignition; --- The operator should be able to be close to the gas pipeline control and monitoring devices, so that when they need to read the indication. d) Other features. --- Compressed gas container mounted plasma torch using the vicinity should be protected to prevent possible overheating, discharge and hot Sputtered material. Portable compressed gas container should also take similar precautions. 4.1.8 squib The following specific requirements apply to the ignition device. a) high-frequency ignition device. --- High-voltage protection should be consistent with the current regulations of the country of installation. b) short-circuit ignition device. --- Typically use high-pressure hydraulic cylinders to move the device. Of the cooling circuit requirements apply equally to the device; --- Should be non-flammable and biodegradable hydraulic medium. Note. the ignition means be a major source of electromagnetic radiation. 4.1.9 arc plasma system control For safety reasons, there should be more emergency button to cut off the circuit through the wiring plasma system. 4.2 induction plasma system 4.2.1 General requirements See GB 5959.1-2005. 4.2.2 Circuit See Chapter 6 GB 5959.1-2005. In addition, GB 5959.1-2005 6.4.1 applies to the entire device. 4.2.3 Power 4.2.3.1 Power Ground Supply should be independent of the main system grounding wire grounding wire to ground, to avoid possible leakage path, as indicated by the control circuit formed by the torch path. 4.2.3.2 Power connection with torch You should consider the following requirements. a) Actions should be enclosed in a Faraday cage to reduce electromagnetic radiation and prevent operator access high-voltage terminals. If the torch cover is opened, Interlocking signals should cut off the pressure; b) high-voltage terminal should be grounded to the housing when released when the torch or Faraday cage open or shut off the RF generator may be stored in a capacitor Where the residual charge (see 6.2.4 in GB 5959.1-2005). 4.2.4 torch sockets, plugs and connection cables You should consider the following requirements. --- Between electrical terminal leads and between them and the ground terminal should have sufficient distance to prevent arcing; --- To use water-cooled conductor, 6.6 GB 5959.1-2005 is applicable; --- Avoid conductor tensile stress and small bending radius. 4.2.5 torch High-temperature gas, high pressure (usually) and liquid cooling (generally. the design of any induction plasma torch has the following salient features Water). Therefore, for safe operation, the torch design and structure should meet the following criteria. a) Electrical Characteristics. --- Designed for the voltage between the same parts in the operation of the electrical connection should be fixed; --- Torch in structure or ferromagnetic metal should not be used within a Faraday cage; --- Induction coil and torch body should be sufficiently insulated or Faraday cage. b) Coolant features. --- Cooling circuit design and the resistivity of the coolant should ensure that the required runtime insulation; --- Should prevent the torch route coolant into the torch chamber. If you run the torch into the leakage cavity (accidents or normal wear and tear), should make this Accident kept under control; --- GB 5959.1-2005 6.6 apply. 4.2.6 cooling circuit The following specific requirements for cooling equipment. a) Mechanical properties. --- Cooling hose is connected to the torch should be non-conductive and non-ferromagnetic material. --- If the flow direction of the cooling liquid is important, it should be on the torch and hose connection fitting by an arrow and/or color-coded label Out. Use non-interchangeable connectors. --- When using a predetermined flow rate, even if there is an impact or flow pipe blockage, torch coolant hoses, pipes and fittings should also be Holding no leakage, it should also consider the impact of the hose and possible heat radiation and ultraviolet radiation. b) Electrical characteristics. --- GB 5959.1-2005 6.6 applies; --- Hose length should be appropriate to limit the leakage current; --- When the torch cooling flow is below a predetermined level of safety and/or temperature exceeds a predetermined safety level, it should be cut off automatically torch power supply; --- The operator should be able to close the cooling circuit control and monitoring devices to read them and take the necessary number is shown if necessary Measures. 4.2.7 manifold The following specific requirements apply to pneumatic equipment. a) General characteristics. --- Should comply with the safety rules for the use of high-pressure gas container industry, taking into account existing work rules of the country of installation. b) Mechanical properties. --- Means of gas hose should be of sufficient length, flexible and suitable radius of curvature (if any) to withstand high pressure gas Produced by certain restrictions; --- Intake hose shall be designed to withstand the pressure required to achieve a predetermined flow rate, due to its strength should not be occasional or long-term exposure to heat Hot particles or material significantly reduced. Their heat and UV radiation should meet under normal operating conditions Claim; --- Gas hose and pipe connections with fixed fittings shall withstand the gas pressure in the pipeline when the resulting blockage. c) Electrical Characteristics. --- Hose shall be of insulating material and have a suitable length to limit the leakage current; --- Hose should be non-ferromagnetic material to prevent electromagnetic coupling; --- When pneumatics shutdown or gas torch minimum flow specified by the manufacturer does not meet the safety devices should be able to prevent the torch ignition; --- The operator should be able to close the gas path control and monitoring devices in order to read them shows the number of hours required. d) Other features. --- Compressed gas container mounted plasma torch using the vicinity should be protected to prevent possible overheating, discharge and hot Sputtered material. Portable compressed gas container should also take similar precautions. 4.2.8 squib The following specific requirements apply to th......Tips & Frequently Asked Questions:Question 1: How long will the true-PDF of GB 5959.5-2014_English be delivered?Answer: Upon your order, we will start to translate GB 5959.5-2014_English as soon as possible, and keep you informed of the progress. The lead time is typically 1 ~ 3 working days. The lengthier the document the longer the lead time.Question 2: Can I share the purchased PDF of GB 5959.5-2014_English with my colleagues?Answer: Yes. The purchased PDF of GB 5959.5-2014_English will be deemed to be sold to your employer/organization who actually pays for it, including your colleagues and your employer's intranet.Question 3: Does the price include tax/VAT?Answer: Yes. Our tax invoice, downloaded/delivered in 9 seconds, includes all tax/VAT and complies with 100+ countries' tax regulations (tax exempted in 100+ countries) -- See Avoidance of Double Taxation Agreements (DTAs): List of DTAs signed between Singapore and 100+ countriesQuestion 4: Do you accept my currency other than USD?Answer: Yes. If you need your currency to be printed on the invoice, please write an email to Sales@ChineseStandard.net. In 2 working-hours, we will create a special link for you to pay in any currencies. Otherwise, follow the normal steps: Add to Cart -- Checkout -- Select your currency to pay.Question 5: Should I purchase the latest version GB 5959.5-2014?Answer: Yes. Unless special scenarios such as technical constraints or academic study, you should always prioritize to purchase the latest version GB 5959.5-2014 even if the enforcement date is in future. Complying with the latest version means that, by default, it also complies with all the earlier versions, technically. |
