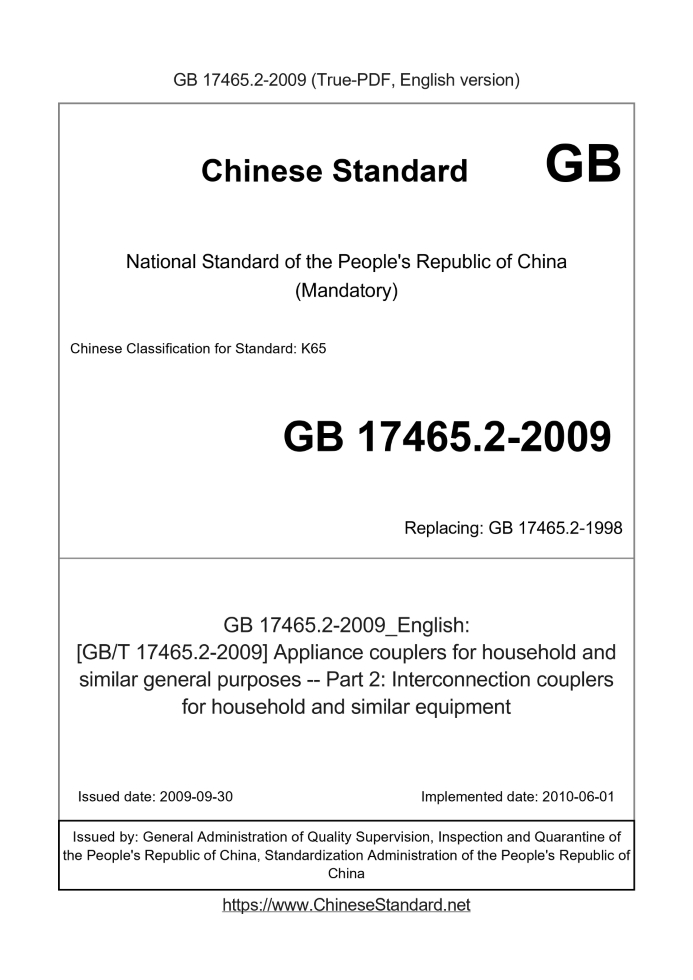

GB 17465.2-2009 English PDFGB 17465.2: Historical versions
Basic dataStandard ID: GB 17465.2-2009 (GB17465.2-2009)Description (Translated English): [GB/T 17465.2-2009] Appliance couplers for household and similar general purposes -- Part 2: Interconnection couplers for household and similar equipment Sector / Industry: National Standard Classification of Chinese Standard: K65 Classification of International Standard: 29.120.30 Word Count Estimation: 35,369 Date of Issue: 2009-09-30 Date of Implementation: 2010-06-01 Older Standard (superseded by this standard): GB 17465.2-1998 Quoted Standard: GB/T 1182; GB 17465.1-2009; IEC/TR 60083-1997; IEC 60906 Adopted Standard: IEC 60320-2-2-1998, MOD Regulation (derived from): Announcement of Newly Approved National Standards No. 10 of 2009 (No. 150 overall) Issuing agency(ies): General Administration of Quality Supervision, Inspection and Quarantine of the People's Republic of China, Standardization Administration of the People's Republic of China Summary: This Chinese standard applies to household and similar appliances or equipment, communication poles, with or without ground contacts ground contacts Interconnection couplers, used at the rated voltage not exceeding 250 V, rated current not exceeding 16 A, M (rate of 50 Hz or 60 Hz AC power, the power coupler is used to interconnect to its matching electrical appliances or equipment. GB 17465.2-2009: [GB/T 17465.2-2009] Appliance couplers for household and similar general purposes -- Part 2: Interconnection couplers for household and similar equipment---This is a DRAFT version for illustration, not a final translation. Full copy of true-PDF in English version (including equations, symbols, images, flow-chart, tables, and figures etc.) will be manually/carefully translated upon your order. Appliance couplers for household and similar general purposes.Part 2. Interconnection couplers for household and similar equipment ICS 29.120.30 K65 National Standards of People's Republic of China Replacing GB 17465.2-1998 Household and similar appliances couplers Part 2. Household and similar equipment interconnection couplers (IEC 60320-2-2.1998, MOD) Posted 2009-09-30 2010-06-01 implementation Administration of Quality Supervision, Inspection and Quarantine of People's Republic of China Standardization Administration of China released Table of ContentsIntroduction Ⅲ Introduction Ⅴ 1 Scope 1 2 Normative references 1 3 Terms and definitions 4 2 General requirements 5 General notes 2 6 Standard Rating 2 7 Category 2 8 mark 3 9 Dimensions and interchangeability 4 10 5 Protection against electric shock 11 grounding 5 12 Terminals and terminations 5 13 Structure 6 14 moisture 7 15 Insulation resistance and electric strength 7 16 connector insertion and removal force required 7 8 work 17 contacts 18 for hot conditions or appliance couplers for very hot conditions the heat resistance of 8 19 Breaking capacity 8 20 Normal operation 9 21 temperature 9 22 and its connecting cord 10 Mechanical strength 23 10 24 heat-resistant and anti-aging properties 11 25 Screws, current-carrying parts and connections 11 26 creepage distances, clearances and distances through insulation 11 27 heat-resistant insulating material, fire resistance and electrical traces of 12 28 rust 12 29 Electromagnetic compatibility (EMC) requirements 12 Standard Binder Class A Ⅰ equipment 2.5A plug connector (limited to non-rewirable type) 13 Standard Binder Class B Ⅰ equipment 2.5A appliance outlet 14 Binder C Ⅱ class standard equipment 2.5A plug connector (limited to non-rewirable type) 15 Standard sheets D Ⅱ class equipment 2.5A appliance outlet 16 E Ⅰ standard sheet-type device with a 10A plug connector 17 Standard sheet Class F Ⅰ equipment 10A appliance outlet 18 Standard leaflet G Ⅱ class equipment 10A plug connector (limited to non-rewirable type) 19 Standard sheet H Ⅱ class equipment 10A appliance outlet 20 Standard sheet Class I Ⅰ equipment 16A plug connector 21 Standard Binder Class J Ⅰ equipment 16A appliance outlet 22 Binder K Ⅱ class standard equipment 16A plug connector 23 Standard sheet L Ⅱ class equipment 16A appliance outlet 24ForewordGB 17465 all the technical content of this section is mandatory. GB 17465 "Household and similar appliances couplers" is divided into the following sections. Part 1. General requirements (GB 17465.1) Part 2. Particular requirements (GB 17465.2 ~ GB 17465.4) --- Household and similar equipment Interconnection couplers --- Protection higher than IPX0 appliance couplers --- Appliance weight for engagement by a coupler This section GB 17465 Part 2 for household and similar equipment interconnection couplers. This section should cooperate with the GB 17465.1 use. The partial modification of the use of IEC 60320-2-2.1998 Part (2nd Edition) "Household and similar appliances couplers 2-2. Household and Similar equipment interconnection couplers General requirements. " IEC 60320-2-2.1998 with the IEC 60320-1.1994 (first edition) supporting the use. Since the revised IEC standard speed, According to the national standard GB 17465.1-2009 has IEC 60320-1.2007 (Version 2.1) revision, so there use different versions of the problem, To make the series of standards supporting the use of more sophisticated, reasonable and based on this part of IEC 60320-1.2007 modification using IEC 60320-2- 2.1998. This part of IEC 60320-2-2.1998 The main differences are as follows. 1) on the use of ambient temperature. Some areas of the subtropical climate, high ambient temperature, according to China's geographical and climatic features in this section Regulation Fixed interconnection couplers ambient temperature "usually not more than 35 ℃, but occasionally reach 40 ℃". IEC 60320-2-2 in Regulation Fixed. Interconnection couplers operating ambient temperature "usually not more than 25 ℃, but occasionally reach 35 ℃". 2) In order to correspond with GB 17465.1-2009 standard, 8.6 ground terminal symbols, increase circled ground symbol. 3) In order to correspond with GB 17465.1-2009 standards and comply with the basic principles of product testing, increasing 16.3, the minimum withdrawal force Test method to assess a single pin gauge. 4) According to GB/T 5023-2008 "rated voltage 450/750V and below PVC insulated cables," the provisions of the cord type As 60227IEC 53 of 3 × 0.75mm2, the maximum diameter of 8.0mm to 7.6mm; 3 × 1.0mm2, the maximum diameter The 8.4mm to 8.0mm; 3 × 1.5mm2, by the maximum diameter of 9.8mm to 9.4mm. 5) According to GB/T 5013-2008 "rated voltage 450/750V and below rubber insulated cables," the provisions of the cord of type 60245IEC 53 of 3 × 0.75mm2, the maximum diameter of 8.8mm to 8.1mm; 3 × 1.0mm2, by the maximum diameter 9.2mm to 8.5mm; 3 × 1.5mm2, by the maximum diameter of 11.0mm to 10.4mm. 6) Because IEC 60536.1997 corresponding to our standard GB/T 12501-1990 been set aside, and just 7.1 in this section Note that the reference standard, delete the IEC 60320-2-2.1998 in reference to the standard IEC 60536.1997, delete 7.1 NOTE provisions. The standard page is just 7.1 Note. This Part replaces GB 17465.2-1998 "the second part of appliance couplers for household and similar purposes. Household and similar equipment interoperability Even coupler. " This section compared with GB 17465.2-1998, the main changes are as follows. 1) In order to facilitate to find and use, modify GB 17465.2-1998 standard sheet number name, according to IEC 60320-2-2. 1998 standard sheet attached to the name are numbered. 2) Chapter 3, delete the words "interconnection cable assembly" definition, the product cord set into the GB 15934 standards, this section All details about the interconnection wire assembly moved in GB 15934. 3) In order to correspond with GB 17465.1-2009 standard, 8.6 ground terminal symbols, increase circled ground symbol. 4) In order to correspond with GB 17465.1-2009 standard, Chapter 15, Note 1, "the body" interpretation of the word to delete "a ground terminal, connected To plug or ground contact. " 5) In order to correspond with GB 17465.1-2009 standards and comply with the basic principles of product testing, increasing 16.3, the minimum withdrawal force Test method to assess a single pin gauge. 6) Chapter 21 temperature test current to 1.25 times the rated current. 7) 23.7 plug connector having a separate front part of the package insert set of tensile test. 8) increased 23.8 pairs of the plug connector housing pressure test. 9) According to GB/T 5023-2008 "rated voltage 450/750V and below PVC insulated cables," the provisions of the cord type As 60227IEC 53 of 3 × 0.75mm2, the maximum diameter of 8.0mm to 7.6mm; 3 × 1.0mm2, the maximum diameter The 8.4mm to 8.0mm; 3 × 1.5mm2, by the maximum diameter of 9.8mm to 9.4mm. 10) according to GB/T 5013-2008 "rated voltage 450/750V and below rubber insulated cables," the provisions of the cord of type 60245IEC 53 of 3 × 0.75mm2, the maximum diameter of 8.8mm to 8.1mm; 3 × 1.0mm2, by the maximum diameter 9.2mm to 8.5mm; 3 × 1.5mm2, by the maximum diameter of 11.0mm to 10.4mm. This part is proposed by the China Electrical Equipment Industrial Association. This part of the National Electric annex Standardization Technical Committee (SAC/TC67) centralized. This section drafted by. China Electric Apparatus Research Institute, Guangdong Huasheng Electric Industrial Co., Ltd., Dongguan City Wire and Cable Co., L Division Shenzhen crown Asahi Electronics Co., Ltd., Shunde Kaihua Electric Industrial Co., Ltd., Zhejiang Yuehua Telecommunication Co., Ltd. Ningbo Economic and Technological Development Zone Haixin Electric Technology Co., Ltd. Ningbo WARE Electric Co., Volex Cable Assembly (Shenzhen) Co., Ltd., China Household Electrical Appliances RESEARCH Study hospital. The main drafters of this section. Cai Jun, Xie pillar, Qiu Hong, Wu Hai, holy dynasty, Chen Jianxiong, Zheng Guoping, Feng Yonglin, Deng Hongling, Jiayu Lin, Zhuju Tao. This part of the standard replaces the previous editions are. --- GB 17465.2-1998.IntroductionGB 17465.1-2009 in each chapter, where the article appeared, "appliance couplers", "connector" or "appliance inlet" and other words were, these words, Should be deleted, and were replaced by "Interconnection couplers", "plug connector" or "appliance outlet." Household and similar appliances couplers Part 2. Household and similar equipment interconnection couplers1 ScopeGB 17465.1-2009 replaced by the following Chapter 1. This section applies to household and similar appliances or equipment exchange poles interconnect coupled with ground contact or without ground contacts Device, which was used for rated voltage not exceeding 250V, rated current not exceeding 16A, on a frequency of 50Hz or 60Hz AC power, the coupling Clutch for power interconnection to the electrical appliance or equipment they mate with. Note. the appliance or other equipment into an integral or attached appliance or other equipment in the appliance outlet within the scope of this section belongs. This section Size and general requirements applicable to such appliance outlet, but some tests may not apply. Of the plug connector requirements, based on the following assumptions, namely. insert sleeve corresponding appliance outlet temperature does not exceed 65 ℃ (Supercooling). Comply with this part of the interconnection couplers suitable for use in the usually not more than 35 ℃, but occasionally reaches 40 ℃ 1) ambient temperature. Meet the standard requirements of this loose-leaf interconnect coupler is used as the moisture required no special apparatus or equipment interconnection; if used Other appliances or equipment interconnection, or as in normal use will be affected overflowing interconnection couplers appliance or equipment, there must be Additional requirements. NOTE. The following situations may require special structure. --- In place special conditions, for example, ship, vehicle fine similar establishments; --- In dangerous places, for example, where an explosion may occur.2 Normative referencesThe following documents contain provisions which, through reference in this Part of GB 17465, constitute provisions of this part. For dated reference documents Member, all subsequent amendments (not including errata content) or revisions do not apply to this section, however, encouraged to reach under this section Parties to research agreement to use the latest versions of these documents. For undated reference documents, the latest versions apply to this section. GB/T 1182 Geometrical product specifications (GPS) geometric tolerances of form, orientation, location and runout tolerancing (GB/T 1182-2008, ISO 1101.2004, IDT) GB 17465.1-2009 Appliance couplers for household and similar purposes - Part 1. General requirements (IEC 60320-1.2007, MOD) IEC /T R60083.1997 IEC member countries standardized plug socket for household and similar purposes 2) IEC 60906 (all parts) IEC series for household and similar use plug and socket 1) in some areas of the subtropical climate, taking into account the most severe cases, the provision of interconnection couplers ambient temperature "usually not more than 35 ℃, but occasionally It will reach 40 ℃ behind ".IEC 60320-2-2 which stipulated the ambient temperature is" usually not more than 25 ℃, but occasionally reach 35 ℃ ". Empathy. 2) the type of plug dimensions shall comply with GB 1002 and GB 1003.3 Terms and DefinitionsGB 17465.1-2009 Chapter 3 as follows after the changes apply. Line 3 should read. "Annex" the term refers to the general term includes a plug connector and/or appliances, including outlet. Increasing the definition. 3.101 It can optionally be connected to the appliance or equipment with another appliance or equipment connected to cable or cord or to both disconnected coupler. Interconnection couplers consists of two parts. --- Plug connector, the flexible cable or cord with integral or fixed to a flexible cable or cord portions; --- Appliance outlet, and an appliance or equipment that is integral or attached inside the appliance or equipment, or fixed to the appliance or equipment, And so part of the appliance or equipment to obtain power. Note. The appliance or equipment into an integrated appliance outlet (the shroud and bottom of) the housing is composed of one appliance or equipment. Mounted appliance or equipment in the Appliance outlet is an appliance installed in a separate appliance or equipment or fixed to the appliance or equipment outlet.4 General requirementsChapter 4 GB 17465.1-2009 make changes after the following apply. Interconnection couplers shall ensure that the design and construction of safety and reliability in normal use, the user and the surrounding environment is not dangerous. Compliance is checked by carrying out all the provisions of the relevant test to test. General Description 5 tests Chapter 5 GB 17465.1-2009 make changes after the following apply. 5.4 with the following. Unless otherwise specified, the plug connector and the appliance outlet and comply with this part of the corresponding appliance outlet Or tested with the plug connector. 5.5 to read. For appliance outlet, requiring six samples, of which three were used in addition to Chapter 14, Chapter 15, Chapter 16, Chapter 19, Chapter 20 Test and test outside the Chapter 21 provisions; the remaining three were for Chapter 14, Chapter 15, Chapter 16, Chapter 19, Chapter 20 And Chapter 21 of the test (including 16.2 retest). For plug connectors requires nine samples, three of which were used to Chapter 14, Chapter 15, Chapter 17, 22.4 and 24.2 of the regulations except Given test outside the test; the other three used for Chapter 14, Test Chapters 15 and 17 of Chapter 3 used for the last 22.4 test. Rubber plug connector or similar material, requires two additional samples to test 24.2.1. Polyvinyl chloride (PVC) or similar material of the plug connector, requires two additional samples to test 24.2.3. Thus, the total number of sample plug connectors as follows. Number of material samples manufactured plug connector Rigid insulation material PVC, rubber or similar material6 Standard ratingsGB 17465.1-2009 Chapter 6 as follows after the changes apply. 6.2 to read. Standard rated current section 9.1 of the present regulations, is 2.5A, 10A and 16A. Category 7 GB 17465.1-2009 Chapter 7 after following applies for changes. 7.1 to read. Interconnection couplers according to the type of connected device or appliance category. --- Class Ⅰ equipment interconnection couplers; Interconnection couplers --- Ⅱ type of equipment used. 7.2 to read. Plug connector also by cable or cord connection method classification. --- Rewirable plug connector; --- Non-rewirable plug connectors.8 flagGB 17465.1-2009 Chapter 8 as follows after the changes apply. 8.1 to read. Plug connector shall be marked. --- Rated current (A); --- Rated voltage (V); --- Symbol for nature of supply; --- Manufacturer or responsible vendor's name, trade mark or identification mark; ---model. Note. The model may be a catalog number. 8.2 to read. Not with the appliance or equipment into an integrated appliance outlet shall be marked with. --- Manufacturer or responsible vendor's name, trademark or identification mark, and --- Model offered after the appliance outlet properly installed or when mated with a plug connector should be invisible. Note. The model may be a catalog number. 8.3 to read. Ⅱ type of equipment used in the plug connector and the appliance outlet shall not be marked with the symbol Ⅱ class structure. 8.5 to read. 8.1 mark prescribed in the plug connector has been connected lines available, should be clearly legible. Note. The "ready to use" the term does not refer to the plug connector is plugged into the output socket on the appliance. 8.6 to read. Irreversible insertion of the plug connector contacts should be by observing the position of the plug connector mating face is determined, the position of the contacts arranged as follows. Ground contact. the middle of the top; Phase contact line. bottom left; Neutral contact. lower right. Irreversible insertion of the plug connector terminals can approach shall be as follows stitches, he said. Earthing terminal. the symbol or representation; Neutral terminal. by the letter N. Non-rewirable irreversible insertion of the plug connector contacts do not need to have a sign, but the core must be connected according to the provisions of 22.1. And comply with the requirements of this plug connector for use with, not as a whole or is not installed in the appliance or device in the appliance or device The appliance outlet, there must be corresponding to the section of the terminal markings. Symbol or letter signs shall mark the screw, washer, or other removable parts detachable. NOTE. The reason the requirements terminal markings and connected wires, is to make it with appliance couplers corresponding requirements consistent. Appliance couplers for requests, Taking into account the requirements of the polarity of the power supply system and the use of IEC plug and socket system (see IEC Publication 906).9 Dimensions and interchangeabilityGB 17465.1-2009 Chapter 9, the following changes made after apply. 9.1 to read. Interconnection couplers shall comply with the following requirements relating to the standard sheets, except as permitted by 9.6. Class Ⅰ equipment used 2.5A250V Interconnection couplers. --- A plug connector Fig. --- Appliance outlet Figure B Ⅱ type of equipment used 2.5A250V Interconnection couplers. --- Plug connector Figure C --- Appliance outlet Figure D Class Ⅰ equipment used 10A250V Interconnection couplers. --- Plug connector Figure E --- Figure F appliance outlet Ⅱ type of equipment used 10A250V Interconnection couplers. --- Plug connector Figure G --- Appliance outlet Figure H Class Ⅰ equipment used 16A250V Interconnection couplers. --- Plug connector Figure I --- Appliance outlet Figure J Ⅱ type of equipment used 16A250V Interconnection couplers. --- Plug connector Figure K --- Appliance outlet Figure L Compliance is at 25 ℃ ± 5 ℃ ambient temperature by measuring and/or checking gauges. The amount of electrical accessories with the following table regulation test. Test gauge electrical accessories Figure E and G of FIG. 10A plug connector 9H Figure I and K of FIG. 16A plug connector 9M FIG. 10A appliance outlet F 101 10A appliance outlet Figure H 102 FIG. 16A appliance outlet J 103 Figure L of FIG. 16A appliance outlet 104 9.2 to read. For holding the plug connector in the appliance outlet in the device, if any, shall comply with the relevant standard sheets (loose-leaf under consideration) of Claim. 9.3 to read. Between the plug connector and the appliance outlet pole connection it should be impossible. Appliance outlet should not be in line with the IEC /T R60083. plug incorrectly connected 1997 requirements. Plug connector can not be the same as a line with IEC /T R6......Tips & Frequently Asked Questions:Question 1: How long will the true-PDF of GB 17465.2-2009_English be delivered?Answer: Upon your order, we will start to translate GB 17465.2-2009_English as soon as possible, and keep you informed of the progress. The lead time is typically 4 ~ 6 working days. The lengthier the document the longer the lead time.Question 2: Can I share the purchased PDF of GB 17465.2-2009_English with my colleagues?Answer: Yes. The purchased PDF of GB 17465.2-2009_English will be deemed to be sold to your employer/organization who actually pays for it, including your colleagues and your employer's intranet.Question 3: Does the price include tax/VAT?Answer: Yes. Our tax invoice, downloaded/delivered in 9 seconds, includes all tax/VAT and complies with 100+ countries' tax regulations (tax exempted in 100+ countries) -- See Avoidance of Double Taxation Agreements (DTAs): List of DTAs signed between Singapore and 100+ countriesQuestion 4: Do you accept my currency other than USD?Answer: Yes. If you need your currency to be printed on the invoice, please write an email to Sales@ChineseStandard.net. In 2 working-hours, we will create a special link for you to pay in any currencies. Otherwise, follow the normal steps: Add to Cart -- Checkout -- Select your currency to pay.Question 5: Should I purchase the latest version GB 17465.2-2009?Answer: Yes. Unless special scenarios such as technical constraints or academic study, you should always prioritize to purchase the latest version GB 17465.2-2009 even if the enforcement date is in future. Complying with the latest version means that, by default, it also complies with all the earlier versions, technically. |
