FZ/T 93017-2010: Worsted carding machines
Status: Valid

FZ/T 93017: Historical versions

Standard ID	USD	BUY PDF	Lead-Days	Standard Title (Description)	Status
FZ/T 93017-2010	199	Add to Cart	3 days	Worsted carding machines	Valid
FZ/T 93017-1993	399	Add to Cart	3 days	(Worsted carding machine)	Obsolete

Similar standards

FZ/T 93048.1   FZ/T 93019   FZ/T 93015   FZ/T 93008   FZ/T 93027

Basic data

Standard ID: FZ/T 93017-2010 (FZ/T93017-2010)
Description (Translated English): Worsted carding machines
Sector / Industry: Spinning & Textile Industry Standard (Recommended)
Classification of Chinese Standard: W93
Classification of International Standard: 59.120.10
Word Count Estimation: 8,81
Date of Issue: 2010-08-16
Date of Implementation: 2010-12-01
Older Standard (superseded by this standard): FZ/T 93017-1993
Quoted Standard: GB/T 191; GB 755; GB 5226.1-2002; GB/T 7111.1; GB/T 7111.2; FZ/T 90001; FZ/T 90074; FZ/T 90089.1; FZ/T 90089.2; FZ/T 93038
Regulation (derived from): Engineering (2010) No. 115
Issuing agency(ies): Ministry of Industry and Information Technology of the People's Republic of China
Summary: This standard specifies the worsted carding machine types and basic parameters, requirements, test methods, inspection rules and signs, packaging, transportation and storage, This standard applies to be washed, mixed and preliminary open sounga oil wool, chemical fiber and hybrid fiber carding into a certain unit weight worsted carding machine tops.

FZ/T 93017-2010: Worsted carding machines

---This is a DRAFT version for illustration, not a final translation. Full copy of true-PDF in English version (including equations, symbols, images, flow-chart, tables, and figures etc.) will be manually/carefully translated upon your order.

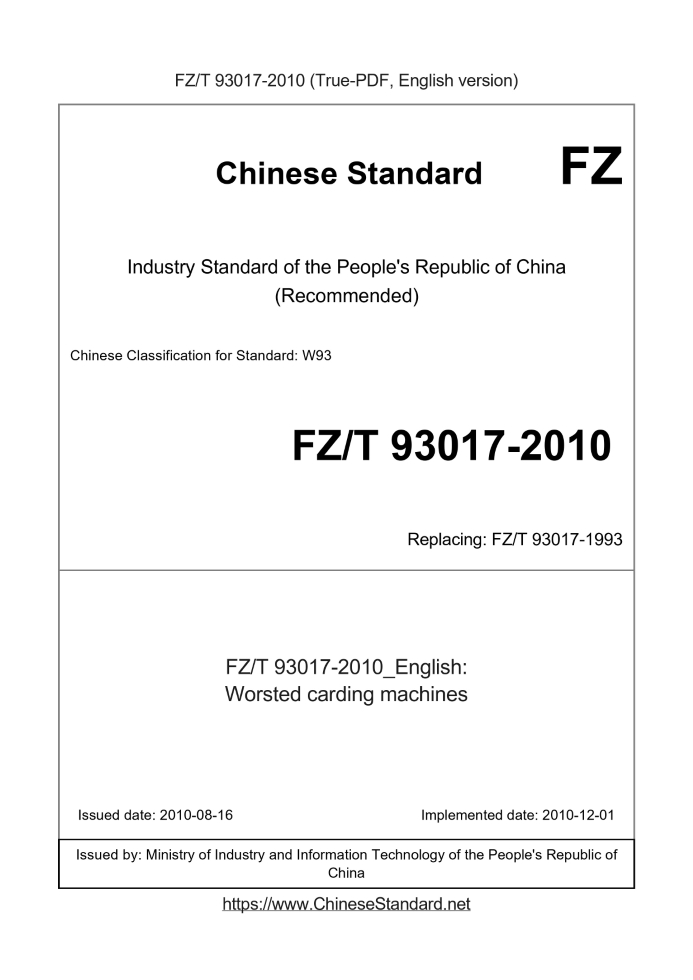

Worsted carding machines ICS 59.120.10 W93 People's Republic of China textile industry standards Replacing FZ/T 93017-1993 Worsted carding machine Issued on. 2010-08-16 2010-12-01 implementation Ministry of Industry and Information Technology of the People's Republic of China released

Foreword

Instead of the standard FZ/T 93017-1993. Compared with this standard FZ/T 93017-1993, the main differences are as follows. --- Cylinder increase in the width of the basic parameters "2000mm" width specification, and a corresponding increase in the width of 2000mm corresponding parameters (see Table 1); --- Cylinder speed (theoretical) to "cylinder design speed ≥160" (see Table 1); --- Astoria speed (theoretical) to "delivery speed" (see Table 1); --- Add "a sort ≥9 number of points" (see Table 1); --- Chopper speed was changed to "≥1480" (see Table 1); --- Add "Main motor power" project (see Table 1); --- Weeding radial cylindrical roller runout tolerance of 0.08mm from the original increased to 0.06mm (see 4.3.2.1); --- Cylinder radial runout tolerance of the outer barrel from the original increased to 0.08mm 0.06mm (see 4.3.3.1); --- Randolph radial cylindrical barrel runout tolerance of 0.10mm from the original increased to 0.08mm (see 4.3.4.1); --- Add "electronic gross weight unevenness feed bucket ≤2.0%" (see 4.10.2); --- Other editorial changes. The standard proposed by China Textile Industry Association. This standard by the National Standardization Technical Committee Textile machinery and accessories. This standard by Qingdao East-kai Textile Machinery (Group) Co., Ltd., China Textile Machinery Association, Lanzhou University, Xi'an big project Science is responsible for drafting. The main drafters of this standard. discipline combined together, Ms. Li, Jiang Shaojun, Zhang was Kun, Wang Wei. This standard replaces the standards previously issued as follows. --- FJ/JQ194-1988; --- FZ/T 93017-1993. Worsted carding machine

1 Scope

This standard specifies the types and basic parameters worsted carding machine, requirements, test methods, inspection rules and signs, packaging, transportation and storage. This standard applies to wash, mixed and preliminary open Songane oil wool, chemical fiber and hybrid fiber carding wool into a certain weight unit Article worsted carding machine.

2 Normative references

The following documents contain provisions which, through reference in this standard and become the standard terms. For dated references, subsequent Amendments (not including errata content) or revisions do not apply to this standard, however, encourage the parties to the agreement are based on research Whether the latest versions of these documents. For undated reference documents, the latest versions apply to this standard. GB/T 191 Packaging - Pictorial signs GB 755 rotary motor fixed and performance GB 5226.1-2002 Safety of machinery electrical equipment Part 1. General requirements GB/T 7111.1 Textile machinery - Noise test code - Part 1. General requirements GB/T 7111.2 Textile machinery - Noise test code - Part 2. spinning preparatory and spinning machinery FZ/T 90001 Textile machinery Packaging FZ/T 90074 textile machinery products Painting FZ/T 90089.1 textile machinery nameplate types, sizes and technical requirements FZ/T 90089.2 textile machinery nameplate content FZ/T 93038 carding machine rack

3 Types and basic parameters

Types and basic parameters in Table 1. Table 1 The basic parameters of the project Type the upstream half of the week formula Cylinder width/mm 1550 2000 Feed weighing type (mechanical, electronic), the volume Feeding times/(times/min) 2.5 ~ 3.5 The total draw ratio of 47 to 11 747 to 125 Design cylinder speed/(r/min) ≥160 Carding points/month ≥9 Weeding points/3 points to 4 (where Morel herbicidal points 1-2) Chopper design speed/(times/min) mechanical chopper ≥1480, electromagnetic chopper ≥2000 Strips type coiler Delivery speed/(m/min) 37 ~ 90 37 ~ 116 The weight of the bar/(g/m) 15 ~ 20 15 ~ 25 Main motor power/kW 5.5,7.5 7.5 ......
