YY/T 0609-2018: General specifications of medical diagnostic X-ray tube assemblies Delivery: 9 seconds. True-PDF full-copy in English & invoice will be downloaded + auto-delivered via email. See step-by-step procedure Status: Valid YY/T 0609: Historical versions

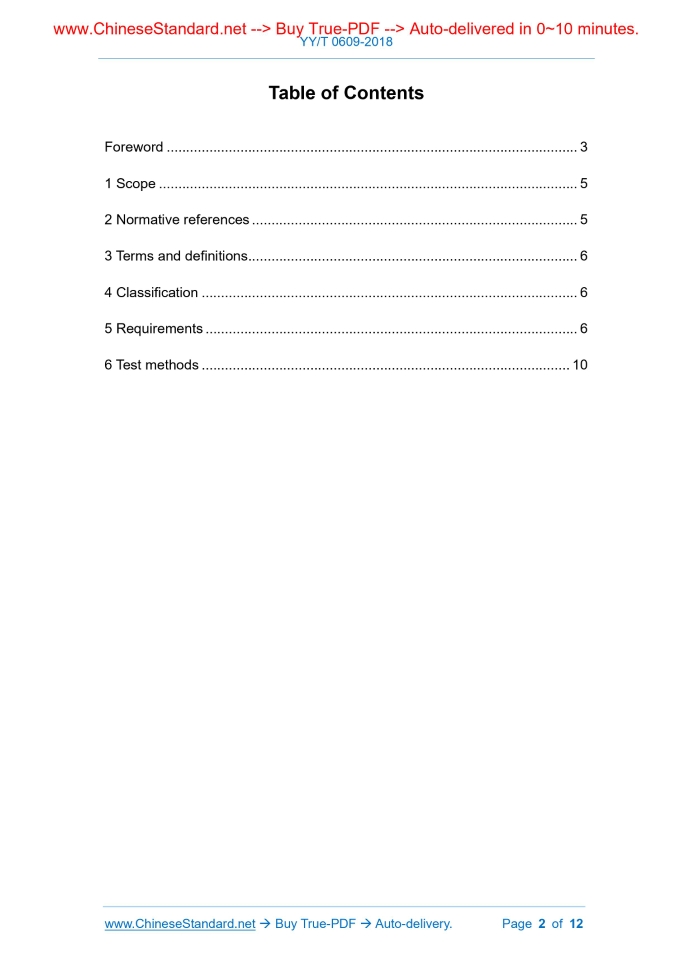

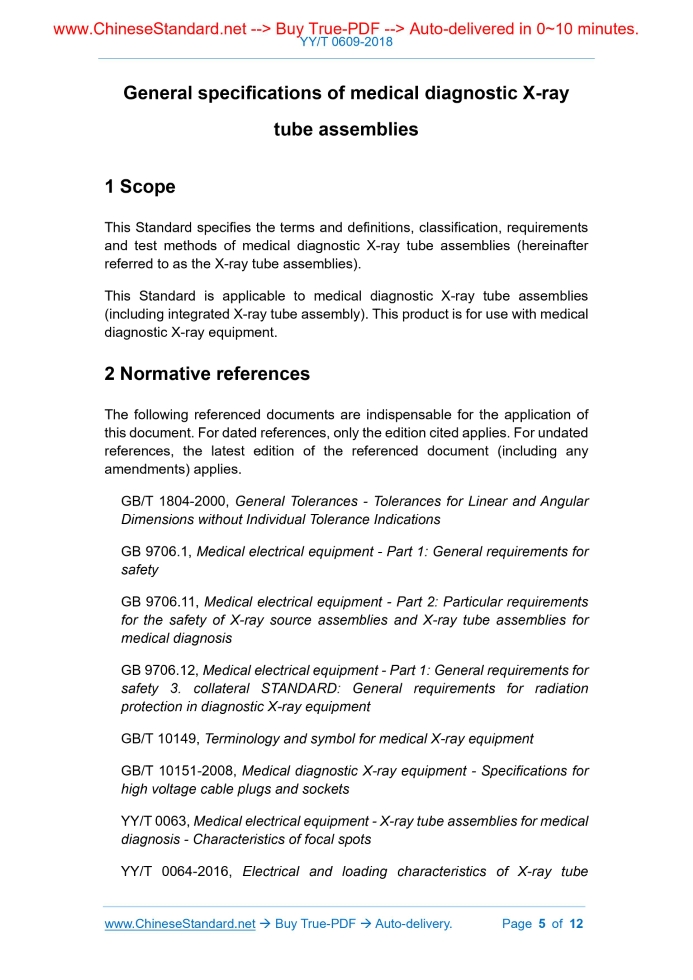

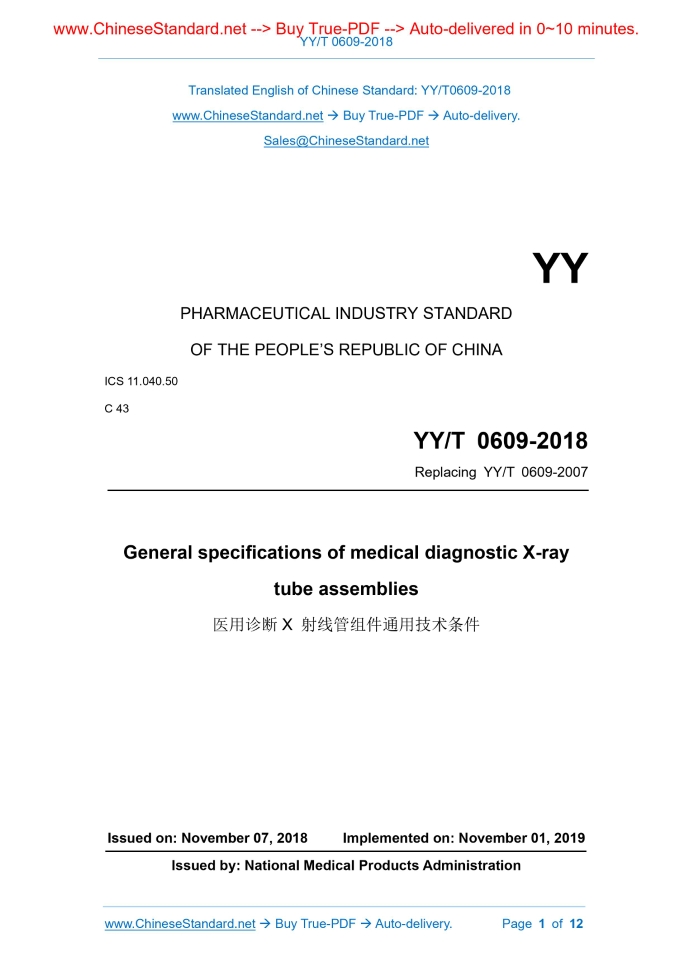

YY/T 0609-2018: General specifications of medical diagnostic X-ray tube assemblies---This is an excerpt. Full copy of true-PDF in English version (including equations, symbols, images, flow-chart, tables, and figures etc.), auto-downloaded/delivered in 9 seconds, can be purchased online: https://www.ChineseStandard.net/PDF.aspx/YYT0609-2018PHARMACEUTICAL INDUSTRY STANDARD OF THE PEOPLE’S REPUBLIC OF CHINA ICS 11.040.50 C 43 Replacing YY/T 0609-2007 General specifications of medical diagnostic X-ray tube assemblies ISSUED ON: NOVEMBER 07, 2018 IMPLEMENTED ON: NOVEMBER 01, 2019 Issued by: National Medical Products Administration Table of ContentsForeword ... 3 1 Scope ... 5 2 Normative references ... 5 3 Terms and definitions ... 6 4 Classification ... 6 5 Requirements ... 6 6 Test methods ... 10 General specifications of medical diagnostic X-ray tube assemblies1 ScopeThis Standard specifies the terms and definitions, classification, requirements and test methods of medical diagnostic X-ray tube assemblies (hereinafter referred to as the X-ray tube assemblies). This Standard is applicable to medical diagnostic X-ray tube assemblies (including integrated X-ray tube assembly). This product is for use with medical diagnostic X-ray equipment.2 Normative referencesThe following referenced documents are indispensable for the application of this document. For dated references, only the edition cited applies. For undated references, the latest edition of the referenced document (including any amendments) applies. GB/T 1804-2000, General Tolerances - Tolerances for Linear and Angular Dimensions without Individual Tolerance Indications GB 9706.1, Medical electrical equipment - Part 1: General requirements for safety GB 9706.11, Medical electrical equipment - Part 2: Particular requirements for the safety of X-ray source assemblies and X-ray tube assemblies for medical diagnosis GB 9706.12, Medical electrical equipment - Part 1: General requirements for safety 3. collateral STANDARD: General requirements for radiation protection in diagnostic X-ray equipment GB/T 10149, Terminology and symbol for medical X-ray equipment GB/T 10151-2008, Medical diagnostic X-ray equipment - Specifications for high voltage cable plugs and sockets YY/T 0063, Medical electrical equipment - X-ray tube assemblies for medical diagnosis - Characteristics of focal spots YY/T 0064-2016, Electrical and loading characteristics of X-ray tube c) Atmospheric pressure: 700hPa~1060hPa. 5.1.2 Power conditions It is powered by a specific power source. If applicable, the instruction manual shall give the requirements for the power supply. 5.2 Dimensions and wiring 5.2.1 Dimensions The instruction manual shall give the main dimensions of the X-ray tube assemblies. The unmarked tolerances of the external dimensions shall meet the requirements of Grade V in GB/T 1804-2000. 5.2.2 Wiring The instruction manual shall give the wiring diagram of the X-ray tube assemblies. 5.3 Marks The marks on the X-ray tube assemblies shall meet the requirements of "permanently attached" and "clearly identifiable" in GB 9706.1. 5.4 Focal point of the X-ray tube assemblies 5.4.1 The focal point position shall be marked on the outside of the X-ray tube assemblies. 5.4.2 The nominal value of the focal point shall be marked on the outside of the X-ray tube assemblies. The nominal value of focal point shall be the value determined in accordance with YY/T 0063. 5.5 Nominal X-ray tube voltage 5.5.1 It is specified in the instruction manual. 5.5.2 The X-ray tube components shall be marked with the nominal X-ray tube voltage on the outside. 5.6 Dielectric strength of high voltage circuits The dielectric strength of high voltage circuit of the X-ray tube assemblies shall be able to withstand 1.1 times the nominal X-ray tube voltage. There shall be no abnormal discharge for 3min, such as flashover and breakdown. - X-ray tube components, in addition to the ones that are only suitable for mammography of which the nominal X-ray tube voltage is not exceeding 50kV, the mass-equivalent filtering of X-ray tube materials in the X-ray tube components must meet the following requirements: a) Non-removable material in normal use is not less than 0.5mmAl; b) All fixed additional filters must be removed with tools; c) In special applications it shall be stated in the instruction manual. 5.12 Leakage radiation of X-ray tube components When the X-ray tube assemblies, according to continuous anode input power, are loading in nominal X-ray tube voltage, the leakage radiation at 1m from the focal point shall not exceed 0.88mGy/h. 5.13 High-voltage cable connection Unless otherwise specified in the instruction manual, the basic dimensions of the connection part between the high-voltage cable socket and the plug shall meet the requirements of 4.1.1 in GB/T 10151-2008. 5.14 Expected service life The instruction manual shall state the expected life of the X-ray tube assemblies. The expected service life shall be expressed in years or months or loading times or kilowatt-seconds (kW · s). The CT tube components can be expressed in scan seconds (ss) or scan times. If the expected service life is expressed in years or months, the basis shall be given in the instruction manual. 5.15 Appearance The X-ray tube components shall be neat, beautiful, flat, smooth and uniform in color. There must be no defects such as scars and cracks. 5.16 Accompanying documents 5.16.1 The accompanying documents shall meet the requirements for accompanying documents for X-ray tube components in GB 9706.11. 5.16.2 The accompanying documents shall also state the speed of the rotating anode, the single load quota, the series load quota. 5.16.3 The CT tube assemblies shall also specify the nominal CT scan power index in the accompanying documents. The test voltage of the high voltage circuit is loaded from 50% of the nominal X-ray tube voltage. Start timing after it gradually rises to the specified test voltage value within 10s. The X-ray tube assemblies shall have no abnormal discharge during the test. In the dielectric strength test, the test voltage shall be kept within the range of 100%~105% of the required value. And it shall be as close as possible to the specified test voltage value of 100%. During the dielectric strength test of high voltage circuits, if a slight corona discharge occurs in a high-voltage circuit but stops when the test voltage drops to 100% of the voltage indicated by the test conditions, then, this discharge phenomenon can be ignored. 6.7 Nominal anode input power 6.7.1 Nominal photographic anode input power Check the accompanying documents. The nominal photographic anode input power can be tested for the compliance with the following tests: According to the nominal photographic anode input power at the X-ray tube voltage of 100kV and the nominal X-ray tube voltage, it is carried out according to the provisions of YY/T 0064-2016; The X-ray tube components of which the nominal X-ray tube voltage is below 100kV shall be carried out at the nominal X-ray tube voltage in accordance with the provisions of YY/T 0064-2016; The test duration is not less than 20min. 6.7.2 Nominal CT anode input power Check the accompanying documents. The nominal CT anode input power can be tested for the compliance with the following tests: According to the nominal CT anode input power at the X-ray tube voltage of 120kV and the nominal X-ray tube voltage, it is carried out according to the provisions of YY/T 0064-2016. The test duration is not less than 2h. 6.8 Nominal continuous input power Check the accompanying documents. ......Source: Above contents are excerpted from the full-copy PDF -- translated/reviewed by: www.ChineseStandard.net / Wayne Zheng et al. Tips & Frequently Asked Questions:Question 1: How long will the true-PDF of English version of YY/T 0609-2018 be delivered?Answer: The full copy PDF of English version of YY/T 0609-2018 can be downloaded in 9 seconds, and it will also be emailed to you in 9 seconds (double mechanisms to ensure the delivery reliably), with PDF-invoice.Question 2: Can I share the purchased PDF of YY/T 0609-2018_English with my colleagues?Answer: Yes. The purchased PDF of YY/T 0609-2018_English will be deemed to be sold to your employer/organization who actually paid for it, including your colleagues and your employer's intranet.Question 3: Does the price include tax/VAT?Answer: Yes. Our tax invoice, downloaded/delivered in 9 seconds, includes all tax/VAT and complies with 100+ countries' tax regulations (tax exempted in 100+ countries) -- See Avoidance of Double Taxation Agreements (DTAs): List of DTAs signed between Singapore and 100+ countriesQuestion 4: Do you accept my currency other than USD?Answer: Yes. www.ChineseStandard.us -- YY/T 0609-2018 -- Click this link and select your country/currency to pay, the exact amount in your currency will be printed on the invoice. Full PDF will also be downloaded/emailed in 9 seconds.Question 5: Should I purchase the latest version YY/T 0609-2018?Answer: Yes. Unless special scenarios such as technical constraints or academic study, you should always prioritize to purchase the latest version YY/T 0609-2018 even if the enforcement date is in future. Complying with the latest version means that, by default, it also complies with all the earlier versions, technically.How to buy and download a true PDF of English version of YY/T 0609-2018?A step-by-step guide to download PDF of YY/T 0609-2018_EnglishStep 1: Visit website https://www.ChineseStandard.net (Pay in USD), or https://www.ChineseStandard.us (Pay in any currencies such as Euro, KRW, JPY, AUD).Step 2: Search keyword "YY/T 0609-2018". Step 3: Click "Add to Cart". If multiple PDFs are required, repeat steps 2 and 3 to add up to 12 PDFs to cart. Step 4: Select payment option (Via payment agents Stripe or PayPal). Step 5: Customize Tax Invoice -- Fill up your email etc. Step 6: Click "Checkout". Step 7: Make payment by credit card, PayPal, Google Pay etc. After the payment is completed and in 9 seconds, you will receive 2 emails attached with the purchased PDFs and PDF-invoice, respectively. Step 8: Optional -- Go to download PDF. Step 9: Optional -- Click Open/Download PDF to download PDFs and invoice. See screenshots for above steps: Steps 1~3 Steps 4~6 Step 7 Step 8 Step 9 |
