YB/T 5346-2006 PDF EnglishUS$70.00 · In stock · Download in 9 seconds
YB/T 5346-2006: Cold drawn special shaped steel bar Delivery: 9 seconds. True-PDF full-copy in English & invoice will be downloaded + auto-delivered via email. See step-by-step procedure Status: Valid

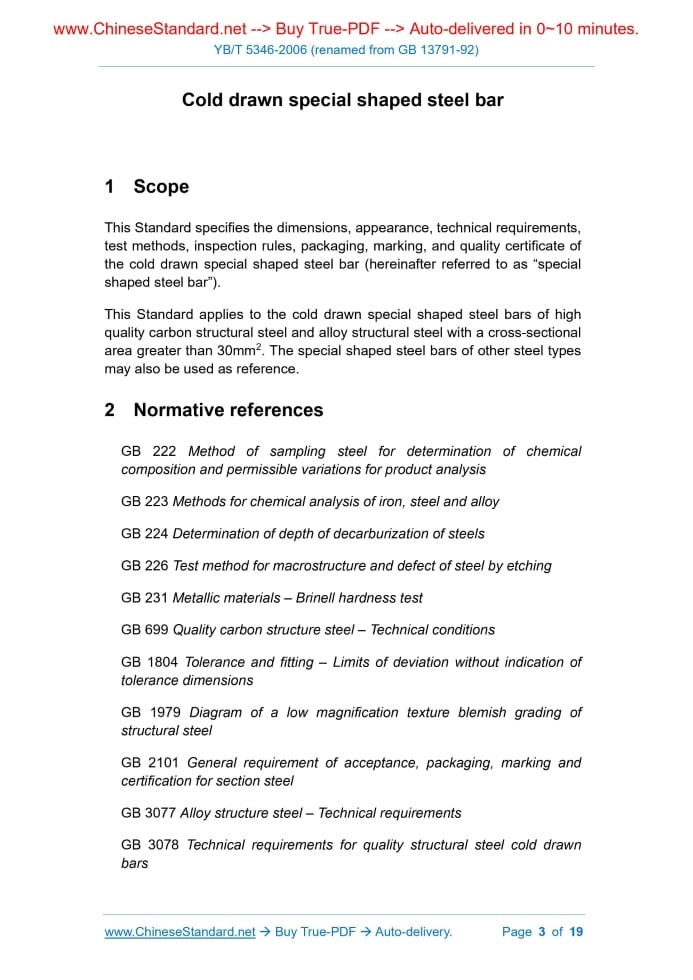

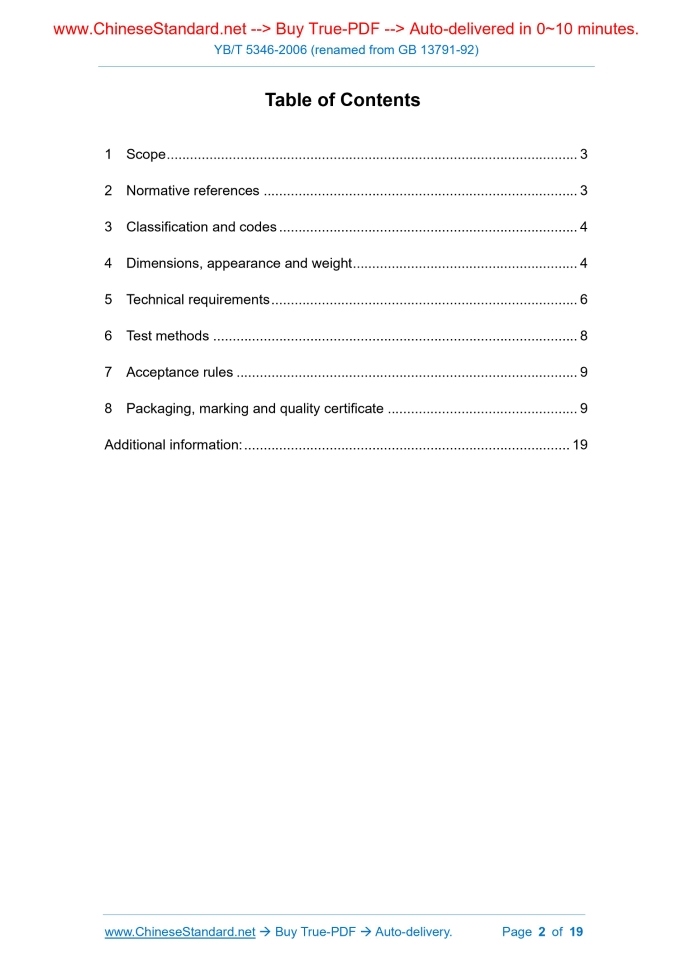

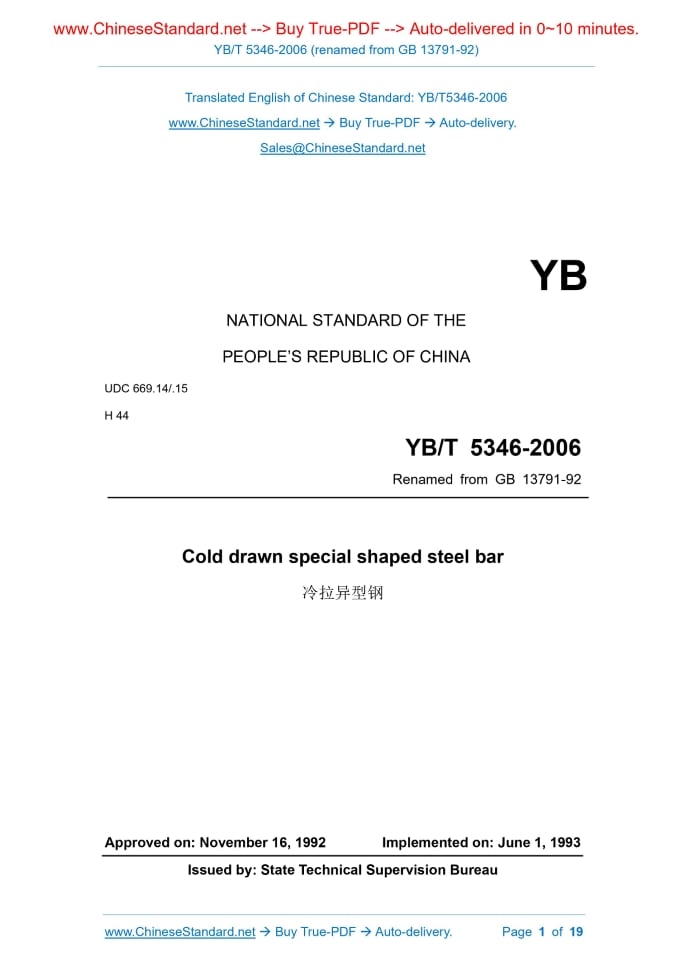

Similar standardsYB/T 5346-2006: Cold drawn special shaped steel bar---This is an excerpt. Full copy of true-PDF in English version (including equations, symbols, images, flow-chart, tables, and figures etc.), auto-downloaded/delivered in 9 seconds, can be purchased online: https://www.ChineseStandard.net/PDF.aspx/YBT5346-2006NATIONAL STANDARD OF THE PEOPLE’S REPUBLIC OF CHINA UDC 669.14/.15 H 44 YB/T 5346-2006 Renamed from GB 13791-92 Cold drawn special shaped steel bar APPROVED ON: NOVEMBER 16, 1992 IMPLEMENTED ON: JUNE 1, 1993 Issued by: State Technical Supervision Bureau Table of Contents1 Scope ... 3 2 Normative references ... 3 3 Classification and codes ... 4 4 Dimensions, appearance and weight ... 4 5 Technical requirements ... 6 6 Test methods ... 8 7 Acceptance rules ... 9 8 Packaging, marking and quality certificate ... 9 Additional information: ... 19 Cold drawn special shaped steel bar1 ScopeThis Standard specifies the dimensions, appearance, technical requirements, test methods, inspection rules, packaging, marking, and quality certificate of the cold drawn special shaped steel bar (hereinafter referred to as “special shaped steel bar”). This Standard applies to the cold drawn special shaped steel bars of high quality carbon structural steel and alloy structural steel with a cross-sectional area greater than 30mm2. The special shaped steel bars of other steel types may also be used as reference.2 Normative referencesGB 222 Method of sampling steel for determination of chemical composition and permissible variations for product analysis GB 223 Methods for chemical analysis of iron, steel and alloy GB 224 Determination of depth of decarburization of steels GB 226 Test method for macrostructure and defect of steel by etching GB 231 Metallic materials – Brinell hardness test GB 699 Quality carbon structure steel – Technical conditions GB 1804 Tolerance and fitting – Limits of deviation without indication of tolerance dimensions GB 1979 Diagram of a low magnification texture blemish grading of structural steel GB 2101 General requirement of acceptance, packaging, marking and certification for section steel GB 3077 Alloy structure steel – Technical requirements GB 3078 Technical requirements for quality structural steel cold drawn bars 4.4.1.1 The special shaped steel bars delivered in straight strips shall be generally 2~6m in length. 4.4.1.2 The special shaped steel bars with a length greater than 6m may be supplied by the agreement between the supplier and the demander. 4.4.2 Specified-length and multiple-length 4.4.2.1 When delivered in specified-length and multiple-length, the permissible variation in length shall not exceed +50mm. When delivered in specified-length and multiple-length, it shall be indicated in the contract. 4.5 Delivery weight 4.5.1 The special shaped steel bars shall be delivered according to the actual weight, and may also be delivered according to the theoretical weight. 4.5.2 The special shaped steel bars delivered without cutting heads shall be deducted from the weight of the head deformation portion by 2%. 4.6 Marking example The FD-X asymmetric section cold drawn special shaped steel bar, made of #20 high-quality carbon structural steel, with a dimensional accuracy of Grade 12, is marked as: Cold drawn special shaped steel bar5 Technical requirements5.1 Designation and chemical components The designation of the special shaped steel bar shall be indicated in the contract, and its chemical components (melting analysis) shall comply with the provisions of GB 699 and GB 3077. According to the agreement between the supplier and the demander and indicated in the contract, it may be manufactured with the designation of other steel types. 5.2 Delivery state The special shaped steel bars shall be delivered in a cold drawn state. According to the requirements of the demander, it may be delivered in a state of heat treatment (annealing, normalizing, tempering, etc.), but it shall be indicated in the contract. 5.3 Mechanical properties 6 Decarburization (Different pieces of steel) 2 GB 224 6.2 The overall dimensions and bending of the special shaped steel bar shall be measured at 150mm from the end (for the special shaped steel bars without cutting heads, the length of the head deformation portion shall be removed). 6.3 The surface defect depth of the special shaped steel bar may be inspected and determined after grinding with a grinding wheel, a file or an abrasive cloth if necessary.7 Acceptance rules7.1 Inspection and acceptance The inspection and acceptance of the special shaped steel bar shall be carried out by the technical quality supervision department of the supplier. 7.2 Batch grouping rules The special shaped steel bars shall be accepted in batches. Each batch shall consist of special shaped steel bars of the same furnace tank number, the same overall dimensions, and the same heat treatment furnace (at the time of heat treatment). 7.3 Sample size The sample size for the inspection of the special shaped steel bar shall comply with the provisions of Table 4. 7.4 Re-inspection and decision rules The re-inspection and decision rules of the special shaped steel bar shall comply with the provisions of GB 2101.8 Packaging, marking and quality certificate8.1 For special shaped steel bars, the packaging shall be in accordance with the provisions for Class I packaging of GB 2101; and the marking and quality certificate shall be in accordance with the corresponding provisions of GB 2101. 8.2 The special shaped steel bars treated by surface phosphating may also be delivered by dipping (coating) rust-preventative oil according to the requirements of the demander. ......Source: Above contents are excerpted from the full-copy PDF -- translated/reviewed by: www.ChineseStandard.net / Wayne Zheng et al. Tips & Frequently Asked Questions:Question 1: How long will the true-PDF of English version of YB/T 5346-2006 be delivered?Answer: The full copy PDF of English version of YB/T 5346-2006 can be downloaded in 9 seconds, and it will also be emailed to you in 9 seconds (double mechanisms to ensure the delivery reliably), with PDF-invoice.Question 2: Can I share the purchased PDF of YB/T 5346-2006_English with my colleagues?Answer: Yes. The purchased PDF of YB/T 5346-2006_English will be deemed to be sold to your employer/organization who actually paid for it, including your colleagues and your employer's intranet.Question 3: Does the price include tax/VAT?Answer: Yes. Our tax invoice, downloaded/delivered in 9 seconds, includes all tax/VAT and complies with 100+ countries' tax regulations (tax exempted in 100+ countries) -- See Avoidance of Double Taxation Agreements (DTAs): List of DTAs signed between Singapore and 100+ countriesQuestion 4: Do you accept my currency other than USD?Answer: Yes. www.ChineseStandard.us -- YB/T 5346-2006 -- Click this link and select your country/currency to pay, the exact amount in your currency will be printed on the invoice. Full PDF will also be downloaded/emailed in 9 seconds.How to buy and download a true PDF of English version of YB/T 5346-2006?A step-by-step guide to download PDF of YB/T 5346-2006_EnglishStep 1: Visit website https://www.ChineseStandard.net (Pay in USD), or https://www.ChineseStandard.us (Pay in any currencies such as Euro, KRW, JPY, AUD).Step 2: Search keyword "YB/T 5346-2006". Step 3: Click "Add to Cart". If multiple PDFs are required, repeat steps 2 and 3 to add up to 12 PDFs to cart. Step 4: Select payment option (Via payment agents Stripe or PayPal). Step 5: Customize Tax Invoice -- Fill up your email etc. Step 6: Click "Checkout". Step 7: Make payment by credit card, PayPal, Google Pay etc. After the payment is completed and in 9 seconds, you will receive 2 emails attached with the purchased PDFs and PDF-invoice, respectively. Step 8: Optional -- Go to download PDF. Step 9: Optional -- Click Open/Download PDF to download PDFs and invoice. See screenshots for above steps: Steps 1~3 Steps 4~6 Step 7 Step 8 Step 9 |
