YBB 00402003-2015 PDF EnglishUS$120.00 · In stock · Download in 9 seconds
YBB 00402003-2015: Aluminium-plastics Combination Caps for Infusion Bottles Delivery: 9 seconds. True-PDF full-copy in English & invoice will be downloaded + auto-delivered via email. See step-by-step procedure Status: Valid

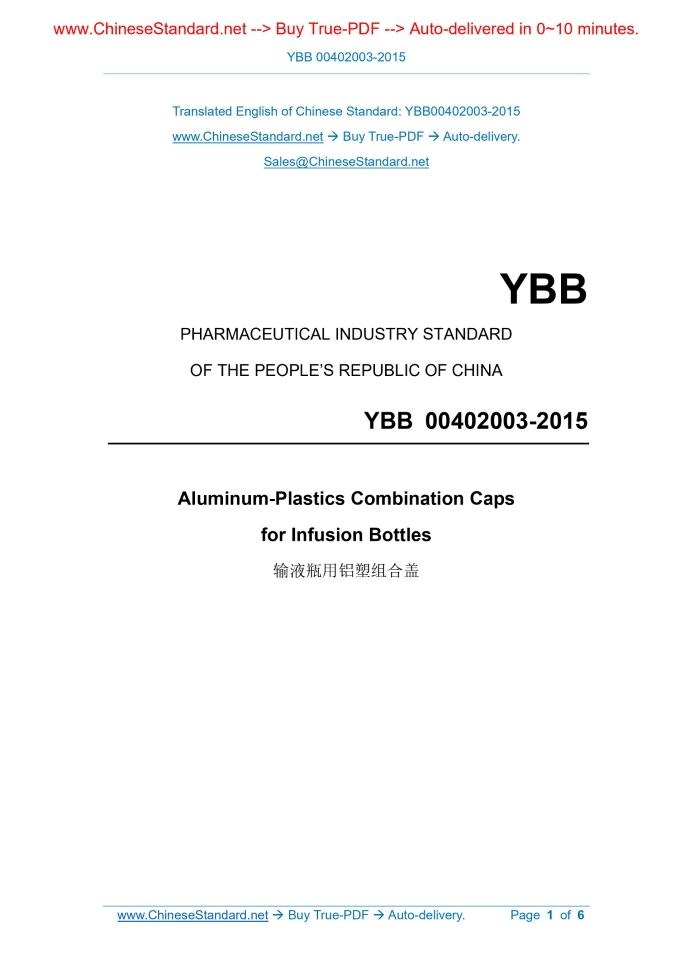

Similar standardsYBB 00402003-2015: Aluminium-plastics Combination Caps for Infusion Bottles---This is an excerpt. Full copy of true-PDF in English version (including equations, symbols, images, flow-chart, tables, and figures etc.), auto-downloaded/delivered in 9 seconds, can be purchased online: https://www.ChineseStandard.net/PDF.aspx/YBB00402003-2015YBB PHARMACEUTICAL INDUSTRY STANDARD Aluminum-Plastics Combination Caps for Infusion Bottles Aluminum-Plastics Combination Caps for Infusion Bottles This Standard is applicable to the aluminum-plastics combination caps for non- sterilized glass infusion bottles. 【Appearance】take an appropriate amount of this product; directly visually examine in a bright place with natural light. It shall be clean, free of residual lubricant, burrs, damage, and injection flash. The plastic parts shall be fully integrated with the aluminum parts. 【Mechanical properties of the aluminum part materials】* the tensile strength shall be 100~180N/mm2; elongation shall be no less than 2.0%. Tensile strength refers to the maximum tensile load on the initial cross-section per unit in the tensile test until the test specimen is broken. Elongation refers to the ratio of the increase in the distance between graticules to the initial graticule (expressed in percentage), in the tensile test, when the specimen is broken. Take an appropriate amount of aluminum sheet with the same batch number; use the tool with width (b) of 12.5mm, original gauge (L0) of 50mm, parallel length (Lc) of 75mm, transition arc radius (r) of at least 20mm to cut the specimen as shown in Figure 1. Conduct the test on the tensile device; the test speed is 10mm/min ± 2mm/min. The specimen shall stand for 4h above at the temperature of 23°C±2°C, and relative humidity of 50%±5%; and test shall be performed under the above conditions. Figure 1 -- Specimen Diagram for Mechanical Property Test Elongation shall be calculated as per the following formula. Where. Figure 3 – Opening Force Diagram Figure 4 – Type-ZD Aluminum Part Tear-Sheet Tearing Force Test Device 【Opening quality】take an appropriate amount of this product through the opening force test, and removing the plastic parts; visually examine; the opening position on the aluminum part shall be free of damage. 【Conformability】take an appropriate amount of this product; cover it onto the bottle filled with nominal capacity of water (add rubber stopper); seal with capping-machine; it shall match properly. 【Resistance to sterilization】take an appropriate amount of this product; cover it onto the bottle filled with nominal capacity of water (add rubber stopper); seal with capping-machine; after that place into the steam sterilizer; maintain for 30min at 121°C±2°C, including maintaining for 5min at 130°C±2°C. After sterilization, the plastic part of the bottle cap can withstand 130°C steam sterilizing temperature without deformation or discoloring; the surface of the aluminum part shall be free of any obvious changes. The bottle cap shall be free of breaking or abnormal deformation. 【Coating fastness】(applicable to the aluminum cap with coating on the outside surface) take an appropriate amount of this product; maintain for 30min at 121°C±2°C, including steam sterilizing for 5min at 130°C±2°C; remove the plastic part; wipe the surface with absorbent cotton dipped in 80% ethanol solution for 30s; then wipe the surface with absorbent cotton dipped in 70% isopropanol solution for 30s. The coating shall be free of any abrasion. Annex I -- Inspection Rules 1.The product inspection is divided into full inspection and partial inspection. 2.In any of the following cases, a full inspection shall be carried out in accordance with the requirements of the standard. ...... Source: Above contents are excerpted from the full-copy PDF -- translated/reviewed by: www.ChineseStandard.net / Wayne Zheng et al. Tips & Frequently Asked Questions:Question 1: How long will the true-PDF of English version of YBB 00402003-2015 be delivered?Answer: The full copy PDF of English version of YBB 00402003-2015 can be downloaded in 9 seconds, and it will also be emailed to you in 9 seconds (double mechanisms to ensure the delivery reliably), with PDF-invoice.Question 2: Can I share the purchased PDF of YBB 00402003-2015_English with my colleagues?Answer: Yes. The purchased PDF of YBB 00402003-2015_English will be deemed to be sold to your employer/organization who actually paid for it, including your colleagues and your employer's intranet.Question 3: Does the price include tax/VAT?Answer: Yes. Our tax invoice, downloaded/delivered in 9 seconds, includes all tax/VAT and complies with 100+ countries' tax regulations (tax exempted in 100+ countries) -- See Avoidance of Double Taxation Agreements (DTAs): List of DTAs signed between Singapore and 100+ countriesQuestion 4: Do you accept my currency other than USD?Answer: Yes. www.ChineseStandard.us -- YBB 00402003-2015 -- Click this link and select your country/currency to pay, the exact amount in your currency will be printed on the invoice. Full PDF will also be downloaded/emailed in 9 seconds.How to buy and download a true PDF of English version of YBB 00402003-2015?A step-by-step guide to download PDF of YBB 00402003-2015_EnglishStep 1: Visit website https://www.ChineseStandard.net (Pay in USD), or https://www.ChineseStandard.us (Pay in any currencies such as Euro, KRW, JPY, AUD).Step 2: Search keyword "YBB 00402003-2015". Step 3: Click "Add to Cart". If multiple PDFs are required, repeat steps 2 and 3 to add up to 12 PDFs to cart. Step 4: Select payment option (Via payment agents Stripe or PayPal). Step 5: Customize Tax Invoice -- Fill up your email etc. Step 6: Click "Checkout". Step 7: Make payment by credit card, PayPal, Google Pay etc. After the payment is completed and in 9 seconds, you will receive 2 emails attached with the purchased PDFs and PDF-invoice, respectively. Step 8: Optional -- Go to download PDF. Step 9: Optional -- Click Open/Download PDF to download PDFs and invoice. See screenshots for above steps: Steps 1~3 Steps 4~6 Step 7 Step 8 Step 9 |
