YBB 00332004-2015 PDF EnglishUS$110.00 · In stock · Download in 9 seconds

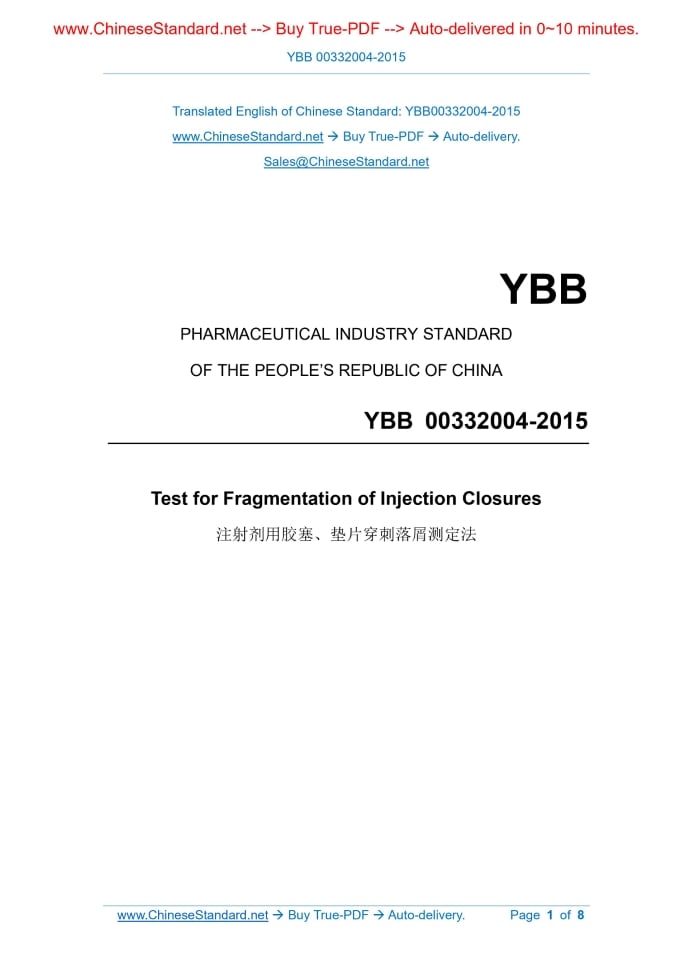

YBB 00332004-2015: Test for Fragmentation of Injection Closures Delivery: 9 seconds. True-PDF full-copy in English & invoice will be downloaded + auto-delivered via email. See step-by-step procedure Status: Valid

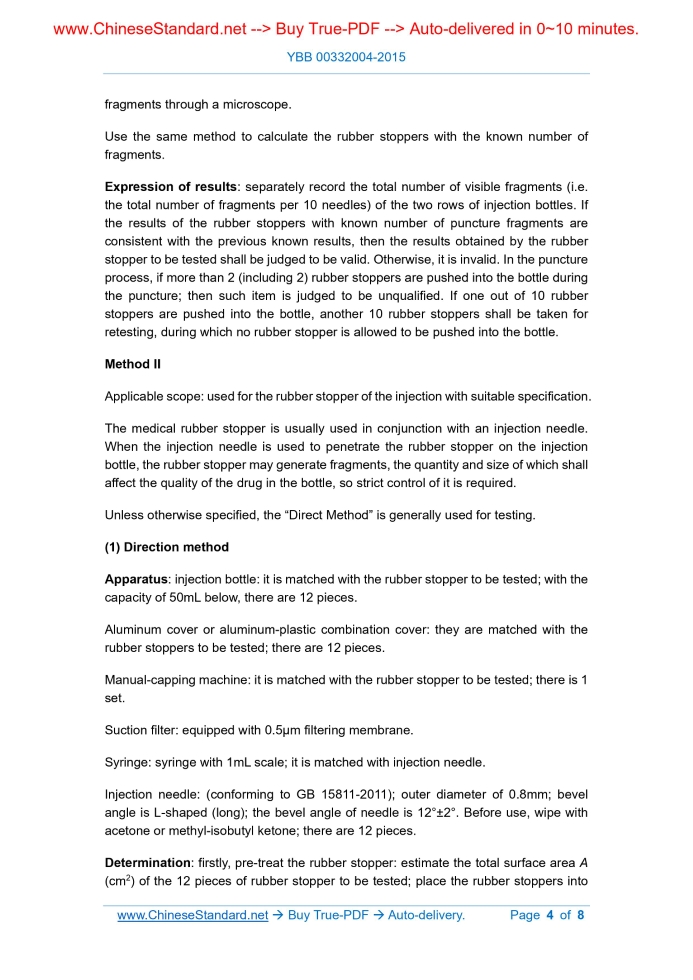

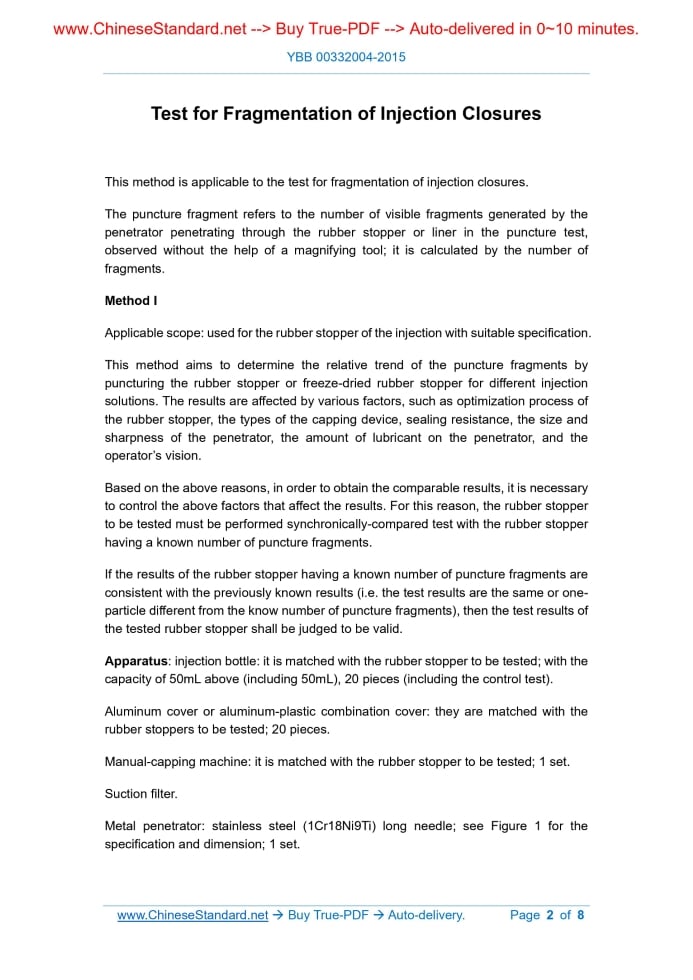

Similar standardsYBB 00332004-2015: Test for Fragmentation of Injection Closures---This is an excerpt. Full copy of true-PDF in English version (including equations, symbols, images, flow-chart, tables, and figures etc.), auto-downloaded/delivered in 9 seconds, can be purchased online: https://www.ChineseStandard.net/PDF.aspx/YBB00332004-2015PHARMACEUTICAL INDUSTRY STANDARD Test for Fragmentation of Injection Closures Test for Fragmentation of Injection Closures This method is applicable to the test for fragmentation of injection closures. The puncture fragment refers to the number of visible fragments generated by the penetrator penetrating through the rubber stopper or liner in the puncture test, observed without the help of a magnifying tool; it is calculated by the number of fragments. Method I Applicable scope. used for the rubber stopper of the injection with suitable specification. This method aims to determine the relative trend of the puncture fragments by puncturing the rubber stopper or freeze-dried rubber stopper for different injection solutions. The results are affected by various factors, such as optimization process of the rubber stopper, the types of the capping device, sealing resistance, the size and sharpness of the penetrator, the amount of lubricant on the penetrator, and the operator’s vision. Based on the above reasons, in order to obtain the comparable results, it is necessary to control the above factors that affect the results. For this reason, the rubber stopper to be tested must be performed synchronically-compared test with the rubber stopper having a known number of puncture fragments. If the results of the rubber stopper having a known number of puncture fragments are consistent with the previously known results (i.e. the test results are the same or one- particle different from the know number of puncture fragments), then the test results of the tested rubber stopper shall be judged to be valid. Apparatus. injection bottle. it is matched with the rubber stopper to be tested; with the capacity of 50mL above (including 50mL), 20 pieces (including the control test). Aluminum cover or aluminum-plastic combination cover. they are matched with the rubber stoppers to be tested; 20 pieces. Manual-capping machine. it is matched with the rubber stopper to be tested; 1 set. Suction filter. Metal penetrator. stainless steel (1Cr18Ni9Ti) long needle; see Figure 1 for the specification and dimension; 1 set. fragments through a microscope. Use the same method to calculate the rubber stoppers with the known number of fragments. Expression of results. separately record the total number of visible fragments (i.e. the total number of fragments per 10 needles) of the two rows of injection bottles. If the results of the rubber stoppers with known number of puncture fragments are consistent with the previous known results, then the results obtained by the rubber stopper to be tested shall be judged to be valid. Otherwise, it is invalid. In the puncture process, if more than 2 (including 2) rubber stoppers are pushed into the bottle during the puncture; then such item is judged to be unqualified. If one out of 10 rubber stoppers are pushed into the bottle, another 10 rubber stoppers shall be taken for retesting, during which no rubber stopper is allowed to be pushed into the bottle. Method II Applicable scope. used for the rubber stopper of the injection with suitable specification. The medical rubber stopper is usually used in conjunction with an injection needle. When the injection needle is used to penetrate the rubber stopper on the injection bottle, the rubber stopper may generate fragments, the quantity and size of which shall affect the quality of the drug in the bottle, so strict control of it is required. Unless otherwise specified, the “Direct Method” is generally used for testing. (1) Direction method Apparatus. injection bottle. it is matched with the rubber stopper to be tested; with the capacity of 50mL below, there are 12 pieces. Aluminum cover or aluminum-plastic combination cover. they are matched with the rubber stoppers to be tested; there are 12 pieces. Manual-capping machine. it is matched with the rubber stopper to be tested; there is 1 set. Suction filter. equipped with 0.5µm filtering membrane. Syringe. syringe with 1mL scale; it is matched with injection needle. Injection needle. (conforming to GB 15811-2011); outer diameter of 0.8mm; bevel angle is L-shaped (long); the bevel angle of needle is 12°±2°. Before use, wipe with acetone or methyl-isobutyl ketone; there are 12 pieces. Determination. firstly, pre-treat the rubber stopper. estimate the total surface area A (cm2) of the 12 pieces of rubber stopper to be tested; place the rubber stoppers into ...... Source: Above contents are excerpted from the full-copy PDF -- translated/reviewed by: www.ChineseStandard.net / Wayne Zheng et al. Tips & Frequently Asked Questions:Question 1: How long will the true-PDF of English version of YBB 00332004-2015 be delivered?Answer: The full copy PDF of English version of YBB 00332004-2015 can be downloaded in 9 seconds, and it will also be emailed to you in 9 seconds (double mechanisms to ensure the delivery reliably), with PDF-invoice.Question 2: Can I share the purchased PDF of YBB 00332004-2015_English with my colleagues?Answer: Yes. The purchased PDF of YBB 00332004-2015_English will be deemed to be sold to your employer/organization who actually paid for it, including your colleagues and your employer's intranet.Question 3: Does the price include tax/VAT?Answer: Yes. Our tax invoice, downloaded/delivered in 9 seconds, includes all tax/VAT and complies with 100+ countries' tax regulations (tax exempted in 100+ countries) -- See Avoidance of Double Taxation Agreements (DTAs): List of DTAs signed between Singapore and 100+ countriesQuestion 4: Do you accept my currency other than USD?Answer: Yes. www.ChineseStandard.us -- YBB 00332004-2015 -- Click this link and select your country/currency to pay, the exact amount in your currency will be printed on the invoice. Full PDF will also be downloaded/emailed in 9 seconds.How to buy and download a true PDF of English version of YBB 00332004-2015?A step-by-step guide to download PDF of YBB 00332004-2015_EnglishStep 1: Visit website https://www.ChineseStandard.net (Pay in USD), or https://www.ChineseStandard.us (Pay in any currencies such as Euro, KRW, JPY, AUD).Step 2: Search keyword "YBB 00332004-2015". Step 3: Click "Add to Cart". If multiple PDFs are required, repeat steps 2 and 3 to add up to 12 PDFs to cart. Step 4: Select payment option (Via payment agents Stripe or PayPal). Step 5: Customize Tax Invoice -- Fill up your email etc. Step 6: Click "Checkout". Step 7: Make payment by credit card, PayPal, Google Pay etc. After the payment is completed and in 9 seconds, you will receive 2 emails attached with the purchased PDFs and PDF-invoice, respectively. Step 8: Optional -- Go to download PDF. Step 9: Optional -- Click Open/Download PDF to download PDFs and invoice. See screenshots for above steps: Steps 1~3 Steps 4~6 Step 7 Step 8 Step 9 |
