TB/T 2809-2017: Copper and copper alloy contact wires for electric railway Delivery: 9 seconds. True-PDF full-copy in English & invoice will be downloaded + auto-delivered via email. See step-by-step procedure Status: Valid TB/T 2809: Historical versions

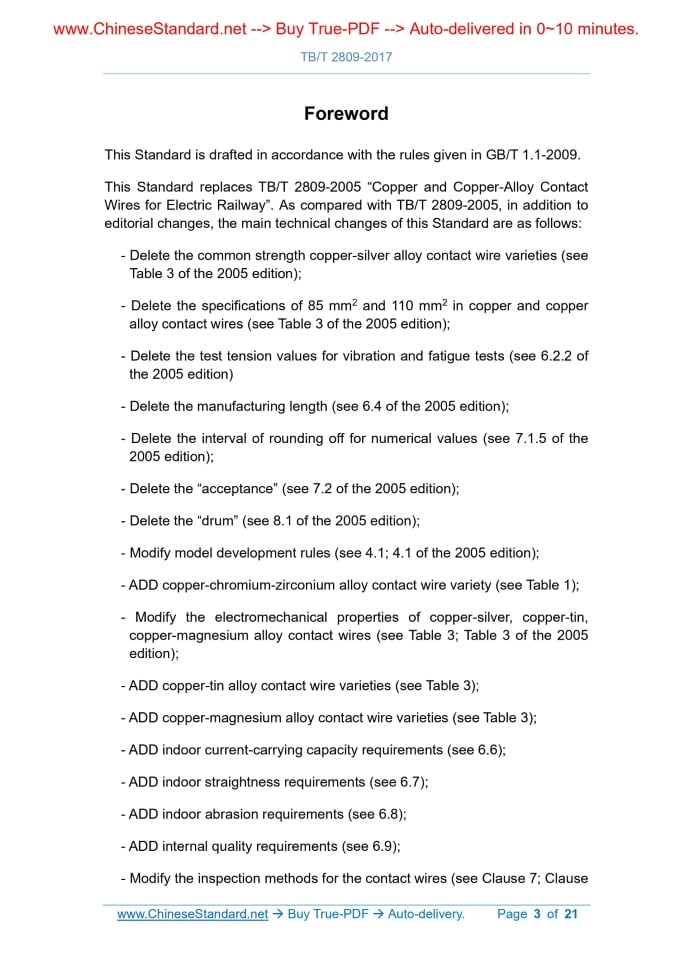

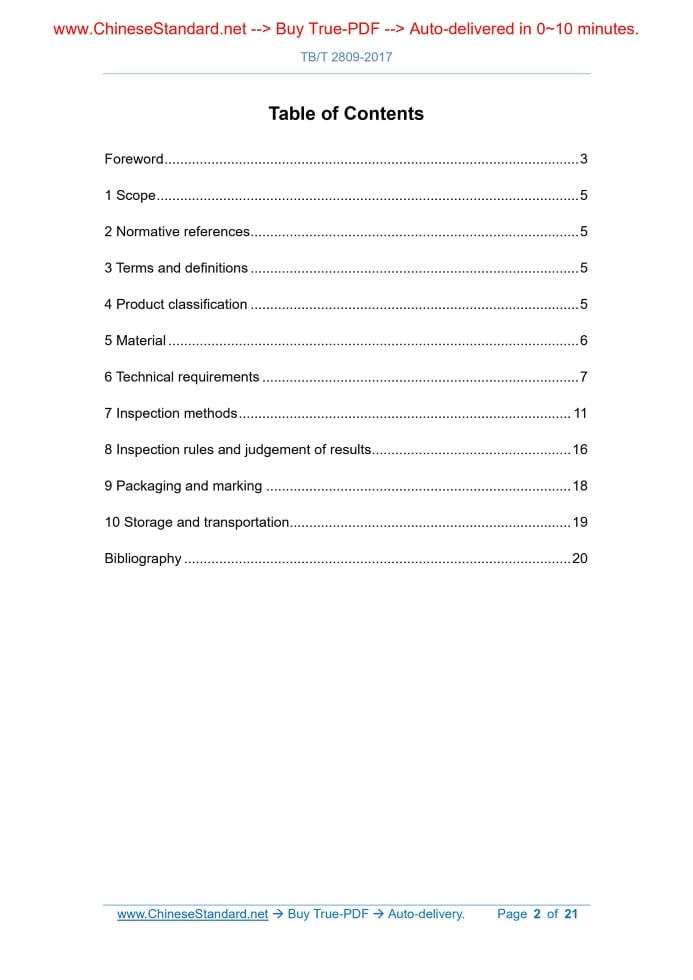

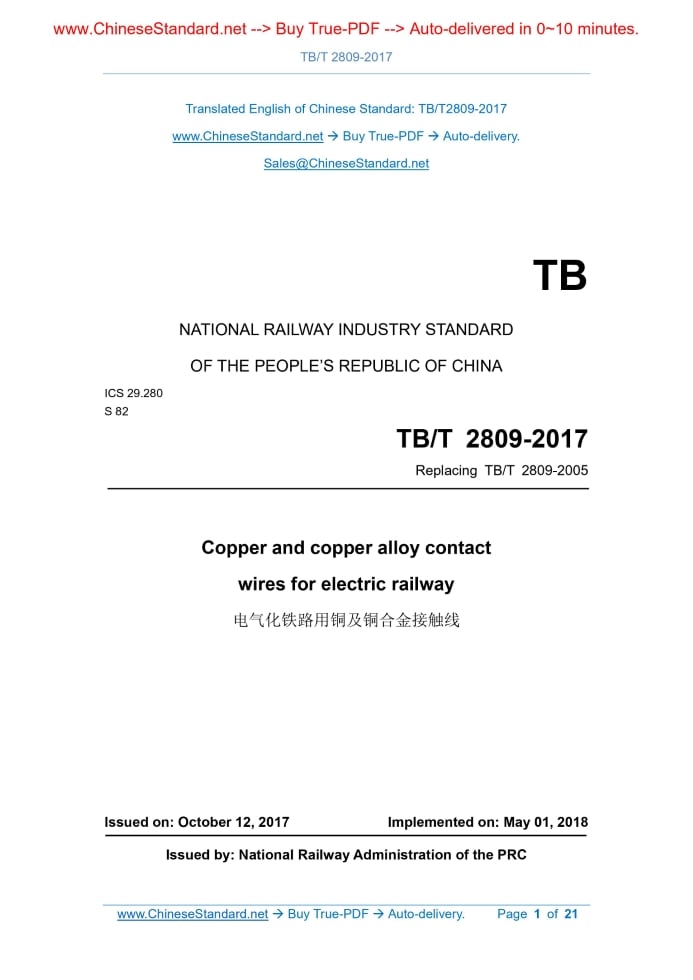

Similar standardsTB/T 2809-2017: Copper and copper alloy contact wires for electric railway---This is an excerpt. Full copy of true-PDF in English version (including equations, symbols, images, flow-chart, tables, and figures etc.), auto-downloaded/delivered in 9 seconds, can be purchased online: https://www.ChineseStandard.net/PDF.aspx/TBT2809-2017TB NATIONAL RAILWAY INDUSTRY STANDARD OF THE PEOPLE’S REPUBLIC OF CHINA ICS 29.280 S 82 Replacing TB/T 2809-2005 Copper and copper alloy contact wires for electric railway Issued on: OCTOBER 12, 2017 Implemented on: MAY 01, 2018 Issued by. National Railway Administration of the PRC Table of ContentsForeword ... 3 1 Scope ... 5 2 Normative references ... 5 3 Terms and definitions ... 5 4 Product classification ... 5 5 Material ... 6 6 Technical requirements ... 7 7 Inspection methods ... 11 8 Inspection rules and judgement of results ... 16 9 Packaging and marking ... 18 10 Storage and transportation... 19 Bibliography ... 20ForewordThis Standard is drafted in accordance with the rules given in GB/T 1.1-2009. This Standard replaces TB/T 2809-2005 “Copper and Copper-Alloy Contact Wires for Electric Railway”. As compared with TB/T 2809-2005, in addition to editorial changes, the main technical changes of this Standard are as follows. - Delete the common strength copper-silver alloy contact wire varieties (see Table 3 of the 2005 edition); - Delete the specifications of 85 mm2 and 110 mm2 in copper and copper alloy contact wires (see Table 3 of the 2005 edition); - Delete the test tension values for vibration and fatigue tests (see 6.2.2 of the 2005 edition) - Delete the manufacturing length (see 6.4 of the 2005 edition); - Delete the interval of rounding off for numerical values (see 7.1.5 of the 2005 edition); - Delete the “acceptance” (see 7.2 of the 2005 edition); - Delete the “drum” (see 8.1 of the 2005 edition); - Modify model development rules (see 4.1; 4.1 of the 2005 edition); - ADD copper-chromium-zirconium alloy contact wire variety (see Table 1); - Modify the electromechanical properties of copper-silver, copper-tin, copper-magnesium alloy contact wires (see Table 3; Table 3 of the 2005 edition); - ADD copper-tin alloy contact wire varieties (see Table 3); - ADD copper-magnesium alloy contact wire varieties (see Table 3); - ADD indoor current-carrying capacity requirements (see 6.6); - ADD indoor straightness requirements (see 6.7); - ADD indoor abrasion requirements (see 6.8); - ADD internal quality requirements (see 6.9); - Modify the inspection methods for the contact wires (see Clause 7; Clause Copper and copper alloy contact wires for electric railway1 ScopeThis Standard specifies the terms and definitions, product classification, technical requirements, inspection methods, inspection rules, packaging and marking, storage and transportation of copper and copper alloy contact wires for electric railway (known as contact wires for short). This Standard applies to copper and copper alloy contact wires for electric railway contact systems. Contact wires for overhead contact systems of urban rail transit and industrial and mining enterprises may also refer to this Standard.2 Normative referencesThe following documents are indispensable for the application of this document. For the dated references, only the editions with the dates indicated are applicable to this document. For the undated references, the latest edition (including all the amendments) are applicable to this document. GB/T 467-2010 Copper cathode3 Terms and definitionsThe following terms and definitions apply to this document. Contact wire The wire in the overhead contact system of electric railway which is in contact with a locomotive pantograph strip and transmits current.4 Product classification4.1 Model Contact wire product model is classified according to copper and its alloying element category, tensile strength grade, and nominal sectional area; and is Refer to GB/T 3048.2. Prepare a sample with a length of 40 mm; USE buoyancy method to measure the density of contact wire; and then calculate the cross- sectional area. 7.3 Resistivity, conductivity test Refer to GB/T 3048.2. USE four-end method for double-arm bridge to measure. Before the measurement, LET the sample stand at a constant temperature of 20 °C±0.5 °C for 24 h. When measuring, the sample is mounted on a fixture; and a current of 8 A is applied. In order to eliminate the influence of thermoelectric potential, USE the method of switching the positive and negative polarities of power supply to take the average to measure. If the sample surface is dirty or rusted, it shall be treated with alcohol cotton or fine sandpaper before measurement. If the ambient temperature does not meet 20 °C±0.5 °C (but the ambient temperature still needs to be controlled within 20 °C±5 °C), according to the temperature coefficient of resistance, it shall be converted to the resistance, resistivity, or conductivity at 20 °C. The temperature coefficient of resistance is given in Table 3. 7.4 Breaking force, tensile strength, and elongation tests Refer to GB/T 4909.3. The gauge length of sample is 250 mm. At a speed of 20 mm/min, uniaxially STRETCH until breaking. RECORD the breaking force value; and calculate the tensile strength. The breaking force value is the maximum force value during the breaking of contact wire. After aligning the two breaks of the contact wire after the break, USE a Vernier caliper to measure the length after the break. Then the elongation is calculated. 7.5 Breaking force test after softening After the sample is placed in a thermostat at a temperature of 300 °C±5 °C for 2 h, the sample is taken out, naturally cooled to room temperature. According to the test method of 7.4, the breaking force test is carried out. 7.6 Torsion test Refer to GB/T 4909.4. The gauge length of sample is 250 mm. During the test, the tension applied is 1% of the rated breaking force. The torsion test speed is 1 r/min~10 r/min. One-way torsion of 360° is 1 loop, until the specified number of loops is reached, or the sample is broken. RECORD the number of torsion loops. 7.7 Reverse bend test Refer to GB/T 4909.5. Install and clamp the sample to fix the bending point. The bending radius is 30 mm. When starting the test, first BEND to the small arc surface. It is counted as once when the sample is bent 180° (i.e. starting from the original position and back to the original position). The test speed shall be no more than 30 times/min. During the test, the bending point is carefully observed. The number of times when the sample has a crack with a length of about 5 mm and a depth of about 1 mm is recorded as “number of cracks”. The number of times when the sample is completely broken is recorded as “number of breaks”. 7.8 Winding test Refer to GB/T 4909.7. The diameter of the winding mandrel of copper and copper-silver alloy contact wires is φA. The diameter of the winding mandrel of copper-tin, copper-magnesium, and copper-chromium-zirconium alloy contact wires is 2φA. At the beginning of the test, the small arc surface faces outward; and the great arc surface is evenly wound 3 coils inward. The sample surface shall be free from cracks, peeling, and fracture. The test speed shall be no more than 10 r/min. 7.9 Current-carrying capacity test The test shall be carried out indoors, without wind and sunshine. There shall be no objects which affect heat dissipation around. Continuous current-carrying capacity I∞. A sample with a length of 6 m is mounted on the test rack. A 10 kN tension is applied. A thermocouple with compensation is used as the temperature sensor. The thermocouples (not less than 5) are evenly laid on the contact wire; the test current is applied; and the temperature is measured every 30 min. When the difference between the temperature measured continuously for 3 times and the maximum allowable working temperature T is not more than 1 °C, the current value at this time is the continuous current-carrying capacity I∞s at this ambient temperature. If the difference between the temperature measured on the contact wire and the maximum allowable working temperature T is large, it is necessary to reduce to the room temperature and adjust the current before re-testing. 20 min overload current-carrying capacity I20. First apply 60% of the continuous current-carrying capacity current value to the sample. After 0.5 h, according to about 1.13 times the continuous current-carrying capacity current, apply the overload current. After 20 min, and the temperature reaches the same maximum allowable working temperature T, the current value at this time is the 20 min overload current-carrying capacity I20s at this ambient temperature. If the difference between the temperature measured on the contact wire and the maximum allowable working temperature T is large, it is necessary to reduce to Exit-factory inspection. testing of all products. 8.3 Judgement of inspection results The judgement number for category A unqualified items is [0, 1], where the angle is judged as [4; 1, 2]; The judgement number for category B unqualified items is [2, 3], where the dimension is judged as [4; 2, 3]; Based on the respective judgements of categories A and B, the comprehensive judgement is made. The judgement scheme is [0, 1].9 Packaging and marking9.1 Packaging 9.1.1 Packaging requirements The contact wire in coils shall be covered with moisture-proof, anti-corrosive, and water-proof materials, and then packaged firmly with hard materials. It shall be able to withstand the collisions which may occur during normal lifting and transportation. Unless otherwise specified in the contract, only one contact wire is allowed to be wound on each drum. 9.1.2 Accompanying documents Each coil of contact wires shall be accompanied by the following accompanying documents. - Product qualification certificate; - Exit-factory inspection report. The above documents shall indicate product name, model, this Standard number, length, net weight, exit-factory number, production date, and anchoring section number (if required by contract). 9.2 Marking There shall be a product nameplate on each contact wire drum, indicating the following. - Product name; ......Source: Above contents are excerpted from the full-copy PDF -- translated/reviewed by: www.ChineseStandard.net / Wayne Zheng et al. Tips & Frequently Asked Questions:Question 1: How long will the true-PDF of English version of TB/T 2809-2017 be delivered?Answer: The full copy PDF of English version of TB/T 2809-2017 can be downloaded in 9 seconds, and it will also be emailed to you in 9 seconds (double mechanisms to ensure the delivery reliably), with PDF-invoice.Question 2: Can I share the purchased PDF of TB/T 2809-2017_English with my colleagues?Answer: Yes. The purchased PDF of TB/T 2809-2017_English will be deemed to be sold to your employer/organization who actually paid for it, including your colleagues and your employer's intranet.Question 3: Does the price include tax/VAT?Answer: Yes. Our tax invoice, downloaded/delivered in 9 seconds, includes all tax/VAT and complies with 100+ countries' tax regulations (tax exempted in 100+ countries) -- See Avoidance of Double Taxation Agreements (DTAs): List of DTAs signed between Singapore and 100+ countriesQuestion 4: Do you accept my currency other than USD?Answer: Yes. www.ChineseStandard.us -- TB/T 2809-2017 -- Click this link and select your country/currency to pay, the exact amount in your currency will be printed on the invoice. Full PDF will also be downloaded/emailed in 9 seconds.Question 5: Should I purchase the latest version TB/T 2809-2017?Answer: Yes. Unless special scenarios such as technical constraints or academic study, you should always prioritize to purchase the latest version TB/T 2809-2017 even if the enforcement date is in future. Complying with the latest version means that, by default, it also complies with all the earlier versions, technically.How to buy and download a true PDF of English version of TB/T 2809-2017?A step-by-step guide to download PDF of TB/T 2809-2017_EnglishStep 1: Visit website https://www.ChineseStandard.net (Pay in USD), or https://www.ChineseStandard.us (Pay in any currencies such as Euro, KRW, JPY, AUD).Step 2: Search keyword "TB/T 2809-2017". Step 3: Click "Add to Cart". If multiple PDFs are required, repeat steps 2 and 3 to add up to 12 PDFs to cart. Step 4: Select payment option (Via payment agents Stripe or PayPal). Step 5: Customize Tax Invoice -- Fill up your email etc. Step 6: Click "Checkout". Step 7: Make payment by credit card, PayPal, Google Pay etc. After the payment is completed and in 9 seconds, you will receive 2 emails attached with the purchased PDFs and PDF-invoice, respectively. Step 8: Optional -- Go to download PDF. Step 9: Optional -- Click Open/Download PDF to download PDFs and invoice. See screenshots for above steps: Steps 1~3 Steps 4~6 Step 7 Step 8 Step 9 |
