TB 10118-2006: Code for design for applications of geosynthetics on subgrade of railway Delivery: 9 seconds. True-PDF full-copy in English & invoice will be downloaded + auto-delivered via email. See step-by-step procedure Status: Obsolete TB 10118: Historical versions

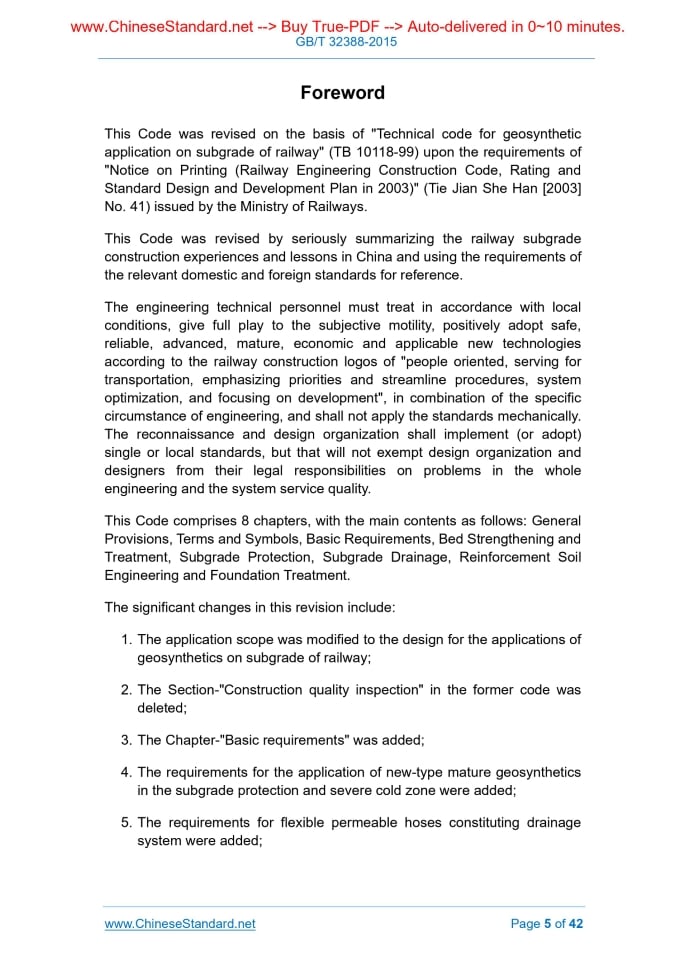

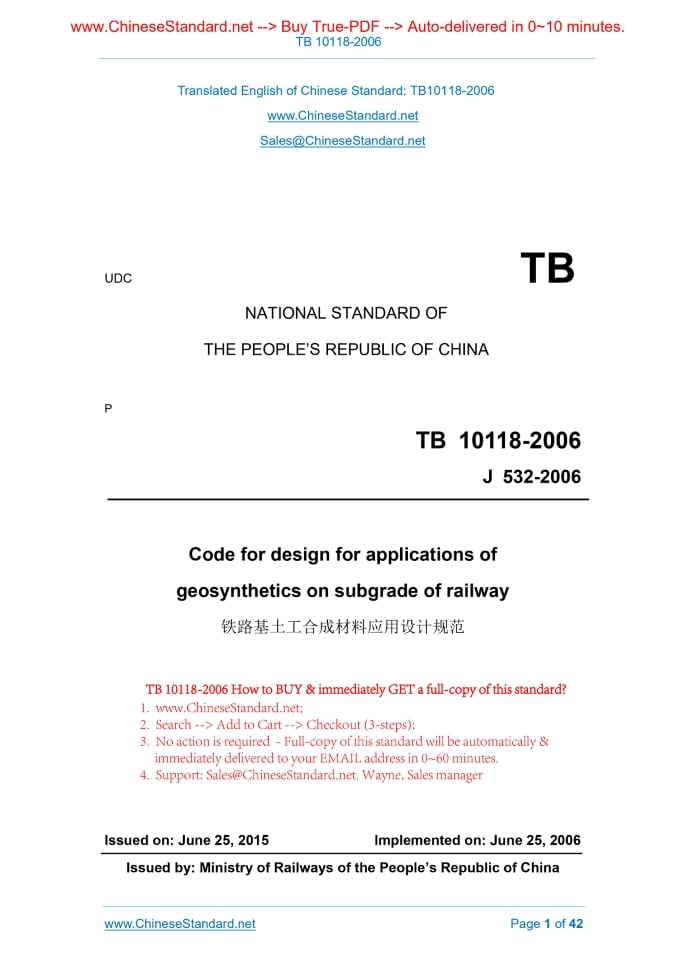

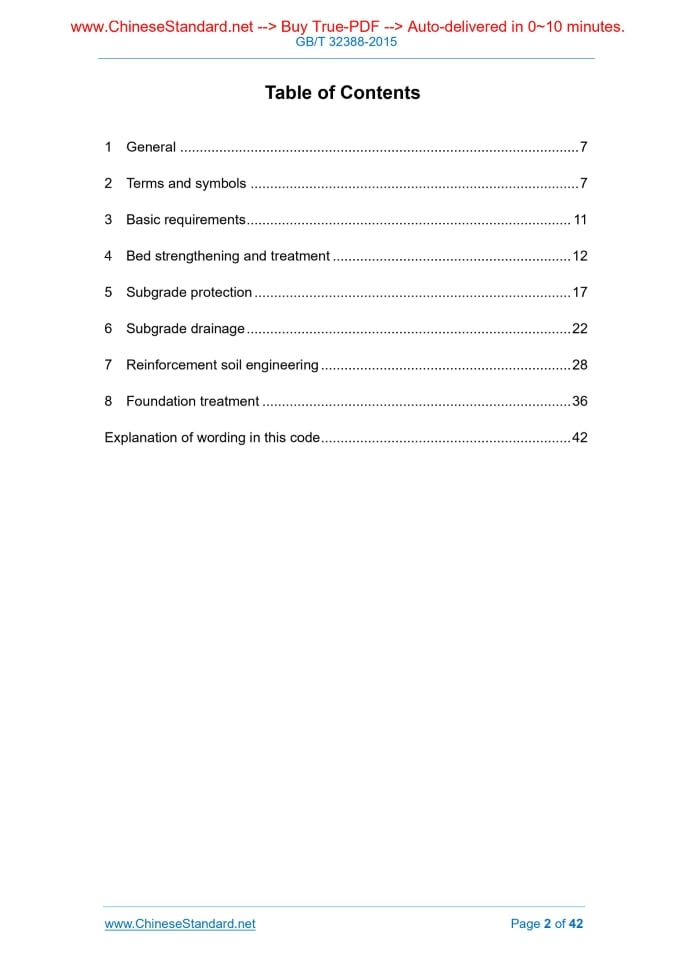

Similar standardsTB 10118-2006: Code for design for applications of geosynthetics on subgrade of railway---This is an excerpt. Full copy of true-PDF in English version (including equations, symbols, images, flow-chart, tables, and figures etc.), auto-downloaded/delivered in 9 seconds, can be purchased online: https://www.ChineseStandard.net/PDF.aspx/TB10118-2006UDC TB NATIONAL STANDARD OF THE PEOPLE’S REPUBLIC OF CHINA J 532-2006 Code for design for applications of geosynthetics on subgrade of railway Issued on. JUNE 25, 2015 Implemented on. JUNE 25, 2006 Issued by. Ministry of Railways of the People’s Republic of China Table of Contents1 General... 7 2 Terms and symbols... 7 3 Basic requirements... 11 4 Bed strengthening and treatment... 12 5 Subgrade protection... 17 6 Subgrade drainage... 22 7 Reinforcement soil engineering... 28 8 Foundation treatment... 36 Explanation of wording in this code... 42 NATIONAL STANDARD OF THE PEOPLE’S REPUBLIC OF CHINA Code for design for applications of geosynthetics on subgrade of railway J 532-2006 Main drafting organization of this Standard. The Fourth Survey and Design Institute of China Railway Implementation date. June 25, 2006 China Railway Publishing House Beijing 2006 Notice on Publishing "Code for design for applications of geosynthetics on subgrade of railway" Tie Jian She [2006] No. 117 "Code for design for applications of geosynthetics on subgrade of railway" (TB 10118-2006) is issued upon review (besides, the offprint is issued) and will be implemented from the issue date." Technical code for geosynthetic application on subgrade of railway" (TB 10118-99) shall be abolished simultaneously. Department of Construction and Management of the Ministry of Railways is in charge of the explanations of this standard. Authorized by the Technical Standard Institute for Railway Engineering, China Railway Publishing House organizes the publishing and issuing. The Ministry of Railways of the People's Republic of China June 25, 20061 General1.0.1 This Code is formulated with a view to standardizing the technical requirements for the application of geosynthetics on subgrade of railway, improving the engineering quality of subgrade of railway, and meeting the requirements of railway engineering construction. 1.0.2 This Code is applicable to the design for the applications of geosynthetics on subgrade of railway. 1.0.3 The applications of geosynthetics on subgrade of railway shall be designed according to the railway grade, structural type of subgrade, as well as geological, hydrological and meteorological conditions. The design shall comply with the principles of adaptation to local conditions, safety and reliability, economy and rationality, and integrated application with other engineering materials and measures. 1.0.4 The applications of geosynthetics on subgrade of railway shall not only comply with this Code, but also meet those specified in the relevant current compulsory standards of the state.2 Terms and symbols2.1 Terms 2.1.1 geosynthetics Generic term of the synthetic materials products applied in the geotechnical engineering 2.1.2 geotextile Permeable cloth geosynthetics made of polymer fibers as the raw material 2.1.3 woven geotextile Geotextile woven with fiber yarn or filament yarn along a certain direction 2.1.8 composite geodrain Geodrain made of geotextile wrapping the core materials of different shapes and materials 2.1.9 strip geodrain Vertical drain material made of plastic strip drain core materials in different shapes externally wrapped with nonwoven geotextile; strip geodrain is a kind of composite geodrain 2.1.10 special geosynthetic Geosynthetic made by special processes and with special purposes 2.1.15 geocell Three-dimensional geosynthetics products, with honeycomb structures, welded or assembled by the geosynthetics pieces 2.1.16 geomat Three-dimensional net-shaped geosynthetics made of thread-line synthetic materials through a certain process treatment and by fusing on the nodes 2.1.17 three-dimensional vegetation grids A kind of cell-shaped (similar to prismatic shape) vegetation geonet, made of plastic fiber through textile processing 2.1.18 expanded polystyrene Light-duty geomaterials made of polystyrene by expanding after added with foaming agent and through moulding or extrusion process 2.1.31 creep The phenomenon of material gradually increasing deformation with time under the action of constant force 2.2 Symbols A - Dimensionless coefficient irrelevant to the filler property Bs - Empirical coefficient relevant to the type and gradation of the protected3 Basic requirements3.0.1 The performance of geosynthetics shall meet the operating requirements and application conditions of railway subgrade engineering. 3.0.3 The allowable design tensile strength T of geosynthetics shall be calculated according to the following formula. 3.0.5 Geosynthetics shall be provided with the testing report of the testing organization authorized by the national competent department; they shall be provided with sign boards and marked with the trademark, product name, code, grade, specification, executive standard, manufacturer's name, production date, gross weight and net weight. 3.0.6 Attention shall be drawn to the frost protection, sun block, ventilation and drying during the transportation, storage and stacking of geosynthetics, which shall also be kept away from the high-temperature source. 3.0.7 State-of-the-art methods and processes shall be adopted during the construction of geosynthetics, which shall not be damaged.4 Bed strengthening and treatment4.1 General requirements 4.1.1 Geosynthetics may be adopted for the seepage prevention, filtration and drainage of constructed railway bed. 4.2 Design 4.2.1 The laying positions of geosynthetics and cushion layer arrangement shall meet the following requirements. 4.2.3 During the treatment for the existing railway subgrade bed problems, the geosynthetics shall be selected according to the following requirements. 4.2.4 The technical performance of geosynthetics shall meet the following requirements. 4.3 Key point of construction 4.3.1 Excavated section of bed must meet the design requirements. The subgrade surface under the sand cushion shall be made into the drainage slope not less than 4 % leaning to the outside of subgrade, and the subgrade surface and sand cushion shall not free from sharp sundries and crushed stone. 4.3.5 The problem treatment construction for the existing railway subgrade bed must ensure the travel safety. Blockade line, by-pass or overhead track, speed-limiting traveling crane, and section construction methods may be adopted in the construction according to the construction conditions.5 Subgrade protection5.1 General requirements 5.1.1 Integrated protection measures of geosynthetics and other engineering materials and engineering measures shall be adopted for the subgrade side slope. 5.2 Slope surface protection 5.2.1 Cut slope with soil, weathered rock, soft rock easy of weathering and underground water seepage on the slope surface as well as embankment slope with slope surface subject to the rainfall erosion should adopt three-dimensional vegetation grids, geomat and geonet in combination with green protective measures such as planting vegetations and vegetation zone. 5.3 Scour protection 5.3.1 When the geosynthetics are used to the scour protection engineering, their applicable conditions may be determined according to Table 5.3.1. 5.3.3 Geofabriform scour protection engineering design shall meet the following requirements. 5.4 Sandstorm protection 5.4.1 Subgrade protection design in the sandstorm zone shall meet the following requirements. 5.5 Severe cold zone protection 5.5.1 When the insulation treatment is required for the side slope of cut in the severe cold zone, on the cut top, below the subgrade surface and in the embankment foundation, the composite geomembrane, expanded polystyrene or polyurethane insulation materials should be adopted as the protective layer. 5.6 Key points of construction 5.6.1 The geosynthetics protection engineering construction shall meet the following requirements. 5.6.2 The geosynthetic rock cage and sinking pillow scour protection engineering construction shall meet the following requirements.6 Subgrade drainage6.1 General requirements 6.1.1 Geosynthetics, which are used in the intercepting and draining of surface and underground water for subgrade or for supporting and blocking protective structures, may be regarded as materials for filtration layer, impermeable layer and drainage pipe. 6.2 Design 6.2.1 Geotextile, or geotextile and sand gravel may be regarded as filtration materials in the following cases. 6.2.5 When the subgrade top or bottom is required to be water exclusive and impermeable or to drain transversely, sand cushions with geomembrane or composite geomembrane installed in between should be adopted, and the gradient of transverse drainage should not be less than 4%. 6.2.6 The seepage ditches which adopt geosynthetics shall meet the following requirements. 6.2.9 The plastic permeable pipe diameter as well as the seep hole size and layout shall be determined according to the pipe material type, seepage and drainage requirements, and protected soil conditions. Geotextiles should be adopted to envelop outside the plastic permeable pipe as a filtration layer. 6.2.10 The calculation of discharge capacity and seepage amount for flexible permeable hoses, plastic permeable pipes and seepage ditch made of geotextile-enveloped sand and stone may comply with relevant specifications and provisions. 6.3.3 The overlapping width of filtration geotextile should not be less than 20 cm. Permeable geomembrane and composite geomembrane should adopt bonding method, and the adhesion width shall not be less than 10 cm, the bonding strength shall not be less than the design strength of the material, and there shall be free of sundries like sand and stone between the bonding faces. 6.3.4 The permeable pipe behind seepage ditches and retaining walls shall be laid and fixed according to the design position. The joints between the inclined pipe and longitudinal pipe behind retaining walls may adopt "T" shaped ones, and the permeable pipe joints shall be firm and difficult to be loosened so as to keep soil and crushed stone from falling into the pipes.7 Reinforcement soil engineering7.1 General requirements 7.1.1 In the case that the embankment filler is fine-grained soil or soft rock, the stability of the widened subgrade from a reconstructed or extended secondary line is poor, and steepening embankment slope is required due to the limit of topography, geosynthetics reinforcement may be adopted for strengthening. 7.2 Reinforcement soil embankment 7.2.1 Geosynthetics in embankment may adopt the following structural types. 7.2.2 When the embankment adopts multi-layer geosynthetics reinforcement, the spacing between each layer of geosynthetics should neither be less than the minimum thickness of each filling layers nor be greater than 1m and the minimum laying width of the reinforcement materials shall not be less than 2.5m. 7.3 Reinforcement soil retaining wall 7.3.1 Reinforcement soil retaining wall may adopt structural types like the enveloped type and plate-suspended type. 7.4 Key points of construction 7.4.1 The construction of reinforcement soil embankment shall meet the following requirements.8 Foundation treatment8.1 General requirements 8.1.1 Geosynthetics may be used for strengthening the reinforcement, accelerating drainage consolidation and separating capillary water in the cases of soft soil, loose-soft soil and salty soil foundations. Reinforcement strengthening for foundations should select geogrids, geotextiles or geocells which are of a high strength and small elongation rate. 8.1.2 The measures for soft soil foundation treatment by using geosynthetics shall be determined according to the foundation conditions, embankment height and stability, post-work sedimentation, construction period, etc. 8.2 Design 8.2.1 The design of reinforcement strengthening for soft soil foundation shall meet the following requirements. 8.2.5 The technical performances of composite geomembrane shall meet the following requirements. 8.3 Key points of construction 8.3.1 The construction of reinforcement strengthening for soft soil foundation shall meet the following requirements. TB 10118-2006 UDC TB NATIONAL STANDARD OF THE PEOPLE’S REPUBLIC OF CHINA J 532-2006 Code for design for applications of geosynthetics on subgrade of railway Issued on. JUNE 25, 2015 Implemented on. JUNE 25, 2006 Issued by. Ministry of Railways of the People’s Republic of ChinaTable of Contents1 General... 7 2 Terms and symbols... 7 3 Basic requirements... 11 4 Bed strengthening and treatment... 12 5 Subgrade protection... 17 6 Subgrade drainage... 22 7 Reinforcement soil engineering... 28 8 Foundation treatment... 36 Explanation of wording in this code... 42 NATIONAL STANDARD OF THE PEOPLE’S REPUBLIC OF CHINA Code for design for applications of geosynthetics on subgrade of railway J 532-2006 Main drafting organization of this Standard. The Fourth Survey and Design Institute of China Railway Implementation date. June 25, 2006 China Railway Publishing House Beijing 2006 Notice on Publishing "Code for design for applications of geosynthetics on subgrade of railway" Tie Jian She [2006] No. 117 "Code for design for applications of geosynthetics on subgrade of railway" (TB 10118-2006) is issued upon review (besides, the offprint is issued) and will be implemented from the issue date." Technical code for geosynthetic application on subgrade of railway" (TB 10118-99) shall be abolished simultaneously. Department of Construction and Management of the Ministry of Railways is in charge of the explanations of this standard. Authorized by the Technical Standard Institute for Railway Engineering, China Railway Publishing House organizes the publishing and issuing. The Ministry of Railways of the People's Republic of China June 25, 20061 General1.0.1 This Code is formulated with a view to standardizing the technical requirements for the application of geosynthetics on subgrade of railway, improving the engineering quality of subgrade of railway, and meeting the requirements of railway engineering construction. 1.0.2 This Code is applicable to the design for the applications of geosynthetics on subgrade of railway. 1.0.3 The applications of geosynthetics on subgrade of railway shall be designed according to the railway grade, structural type of subgrade, as well as geological, hydrological and meteorological conditions. The design shall comply with the principles of adaptation to local conditions, safety and reliability, economy and rationality, and integrated application with other engineering materials and measures. 1.0.4 The applications of geosynthetics on subgrade of railway shall not only comply with this Code, but also meet those specified in the relevant current compulsory standards of the state.2 Terms and symbols2.1 Terms 2.1.1 geosynthetics Generic term of the synthetic materials products applied in the geotechnical engineering 2.1.2 geotextile Permeable cloth geosynthetics made of polymer fibers as the raw material 2.1.3 woven geotextile Geotextile woven with fiber yarn or filament yarn along a certain direction 2.1.8 composite geodrain Geodrain made of geotextile wrapping the core materials of different shapes and materials 2.1.9 strip geodrain Vertical drain material made of plastic strip drain core materials in different shapes externally wrapped with nonwoven geotextile; strip geodrain is a kind of composite geodrain 2.1.10 special geosynthetic Geosynthetic made by special processes and with special purposes 2.1.15 geocell Three-dimensional geosynthetics products, with honeycomb structures, welded or assembled by the geosynthetics pieces 2.1.16 geomat Three-dimensional net-shaped geosynthetics made of thread-line synthetic materials through a certain process treatment and by fusing on the nodes 2.1.17 three-dimensional vegetation grids A kind of cell-shaped (similar to prismatic shape) vegetation geonet, made of plastic fiber through textile processing 2.1.18 expanded polystyrene Light-duty geomaterials made of polystyrene by expanding after added with foaming agent and through moulding or extrusion process 2.1.31 creep The phenomenon of material gradually increasing deformation with time under the action of constant force 2.2 Symbols A - Dimensionless coefficient irrelevant to the filler property Bs - Empirical coefficient relevant to the type and gradation of the protected3 Basic requirements3.0.1 The performance of geosynthetics shall meet the operating requirements and application conditions of railway subgrade engineering. 3.0.3 The allowable design tensile strength T of geosynthetics shall be calculated according to the following formula. 3.0.5 Geosynthetics shall be provided with the testing report of the testing organization authorized by the national competent department; they shall be provided with sign boards and marked with the trademark, product name, code, grade, specification, executive standard, manufacturer's name, production date, gross weight and net weight. 3.0.6 Attention shall be drawn to the frost protection, sun block, ventilation and drying during the transportation, storage and stacking of geosynthetics, which shall also be kept away from the high-temperature source. 3.0.7 State-of-the-art methods and processes shall be adopted during the construction of geosynthetics, which shall not be damaged.4 Bed strengthening and treatment4.1 General requirements 4.1.1 Geosynthetics may be adopted for the seepage prevention, filtration and drainage of constructed railway bed. 4.2 Design 4.2.1 The laying positions of geosynthetics and cushion layer arrangement shall meet the following requirements. 4.2.3 During the treatment for the existing railway subgrade bed problems, the geosynthetics shall be selected according to the following requirements. 4.2.4 The technical performance of geosynthetics shall meet the following requirements. 4.3 Key point of construction 4.3.1 Excavated section of bed must meet the design requirements. The subgrade surface under the sand cushion shall be made into the drainage slope not less than 4 % leaning to the outside of subgrade, and the subgrade surface and sand cushion shall not free from sharp sundries and crushed stone. 4.3.5 The problem treatment construction for the existing railway subgrade bed must ensure the travel safety. Blockade line, by-pass or overhead track, speed-limiting traveling crane, and section construction methods may be adopted in the construction according to the construction conditions.5 Subgrade protection5.1 General requirements 5.1.1 Integrated protection measures of geosynthetics and other engineering materials and engineering measures shall be adopted for the subgrade side slope. 5.2 Slope surface protection 5.2.1 Cut slope with soil, weathered rock, soft rock easy of weathering and underground water seepage on the slope surface as well as embankment slope with slope surface subject to the rainfall erosion should adopt three-dimensional vegetation grids, geomat and geonet in combination with green protective measures such as planting vegetations and vegetation zone. 5.3 Scour protection 5.3.1 When the geosynthetics are used to the scour protection engineering, their applicable conditions may be determined according to Table 5.3.1. 5.3.3 Geofabriform scour protection engineering design shall meet the following requirements. 5.4 Sandstorm protection 5.4.1 Subgrade protection design in the sandstorm zone shall meet the following requirements. 5.5 Severe cold zone protection 5.5.1 When the insulation treatment is required for the side slope of cut in the severe cold zone, on the cut top, below the subgrade surface and in the embankment foundation, the composite geomembrane, expanded polystyrene or polyurethane insulation materials should be adopted as the protective layer. 5.6 Key points of construction 5.6.1 The geosynthetics protection engineering construction shall meet the following requirements. 5.6.2 The geosynthetic rock cage and sinking pillow scour protection engineering construction shall meet the following requirements.6 Subgrade drainage6.1 General requirements 6.1.1 Geosynthetics, which are used in the intercepting and draining of surface and underground water for subgrade or for supporting and blocking protective structures, may be regarded as materials for filtration layer, impermeable layer and drainage pipe. 6.2 Design 6.2.1 Geotextile, or geotextile and sand gravel may be regarded as filtration materials in the following cases. 6.2.5 When the subgrade top or bottom is required to be water exclusive and impermeable or to drain transversely, sand cushions with geomembrane or composite geomembrane installed in between should be adopted, and the gradient of transverse drainage should not be less than 4%. 6.2.6 The seepage ditches which adopt geosynthetics shall meet the following requirements. 6.2.9 The plastic permeable pipe diameter as well as the seep hole size and layout shall be determined according to the pipe material type, seepage and drainage requirements, and protected soil conditions. Geotextiles should be adopted to envelop outside the plastic permeable pipe as a filtration layer. 6.2.10 The calculation of discharge capacity and seepage amount for flexible permeable hoses, plastic permeable pipes and seepage ditch made of geotextile-enveloped sand and stone may comply with relevant specifications and provisions. 6.3.3 The overlapping width of filtration geotextile should not be less than 20 cm. Permeable geomembrane and composite geomembrane should adopt bonding method, and the adhesion width shall not be less than 10 cm, the bonding strength shall not be less than the design strength of the material, and there shall be free of sundries like sand and stone between the bonding faces. 6.3.4 The permeable pipe behind seepage ditches and retaining walls shall be laid and fixed according to the design position. The joints between the inclined pipe and longitudinal pipe behind retaining walls may adopt "T" shaped ones, and the permeable pipe joints shall be firm and difficult to be loosened so as to keep soil and crushed stone from falling into the pipes.7 Reinforcement soil engineering7.1 General requirements 7.1.1 In the case that the embankment filler is fine-grained soil or soft rock, the stability of the widened subgrade from a reconstructed or extended secondary line is poor, and steepening embankment slope is required due to the limit of topography, geosynthetics reinforcement may be adopted for strengthening. 7.2 Reinforcement soil embankment 7.2.1 Geosynthetics in embankment may adopt the following structural types. 7.2.2 When the embankment adopts multi-layer geosynthetics reinforcement, the spacing between each layer of geosynthetics should neither be less than the minimum thickness of each filling layers nor be greater than 1m and the minimum laying width of the reinforcement materials shall not be less than 2.5m. 7.3 Reinforcement soil retaining wall 7.3.1 Reinforcement soil retaining wall may adopt structural types like the enveloped type and plate-suspended type. 7.4 Key points of construction 7.4.1 The construction of reinforcement soil embankment shall meet the following requirements.8 Foundation treatment8.1 General requirements 8.1.1 Geosynthetics may be used for strengthening the reinforcement, accelerating drainage consolidation and separating capillary water in the cases of soft soil, loose-soft soil and salty soil foundations. Reinforcement strengthening for foundations should select geogrids, geotextiles or geocells which are of a high strength and small elongation rate. 8.1.2 The measures for soft soil foundation treatment by using geosynthetics shall be determined according to the foundation conditions, embankment height and stability, post-work sedimentation, construction period, etc. 8.2 Design 8.2.1 The design of reinforcement strengthening for soft soil foundation shall meet the following requirements. 8.2.5 The technical performances of composite geomembrane shall meet the following requirements. 8.3 Key points of construction 8.3.1 The construction of reinforcement strengthening for soft soil foundation shall meet the following requirements. ......Source: Above contents are excerpted from the full-copy PDF -- translated/reviewed by: www.ChineseStandard.net / Wayne Zheng et al. Tips & Frequently Asked Questions:Question 1: How long will the true-PDF of English version of TB 10118-2006 be delivered?Answer: The full copy PDF of English version of TB 10118-2006 can be downloaded in 9 seconds, and it will also be emailed to you in 9 seconds (double mechanisms to ensure the delivery reliably), with PDF-invoice.Question 2: Can I share the purchased PDF of TB 10118-2006_English with my colleagues?Answer: Yes. The purchased PDF of TB 10118-2006_English will be deemed to be sold to your employer/organization who actually paid for it, including your colleagues and your employer's intranet.Question 3: Does the price include tax/VAT?Answer: Yes. Our tax invoice, downloaded/delivered in 9 seconds, includes all tax/VAT and complies with 100+ countries' tax regulations (tax exempted in 100+ countries) -- See Avoidance of Double Taxation Agreements (DTAs): List of DTAs signed between Singapore and 100+ countriesQuestion 4: Do you accept my currency other than USD?Answer: Yes. www.ChineseStandard.us -- TB 10118-2006 -- Click this link and select your country/currency to pay, the exact amount in your currency will be printed on the invoice. Full PDF will also be downloaded/emailed in 9 seconds.Question 5: Should I purchase the latest version TB 10118-2006?Answer: Yes. Unless special scenarios such as technical constraints or academic study, you should always prioritize to purchase the latest version TB 10118-2006 even if the enforcement date is in future. Complying with the latest version means that, by default, it also complies with all the earlier versions, technically.How to buy and download a true PDF of English version of TB 10118-2006?A step-by-step guide to download PDF of TB 10118-2006_EnglishStep 1: Visit website https://www.ChineseStandard.net (Pay in USD), or https://www.ChineseStandard.us (Pay in any currencies such as Euro, KRW, JPY, AUD).Step 2: Search keyword "TB 10118-2006". Step 3: Click "Add to Cart". If multiple PDFs are required, repeat steps 2 and 3 to add up to 12 PDFs to cart. Step 4: Select payment option (Via payment agents Stripe or PayPal). Step 5: Customize Tax Invoice -- Fill up your email etc. Step 6: Click "Checkout". Step 7: Make payment by credit card, PayPal, Google Pay etc. After the payment is completed and in 9 seconds, you will receive 2 emails attached with the purchased PDFs and PDF-invoice, respectively. Step 8: Optional -- Go to download PDF. Step 9: Optional -- Click Open/Download PDF to download PDFs and invoice. See screenshots for above steps: Steps 1~3 Steps 4~6 Step 7 Step 8 Step 9 |
