SN/T 3077.2-2012: Test method of flash point. Modified continuously closed cup tester Delivery: 9 seconds. True-PDF full-copy in English & invoice will be downloaded + auto-delivered via email. See step-by-step procedure Status: Valid

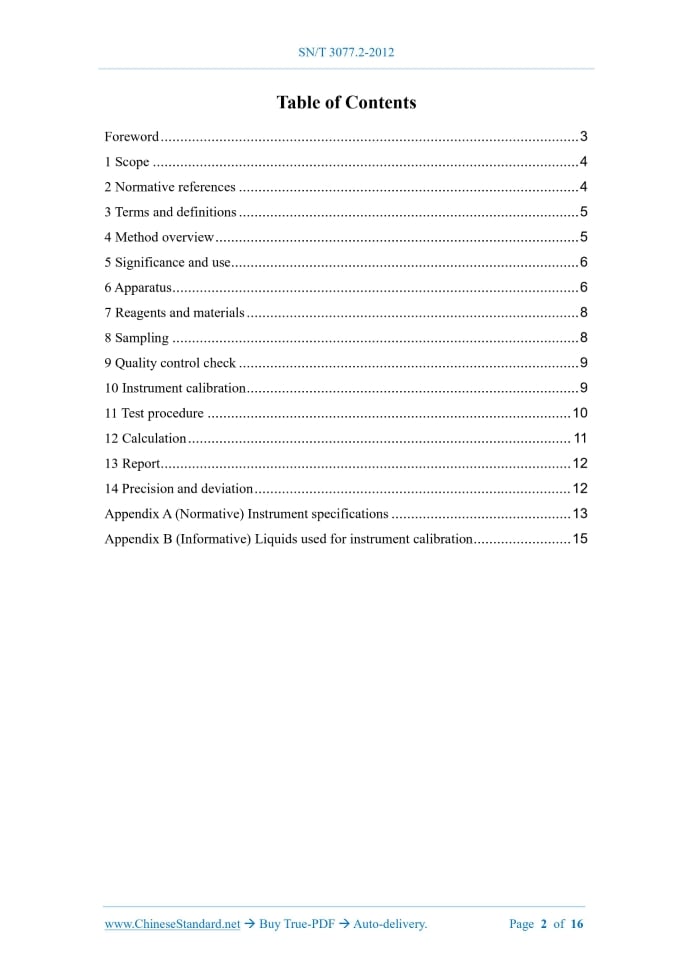

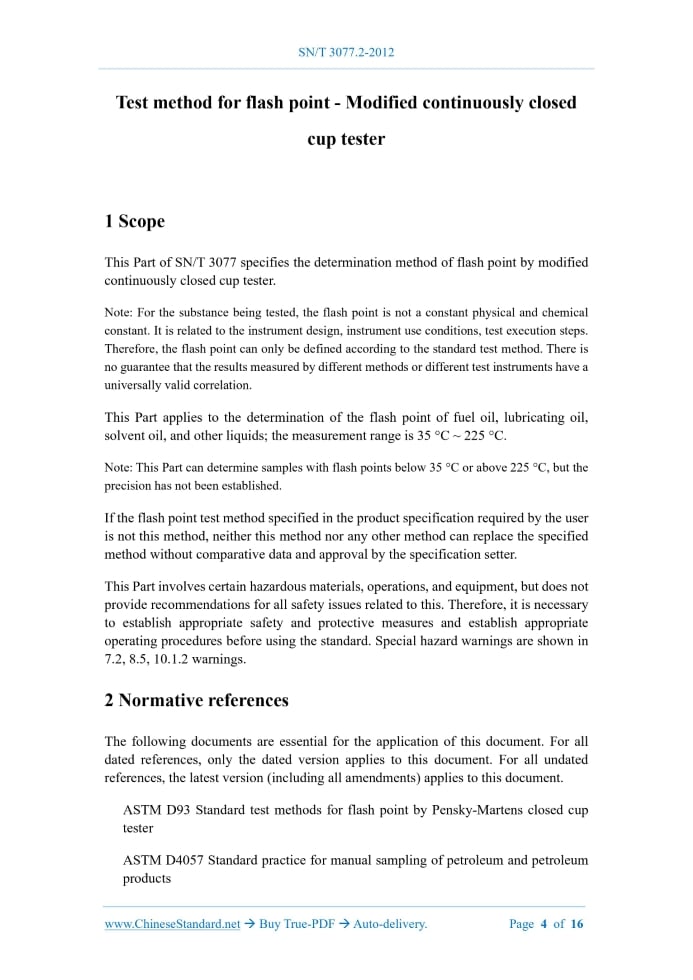

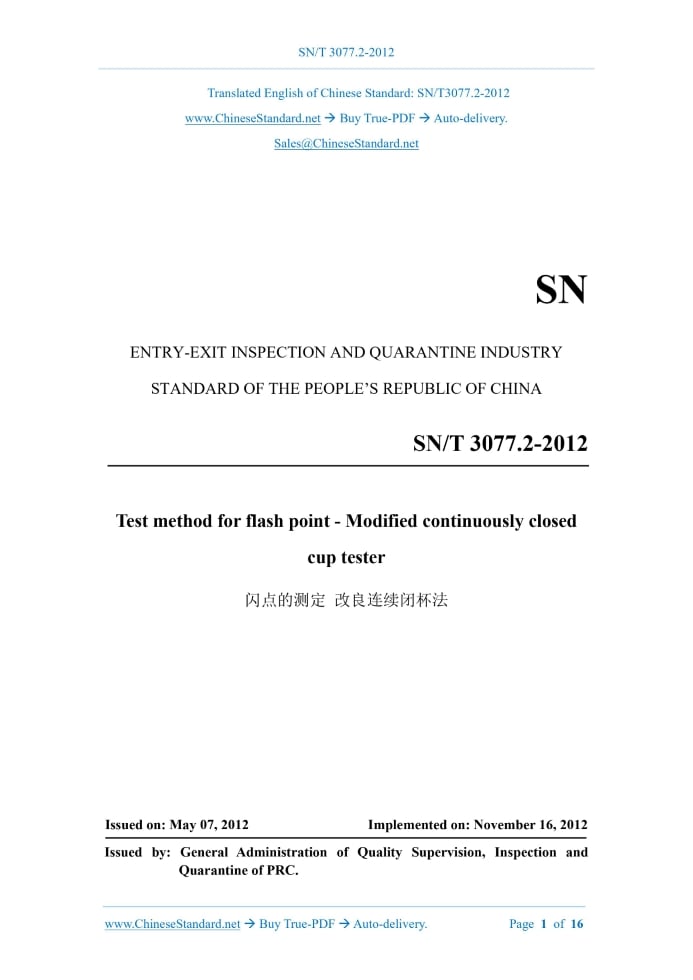

SN/T 3077.2-2012: Test method of flash point. Modified continuously closed cup tester---This is an excerpt. Full copy of true-PDF in English version (including equations, symbols, images, flow-chart, tables, and figures etc.), auto-downloaded/delivered in 9 seconds, can be purchased online: https://www.ChineseStandard.net/PDF.aspx/SNT3077.2-2012SN ENTRY-EXIT INSPECTION AND QUARANTINE INDUSTRY STANDARD OF THE PEOPLE’S REPUBLIC OF CHINA Test method for flash point - Modified continuously closed cup tester ISSUED ON: MAY 07, 2012 IMPLEMENTED ON: NOVEMBER 16, 2012 Issued by: General Administration of Quality Supervision, Inspection and Quarantine of PRC. Table of ContentsForeword ... 3 1 Scope ... 4 2 Normative references ... 4 3 Terms and definitions ... 5 4 Method overview ... 5 5 Significance and use ... 6 6 Apparatus ... 6 7 Reagents and materials ... 8 8 Sampling ... 8 9 Quality control check ... 9 10 Instrument calibration ... 9 11 Test procedure ... 10 12 Calculation ... 11 13 Report ... 12 14 Precision and deviation ... 12 Appendix A (Normative) Instrument specifications ... 13 Appendix B (Informative) Liquids used for instrument calibration ... 15 Test method for flash point - Modified continuously closed cup tester1 ScopeThis Part of SN/T 3077 specifies the determination method of flash point by modified continuously closed cup tester. Note: For the substance being tested, the flash point is not a constant physical and chemical constant. It is related to the instrument design, instrument use conditions, test execution steps. Therefore, the flash point can only be defined according to the standard test method. There is no guarantee that the results measured by different methods or different test instruments have a universally valid correlation. This Part applies to the determination of the flash point of fuel oil, lubricating oil, solvent oil, and other liquids; the measurement range is 35 °C ~ 225 °C. Note: This Part can determine samples with flash points below 35 °C or above 225 °C, but the precision has not been established. If the flash point test method specified in the product specification required by the user is not this method, neither this method nor any other method can replace the specified method without comparative data and approval by the specification setter. This Part involves certain hazardous materials, operations, and equipment, but does not provide recommendations for all safety issues related to this. Therefore, it is necessary to establish appropriate safety and protective measures and establish appropriate operating procedures before using the standard. Special hazard warnings are shown in 7.2, 8.5, 10.1.2 warnings.2 Normative referencesThe following documents are essential for the application of this document. For all dated references, only the dated version applies to this document. For all undated references, the latest version (including all amendments) applies to this document. ASTM D93 Standard test methods for flash point by Pensky-Martens closed cup tester ASTM D4057 Standard practice for manual sampling of petroleum and petroleum products ASTM D4177 Standard practice for automatic sampling of petroleum and petroleum products ASTM D6450 Standard test method for flash point by continuously closed cup (CCCFP) tester ASTM D6708 Standard practice for statistical assessment and improvement of expected agreement between two test methods that purport to measure the same property of a material ASTM E300 Standard practice for sampling industrial chemicals3 Terms and definitionsThe following terms and definitions apply to this document. 3.1 Flash point The lowest temperature (corrected to 101.3 kPa pressure) at which the vapor of the specimen ignites under the specified test conditions. In a closed test chamber, the specimen is confirmed to have flashed when the instantaneous pressure increase caused by the hot flame is not less than 20 kPa. 3.2 Dynamic The state when the vapor on the specimen and the specimen have not reached temperature equilibrium when the fire source is introduced.4 Method overview4.1 Set the test temperature to be not less than 18 °C lower than the expected flash point. Inject 2.0 mL ± 0.2 mL of the specimen into the sample cup. The temperature of the specimen and the sample cup is not less than (the same below) 18 °C lower than the expected flash point; it can be cooled if necessary. Raise the sample cup and press it tightly with the lid to achieve airtightness. At this time, the total volume of the test chamber is 7.0 mL ± 0.3 mL. 4.2 After the test chamber is closed, the temperature difference between the specimen and the lid shall be within 1 °C; it is heated at a uniform rate. A high-voltage arc of a certain energy is discharged in the test chamber at specified intervals. After each ignition, an indefinite amount of air (see Table 1) is introduced into the test chamber, to provide the required oxygen for the next flash test. The pressure in the test chamber is voltage arcs, a connecting pipe connected to the lid for pressure detection and air introduction. It also requires an electronic device to control the temperature of the test chamber and a digital display that can display the specimen temperature. The apparatus and its main components are shown in Figures A.1 and A.2: - Test chamber: The test chamber consists of a sample cup and a temperature- controlled lid with a total volume of 7.0 mL ± 0.3 mL. The metal contact between the lid and the sample cup is to ensure good heat conduction; the incomplete seal is to ensure that the test chamber is at ambient atmospheric pressure during the test. Its dimensions are shown in Figure A.2. When the temperature rises, the pressure in the test chamber will be detected. Excessive sealing will cause the pressure increase caused by the temperature and vapor pressure of the specimen to be higher than the atmospheric pressure. Poor heat conduction will cause a large difference in temperature between the specimen and the lid. - Sample cup: The sample cup can be made of nickel-plated aluminum or other materials with similar thermal conductivity. The sample cup is a cup that forms a seal after closing and can accept air injection test chamber function. Its total volume is 7.0 mL ± 0.3 mL and can accommodate 2.0 mL ± 0.2 mL of specimen. Its dimensions and requirements are shown in Figure A.2. - Specimen temperature sensor: The specimen temperature sensor (see Figure A.1) is a stainless steel thermocouple with a diameter of 1 mm (NiCr-Ni or similar) and a response time of t(90) = 3 s. Its insertion depth into the specimen shall be not less than 2 mm; the temperature sensing sensitivity is 0.1 °C; the accuracy is ± 0.2 °C; it is best to connect a temperature display. - Magnetic stirring: The instrument must be able to stir the sample. The sample cup is equipped with a rotating magnet, which can rotate a small stirring magnet placed in the sample cup containing the specimen. The diameter of the stirring magnet is 3.0 mm ± 0.2 mm and the length is 12 mm ± 1 mm. The speed of the driving magnet is 250 r/min ~ 270 r/min. - Air introduction device: The instrument must be able to introduce air immediately after each flash test. A small membrane air compressor generates a short air pulse and introduces air into the pressure sensor through the T-type inlet in the connecting pipe. The amount of air introduced depends on the sample temperature (see Table 1), 0.5 mL ~ 2.0 mL. - Temperature regulation device: During the test, the temperature of the test chamber is regulated by electric heating and cooling of the lid. The temperature control accuracy is ±0.2 °C. - High-voltage arc: Use high-voltage arc to ignite flammable vapors. The energy of each arc shall be 1.3 J ± 0.3 J (1.3 ws ± 0.3 ws)/arc; the arc time shall be within 19 ms ± 2 ms. Note: When the specimen contains low-flash point substances or the flash point of the specimen is lower than the initial temperature, saturated vapor may be generated in the test chamber. Therefore, when the instrument is set up, it shall be able to enable that, after the test chamber is closed and before reaching the initial temperature, the arc shall be pre-set to an interval of 5 °C, when the temperature of the lid and the sample cup is in equilibrium. - Flash point pressure test sensor: The flash pressure test sensor shall be connected to the connecting pipe in the lid, which has an operating range of 80 kPa ~ 177 kPa, a minimum resolution of 0.1 kPa, a minimum accuracy of ± 0.5 kPa. It can measure an instantaneous pressure increase of at least 20 kPa above atmospheric pressure within 100 ms. - Pipette or syringe: 2.0 mL ± 0.2 mL of specimen can be transferred using a pipette or syringe that meets the accuracy requirements.7 Reagents and materials7.1 Reagents and purity Purity requirements for chemicals used refer to Table B.1. Unless otherwise specified, analytical grade reagents shall be used. Other grades of reagents may be used when the purity of the reagents used does not affect the accuracy of the measurement. 7.2 Cleaning solvents Only non-corrosive solvents such as toluene and acetone can be used to clean the sample cup and lid. Warning: Anisole, n-dodecane, styrene, acetone and many solvents are flammable and harmful to health. Dispose of solutions and waste in accordance with relevant regulations.8 Sampling8.1 Take at least 50 mL of specimen from the container according to the requirements of standards ASTM D4057, ASTM D4177 or ASTM E300; place it in a clean, well- sealed container; store it at low temperature. 8.2 Specimens should not be stored in breathable containers such as plastic bottles for long periods of time, because volatile substances can diffuse through the container walls. Specimens stored in poorly sealed containers shall be discarded and resampling shall be carried out. 8.3 Measures shall be taken to avoid the loss of volatile substances, so as not to obtain a higher flash point. Do not open the container unless it is necessary. Do not transfer 10.1.1 After completing the quality control check in Chapter 9, the pressure sensor can be calibrated if necessary. Calibrate the pressure sensor using the ambient atmospheric pressure as a reference. 10.1.2 If the displayed atmospheric pressure is different from the ambient atmospheric pressure, adjust the sensor control until the appropriate reading is observed. The ambient atmospheric pressure is the pressure at the actual location of the tester during the test. Warning: Many metal barometers used in weather stations and airports are pre- calibrated to sea level. These barometers do not require instrument calibration. 10.2 Temperature sensor After completing the quality control checks in Chapter 9, the pressure sensor may be calibrated, if necessary, by checking the sample temperature.11 Test procedure11.1 Before testing, thoroughly clean the lid, arc probe, sample cup; dry them to ensure that any solvent used for instrument cleaning is removed. If the expected flash point of the specimen is 15 °C higher than the flash point of the previous sample, heat the empty, dry sample cup with lid to a temperature at least 30 °C higher than the expected flash point of the new specimen. Note: Drying and heating the sample cup will eliminate possible cross-contamination from residual vapors. 11.2 Expected flash point: Set the initial ignition temperature to be at least 18 °C lower than the expected flash point and the final temperature to be higher than the expected temperature. Unknown expected flash point: If the expected flash point of the test substance is unknown, set the initial ignition temperature to 10 °C and test as follows. The flash point obtained is an approximate value. When the new specimen is tested again by the standard method, this value can be used as the expected flash point of the specimen. 11.3 Set the heating rate: 2.5 °C/min ± 0.3 °C/min. 11.4 Set the ignition frequency: 5 °C. 11.5 Set the air introduction volume: Set according to Table 1. 11.6 Set the flash point detection pressure threshold: 20 kPa. 11.7 Start the test according to the test steps. Adjust the temperature of the lid to the initial ignition temperature. When the instrument indicates that the initial ignition temperature has been reached, prepare to inject 2.0 mL ± 0.2 mL of specimen. 11.8 The temperature of the sealed specimen and sample cup shall be at least 18 °C lower than the expected flash point. Cool if necessary. Shake the specimen well before opening the sample container. Use pipette or syringe to take 2.0 mL ± 0.2 mL of specimen; immediately seal the sample container. Transfer 2.0 mL ± 0.2 mL of specimen to the sample cup. 11.9 Place a stirring magnet in the sample cup, to ensure that the specimen is mixed well. 11.10 Place the sample cup in the sample test cup holder and start the test procedure. 11.11 If a flash point is detected while the sample cup and lid are equilibrating, stop the test and discard the result. Retest with a new specimen. The initial ignition temperature shall be at least 18 °C lower than the detected flash temperature. 11.12 When the oven temperature and the specimen temperature are within 1 °C of each other, start the actual measurement of the flash point. Set the ignition frequency to 1 °C. Heat the lid at the set heating rate. 11.13 Stop the measurement after the flash point is measured or when the final temperature is reached without flashing. When the flash point is more than 26 °C above the starting temperature or within 10 °C above the starting temperature, treat the measurement result as an approximate result and repeat the measurement with a new specimen. Adjust the expected flash point temperature to a temperature close to the result. Set the starting temperature to 18 °C below the expected flash point. 11.14 Record the flash point temperature of the specimen, as the uncorrected flash point temperature. If no flash point is detected within the test temperature range, record the flash point above the end temperature. 11.15 After the test, wait for the sample cup to cool to below 50 °C and remove it safely.12 CalculationObserve and record the ambient atmospheric pressure during the test. When the ambient atmospheric pressure is not 101.3 kPa, correct the flash point according to formula (1). Corrected flash point = C + 0.25 (101.3 - p) ...(1) Where: C - Observed flash point, in Celsius (°C); P - Ambient atmospheric pressure, in kilopascals (kPa);Appendix B(Informative) Liquids used for instrument calibration B.1 Certified reference materials (CRMs) Stable hydrocarbons or other stable petroleum products, flash point determined by a specific method of a multi-laboratory study established in accordance with ASTM RR:D02-1007 or ISO Guide 34 "General requirements for the competence of reference material producers" and ISO Guide 35 "Reference materials - Guidance for characterization and assessment of homogeneity and stability". Table B.1 gives typical flash point values and limits corrected to atmospheric pressure for some reference materials (see Note 1). The supplier of certified reference materials (see Note 3) shall provide a flash point test certificate for each batch of products measured by the specified method. The limits of other certified reference materials can be calculated from the reproducibility of this method. To reduce the influence of laboratories, the results are multiplied by 0.7. Note 1: The purity, flash point data, limits in Table B.1 are obtained by using the inter-laboratory procedure to determine the suitability of the reference materials using this test method. Other materials produced in accordance with the requirements of ISO Guides 34 and 35 and with determined purity, flash point data and limits can also be used as reference materials. These materials shall be verified before use. Note 2: Be particularly careful when handling anisole and n-dodecane, to avoid contaminating the reference materials. Refer to the safety manual before use. Note 3: Certified reference materials can only be produced after the test method is confirmed. Because this is the first official version of this test method, certified reference materials do not exist yet. Table B.1 lists the values of anisole (purity, mole fraction greater than 99.7%) and n- dodecane (purity, mole fraction greater than 99.5%) that meet the method precision requirements. If certified reference materials are not available, anisole and n-dodecane of the same purity can be used as reference materials. Other materials produced in accordance with the requirements of ISO Guides 34 and 35 and with determined purity, flash point data and limits can also be used as reference materials. These materials shall be verified before use, because the flash point value of each batch of certified reference materials will vary with composition. ......Source: Above contents are excerpted from the full-copy PDF -- translated/reviewed by: www.ChineseStandard.net / Wayne Zheng et al. Tips & Frequently Asked Questions:Question 1: How long will the true-PDF of English version of SN/T 3077.2-2012 be delivered?Answer: The full copy PDF of English version of SN/T 3077.2-2012 can be downloaded in 9 seconds, and it will also be emailed to you in 9 seconds (double mechanisms to ensure the delivery reliably), with PDF-invoice.Question 2: Can I share the purchased PDF of SN/T 3077.2-2012_English with my colleagues?Answer: Yes. The purchased PDF of SN/T 3077.2-2012_English will be deemed to be sold to your employer/organization who actually paid for it, including your colleagues and your employer's intranet.Question 3: Does the price include tax/VAT?Answer: Yes. Our tax invoice, downloaded/delivered in 9 seconds, includes all tax/VAT and complies with 100+ countries' tax regulations (tax exempted in 100+ countries) -- See Avoidance of Double Taxation Agreements (DTAs): List of DTAs signed between Singapore and 100+ countriesQuestion 4: Do you accept my currency other than USD?Answer: Yes. www.ChineseStandard.us -- SN/T 3077.2-2012 -- Click this link and select your country/currency to pay, the exact amount in your currency will be printed on the invoice. Full PDF will also be downloaded/emailed in 9 seconds.How to buy and download a true PDF of English version of SN/T 3077.2-2012?A step-by-step guide to download PDF of SN/T 3077.2-2012_EnglishStep 1: Visit website https://www.ChineseStandard.net (Pay in USD), or https://www.ChineseStandard.us (Pay in any currencies such as Euro, KRW, JPY, AUD).Step 2: Search keyword "SN/T 3077.2-2012". Step 3: Click "Add to Cart". If multiple PDFs are required, repeat steps 2 and 3 to add up to 12 PDFs to cart. Step 4: Select payment option (Via payment agents Stripe or PayPal). Step 5: Customize Tax Invoice -- Fill up your email etc. Step 6: Click "Checkout". Step 7: Make payment by credit card, PayPal, Google Pay etc. After the payment is completed and in 9 seconds, you will receive 2 emails attached with the purchased PDFs and PDF-invoice, respectively. Step 8: Optional -- Go to download PDF. Step 9: Optional -- Click Open/Download PDF to download PDFs and invoice. See screenshots for above steps: Steps 1~3 Steps 4~6 Step 7 Step 8 Step 9 |
