SJ/T 11654-2016 PDF EnglishUS$680.00 · In stock · Download in 9 seconds
SJ/T 11654-2016: General Specification for Solid State Disk Delivery: 9 seconds. True-PDF full-copy in English & invoice will be downloaded + auto-delivered via email. See step-by-step procedure Status: Valid

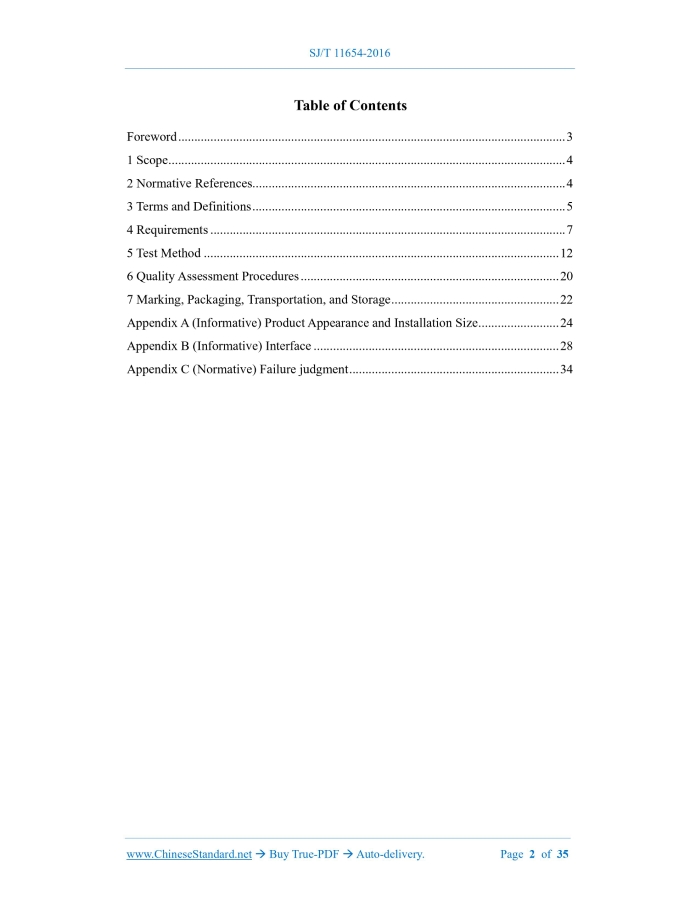

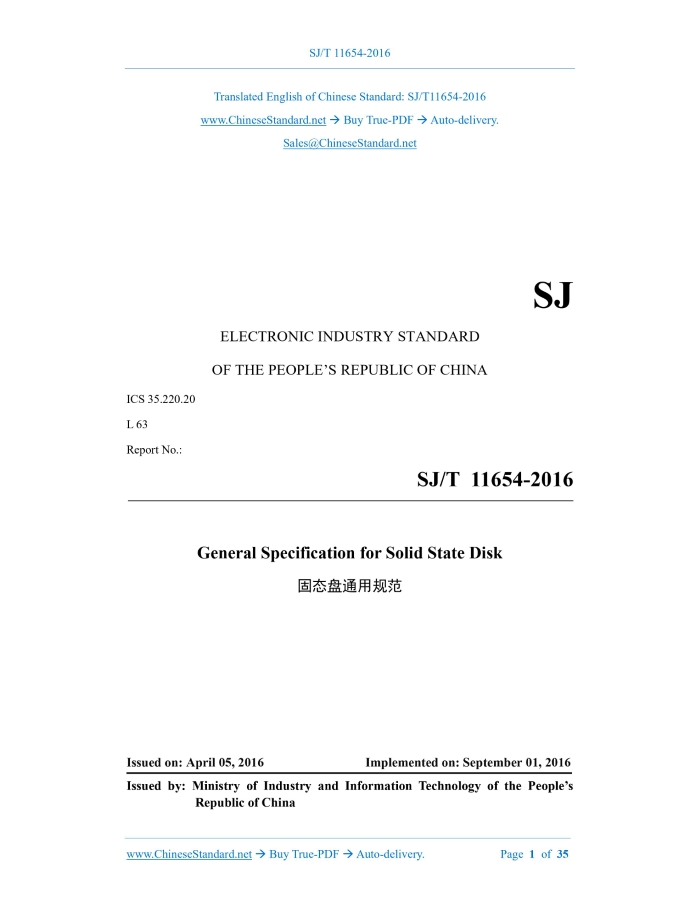

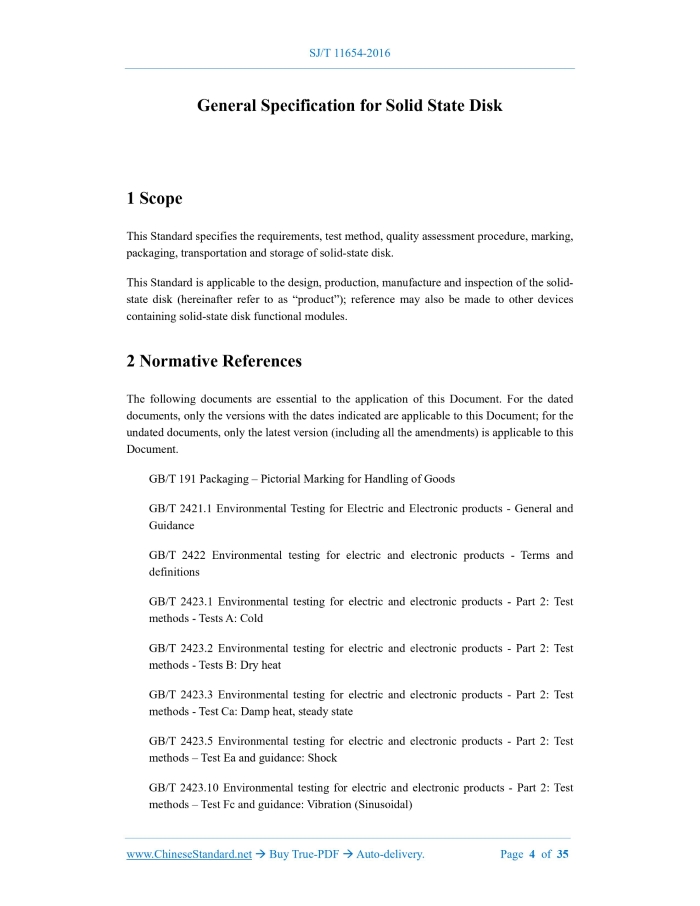

Similar standardsSJ/T 11654-2016: General Specification for Solid State Disk---This is an excerpt. Full copy of true-PDF in English version (including equations, symbols, images, flow-chart, tables, and figures etc.), auto-downloaded/delivered in 9 seconds, can be purchased online: https://www.ChineseStandard.net/PDF.aspx/SJT11654-2016SJ ELECTRONIC INDUSTRY STANDARD ICS 35.220.20 L 63 Report No.. General Specification for Solid State Disk Issued on. APRIL 05, 2016 Implemented on. SEPTEMBER 01, 2016 Issued by. Ministry of Industry and Information Technology of the People’s Republic of China Table of ContentsForeword... 3 1 Scope... 4 2 Normative References... 4 3 Terms and Definitions... 5 4 Requirements... 7 5 Test Method... 12 6 Quality Assessment Procedures... 20 7 Marking, Packaging, Transportation, and Storage... 22 Appendix A (Informative) Product Appearance and Installation Size... 24 Appendix B (Informative) Interface... 28 Appendix C (Normative) Failure judgment... 34ForewordThis Standard was drafted as per the rules specified in GB/T 1.1-2009. Please note some contents of this Document may involve patents. The issuing agency of this Document shall not assume the responsibility to identify these patents. This Standard was proposed by Electronic Information Department of Ministry of Industry and Information Technology. This Standard shall be under the jurisdiction of Electronic Industry Standardization Institute of Ministry of Industry and Information Technology. Drafting organizations of this Standard. Huazhong University of Science and Technology; Potevio Research Institute; China Electronics Standardization Institute; Netac Technology Co., Ltd.; Aigo Electronics Technology Co., Ltd.; Hualan Microelectronique Co., Ltd.; Lenovo (Beijing) Limited; Beijing Shenzhou Godson IC Design Co., Ltd.; Hangzhou Dianzi University, and Shenzhen Chipsbank Technologies Co., Ltd. Chief drafting staffs of this Standard. Feng Dan, Zhou Wen, Hu Yang, Tong Wei, Chen Qingfang, Li Xiaohua, Liu Jingning, Mao Wei, Xu Jie, Ren Jianqiang, Zhang Hualong, Luo Jianjun, Fan Lingyan, Yang Yuguang, Zhang Jinfeng, and Fan Xing. General Specification for Solid State Disk1 ScopeThis Standard specifies the requirements, test method, quality assessment procedure, marking, packaging, transportation and storage of solid-state disk. This Standard is applicable to the design, production, manufacture and inspection of the solid- state disk (hereinafter refer to as “product”); reference may also be made to other devices containing solid-state disk functional modules.2 Normative ReferencesThe following documents are essential to the application of this Document. For the dated documents, only the versions with the dates indicated are applicable to this Document; for the undated documents, only the latest version (including all the amendments) is applicable to this Document. GB/T 191 Packaging – Pictorial Marking for Handling of Goods GB/T 2421.1 Environmental Testing for Electric and Electronic products - General and Guidance GB/T 2422 Environmental testing for electric and electronic products - Terms and definitions GB/T 2423.1 Environmental testing for electric and electronic products - Part 2.Test methods - Tests A. Cold GB/T 2423.2 Environmental testing for electric and electronic products - Part 2.Test methods - Tests B. Dry heat GB/T 2423.3 Environmental testing for electric and electronic products - Part 2.Test methods - Test Ca. Damp heat, steady state GB/T 2423.5 Environmental testing for electric and electronic products - Part 2.Test methods – Test Ea and guidance. Shock GB/T 2423.10 Environmental testing for electric and electronic products - Part 2.Test methods – Test Fc and guidance. Vibration (Sinusoidal) GB 4943.1-2011 Information technology equipment -Safety - Part 1.General requirements3 Terms and DefinitionsFor the purposes of this Document, the following terms and definitions apply. 3.1 Solid state disk A data storage device that uses semiconductor memory chip arrays as storage components. 3.2 Lifespan (Endurance) Under the condition that the data is guaranteed to be correct, the number of times the solid-state disk can normally perform read and write operations. 3.6 Write performance The number of data bytes written to the solid-state disk per unit time or the number of write operations per unit time. 3.7 Recoverable read error An error occurred while reading data, and the error is recoverable within the specified number of retries. 3.8 Unrecoverable read error An error that is found when reading data, and the error is not recoverable within the specified number of retries. 3.9 Power on to ready time Time that is required from power-on to data readout.4 Requirements4.1 Appearance and structure 4.1.1 General requirements There shall be no obvious dents, scratches, cracks, deformations, etc. on the surface of the product; the surface coating shall not be blistered, cracked or peeled off; and the metal parts shall not be rusted or otherwise mechanically damaged. 4.1.2 Structure size 4.1.2.1 1.8’’ solid-state disk The schematic diagram of the shape and structure of 1.8’’ solid-state disk can refer to Appendix A. The pin arrangement and its dimension can refer to Appendix B. 4.1.3 Interface The interface of the solid-state disk can optionally support parallel interface (PATA), serial interface (SATA), peripheral component interconnection expansion interface (PCI-E), etc.; and the specific interface is specified by the product standard. 4.2 Power on to ready time The maximum time from power-on to data read-write state is 2.0s. 4.3 Data transfer rate The data transfer rate is represented by the data read and write speed of sequential read data capability, random read data capability, sequential write data capability and random write data capability; and their response times are specified by product standards. 4.5 Abnormal power loss protection During normal use, if the power supply of the product is suddenly cut off, the data disk shall not be damaged. 4.12 Electromagnetic Compatibility 4.12.1 Radio disturbance limit The radio disturbance limit of the product shall meet the requirements specified in GB 9254.It shall be indicated in the product standard whether it is Grade-A or Grade-B. 4.12.2 Immunity limit The immunity limit of the product shall meet the requirements specified in GB/T 17618. 4.13 Reliability The mean time between failures (MTBF) is used to measure the reliability level of the system. The m1 value of the mean time between failures (MTBF) of the product shall be no less than 10000h. 4.14 Limit of restricted substance If applicable, the limit of restricted substance of the product shall meet the requirements of GB/T 26572.5 Test Method5.1 Test environmental condition In addition to climate environmental test and reliability test, other tests in this Standard shall be carried out under standard atmospheric conditions for testing. 5.2 Appearance and structure test The appearance of the product is tested by manual visual inspection; the shape dimension of the product is tested by a length measuring instrument; and the weight of the product is tested by a precision weight measuring instrument. All tests shall meet the requirements of 4.1. 5.3 Power on to ready time test The time interval between when the test product is powered on and ready to start read/write operations. Repeat the test 1000 times; and then take the average value as the power on to ready time. 5.4 Data transfer rate test 5.7 Lifespan test Generate uninterrupted write operations on the product. Before an unrecoverable write error occurs, count the data volume of the write operation. The daily capacity used in the test is 20GB. The test is carried out in the following two procedures. 5.9 Security test 5.9.1 General security test It shall be carried out according to the provisions of 1.4 in GB 4943.1-2011. 5.9.2 Touch current test The touch current test shall be measured according to the provisions of 5.1 in GB 4943.1-2011; its limit value shall not exceed the maximum current in Table 5A of GB 4943.1-2011. 5.11.2 Temperature lower limit test 5.11.2.1 Working temperature lower limit test It shall be carried out according to "Test Ad" of GB/T 2423.1.The sample under test must be subjected to initial testing, and the severity shall be the lower limit of the specified working temperature. When the temperature reaches the specified value, turn on the power supply and work at full load for 2h; and it shall work normally. The recovery time is 2h.6 Quality Assessment Procedures6.1 General rules The product shall be inspected according to this Standard and the supplementary provisions in the product standard during the finalization (design finalization, production finalization) and manufacturing process, and shall meet the requirements. 6.2 Inspection classification The product inspection specified in this Standard is divided into. 6.3.2 The type inspection shall be carried out by the quality inspection department of the product manufacturer or the quality inspection organization designated or entrusted by the superior competent department. 6.3.3 The number of samples under test for reliability identification in the type inspection is determined according to the product batch, test time and cost; and the number of samples for inspecting the rest of the inspection items is 2 sets. 6.4 Quality consistency inspection 6.4.1 Batch-by-batch inspection 6.4.1.1 Products produced in batches or produced continuously shall all be inspected batch-by- batch. During the inspection, if there is any unqualified item, a new inspection shall be carried out after repairing. If one item is unqualified again, the product will be judged as unqualified. For unqualified products, they shall be repaired to qualified products before delivery. 6.4.1.2 The batch-by-batch inspection shall be carried out by the quality inspection department of the product manufacturer. 6.4.2 Periodic inspection 6.4.2.3 Samples for periodic inspection shall be randomly selected from qualified products in batch-by-batch inspection, and the number of test samples shall be 2 sets. 6.4.2.4 If a failure occurs or any item fails to pass during the periodic inspection, the cause of the failure shall be found out and a failure analysis report shall be submitted. After repairing, do the following inspections sequentially from this item.7 Marking, Packaging, Transportation, and Storage7.1 Package marking 7.1.1 General marking The following information shall be marked on the outside of the packaging box, such as product model, quantity, nominal capacity, speed transmission rate, quality, manufacturer name, address, manufacturing date and implementation standard number of the product. 7.2 Packaging The inner packaging shall use electrostatic shielding materials; and its surface resistivity and electrostatic shielding performance shall meet the requirements of Class I barrier materials defined in GJB 2605-1996. The outer packaging box shall meet the requirements of moisture-proof, dust-proof, and shock- proof; and there shall be a packing list, inspection certificate, spare parts, accessories, and related random documents in the packaging box. 7.3 Transportation The packaged product shall be able to be transported by any means of transportation. The product is not allowed to be directly hit by rain, snow or liquid and mechanically damaged during transportation. 7.4 Storage The product shall be stored in the original packaging. The ambient temperature of the warehouse where the product is stored is 0°C~40°C, and the relative humidity is 30%~80%. SJ/T 11654-2016 SJ ELECTRONIC INDUSTRY STANDARD ICS 35.220.20 L 63 Report No.. General Specification for Solid State Disk Issued on. APRIL 05, 2016 Implemented on. SEPTEMBER 01, 2016 Issued by. Ministry of Industry and Information Technology of the People’s Republic of ChinaTable of ContentsForeword... 3 1 Scope... 4 2 Normative References... 4 3 Terms and Definitions... 5 4 Requirements... 7 5 Test Method... 12 6 Quality Assessment Procedures... 20 7 Marking, Packaging, Transportation, and Storage... 22 Appendix A (Informative) Product Appearance and Installation Size... 24 Appendix B (Informative) Interface... 28 Appendix C (Normative) Failure judgment... 34ForewordThis Standard was drafted as per the rules specified in GB/T 1.1-2009. Please note some contents of this Document may involve patents. The issuing agency of this Document shall not assume the responsibility to identify these patents. This Standard was proposed by Electronic Information Department of Ministry of Industry and Information Technology. This Standard shall be under the jurisdiction of Electronic Industry Standardization Institute of Ministry of Industry and Information Technology. Drafting organizations of this Standard. Huazhong University of Science and Technology; Potevio Research Institute; China Electronics Standardization Institute; Netac Technology Co., Ltd.; Aigo Electronics Technology Co., Ltd.; Hualan Microelectronique Co., Ltd.; Lenovo (Beijing) Limited; Beijing Shenzhou Godson IC Design Co., Ltd.; Hangzhou Dianzi University, and Shenzhen Chipsbank Technologies Co., Ltd. Chief drafting staffs of this Standard. Feng Dan, Zhou Wen, Hu Yang, Tong Wei, Chen Qingfang, Li Xiaohua, Liu Jingning, Mao Wei, Xu Jie, Ren Jianqiang, Zhang Hualong, Luo Jianjun, Fan Lingyan, Yang Yuguang, Zhang Jinfeng, and Fan Xing. General Specification for Solid State Disk1 ScopeThis Standard specifies the requirements, test method, quality assessment procedure, marking, packaging, transportation and storage of solid-state disk. This Standard is applicable to the design, production, manufacture and inspection of the solid- state disk (hereinafter refer to as “product”); reference may also be made to other devices containing solid-state disk functional modules.2 Normative ReferencesThe following documents are essential to the application of this Document. For the dated documents, only the versions with the dates indicated are applicable to this Document; for the undated documents, only the latest version (including all the amendments) is applicable to this Document. GB/T 191 Packaging – Pictorial Marking for Handling of Goods GB/T 2421.1 Environmental Testing for Electric and Electronic products - General and Guidance GB/T 2422 Environmental testing for electric and electronic products - Terms and definitions GB/T 2423.1 Environmental testing for electric and electronic products - Part 2.Test methods - Tests A. Cold GB/T 2423.2 Environmental testing for electric and electronic products - Part 2.Test methods - Tests B. Dry heat GB/T 2423.3 Environmental testing for electric and electronic products - Part 2.Test methods - Test Ca. Damp heat, steady state GB/T 2423.5 Environmental testing for electric and electronic products - Part 2.Test methods – Test Ea and guidance. Shock GB/T 2423.10 Environmental testing for electric and electronic products - Part 2.Test methods – Test Fc and guidance. Vibration (Sinusoidal) GB 4943.1-2011 Information technology equipment -Safety - Part 1.General requirements3 Terms and DefinitionsFor the purposes of this Document, the following terms and definitions apply. 3.1 Solid state disk A data storage device that uses semiconductor memory chip arrays as storage components. 3.2 Lifespan (Endurance) Under the condition that the data is guaranteed to be correct, the number of times the solid-state disk can normally perform read and write operations. 3.6 Write performance The number of data bytes written to the solid-state disk per unit time or the number of write operations per unit time. 3.7 Recoverable read error An error occurred while reading data, and the error is recoverable within the specified number of retries. 3.8 Unrecoverable read error An error that is found when reading data, and the error is not recoverable within the specified number of retries. 3.9 Power on to ready time Time that is required from power-on to data readout.4 Requirements4.1 Appearance and structure 4.1.1 General requirements There shall be no obvious dents, scratches, cracks, deformations, etc. on the surface of the product; the surface coating shall not be blistered, cracked or peeled off; and the metal parts shall not be rusted or otherwise mechanically damaged. 4.1.2 Structure size 4.1.2.1 1.8’’ solid-state disk The schematic diagram of the shape and structure of 1.8’’ solid-state disk can refer to Appendix A. The pin arrangement and its dimension can refer to Appendix B. 4.1.3 Interface The interface of the solid-state disk can optionally support parallel interface (PATA), serial interface (SATA), peripheral component interconnection expansion interface (PCI-E), etc.; and the specific interface is specified by the product standard. 4.2 Power on to ready time The maximum time from power-on to data read-write state is 2.0s. 4.3 Data transfer rate The data transfer rate is represented by the data read and write speed of sequential read data capability, random read data capability, sequential write data capability and random write data capability; and their response times are specified by product standards. 4.5 Abnormal power loss protection During normal use, if the power supply of the product is suddenly cut off, the data disk shall not be damaged. 4.12 Electromagnetic Compatibility 4.12.1 Radio disturbance limit The radio disturbance limit of the product shall meet the requirements specified in GB 9254.It shall be indicated in the product standard whether it is Grade-A or Grade-B. 4.12.2 Immunity limit The immunity limit of the product shall meet the requirements specified in GB/T 17618. 4.13 Reliability The mean time between failures (MTBF) is used to measure the reliability level of the system. The m1 value of the mean time between failures (MTBF) of the product shall be no less than 10000h. 4.14 Limit of restricted substance If applicable, the limit of restricted substance of the product shall meet the requirements of GB/T 26572.5 Test Method5.1 Test environmental condition In addition to climate environmental test and reliability test, other tests in this Standard shall be carried out under standard atmospheric conditions for testing. 5.2 Appearance and structure test The appearance of the product is tested by manual visual inspection; the shape dimension of the product is tested by a length measuring instrument; and the weight of the product is tested by a precision weight measuring instrument. All tests shall meet the requirements of 4.1. 5.3 Power on to ready time test The time interval between when the test product is powered on and ready to start read/write operations. Repeat the test 1000 times; and then take the average value as the power on to ready time. 5.4 Data transfer rate test 5.7 Lifespan test Generate uninterrupted write operations on the product. Before an unrecoverable write error occurs, count the data volume of the write operation. The daily capacity used in the test is 20GB. The test is carried out in the following two procedures. 5.9 Security test 5.9.1 General security test It shall be carried out according to the provisions of 1.4 in GB 4943.1-2011. 5.9.2 Touch current test The touch current test shall be measured according to the provisions of 5.1 in GB 4943.1-2011; its limit value shall not exceed the maximum current in Table 5A of GB 4943.1-2011. 5.11.2 Temperature lower limit test 5.11.2.1 Working temperature lower limit test It shall be carried out according to "Test Ad" of GB/T 2423.1.The sample under test must be subjected to initial testing, and the severity shall be the lower limit of the specified working temperature. When the temperature reaches the specified value, turn on the power supply and work at full load for 2h; and it shall work normally. The recovery time is 2h.6 Quality Assessment Procedures6.1 General rules The product shall be inspected according to this Standard and the supplementary provisions in the product standard during the finalization (design finalization, production finalization) and manufacturing process, and shall meet the requirements. 6.2 Inspection classification The product inspection specified in this Standard is divided into. 6.3.2 The type inspection shall be carried out by the quality inspection department of the product manufacturer or the quality inspection organization designated or entrusted by the superior competent department. 6.3.3 The number of samples under test for reliability identification in the type inspection is determined according to the product batch, test time and cost; and the number of samples for inspecting the rest of the inspection items is 2 sets. 6.4 Quality consistency inspection 6.4.1 Batch-by-batch inspection 6.4.1.1 Products produced in batches or produced continuously shall all be inspected batch-by- batch. During the inspection, if there is any unqualified item, a new inspection shall be carried out after repairing. If one item is unqualified again, the product will be judged as unqualified. For unqualified products, they shall be repaired to qualified products before delivery. 6.4.1.2 The batch-by-batch inspection shall be carried out by the quality inspection department of the product manufacturer. 6.4.2 Periodic inspection 6.4.2.3 Samples for periodic inspection shall be randomly selected from qualified products in batch-by-batch inspection, and the number of test samples shall be 2 sets. 6.4.2.4 If a failure occurs or any item fails to pass during the periodic inspection, the cause of the failure shall be found out and a failure analysis report shall be submitted. After repairing, do the following inspections sequentially from this item.7 Marking, Packaging, Transportation, and Storage7.1 Package marking 7.1.1 General marking The following information shall be marked on the outside of the packaging box, such as product model, quantity, nominal capacity, speed transmission rate, quality, manufacturer name, address, manufacturing date and implementation standard number of the product. 7.2 Packaging The inner packaging shall use electrostatic shielding materials; and its surface resistivity and electrostatic shielding performance shall meet the requirements of Class I barrier materials defined in GJB 2605-1996. The outer packaging box shall meet the requirements of moisture-proof, dust-proof, and shock- proof; and there shall be a packing list, inspection certificate, spare parts, accessories, and related random documents in the packaging box. 7.3 Transportation The packaged product shall be able to be transported by any means of transportation. The product is not allowed to be directly hit by rain, snow or liquid and mechanically damaged during transportation. 7.4 Storage The product shall be stored in the original packaging. The ambient temperature of the warehouse where the product is stored is 0°C~40°C, and the relative humidity is 30%~80%. ......Source: Above contents are excerpted from the full-copy PDF -- translated/reviewed by: www.ChineseStandard.net / Wayne Zheng et al. Tips & Frequently Asked Questions:Question 1: How long will the true-PDF of English version of SJ/T 11654-2016 be delivered?Answer: The full copy PDF of English version of SJ/T 11654-2016 can be downloaded in 9 seconds, and it will also be emailed to you in 9 seconds (double mechanisms to ensure the delivery reliably), with PDF-invoice.Question 2: Can I share the purchased PDF of SJ/T 11654-2016_English with my colleagues?Answer: Yes. The purchased PDF of SJ/T 11654-2016_English will be deemed to be sold to your employer/organization who actually paid for it, including your colleagues and your employer's intranet.Question 3: Does the price include tax/VAT?Answer: Yes. Our tax invoice, downloaded/delivered in 9 seconds, includes all tax/VAT and complies with 100+ countries' tax regulations (tax exempted in 100+ countries) -- See Avoidance of Double Taxation Agreements (DTAs): List of DTAs signed between Singapore and 100+ countriesQuestion 4: Do you accept my currency other than USD?Answer: Yes. www.ChineseStandard.us -- SJ/T 11654-2016 -- Click this link and select your country/currency to pay, the exact amount in your currency will be printed on the invoice. Full PDF will also be downloaded/emailed in 9 seconds.How to buy and download a true PDF of English version of SJ/T 11654-2016?A step-by-step guide to download PDF of SJ/T 11654-2016_EnglishStep 1: Visit website https://www.ChineseStandard.net (Pay in USD), or https://www.ChineseStandard.us (Pay in any currencies such as Euro, KRW, JPY, AUD).Step 2: Search keyword "SJ/T 11654-2016". Step 3: Click "Add to Cart". If multiple PDFs are required, repeat steps 2 and 3 to add up to 12 PDFs to cart. Step 4: Select payment option (Via payment agents Stripe or PayPal). Step 5: Customize Tax Invoice -- Fill up your email etc. Step 6: Click "Checkout". Step 7: Make payment by credit card, PayPal, Google Pay etc. After the payment is completed and in 9 seconds, you will receive 2 emails attached with the purchased PDFs and PDF-invoice, respectively. Step 8: Optional -- Go to download PDF. Step 9: Optional -- Click Open/Download PDF to download PDFs and invoice. See screenshots for above steps: Steps 1~3 Steps 4~6 Step 7 Step 8 Step 9 |
