QC/T 1111-2019 PDF EnglishUS$190.00 · In stock · Download in 9 seconds
QC/T 1111-2019: Commercial vehicles - Light alloy wheels - 30-degree impact test method Delivery: 9 seconds. True-PDF full-copy in English & invoice will be downloaded + auto-delivered via email. See step-by-step procedure Status: Valid

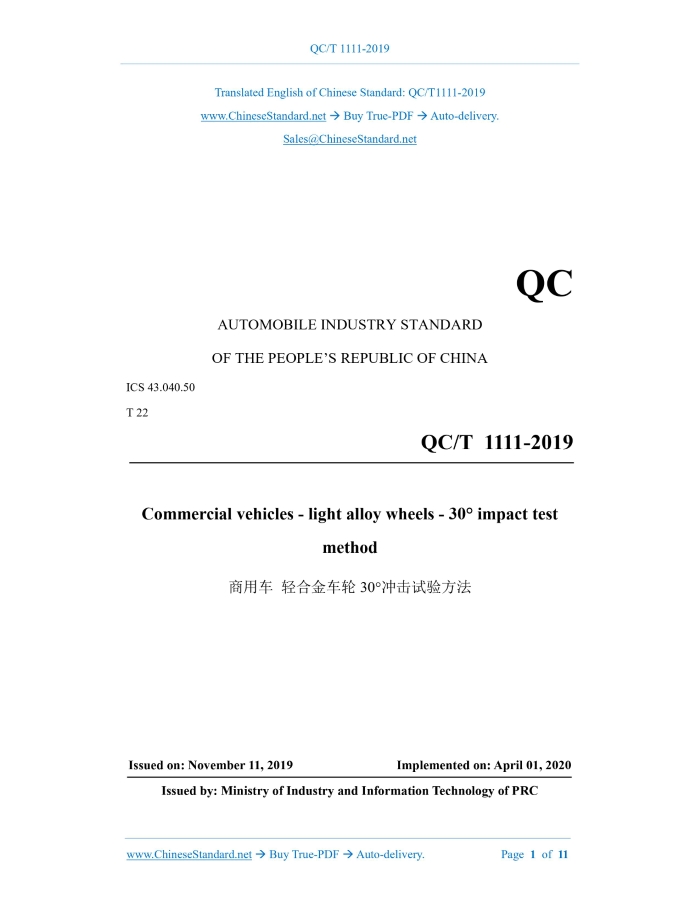

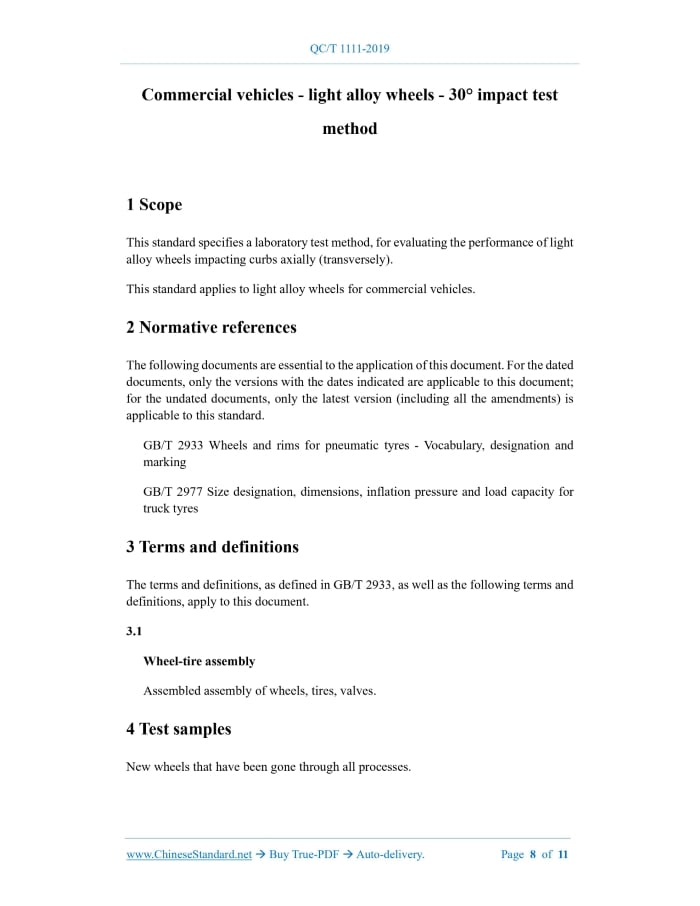

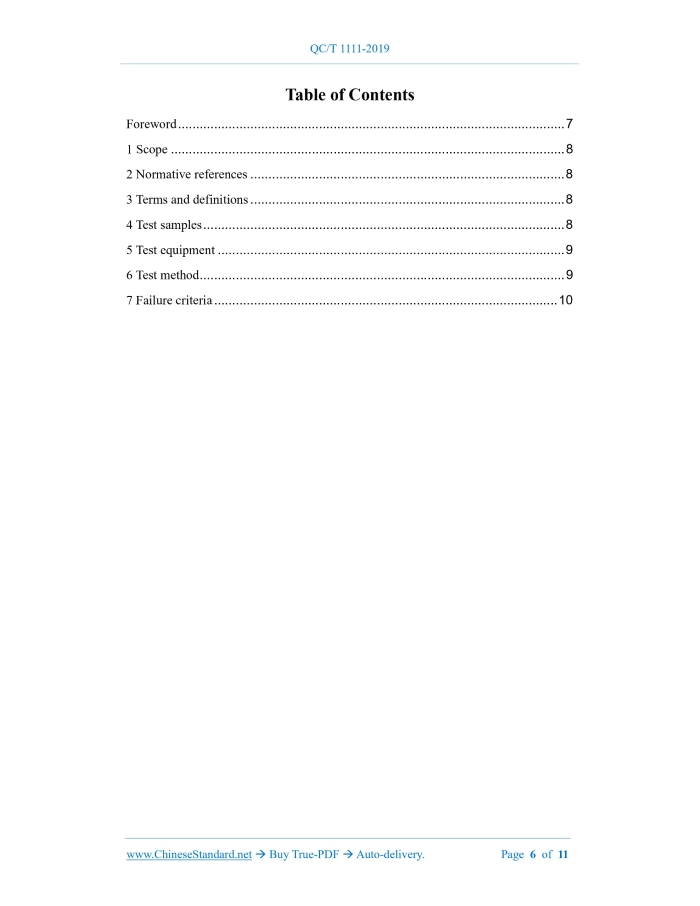

QC/T 1111-2019: Commercial vehicles - Light alloy wheels - 30-degree impact test method---This is an excerpt. Full copy of true-PDF in English version (including equations, symbols, images, flow-chart, tables, and figures etc.), auto-downloaded/delivered in 9 seconds, can be purchased online: https://www.ChineseStandard.net/PDF.aspx/QCT1111-2019QC AUTOMOBILE INDUSTRY STANDARD OF THE PEOPLE’S REPUBLIC OF CHINA ICS 43.040.50 T 22 Commercial vehicles - light alloy wheels - 30° impact test method ISSUED ON: NOVEMBER 11, 2019 IMPLEMENTED ON: APRIL 01, 2020 Issued by: Ministry of Industry and Information Technology of PRC Table of ContentsForeword ... 7 1 Scope ... 8 2 Normative references ... 8 3 Terms and definitions ... 8 4 Test samples ... 8 5 Test equipment ... 9 6 Test method ... 9 7 Failure criteria ... 10 Commercial vehicles - light alloy wheels - 30° impact test method1 ScopeThis standard specifies a laboratory test method, for evaluating the performance of light alloy wheels impacting curbs axially (transversely). This standard applies to light alloy wheels for commercial vehicles.2 Normative referencesThe following documents are essential to the application of this document. For the dated documents, only the versions with the dates indicated are applicable to this document; for the undated documents, only the latest version (including all the amendments) is applicable to this standard. GB/T 2933 Wheels and rims for pneumatic tyres - Vocabulary, designation and marking GB/T 2977 Size designation, dimensions, inflation pressure and load capacity for truck tyres3 Terms and definitionsThe terms and definitions, as defined in GB/T 2933, as well as the following terms and definitions, apply to this document. 3.1 Wheel-tire assembly Assembled assembly of wheels, tires, valves.4 Test samplesNew wheels that have been gone through all processes. The tires selected for the test shall be the tires specified by the vehicle manufacturer. If there is no special requirement, it shall use the tubeless tires with the smallest nominal section width in accordance with GB/T 2977. The inflation pressure is the value, which is specified by the vehicle manufacturer. If there is no requirement, it shall comply with the provisions of GB/T 2977 on tire air pressure; the allowable error range is ±10 kPa. 6.2 Drop height of hammer The drop height of the hammer is calculated by the following formula: Where: H - The distance from the impact surface to the highest point of the tire, mm; W - Wheel or wheel rated load specified by the vehicle manufacturer, kg; K - Coefficient, mm/kg, usually take K = 0.4 mm/kg. 6.3 Test procedure 6.3.1 Install the wheel and tire assembly on the testing machine. The testing machine mounting jig shall be equivalent, in size, to the fixture used on the vehicle. 6.3.2 Adjust the distance H, from the impact surface of the hammer to the highest point of the tire. 6.3.3 Adjust the position of the wheel tire assembly, so that the lower edge of the auxiliary hammer overlaps the wheel rim by 25 mm ± 1 mm (see Figure 1). Adjust the position in the circumferential direction of the wheel, so that the impact part is directly below the hammer. 6.3.4 Tighten the nuts or bolts to the torque, which is specified by the wheel or vehicle manufacturer. 6.3.5 Release the hammer for impact. 6.3.6 Raise the hammer, to check the tire air pressure and wheel cracks.7 Failure criteriaA wheel is considered to have failed, if any of the following occurs: a) The tire pressure within 30 s is less than 50% of the initial value; b) Wheel penetrating cracks (check with colored penetrant). ......Source: Above contents are excerpted from the full-copy PDF -- translated/reviewed by: www.ChineseStandard.net / Wayne Zheng et al. Tips & Frequently Asked Questions:Question 1: How long will the true-PDF of English version of QC/T 1111-2019 be delivered?Answer: The full copy PDF of English version of QC/T 1111-2019 can be downloaded in 9 seconds, and it will also be emailed to you in 9 seconds (double mechanisms to ensure the delivery reliably), with PDF-invoice.Question 2: Can I share the purchased PDF of QC/T 1111-2019_English with my colleagues?Answer: Yes. The purchased PDF of QC/T 1111-2019_English will be deemed to be sold to your employer/organization who actually paid for it, including your colleagues and your employer's intranet.Question 3: Does the price include tax/VAT?Answer: Yes. Our tax invoice, downloaded/delivered in 9 seconds, includes all tax/VAT and complies with 100+ countries' tax regulations (tax exempted in 100+ countries) -- See Avoidance of Double Taxation Agreements (DTAs): List of DTAs signed between Singapore and 100+ countriesQuestion 4: Do you accept my currency other than USD?Answer: Yes. www.ChineseStandard.us -- QC/T 1111-2019 -- Click this link and select your country/currency to pay, the exact amount in your currency will be printed on the invoice. Full PDF will also be downloaded/emailed in 9 seconds.How to buy and download a true PDF of English version of QC/T 1111-2019?A step-by-step guide to download PDF of QC/T 1111-2019_EnglishStep 1: Visit website https://www.ChineseStandard.net (Pay in USD), or https://www.ChineseStandard.us (Pay in any currencies such as Euro, KRW, JPY, AUD).Step 2: Search keyword "QC/T 1111-2019". Step 3: Click "Add to Cart". If multiple PDFs are required, repeat steps 2 and 3 to add up to 12 PDFs to cart. Step 4: Select payment option (Via payment agents Stripe or PayPal). Step 5: Customize Tax Invoice -- Fill up your email etc. Step 6: Click "Checkout". Step 7: Make payment by credit card, PayPal, Google Pay etc. After the payment is completed and in 9 seconds, you will receive 2 emails attached with the purchased PDFs and PDF-invoice, respectively. Step 8: Optional -- Go to download PDF. Step 9: Optional -- Click Open/Download PDF to download PDFs and invoice. See screenshots for above steps: Steps 1~3 Steps 4~6 Step 7 Step 8 Step 9 |
