JGJ7-2010 PDF EnglishUS$145.00 · In stock · Download in 9 seconds
JGJ7-2010: Technical specification for space frame structures Delivery: 9 seconds. True-PDF full-copy in English & invoice will be downloaded + auto-delivered via email. See step-by-step procedure Status: Valid JGJ7: Historical versions

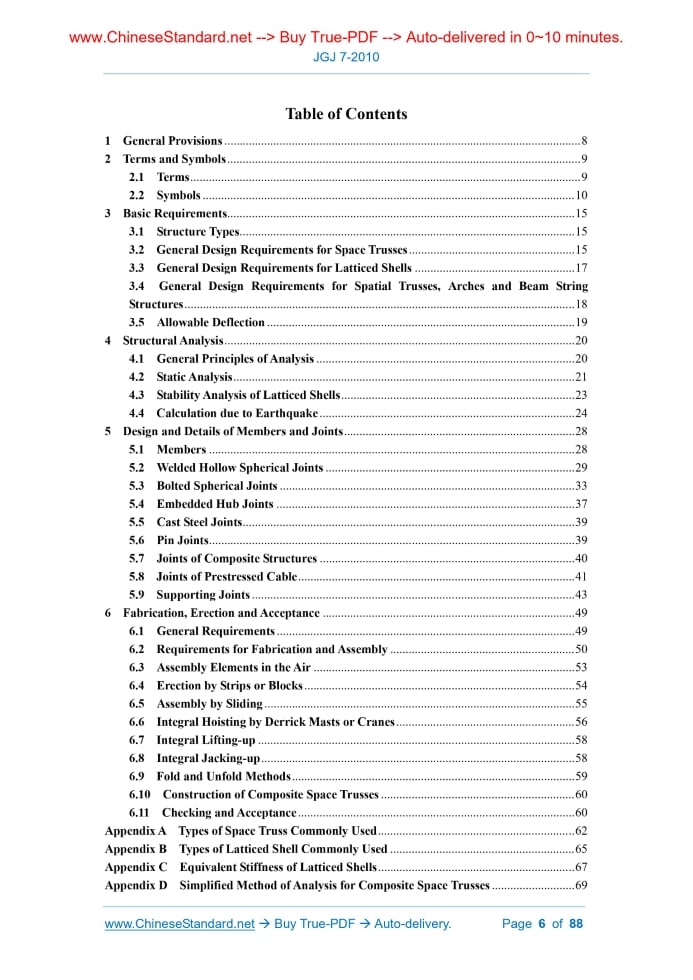

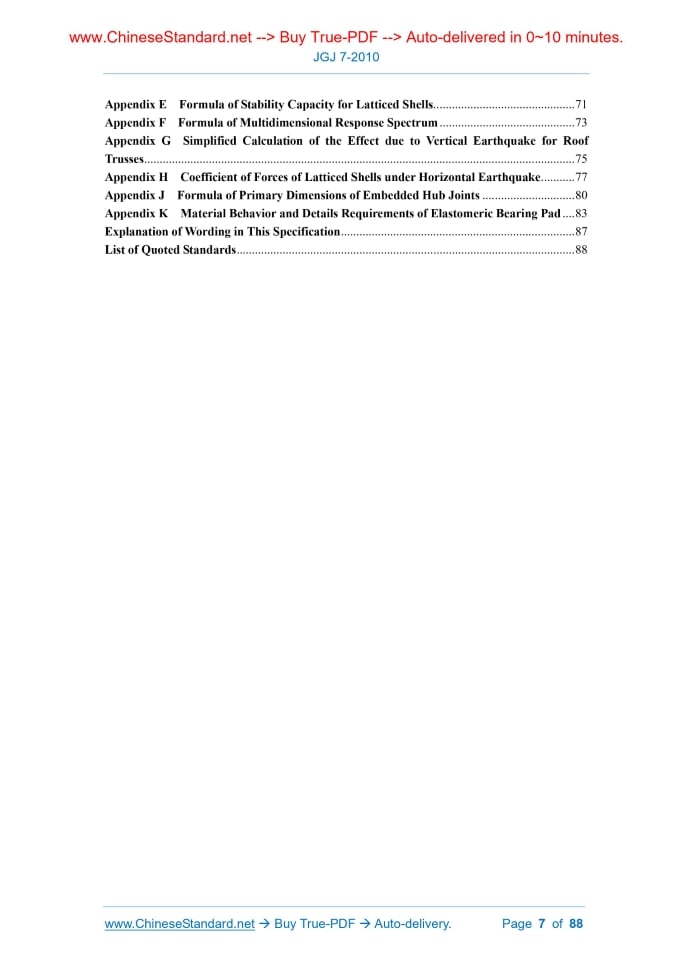

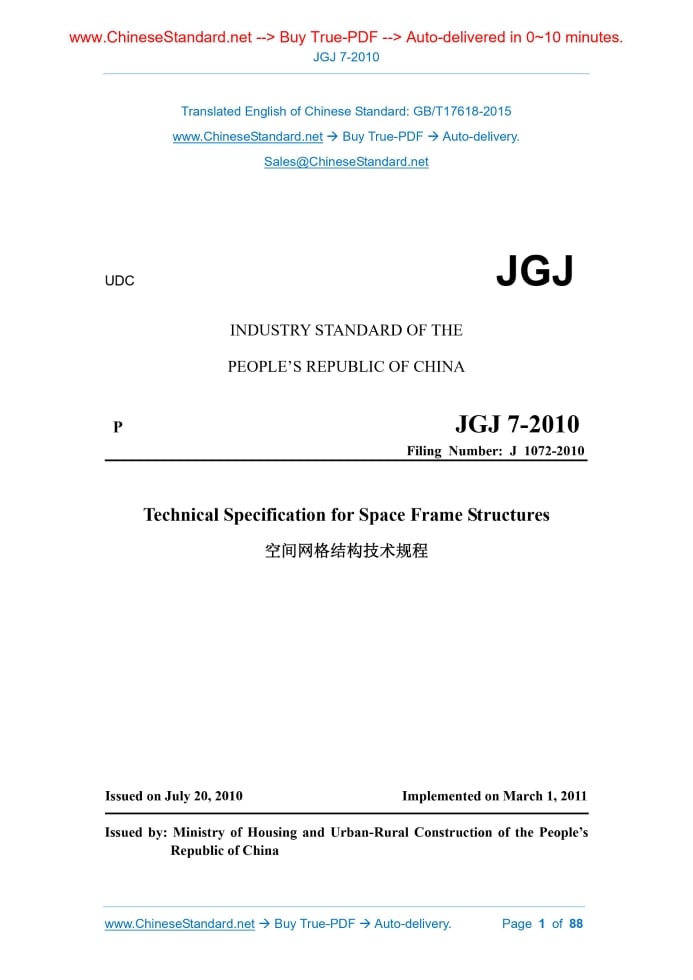

JGJ 7-2010: Technical specification for space frame structures---This is an excerpt. Full copy of true-PDF in English version (including equations, symbols, images, flow-chart, tables, and figures etc.), auto-downloaded/delivered in 9 seconds, can be purchased online: https://www.ChineseStandard.net/PDF.aspx/JGJ7-2010UDC JGJ INDUSTRY STANDARD OF THE PEOPLE’S REPUBLIC OF CHINA P JGJ 7-2010 Filing Number. J 1072-2010 Technical Specification for Space Frame Structures Issued on July 20, 2010 Implemented on March 1, 2011 Issued by. Ministry of Housing and Urban-Rural Construction of the People’s Republic of China INDUSTRY STANDARD OF THE PEOPLE’S REPUBLIC OF CHINA Technical Specification for Space Frame Structures Approval Department. Ministry of Housing and Urban-Rural Development of the People's Republic of China Implementation Date. March 1, 2011 Beijing, 2010 Table of Contents1 General Provisions... 8 2 Terms and Symbols... 9 3 Basic Requirements... 15 4 Structural Analysis... 20 5 Design and Details of Members and Joints... 28 6 Fabrication, Erection and Acceptance... 49 Appendix A Types of Space Truss Commonly Used... 62 Appendix B Types of Latticed Shell Commonly Used... 65 Appendix C Equivalent Stiffness of Latticed Shells... 67 Appendix D Simplified Method of Analysis for Composite Space Trusses... 69 Appendix E Formula of Stability Capacity for Latticed Shells... 71 Appendix F Formula of Multidimensional Response Spectrum... 73 Appendix G Simplified Calculation of the Effect due to Vertical Earthquake for Roof Trusses... 75 Appendix H Coefficient of Forces of Latticed Shells under Horizontal Earthquake... 77 Appendix J Formula of Primary Dimensions of Embedded Hub Joints... 80 Appendix K Material Behavior and Details Requirements of Elastomeric Bearing Pad... 83 Explanation of Wording in This Specification... 87 List of Quoted Standards... 881 General Provisions1.0.1 This standard is formulated with a view to implementing the national technical and economic policies in the design and construction of space frame structure and making the design to be of advanced technology, safety and usability, economy and rationality and high quality. 1.0.2 This standard is applicable to the design and construction of space frame structure composed of steel members, including space truss, single layer or double-layer latticed shell and spatial truss. 1.0.3 In the design of space frame structure, the reasonable structure scheme, frame / grid layout and structure measures shall be selected according to the actual situation and the comprehensive consideration shall be taken for material supply, processing fabrication and onsite construction, to ensure better technical and economic effects. 1.0.4 Suspended crane shall not be arranged for single-layer latticed shell structure. Space truss and double-layer latticed shell structures may directly withstand the suspended crane load at Level A3 or higher level. In case the cycle times of the stress variation is larger than or equal to 5×104, the fatigue analysis shall be conducted, and the allowable stress amplitude and the structure shall be determined by special test. 1.0.5 The design and construction of space frame structure shall comply with the requirements in the current relevant national standards besides this standard.2 Terms and Symbols2.1 Terms 2.1.1 Space grid structure, space frame, space latticed structure Spatial structure formed of member and member bar arranged in a certain rule by joint connection, including space truss, curved latticed shell and spatial truss 2.1.2 Space truss, space grid Flat plate type or slight curved spatial trussing structure formed of member bars arranged in a certain rule by joint connection, mainly bearing the integral bending internal force 2.1.3 Intersecting lattice truss system System formed of two-way or three-way intersecting lattice trusses 2.1.4 Square pyramid system System formed of square pyramids as basic unit 2.1.5 Triangular pyramid system System formed of triangular pyramids as basic unit 2.1.6 Composite space truss Flat lattice truss structure formed by reinforced concrete slab as upper chord member and steel web member and bottom chord bar 2.1.7 Latticed shell, reticulated shell Curved spatial trussing structure or beam structure formed of member bars arranged in a certain rule by joint connection, mainly bearing the integral thin film internal force 2.2 Symbols 2.2.1 Action, action effect and response 2.2.3 Geometric parameter and sectional characteristic3 Basic Requirements3.1 Structure Types 3.1.1 The grid (frame) structure may adopt double-layer or multi-layer type; the latticed shell structure may adopt single layer, double-layer type, or partial double-layer type. 3.1.5 The double-layer latticed shell may adopt two-way or three-way intersected lattice truss system, square pyramid system or triangular pyramid system, and the upper and lower chord lattices may be arranged by the mode specified in Article 3.1.4 in this standard. 3.1.6 The spatial truss may adopt straight line or curved type. 3.2 General Design Requirements for Space Trusses 3.2.1 As for periphery support space truss with rectangular plan form, where the side ratio hereof (the ratio of the longer side and the shorter side) is less than or equal to 1.5, normally placed square pyramid space truss, diagonal square pyramid space truss, checkerboard-type square pyramid space truss, normally placed square pyramid space truss with openings, two-way orthogonal diagonal space truss or two-way orthogonal spatial space truss should be adopted; where the side ratio is larger than 1.5, two-way orthogonal spatial space truss, normally placed square pyramid space truss or normally placed square pyramid space truss with openings should be adopted. 3.2.6 Upper chord or lower chord support may be adopted for space truss; lower chord support, if used, shall form side lattice truss on the support side. 3.2.7 If two-way orthogonal normally placed space truss is adopted, closed horizontal support shall be arranged along the periphery lattices of the space truss. 3.3 General Design Requirements for Latticed Shells 3.3.1 The design of the spherical latticed shell structure should meet the following requirements. 3.3.4 The design of the elliptic paraboloid latticed shell structure should meet the following requirements. 3.4 General Design Requirements for Spatial Trusses, Arches and Beam String Structures 3.4.1 The height of the spatial truss may be 1/12 ~ 1/16 of the span. 3.5 Allowable Deflection 3.5.1 The maximum deflection value of the space frame structure under the action of constant load and live load should not exceed the allowable deflection values listed in Table 3.5.1. 3.5.2 The space frame and the spatial truss may be arched in advance, and the arching value may be less than or equal to 1/300 the transverse span. Only for the appearance improvement, the maximum deflection may be the deflection under the action of the standard values of constant load and live load deducted by the arching value.4 Structural Analysis4.1 General Principles of Analysis 4.1.1 For space frame structure, the analysis on displacement and internal force un gravity load and wind load shall be conducted; according to specific conditions, the analysis on displacement and internal force under seismic load, temperature variation, support depression and construction & installation load shall be also taken out. The analysis may be done according to the theory of elasticity; in the integral stability analysis for latticed shell structure, the nonlinear impact hereof shall be considered. 4.1.4 In the analysis of grid structure and double-layer latticed shell structure, it is assumable that the joint is hinge one and the member bar only bears the axial force; when the ratio of the member bar inter-joint length and the section height (or diameter) is not less than 12 (main pipe) and 24 (branch pipe), it may also assumable in the analysis of spatial bracing frame pipe that the joint is hinge one; in the analysis of single-layer latticed shell, it shall be assumable that the joint is rigid one, and the member bar bears the axial force as well as bending moment, torsion moment and shear force. 4.1.8 When the support conditions of the space frame structure are different at construction & installation stage and the operation stage, the structure displacement and internal force under corresponding load at different stages shall be analyzed respectively according to different support conditions. 4.1.9 The calculation / analysis with finite element method or serialization assumption-based method may be adopted according to the factors like type, plan form and load type of space frame structure, and different design stages. The application scope and conditions of the method shall meet the following requirements. 4.2.2 The sectional plane design for the member bar shall be conducted after the displacement and internal force analysis for the space frame structure. If the sectional plane needs be adjusted, the analysis shall be conducted again to make it satisfy the design requirements. After the space frame structure design, the member bars should not be replaced, otherwise, the replacement shall be conducted on the principle "sectional plane and stiffness equivalent". 4.2.7 The spatial grid structure with periphery support and rectangular plane formed of plane trussing and pyramidal body may be simplified as orthogonal heterotypic or isotropic flat plate, and the displacement internal force analysis for it may be conducted with planned sandwich plate method. 4.2.10 The calculation for composite space truss structure may also be simplified with space trussing finite element method. in the analyses, the ribbed flat plate for the composite space truss may be equal-substituted as an upper chord that can only bear the axial force and form the equal-substitute space truss (made of two different materials) with web member and lower chord, and the displacement and internal force analysis is conducted with space trussing finite element method. The sectional plane of the equal-substituted upper chord and the internal force on the ribbed flat plate may be determined according to the requirements of Appendix D in this standard. 4.3 Stability Analysis of Latticed Shells 4.3.1 The stability analysis shall be conducted for single-layer latticed shell and double-layer latticed shell with the thickness less than 1/50 the span. 4.4 Calculation due to Earthquake 4.4.1 The seismic checking of the roof trusses shall meet the following requirements. 4.4.8 In the space frame structure seismic effect analyses with mode-decomposition response spectrum method, at least first 10 ~15 vibration modes should be adopted for the spatial grid structure; for latticed shell structure, at least first 25~30 vibration modes should be adopted for effect combining; more vibration modes shall be adopted for wide span space frame structure with complex body type or of importance for effect combining. 4.4.13 The horizontal earthquake action effect of single layer spherical latticed shell structure, single layer hyperbolic paraboloid latticed shell structure and normally placed square pyramid double-layer cylindrical latticed shell structure may be analyzed in the simplified means according to the Appendix H in this standard.5 Design and Details of Members and Joints5.1 Members 5.1.1 Common steel section or hollow steel section may be adopted for members of space frame. High-frequency welded pipes or seamless steel pipes should be adopted as pipe materials. 5.1.2 When the slenderness ratio of members is determined, their calculated length shall be adopted according to Table 5.1.2. 5.2 Welded Hollow Spherical Joints 5.2.1 Hollow sphere welded by two half spheres may adopt non-ribbed hollow spheres (Figure 5.2.1-1) and ribbed hollow spheres (Figure 5.2.1-2) respectively according to the size of load carrying. Steels of hollow sphere should adopt Q2358 steel specified by the current national standard "Carbon Structural Steels" GB/T 700 or Q3458 and Q 345C steel specified by "High Strength Low Alloy Structural Steels" GB/T 1591.Product quality shall meet the requirements of the current professional standard "Welded Hollow Spherical Node of Space Grid Structures" JG/T 11. 5.2.5 Design of welded hollow sphere and connection between steel pipe member and hollow sphere shall meet the following detailing requirements. 5.3 Bolted Spherical Joints 5.3.1 Bolted spherical joints (Figure 5.3.1) shall be composed of steel balls, high strength bolts, sleeves, tightening screws, coneheads or closing plates. They may be used to the circular steel pipe members that connect such space frames as space truss and double-layer latticed shell. 5.9.4 Supporting joints of common tension may be selected according to the following structural forms.6 Fabrication, Erection and Acceptance6.1 General Requirements 6.1.1 The type, specification and property of steels shall meet the national current product standard and the design requirement, as well as be possessed of quality certificates. Sampling and re-inspection of steels shall meet the requirements of the current national standard "Code for Acceptance of Construction Quality of Steel Structures" GB 50205. 6.1.7 After installation methods are determined, reaction of each hoisting point, vertical displacement, internal force of members, stability of support column during lifting-up or jacking-up, as well as horizontal thrust of space frame under wind load shall be checked and calculated respectively for space frame, if necessary, temporary strengthening measures shall be adopted. 6.2 Requirements for Fabrication and Assembly 6.2.1 Members and joints of space frame shall be fabricated and assembled on special equipment or models to ensure precision and interchangeability of assembly unit. 6.2.3 Members of space frame shall not be prolonged for more than once; total number of prolonged members shall not be greater than 10% of total members; prolonged members shall not be arranged intensively. Minimum distance from butt welds of members to joints or terminals shall not be less than 500mm. 6.2.8 As for space frame by strip or block, when unit length is not greater than 20m, allowable deviation of assembling side length shall be ±10mm; when unit length is greater than 20m, allowable deviation of assembling side length shall be ± 20mm. Total assembling in the air shall be possessed of measures that ensure precision. 6.3 Assembly Elements in the Air 6.3.1 When assembly with small-assembled units or members is directly carried out in the air, its sequence shall be able to ensure the assembly precision and reduce cumulative error. During overhang construction, they shall be assembled to the geometrically-constant structural system that can bear deadweight and then extended gradually. A small amount of support may be installed to reduce the vertical displacement of structures during assembling extending. During the assembly process of space frame, the control point space coordinate shall be measured at any time, and adjusted timely to the design value to avoid gradual accumulation of assembly deviation. JGJ 7-2010 UDC JGJ INDUSTRY STANDARD OF THE PEOPLE’S REPUBLIC OF CHINA P JGJ 7-2010 Filing Number. J 1072-2010 Technical Specification for Space Frame Structures Issued on July 20, 2010 Implemented on March 1, 2011 Issued by. Ministry of Housing and Urban-Rural Construction of the People’s Republic of China INDUSTRY STANDARD OF THE PEOPLE’S REPUBLIC OF CHINA Technical Specification for Space Frame Structures Approval Department. Ministry of Housing and Urban-Rural Development of the People's Republic of China Implementation Date. March 1, 2011 Beijing, 2010Table of Contents1 General Provisions... 8 2 Terms and Symbols... 9 3 Basic Requirements... 15 4 Structural Analysis... 20 5 Design and Details of Members and Joints... 28 6 Fabrication, Erection and Acceptance... 49 Appendix A Types of Space Truss Commonly Used... 62 Appendix B Types of Latticed Shell Commonly Used... 65 Appendix C Equivalent Stiffness of Latticed Shells... 67 Appendix D Simplified Method of Analysis for Composite Space Trusses... 69 Appendix E Formula of Stability Capacity for Latticed Shells... 71 Appendix F Formula of Multidimensional Response Spectrum... 73 Appendix G Simplified Calculation of the Effect due to Vertical Earthquake for Roof Trusses... 75 Appendix H Coefficient of Forces of Latticed Shells under Horizontal Earthquake... 77 Appendix J Formula of Primary Dimensions of Embedded Hub Joints... 80 Appendix K Material Behavior and Details Requirements of Elastomeric Bearing Pad... 83 Explanation of Wording in This Specification... 87 List of Quoted Standards... 881 General Provisions1.0.1 This standard is formulated with a view to implementing the national technical and economic policies in the design and construction of space frame structure and making the design to be of advanced technology, safety and usability, economy and rationality and high quality. 1.0.2 This standard is applicable to the design and construction of space frame structure composed of steel members, including space truss, single layer or double-layer latticed shell and spatial truss. 1.0.3 In the design of space frame structure, the reasonable structure scheme, frame / grid layout and structure measures shall be selected according to the actual situation and the comprehensive consideration shall be taken for material supply, processing fabrication and onsite construction, to ensure better technical and economic effects. 1.0.4 Suspended crane shall not be arranged for single-layer latticed shell structure. Space truss and double-layer latticed shell structures may directly withstand the suspended crane load at Level A3 or higher level. In case the cycle times of the stress variation is larger than or equal to 5×104, the fatigue analysis shall be conducted, and the allowable stress amplitude and the structure shall be determined by special test. 1.0.5 The design and construction of space frame structure shall comply with the requirements in the current relevant national standards besides this standard.2 Terms and Symbols2.1 Terms 2.1.1 Space grid structure, space frame, space latticed structure Spatial structure formed of member and member bar arranged in a certain rule by joint connection, including space truss, curved latticed shell and spatial truss 2.1.2 Space truss, space grid Flat plate type or slight curved spatial trussing structure formed of member bars arranged in a certain rule by joint connection, mainly bearing the integral bending internal force 2.1.3 Intersecting lattice truss system System formed of two-way or three-way intersecting lattice trusses 2.1.4 Square pyramid system System formed of square pyramids as basic unit 2.1.5 Triangular pyramid system System formed of triangular pyramids as basic unit 2.1.6 Composite space truss Flat lattice truss structure formed by reinforced concrete slab as upper chord member and steel web member and bottom chord bar 2.1.7 Latticed shell, reticulated shell Curved spatial trussing structure or beam structure formed of member bars arranged in a certain rule by joint connection, mainly bearing the integral thin film internal force 2.2 Symbols 2.2.1 Action, action effect and response 2.2.3 Geometric parameter and sectional characteristic3 Basic Requirements3.1 Structure Types 3.1.1 The grid (frame) structure may adopt double-layer or multi-layer type; the latticed shell structure may adopt single layer, double-layer type, or partial double-layer type. 3.1.5 The double-layer latticed shell may adopt two-way or three-way intersected lattice truss system, square pyramid system or triangular pyramid system, and the upper and lower chord lattices may be arranged by the mode specified in Article 3.1.4 in this standard. 3.1.6 The spatial truss may adopt straight line or curved type. 3.2 General Design Requirements for Space Trusses 3.2.1 As for periphery support space truss with rectangular plan form, where the side ratio hereof (the ratio of the longer side and the shorter side) is less than or equal to 1.5, normally placed square pyramid space truss, diagonal square pyramid space truss, checkerboard-type square pyramid space truss, normally placed square pyramid space truss with openings, two-way orthogonal diagonal space truss or two-way orthogonal spatial space truss should be adopted; where the side ratio is larger than 1.5, two-way orthogonal spatial space truss, normally placed square pyramid space truss or normally placed square pyramid space truss with openings should be adopted. 3.2.6 Upper chord or lower chord support may be adopted for space truss; lower chord support, if used, shall form side lattice truss on the support side. 3.2.7 If two-way orthogonal normally placed space truss is adopted, closed horizontal support shall be arranged along the periphery lattices of the space truss. 3.3 General Design Requirements for Latticed Shells 3.3.1 The design of the spherical latticed shell structure should meet the following requirements. 3.3.4 The design of the elliptic paraboloid latticed shell structure should meet the following requirements. 3.4 General Design Requirements for Spatial Trusses, Arches and Beam String Structures 3.4.1 The height of the spatial truss may be 1/12 ~ 1/16 of the span. 3.5 Allowable Deflection 3.5.1 The maximum deflection value of the space frame structure under the action of constant load and live load should not exceed the allowable deflection values listed in Table 3.5.1. 3.5.2 The space frame and the spatial truss may be arched in advance, and the arching value may be less than or equal to 1/300 the transverse span. Only for the appearance improvement, the maximum deflection may be the deflection under the action of the standard values of constant load and live load deducted by the arching value.4 Structural Analysis4.1 General Principles of Analysis 4.1.1 For space frame structure, the analysis on displacement and internal force un gravity load and wind load shall be conducted; according to specific conditions, the analysis on displacement and internal force under seismic load, temperature variation, support depression and construction & installation load shall be also taken out. The analysis may be done according to the theory of elasticity; in the integral stability analysis for latticed shell structure, the nonlinear impact hereof shall be considered. 4.1.4 In the analysis of grid structure and double-layer latticed shell structure, it is assumable that the joint is hinge one and the member bar only bears the axial force; when the ratio of the member bar inter-joint length and the section height (or diameter) is not less than 12 (main pipe) and 24 (branch pipe), it may also assumable in the analysis of spatial bracing frame pipe that the joint is hinge one; in the analysis of single-layer latticed shell, it shall be assumable that the joint is rigid one, and the member bar bears the axial force as well as bending moment, torsion moment and shear force. 4.1.8 When the support conditions of the space frame structure are different at construction & installation stage and the operation stage, the structure displacement and internal force under corresponding load at different stages shall be analyzed respectively according to different support conditions. 4.1.9 The calculation / analysis with finite element method or serialization assumption-based method may be adopted according to the factors like type, plan form and load type of space frame structure, and different design stages. The application scope and conditions of the method shall meet the following requirements. 4.2.2 The sectional plane design for the member bar shall be conducted after the displacement and internal force analysis for the space frame structure. If the sectional plane needs be adjusted, the analysis shall be conducted again to make it satisfy the design requirements. After the space frame structure design, the member bars should not be replaced, otherwise, the replacement shall be conducted on the principle "sectional plane and stiffness equivalent". 4.2.7 The spatial grid structure with periphery support and rectangular plane formed of plane trussing and pyramidal body may be simplified as orthogonal heterotypic or isotropic flat plate, and the displacement internal force analysis for it may be conducted with planned sandwich plate method. 4.2.10 The calculation for composite space truss structure may also be simplified with space trussing finite element method. in the analyses, the ribbed flat plate for the composite space truss may be equal-substituted as an upper chord that can only bear the axial force and form the equal-substitute space truss (made of two different materials) with web member and lower chord, and the displacement and internal force analysis is conducted with space trussing finite element method. The sectional plane of the equal-substituted upper chord and the internal force on the ribbed flat plate may be determined according to the requirements of Appendix D in this standard. 4.3 Stability Analysis of Latticed Shells 4.3.1 The stability analysis shall be conducted for single-layer latticed shell and double-layer latticed shell with the thickness less than 1/50 the span. 4.4 Calculation due to Earthquake 4.4.1 The seismic checking of the roof trusses shall meet the following requirements. 4.4.8 In the space frame structure seismic effect analyses with mode-decomposition response spectrum method, at least first 10 ~15 vibration modes should be adopted for the spatial grid structure; for latticed shell structure, at least first 25~30 vibration modes should be adopted for effect combining; more vibration modes shall be adopted for wide span space frame structure with complex body type or of importance for effect combining. 4.4.13 The horizontal earthquake action effect of single layer spherical latticed shell structure, single layer hyperbolic paraboloid latticed shell structure and normally placed square pyramid double-layer cylindrical latticed shell structure may be analyzed in the simplified means according to the Appendix H in this standard.5 Design and Details of Members and Joints5.1 Members 5.1.1 Common steel section or hollow steel section may be adopted for members of space frame. High-frequency welded pipes or seamless steel pipes should be adopted as pipe materials. 5.1.2 When the slenderness ratio of members is determined, their calculated length shall be adopted according to Table 5.1.2. 5.2 Welded Hollow Spherical Joints 5.2.1 Hollow sphere welded by two half spheres may adopt non-ribbed hollow spheres (Figure 5.2.1-1) and ribbed hollow spheres (Figure 5.2.1-2) respectively according to the size of load carrying. Steels of hollow sphere should adopt Q2358 steel specified by the current national standard "Carbon Structural Steels" GB/T 700 or Q3458 and Q 345C steel specified by "High Strength Low Alloy Structural Steels" GB/T 1591.Product quality shall meet the requirements of the current professional standard "Welded Hollow Spherical Node of Space Grid Structures" JG/T 11. 5.2.5 Design of welded hollow sphere and connection between steel pipe member and hollow sphere shall meet the following detailing requirements. 5.3 Bolted Spherical Joints 5.3.1 Bolted spherical joints (Figure 5.3.1) shall be composed of steel balls, high strength bolts, sleeves, tightening screws, coneheads or closing plates. They may be used to the circular steel pipe members that connect such space frames as space truss and double-layer latticed shell. 5.9.4 Supporting joints of common tension may be selected according to the following structural forms.6 Fabrication, Erection and Acceptance6.1 General Requirements 6.1.1 The type, specification and property of steels shall meet the national current product standard and the design requirement, as well as be possessed of quality certificates. Sampling and re-inspection of steels shall meet the requirements of the current national standard "Code for Acceptance of Construction Quality of Steel Structures" GB 50205. 6.1.7 After installation methods are determined, reaction of each hoisting point, vertical displacement, internal force of members, stability of support column during lifting-up or jacking-up, as well as horizontal thrust of space frame under wind load shall be checked and calculated respectively for space frame, if necessary, temporary strengthening measures shall be adopted. 6.2 Requirements for Fabrication and Assembly 6.2.1 Members and joints of space frame shall be fabricated and assembled on special equipment or models to ensure precision and interchangeability of assembly unit. 6.2.3 Members of space frame shall not be prolonged for more than once; total number of prolonged members shall not be greater than 10% of total members; prolonged members shall not be arranged intensively. Minimum distance from butt welds of members to joints or terminals shall not be less than 500mm. 6.2.8 As for space frame by strip or block, when unit length is not greater than 20m, allowable deviation of assembling side length shall be ±10mm; when unit length is greater than 20m, allowable deviation of assembling side length shall be ± 20mm. Total assembling in the air shall be possessed of measures that ensure precision. 6.3 Assembly Elements in the Air 6.3.1 When assembly with small-assembled units or members is directly carried out in the air, its sequence shall be able to ensure the assembly precision and reduce cumulative error. During overhang construction, they shall be assembled to the geometrically-constant structural system that can bear deadweight and then extended gradually. A small amount of support may be installed to reduce the vertical displacement of structures during assembling extending. During the assembly process of space frame, the control point space coordinate shall be measured at any time, and adjusted timely to the design value to avoid gradual accumulation of assembly deviation. ......Source: Above contents are excerpted from the full-copy PDF -- translated/reviewed by: www.ChineseStandard.net / Wayne Zheng et al. Tips & Frequently Asked Questions:Question 1: How long will the true-PDF of English version of JGJ7-2010 be delivered?Answer: The full copy PDF of English version of JGJ7-2010 can be downloaded in 9 seconds, and it will also be emailed to you in 9 seconds (double mechanisms to ensure the delivery reliably), with PDF-invoice.Question 2: Can I share the purchased PDF of JGJ7-2010_English with my colleagues?Answer: Yes. The purchased PDF of JGJ7-2010_English will be deemed to be sold to your employer/organization who actually paid for it, including your colleagues and your employer's intranet.Question 3: Does the price include tax/VAT?Answer: Yes. Our tax invoice, downloaded/delivered in 9 seconds, includes all tax/VAT and complies with 100+ countries' tax regulations (tax exempted in 100+ countries) -- See Avoidance of Double Taxation Agreements (DTAs): List of DTAs signed between Singapore and 100+ countriesQuestion 4: Do you accept my currency other than USD?Answer: Yes. www.ChineseStandard.us -- JGJ7-2010 -- Click this link and select your country/currency to pay, the exact amount in your currency will be printed on the invoice. Full PDF will also be downloaded/emailed in 9 seconds.Question 5: Should I purchase the latest version JGJ7-2010?Answer: Yes. Unless special scenarios such as technical constraints or academic study, you should always prioritize to purchase the latest version JGJ7-2010 even if the enforcement date is in future. Complying with the latest version means that, by default, it also complies with all the earlier versions, technically.How to buy and download a true PDF of English version of JGJ7-2010?A step-by-step guide to download PDF of JGJ7-2010_EnglishStep 1: Visit website https://www.ChineseStandard.net (Pay in USD), or https://www.ChineseStandard.us (Pay in any currencies such as Euro, KRW, JPY, AUD).Step 2: Search keyword "JGJ7-2010". Step 3: Click "Add to Cart". If multiple PDFs are required, repeat steps 2 and 3 to add up to 12 PDFs to cart. Step 4: Select payment option (Via payment agents Stripe or PayPal). Step 5: Customize Tax Invoice -- Fill up your email etc. Step 6: Click "Checkout". Step 7: Make payment by credit card, PayPal, Google Pay etc. After the payment is completed and in 9 seconds, you will receive 2 emails attached with the purchased PDFs and PDF-invoice, respectively. Step 8: Optional -- Go to download PDF. Step 9: Optional -- Click Open/Download PDF to download PDFs and invoice. See screenshots for above steps: Steps 1~3 Steps 4~6 Step 7 Step 8 Step 9 |
