JB/T 10636-2006: Copper-Conductor Extruded Plastic Insulated Cables with Pre-Fabricated Branches for Rated Voltage of 0.6/1kV (Um=1.2kV) Delivery: 9 seconds. True-PDF full-copy in English & invoice will be downloaded + auto-delivered via email. See step-by-step procedure Status: Valid

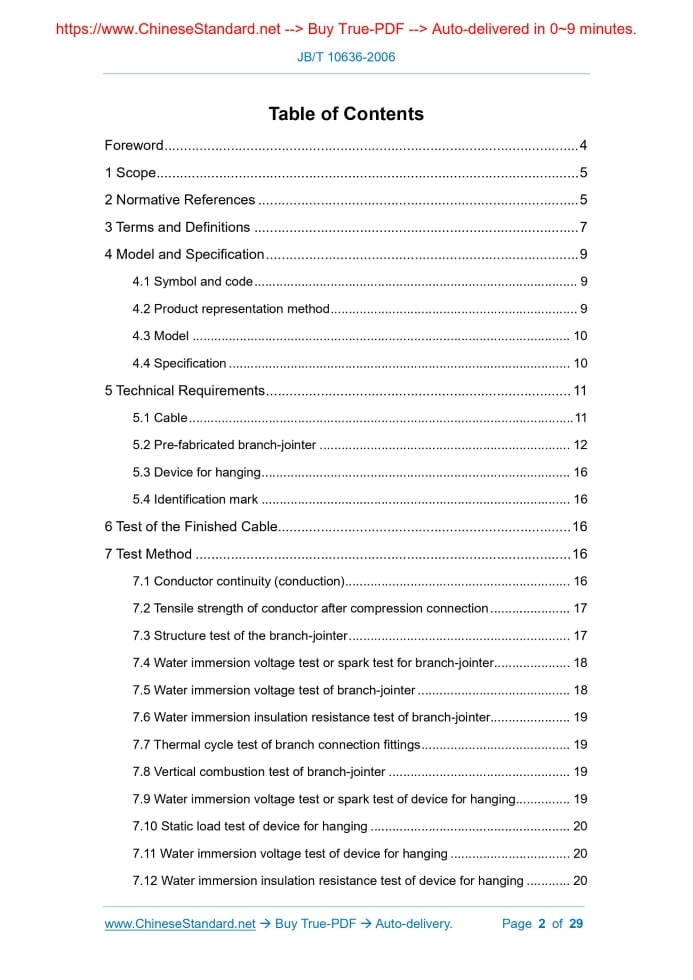

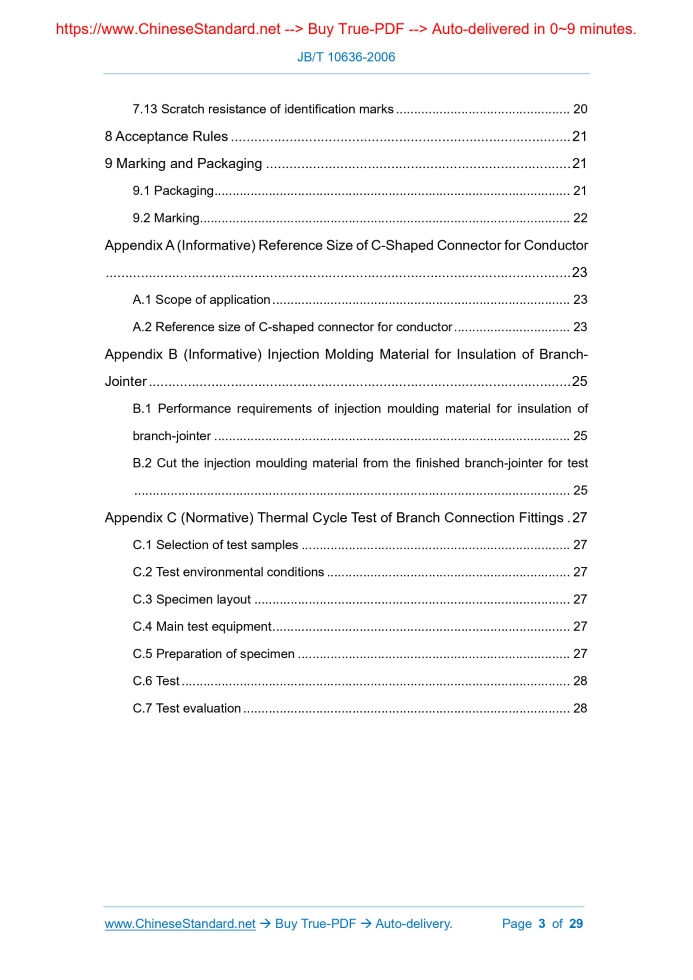

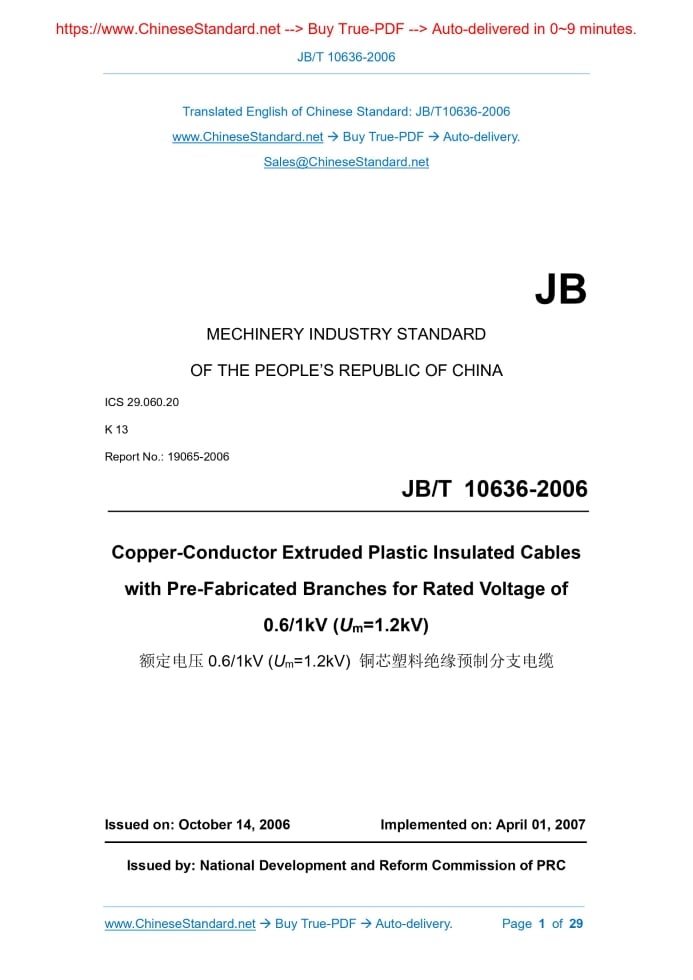

Similar standardsJB/T 10636-2006: Copper-Conductor Extruded Plastic Insulated Cables with Pre-Fabricated Branches for Rated Voltage of 0.6/1kV (Um=1.2kV)---This is an excerpt. Full copy of true-PDF in English version (including equations, symbols, images, flow-chart, tables, and figures etc.), auto-downloaded/delivered in 9 seconds, can be purchased online: https://www.ChineseStandard.net/PDF.aspx/JBT10636-2006 JB MECHINERY INDUSTRY STANDARD ICS 29.060.20 K 13 Report No.. 19065-2006 Copper-Conductor Extruded Plastic Insulated Cables with Pre-Fabricated Branches for Rated Voltage of 0.6/1kV (Um=1.2kV) Issued on. OCTOBER 14, 2006 Implemented on. APRIL 01, 2007 Issued by. National Development and Reform Commission of PRC Table of ContentsForeword... 4 1 Scope... 5 2 Normative References... 5 3 Terms and Definitions... 7 4 Model and Specification... 9 4.1 Symbol and code... 9 4.2 Product representation method... 9 4.3 Model... 10 4.4 Specification... 10 5 Technical Requirements... 11 5.1 Cable... 11 5.2 Pre-fabricated branch-jointer... 12 5.3 Device for hanging... 16 5.4 Identification mark... 16 6 Test of the Finished Cable... 16 7 Test Method... 16 7.1 Conductor continuity (conduction)... 16 7.2 Tensile strength of conductor after compression connection... 17 7.3 Structure test of the branch-jointer... 17 7.4 Water immersion voltage test or spark test for branch-jointer... 18 7.5 Water immersion voltage test of branch-jointer... 18 7.6 Water immersion insulation resistance test of branch-jointer... 19 7.7 Thermal cycle test of branch connection fittings... 19 7.8 Vertical combustion test of branch-jointer... 19 7.9 Water immersion voltage test or spark test of device for hanging... 19 7.10 Static load test of device for hanging... 20 7.11 Water immersion voltage test of device for hanging... 20 7.12 Water immersion insulation resistance test of device for hanging... 20 7.13 Scratch resistance of identification marks... 20 8 Acceptance Rules... 21 9 Marking and Packaging... 21 9.1 Packaging... 21 9.2 Marking... 22 Appendix A (Informative) Reference Size of C-Shaped Connector for Conductor ... 23 A.1 Scope of application... 23 A.2 Reference size of C-shaped connector for conductor... 23 Appendix B (Informative) Injection Molding Material for Insulation of Branch- Jointer... 25 B.1 Performance requirements of injection moulding material for insulation of branch-jointer... 25 B.2 Cut the injection moulding material from the finished branch-jointer for test ... 25 Appendix C (Normative) Thermal Cycle Test of Branch Connection Fittings. 27 C.1 Selection of test samples... 27 C.2 Test environmental conditions... 27 C.3 Specimen layout... 27 C.4 Main test equipment... 27 C.5 Preparation of specimen... 27 C.6 Test... 28 C.7 Test evaluation... 28ForewordThe Appendixes A and B of this Standard are informative; while Appendix C is normative. This Standard was proposed by China Machinery Industry Federation. This Standard shall be under the jurisdiction of National Technical Committee on Wire and Cables of Standardization Administration of China (SAC/TC 213). Drafting organization of this Standard. Shanghai Electrical Cable Research Institute. Participating drafting organizations of this Standard. Baosheng Science and Technology Innovation Co., Ltd.; Guangdong Cable Factory; China Juche Electrical Appliance Co., Ltd.; Chongqing Pigeon Electric Wire & Cable Co., Ltd.; Jiangsu Shangshang Cable Group Co., Ltd.; Far East Cable Factory; Shanghai Nanyang- Fujikura Cable Co., Ltd.; Ruixin Group Co., Ltd.; Shanghai Shenghua Cable Group; and Kunming Cable Group Co., Ltd. Chief drafting staffs of this Standard. Zhang Zhiyong, Zhuang Meng, Tang Chongjian, Huang Shuzhen, Kan Wu, Wang Shimin, Wang Songming, Wang Chuanbin, Zhao Hong, Xu Qiao, Chen Sanjian, and Fang Yuebin. This Standard was first-time published. Copper-Conductor Extruded Plastic Insulated Cables with Pre-Fabricated Branches for Rated Voltage of 0.6/1kV (Um=1.2kV)1 ScopeThis Standard specifies the product structure, technical requirements, cable test, acceptance rules, marking and packaging of copper-conductor extruded plastic insulated cables with prefabricated branches for a rated voltage of 0.6kV/1kV. This Standard is applicable to cables with prefabricated branches used in air-laid buildings and supply mains for rated voltages of 0.6kV/1kV and below; and cables with prefabricated branch for illumination of tunnels and bridges, as well as for other similar purposes.2 Normative ReferencesThe provisions in following documents become the provisions of this Standard through reference in this Standard. For dated references, the subsequent amendments (excluding corrigendum) or revisions do not apply to this Standard, however, parties who reach an agreement based on this Standard are encouraged to study if the latest versions of these documents are applicable. For undated references, the latest edition of the referenced document applies. GB/T 1040-1992 Plastics - Determination of Tensile Properties GB/T 1408.1-1999 Methods of Test for Electric Strength of Solid Insulating Materials -Tests at Power Frequencies (eqv IEC 60243-1.1988) GB/T 1410-2006 Methods of Test for Volume Resistivity and Surface Resistivity of Solid Electrical Insulating Materials (IEC 60093.1980, IDT) GB/T 2406-1993 Plastics - Determination of Flammability by Oxygen Index (neq ISO 4589.1984) GB/T 2900.10 Electrotechnical Vocabulary - Electric Cables (GB/T 2900.10-2001, idt IEC 60050(461).1984) GB/T 2951.1-1997 Common Test Methods for Insulating and Sheathing Materials of Electric Cables - Part 1.Methods for General Application - Section 1. Measurement of Thickness and Overall Dimensions - Tests for Determining the Mechanical Properties (idt IEC 60811-1-1.1993) GB/T 2951.2-1997 Common Test Methods for Insulating and Sheathing Materials of Electric Cables - Part 1.Methods for General Application - Section 2.Thermal Ageing Methods (idt IEC 60811-1-2.1985, No.1.1989, 1st revision) GB/T 3048.6-1994 Test Methods for Determining Electrical Properties of Electric Cables and Wires - Determining Insulation Resistance-Voltmeter-Ammeter Method3 Terms and DefinitionsFor the purposes of this Standard, the terms and definitions given in GB/T 2900.10 and the following apply. 3.1 Cable with pre-fabricated branches The cables with pre-fabricated branches are a complete and continuous set of cables pre-fabricated by the factory. 3.2 Branch-jointer The sealed components that the conductors of trunk and branch cables are compressed and connected by copper or copper alloy tubes and perform the complete insulation treatment. 3.3 “C” shaped connector for conductors A device that is used to connect conductors of cables with prefabricated branches. Its cross-section is like a C-shaped copper or copper alloy connecting tube, which facilitates the snap-in and compression connection of the conductors of trunk and branch cables. 3.5 Type test (Symbol T) Type test refers to the test that is carried out on a type of cable specified in this section before delivery in accordance with general commercial principles to prove that the cable has good performance and can meet the specified use requirements. The essence of the type test is that once these tests are carried out, they do not need to repeat. If the changes in cable material or design shall affect the performance of the cable, the type test must be repeated. 3.6 Sample test (Symbol S) Sample test refers to the test that is performed on the finished cable specimen or the components taken from the finished cable to prove that the product meets the design specifications.4 Model and Specification4.1 Symbol and code 4.3 Model The models of cables can refer to Table 1. 4.4 Specification Please refer to Table 2 for the number of cable cores and the cross-sectional area specifications of trunk cables and branch cables; and refer to Table 3 for the conductor cross-sectional area specifications of four-core and five-core cables. Cables with other cross-sectional area specifications shall be negotiated between the manufacturer and the user.5 Technical Requirements5.1 Cable 5.1.1 Quality requirements for cable body The cable body shall meet the requirements of the copper core cable with rated voltage of 0.6kV/1kV in GB/T 12706.1.Multi-core cable insulated cores twisted into cables are only allowed to be arranged in one layer, and each insulated core is also allowed to be arranged in parallel in one layer. 5.1.2 Configuration of cable specification 5.1.2.1 In principle, the models of trunk cable and branch cable selected for the same Models The number of cores 5.1.2.2 For the same group of cables with prefabricated branches, only one branch cable per core is allowed to be connected to the branch point of the multi-core trunk cable; and two or less branch cables are allowed to be connected to the branch point of the single-core trunk cable. Unless otherwise required, all branch cables shall be led out in the same direction. 5.1.2.3 When the trunk cable is multi-core, the branch cable can be multi-core or single-core cable. When the trunk cable is single-core, the branch cable can be a single-core or two-core cable. 5.2 Pre-fabricated branch-jointer 5.2.1 Compression connection of conductor 5.2.1.5 When stripping the core insulation of a multi-core trunk cable, if the bare conductors are arranged longitudinally, they should be separated by an insulation distance of 10mm~25mm. If the bare conductors are arranged radially, appropriate insulation and isolation measures are allowed. 5.2.1.6 The actual cross-sectional area of the conductors of trunk cable and branch cable shall not be reduced during compression connection. The compressed connection tube shall be free of cracks, burrs and other scars. If a C-shaped connector for conductor is used to compress, its opening is basically closed (fine seams are allowed). 5.2.2 Insulation of branch-jointer 5.2.2.1 The insulation of the branch-jointer shall be manufactured by the corresponding polyvinyl chloride or polyolefin injection moulding process (hereinafter referred to as injection moulding) according to the cable model, and the appearance shall be neat and clean. Refer to Appendix B for the performance of injection plastic. 5.2.2.4 The thickness of the thinnest point of the external insulation of the single-core or multi-core cable branch-jointer shall be no less than the sum of the nominal thickness of the trunk cable insulation and the sheath, which includes the reinforced insulation (if any). The thickness of the thinnest point of insulation between adjacent conductors of a multi-core cable shall be no less than twice the nominal thickness of the trunk cable insulation, which includes the reinforced insulation (if any). 5.2.3 When required by the user, multiple single-core cables can be twisted into a cable or bundled in parallel. The direction of the twisted cable is right, and the cable pitch is not specified. When bundled in parallel, the cables can be fixed at a fixed distance with a suitable clamp. When packaging and laying the twisted into cables or bundled in parallel, there shall be no looseness and displacement of the single-core cables. 5.3 Device for hanging 5.3.1 The device for hanging can adopt multiple combined structures such as hooks, insulating components, clamps, porcelain insulators, steel mesh sleeves, etc. The cables with prefabricated branches shall be fixed within 24h after hanging. 5.3.2 The cable end at the device for hanging shall be completely insulated to ensure the sealing and insulation of the end. 5.4 Identification mark 5.4.1 The finished cable shall be marked with the factory name or trademark on the branch-jointer. Appropriate methods can be used to indicate the product name, model and specification, the length of the trunk cable and the total number of branch-jointers. 5.4.2 For single-core cables or cables stranded with multiple single-core cables, the sheath of each cable is allowed to use colour or digital identification marks, and meet the requirements of GB 6995.6 Test of the Finished CableThe finished cable with prefabricated branches shall be tested in accordance with Table 4.7 Test Method7.1 Conductor continuity (conduction) Check with a multi-meter or buzzer. 7.2 Tensile strength of conductor after compression connection 7.2.1 Specimen. Take a section of the branch-jointer with an appropriate length of the trunk cable, strip off the branch-jointer insulation and its cable sheath and insulation; 7.2.2 Carry out the tensile strength test according to GB/T4909.3, the tensile strength of the two specimens is calculated according to the measured cross-sectional area of the reference specimen. 7.3 Structure test of the branch-jointer 7.3.1 Appearance Inspect with normal eyesight. 7.3.2 Insulation thickness 7.3.3 Insulation section quality Observe the above section with normal eyesight for pores or impurities. 7.4 Water immersion voltage test or spark test for branch-jointer 7.4.1 Spark test electrode The principle of the electrode device is the same as insulated core power frequency spark test method specified in GB/T3048.9.The inner cavity of the metal box of the electrode shall be able to accommodate the largest specimen; and the distribution density of the metal bead chain shall comply with the provisions of GB/T3048.9; and the length of the bead chain shall be greater than the maximum transverse dimension of the specimen. The metal box has an insulating shell, and has sufficient ground insulation level and safety protection measures. 7.5 Water immersion voltage test of branch-jointer 7.5.1 Specimen Unless otherwise required, the manufacturer respectively chooses one piece of branch-jointer for single-core and multi-core with appropriate lengths as specimens.8 Acceptance RulesThe manufacturer shall carry out type test, routine test and sample test according to Table 5.9 Marking and Packaging9.1 Packaging 9.1.1 Each cable end shall be sealed with a sleeve. 9.1.2 It is packed in discs or rolls, and has suitable protection measures to avoid damage to the product during transportation. 9.1.3 The cable reel shall meet the requirements of JB/T 8137.1~8137.4, but the size of the cable reel is allowed to be designed separately according to the requirements of cable with prefabricated branches. 9.2 Marking A label shall be attached to each disc or roll of packaging to indicate. JB/T 10636-2006 JB MECHINERY INDUSTRY STANDARD ICS 29.060.20 K 13 Report No.. 19065-2006 Copper-Conductor Extruded Plastic Insulated Cables with Pre-Fabricated Branches for Rated Voltage of 0.6/1kV (Um=1.2kV) Issued on. OCTOBER 14, 2006 Implemented on. APRIL 01, 2007 Issued by. National Development and Reform Commission of PRCTable of ContentsForeword... 4 1 Scope... 5 2 Normative References... 5 3 Terms and Definitions... 7 4 Model and Specification... 9 4.1 Symbol and code... 9 4.2 Product representation method... 9 4.3 Model... 10 4.4 Specification... 10 5 Technical Requirements... 11 5.1 Cable... 11 5.2 Pre-fabricated branch-jointer... 12 5.3 Device for hanging... 16 5.4 Identification mark... 16 6 Test of the Finished Cable... 16 7 Test Method... 16 7.1 Conductor continuity (conduction)... 16 7.2 Tensile strength of conductor after compression connection... 17 7.3 Structure test of the branch-jointer... 17 7.4 Water immersion voltage test or spark test for branch-jointer... 18 7.5 Water immersion voltage test of branch-jointer... 18 7.6 Water immersion insulation resistance test of branch-jointer... 19 7.7 Thermal cycle test of branch connection fittings... 19 7.8 Vertical combustion test of branch-jointer... 19 7.9 Water immersion voltage test or spark test of device for hanging... 19 7.10 Static load test of device for hanging... 20 7.11 Water immersion voltage test of device for hanging... 20 7.12 Water immersion insulation resistance test of device for hanging... 20 7.13 Scratch resistance of identification marks... 20 8 Acceptance Rules... 21 9 Marking and Packaging... 21 9.1 Packaging... 21 9.2 Marking... 22 Appendix A (Informative) Reference Size of C-Shaped Connector for Conductor ... 23 A.1 Scope of application... 23 A.2 Reference size of C-shaped connector for conductor... 23 Appendix B (Informative) Injection Molding Material for Insulation of Branch- Jointer... 25 B.1 Performance requirements of injection moulding material for insulation of branch-jointer... 25 B.2 Cut the injection moulding material from the finished branch-jointer for test ... 25 Appendix C (Normative) Thermal Cycle Test of Branch Connection Fittings. 27 C.1 Selection of test samples... 27 C.2 Test environmental conditions... 27 C.3 Specimen layout... 27 C.4 Main test equipment... 27 C.5 Preparation of specimen... 27 C.6 Test... 28 C.7 Test evaluation... 28ForewordThe Appendixes A and B of this Standard are informative; while Appendix C is normative. This Standard was proposed by China Machinery Industry Federation. This Standard shall be under the jurisdiction of National Technical Committee on Wire and Cables of Standardization Administration of China (SAC/TC 213). Drafting organization of this Standard. Shanghai Electrical Cable Research Institute. Participating drafting organizations of this Standard. Baosheng Science and Technology Innovation Co., Ltd.; Guangdong Cable Factory; China Juche Electrical Appliance Co., Ltd.; Chongqing Pigeon Electric Wire & Cable Co., Ltd.; Jiangsu Shangshang Cable Group Co., Ltd.; Far East Cable Factory; Shanghai Nanyang- Fujikura Cable Co., Ltd.; Ruixin Group Co., Ltd.; Shanghai Shenghua Cable Group; and Kunming Cable Group Co., Ltd. Chief drafting staffs of this Standard. Zhang Zhiyong, Zhuang Meng, Tang Chongjian, Huang Shuzhen, Kan Wu, Wang Shimin, Wang Songming, Wang Chuanbin, Zhao Hong, Xu Qiao, Chen Sanjian, and Fang Yuebin. This Standard was first-time published. Copper-Conductor Extruded Plastic Insulated Cables with Pre-Fabricated Branches for Rated Voltage of 0.6/1kV (Um=1.2kV)1 ScopeThis Standard specifies the product structure, technical requirements, cable test, acceptance rules, marking and packaging of copper-conductor extruded plastic insulated cables with prefabricated branches for a rated voltage of 0.6kV/1kV. This Standard is applicable to cables with prefabricated branches used in air-laid buildings and supply mains for rated voltages of 0.6kV/1kV and below; and cables with prefabricated branch for illumination of tunnels and bridges, as well as for other similar purposes.2 Normative ReferencesThe provisions in following documents become the provisions of this Standard through reference in this Standard. For dated references, the subsequent amendments (excluding corrigendum) or revisions do not apply to this Standard, however, parties who reach an agreement based on this Standard are encouraged to study if the latest versions of these documents are applicable. For undated references, the latest edition of the referenced document applies. GB/T 1040-1992 Plastics - Determination of Tensile Properties GB/T 1408.1-1999 Methods of Test for Electric Strength of Solid Insulating Materials -Tests at Power Frequencies (eqv IEC 60243-1.1988) GB/T 1410-2006 Methods of Test for Volume Resistivity and Surface Resistivity of Solid Electrical Insulating Materials (IEC 60093.1980, IDT) GB/T 2406-1993 Plastics - Determination of Flammability by Oxygen Index (neq ISO 4589.1984) GB/T 2900.10 Electrotechnical Vocabulary - Electric Cables (GB/T 2900.10-2001, idt IEC 60050(461).1984) GB/T 2951.1-1997 Common Test Methods for Insulating and Sheathing Materials of Electric Cables - Part 1.Methods for General Application - Section 1. Measurement of Thickness and Overall Dimensions - Tests for Determining the Mechanical Properties (idt IEC 60811-1-1.1993) GB/T 2951.2-1997 Common Test Methods for Insulating and Sheathing Materials of Electric Cables - Part 1.Methods for General Application - Section 2.Thermal Ageing Methods (idt IEC 60811-1-2.1985, No.1.1989, 1st revision) GB/T 3048.6-1994 Test Methods for Determining Electrical Properties of Electric Cables and Wires - Determining Insulation Resistance-Voltmeter-Ammeter Method3 Terms and DefinitionsFor the purposes of this Standard, the terms and definitions given in GB/T 2900.10 and the following apply. 3.1 Cable with pre-fabricated branches The cables with pre-fabricated branches are a complete and continuous set of cables pre-fabricated by the factory. 3.2 Branch-jointer The sealed components that the conductors of trunk and branch cables are compressed and connected by copper or copper alloy tubes and perform the complete insulation treatment. 3.3 “C” shaped connector for conductors A device that is used to connect conductors of cables with prefabricated branches. Its cross-section is like a C-shaped copper or copper alloy connecting tube, which facilitates the snap-in and compression connection of the conductors of trunk and branch cables. 3.5 Type test (Symbol T) Type test refers to the test that is carried out on a type of cable specified in this section before delivery in accordance with general commercial principles to prove that the cable has good performance and can meet the specified use requirements. The essence of the type test is that once these tests are carried out, they do not need to repeat. If the changes in cable material or design shall affect the performance of the cable, the type test must be repeated. 3.6 Sample test (Symbol S) Sample test refers to the test that is performed on the finished cable specimen or the components taken from the finished cable to prove that the product meets the design specifications.4 Model and Specification4.1 Symbol and code 4.3 Model The models of cables can refer to Table 1. 4.4 Specification Please refer to Table 2 for the number of cable cores and the cross-sectional area specifications of trunk cables and branch cables; and refer to Table 3 for the conductor cross-sectional area specifications of four-core and five-core cables. Cables with other cross-sectional area specifications shall be negotiated between the manufacturer and the user.5 Technical Requirements5.1 Cable 5.1.1 Quality requirements for cable body The cable body shall meet the requirements of the copper core cable with rated voltage of 0.6kV/1kV in GB/T 12706.1.Multi-core cable insulated cores twisted into cables are only allowed to be arranged in one layer, and each insulated core is also allowed to be arranged in parallel in one layer. 5.1.2 Configuration of cable specification 5.1.2.1 In principle, the models of trunk cable and branch cable selected for the same Models The number of cores 5.1.2.2 For the same group of cables with prefabricated branches, only one branch cable per core is allowed to be connected to the branch point of the multi-core trunk cable; and two or less branch cables are allowed to be connected to the branch point of the single-core trunk cable. Unless otherwise required, all branch cables shall be led out in the same direction. 5.1.2.3 When the trunk cable is multi-core, the branch cable can be multi-core or single-core cable. When the trunk cable is single-core, the branch cable can be a single-core or two-core cable. 5.2 Pre-fabricated branch-jointer 5.2.1 Compression connection of conductor 5.2.1.5 When stripping the core insulation of a multi-core trunk cable, if the bare conductors are arranged longitudinally, they should be separated by an insulation distance of 10mm~25mm. If the bare conductors are arranged radially, appropriate insulation and isolation measures are allowed. 5.2.1.6 The actual cross-sectional area of the conductors of trunk cable and branch cable shall not be reduced during compression connection. The compressed connection tube shall be free of cracks, burrs and other scars. If a C-shaped connector for conductor is used to compress, its opening is basically closed (fine seams are allowed). 5.2.2 Insulation of branch-jointer 5.2.2.1 The insulation of the branch-jointer shall be manufactured by the corresponding polyvinyl chloride or polyolefin injection moulding process (hereinafter referred to as injection moulding) according to the cable model, and the appearance shall be neat and clean. Refer to Appendix B for the performance of injection plastic. 5.2.2.4 The thickness of the thinnest point of the external insulation of the single-core or multi-core cable branch-jointer shall be no less than the sum of the nominal thickness of the trunk cable insulation and the sheath, which includes the reinforced insulation (if any). The thickness of the thinnest point of insulation between adjacent conductors of a multi-core cable shall be no less than twice the nominal thickness of the trunk cable insulation, which includes the reinforced insulation (if any). 5.2.3 When required by the user, multiple single-core cables can be twisted into a cable or bundled in parallel. The direction of the twisted cable is right, and the cable pitch is not specified. When bundled in parallel, the cables can be fixed at a fixed distance with a suitable clamp. When packaging and laying the twisted into cables or bundled in parallel, there shall be no looseness and displacement of the single-core cables. 5.3 Device for hanging 5.3.1 The device for hanging can adopt multiple combined structures such as hooks, insulating components, clamps, porcelain insulators, steel mesh sleeves, etc. The cables with prefabricated branches shall be fixed within 24h after hanging. 5.3.2 The cable end at the device for hanging shall be completely insulated to ensure the sealing and insulation of the end. 5.4 Identification mark 5.4.1 The finished cable shall be marked with the factory name or trademark on the branch-jointer. Appropriate methods can be used to indicate the product name, model and specification, the length of the trunk cable and the total number of branch-jointers. 5.4.2 For single-core cables or cables stranded with multiple single-core cables, the sheath of each cable is allowed to use colour or digital identification marks, and meet the requirements of GB 6995.6 Test of the Finished CableThe finished cable with prefabricated branches shall be tested in accordance with Table 4.7 Test Method7.1 Conductor continuity (conduction) Check with a multi-meter or buzzer. 7.2 Tensile strength of conductor after compression connection 7.2.1 Specimen. Take a section of the branch-jointer with an appropriate length of the trunk cable, strip off the branch-jointer insulation and its cable sheath and insulation; 7.2.2 Carry out the tensile strength test according to GB/T4909.3, the tensile strength of the two specimens is calculated according to the measured cross-sectional area of the reference specimen. 7.3 Structure test of the branch-jointer 7.3.1 Appearance Inspect with normal eyesight. 7.3.2 Insulation thickness 7.3.3 Insulation section quality Observe the above section with normal eyesight for pores or impurities. 7.4 Water immersion voltage test or spark test for branch-jointer 7.4.1 Spark test electrode The principle of the electrode device is the same as insulated core power frequency spark test method specified in GB/T3048.9.The inner cavity of the metal box of the electrode shall be able to accommodate the largest specimen; and the distribution density of the metal bead chain shall comply with the provisions of GB/T3048.9; and the length of the bead chain shall be greater than the maximum transverse dimension of the specimen. The metal box has an insulating shell, and has sufficient ground insulation level and safety protection measures. 7.5 Water immersion voltage test of branch-jointer 7.5.1 Specimen Unless otherwise required, the manufacturer respectively chooses one piece of branch-jointer for single-core and multi-core with appropriate lengths as specimens.8 Acceptance RulesThe manufacturer shall carry out type test, routine test and sample test according to Table 5.9 Marking and Packaging9.1 Packaging 9.1.1 Each cable end shall be sealed with a sleeve. 9.1.2 It is packed in discs or rolls, and has suitable protection measures to avoid damage to the product during transportation. 9.1.3 The cable reel shall meet the requirements of JB/T 8137.1~8137.4, but the size of the cable reel is allowed to be designed separately according to the requirements of cable with prefabricated branches. 9.2 Marking A label shall be attached to each disc or roll of packaging to indicate. ......Source: Above contents are excerpted from the full-copy PDF -- translated/reviewed by: www.ChineseStandard.net / Wayne Zheng et al. Tips & Frequently Asked Questions:Question 1: How long will the true-PDF of English version of JB/T 10636-2006 be delivered?Answer: The full copy PDF of English version of JB/T 10636-2006 can be downloaded in 9 seconds, and it will also be emailed to you in 9 seconds (double mechanisms to ensure the delivery reliably), with PDF-invoice.Question 2: Can I share the purchased PDF of JB/T 10636-2006_English with my colleagues?Answer: Yes. The purchased PDF of JB/T 10636-2006_English will be deemed to be sold to your employer/organization who actually paid for it, including your colleagues and your employer's intranet.Question 3: Does the price include tax/VAT?Answer: Yes. Our tax invoice, downloaded/delivered in 9 seconds, includes all tax/VAT and complies with 100+ countries' tax regulations (tax exempted in 100+ countries) -- See Avoidance of Double Taxation Agreements (DTAs): List of DTAs signed between Singapore and 100+ countriesQuestion 4: Do you accept my currency other than USD?Answer: Yes. www.ChineseStandard.us -- JB/T 10636-2006 -- Click this link and select your country/currency to pay, the exact amount in your currency will be printed on the invoice. Full PDF will also be downloaded/emailed in 9 seconds.How to buy and download a true PDF of English version of JB/T 10636-2006?A step-by-step guide to download PDF of JB/T 10636-2006_EnglishStep 1: Visit website https://www.ChineseStandard.net (Pay in USD), or https://www.ChineseStandard.us (Pay in any currencies such as Euro, KRW, JPY, AUD).Step 2: Search keyword "JB/T 10636-2006". Step 3: Click "Add to Cart". If multiple PDFs are required, repeat steps 2 and 3 to add up to 12 PDFs to cart. Step 4: Select payment option (Via payment agents Stripe or PayPal). Step 5: Customize Tax Invoice -- Fill up your email etc. Step 6: Click "Checkout". Step 7: Make payment by credit card, PayPal, Google Pay etc. After the payment is completed and in 9 seconds, you will receive 2 emails attached with the purchased PDFs and PDF-invoice, respectively. Step 8: Optional -- Go to download PDF. Step 9: Optional -- Click Open/Download PDF to download PDFs and invoice. See screenshots for above steps: Steps 1~3 Steps 4~6 Step 7 Step 8 Step 9 |
