GB/T 9639.1-2008 PDF EnglishUS$140.00 · In stock · Download in 9 seconds
GB/T 9639.1-2008: Plastics film and sheeting -- Determination of impact resistance by the free-falling dart method -- Part 1: Staircase methods Delivery: 9 seconds. True-PDF full-copy in English & invoice will be downloaded + auto-delivered via email. See step-by-step procedure Status: Valid GB/T 9639.1: Historical versions

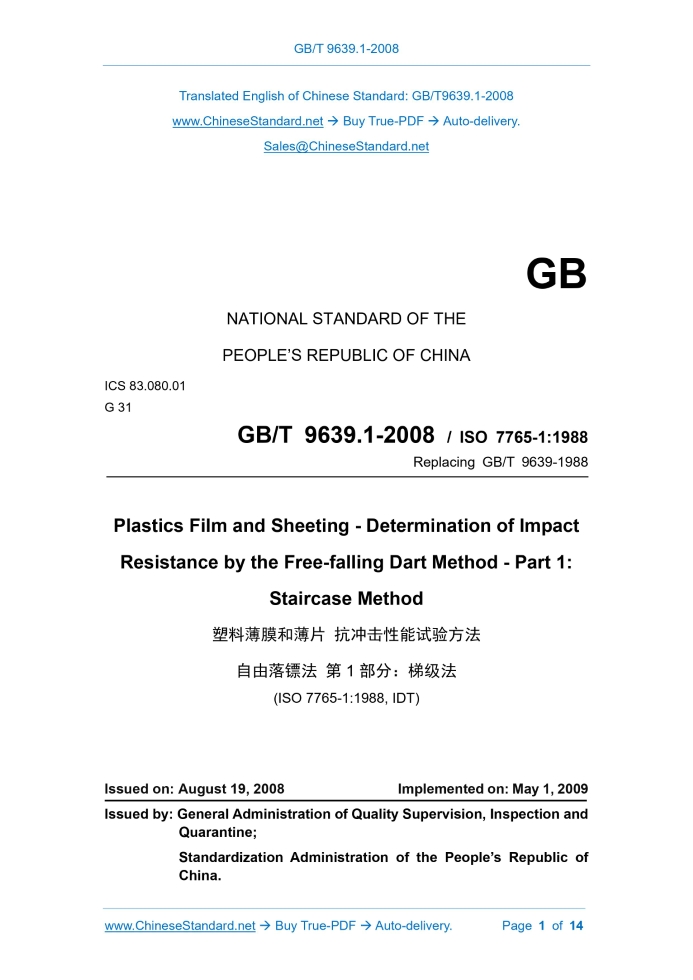

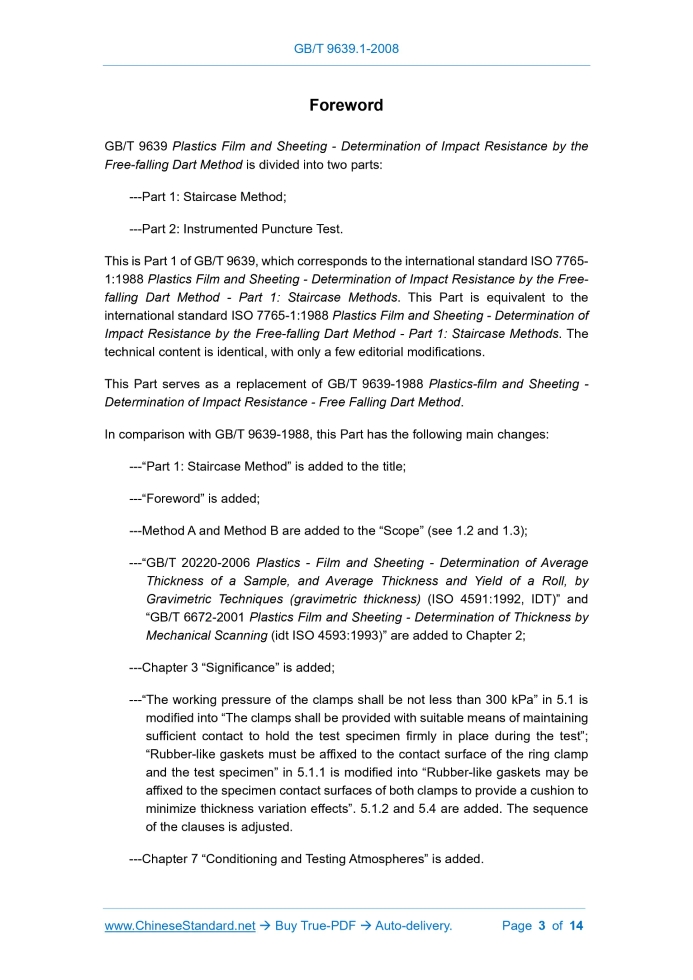

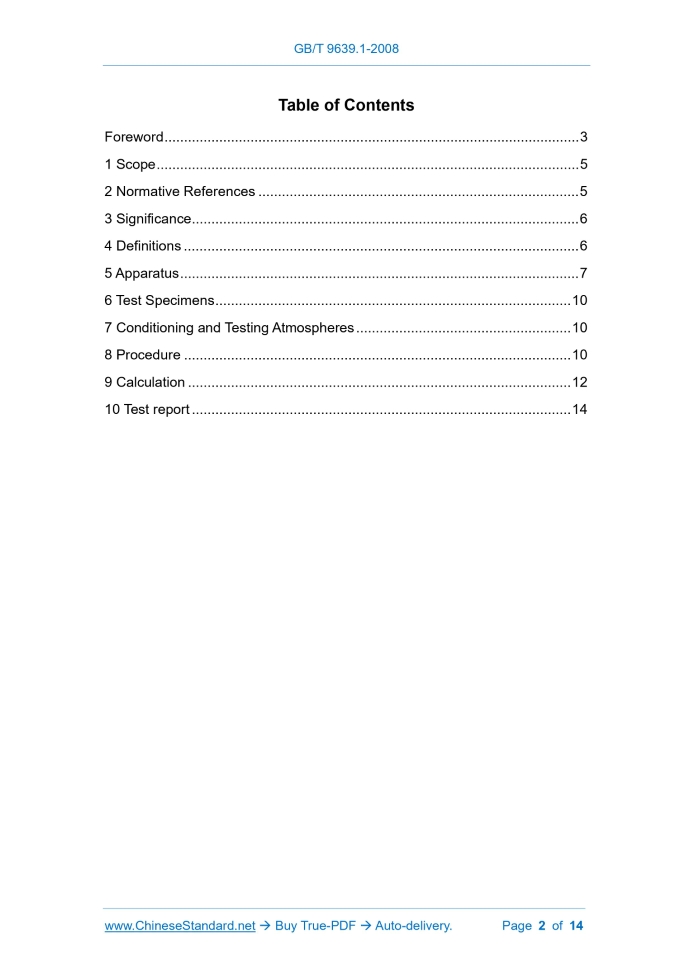

Similar standardsGB/T 9639.1-2008: Plastics film and sheeting -- Determination of impact resistance by the free-falling dart method -- Part 1: Staircase methods---This is an excerpt. Full copy of true-PDF in English version (including equations, symbols, images, flow-chart, tables, and figures etc.), auto-downloaded/delivered in 9 seconds, can be purchased online: https://www.ChineseStandard.net/PDF.aspx/GBT9639.1-2008 GB NATIONAL STANDARD OF THE PEOPLE’S REPUBLIC OF CHINA ICS 83.080.01 G 31 GB/T 9639.1-2008 / ISO 7765-1:1988 Replacing GB/T 9639-1988 Plastics Film and Sheeting - Determination of Impact Resistance by the Free-falling Dart Method - Part 1: Staircase Method (ISO 7765-1:1988, IDT) ISSUED ON: AUGUST 19, 2008 IMPLEMENTED ON: MAY 1, 2009 Issued by: General Administration of Quality Supervision, Inspection and Quarantine; Standardization Administration of the People’s Republic of China. Table of ContentsForeword ... 3 1 Scope ... 5 2 Normative References ... 5 3 Significance ... 6 4 Definitions ... 6 5 Apparatus ... 7 6 Test Specimens ... 10 7 Conditioning and Testing Atmospheres ... 10 8 Procedure ... 10 9 Calculation ... 12 10 Test report ... 14ForewordGB/T 9639 Plastics Film and Sheeting - Determination of Impact Resistance by the Free-falling Dart Method is divided into two parts: ---Part 1: Staircase Method; ---Part 2: Instrumented Puncture Test. This is Part 1 of GB/T 9639, which corresponds to the international standard ISO 7765- 1:1988 Plastics Film and Sheeting - Determination of Impact Resistance by the Free- falling Dart Method - Part 1: Staircase Methods. This Part is equivalent to the international standard ISO 7765-1:1988 Plastics Film and Sheeting - Determination of Impact Resistance by the Free-falling Dart Method - Part 1: Staircase Methods. The technical content is identical, with only a few editorial modifications. This Part serves as a replacement of GB/T 9639-1988 Plastics-film and Sheeting - Determination of Impact Resistance - Free Falling Dart Method. In comparison with GB/T 9639-1988, this Part has the following main changes: ---“Part 1: Staircase Method” is added to the title; ---“Foreword” is added; ---Method A and Method B are added to the “Scope” (see 1.2 and 1.3); ---“GB/T 20220-2006 Plastics - Film and Sheeting - Determination of Average Thickness of a Sample, and Average Thickness and Yield of a Roll, by Gravimetric Techniques (gravimetric thickness) (ISO 4591:1992, IDT)” and “GB/T 6672-2001 Plastics Film and Sheeting - Determination of Thickness by Mechanical Scanning (idt ISO 4593:1993)” are added to Chapter 2; ---Chapter 3 “Significance” is added; ---“The working pressure of the clamps shall be not less than 300 kPa” in 5.1 is modified into “The clamps shall be provided with suitable means of maintaining sufficient contact to hold the test specimen firmly in place during the test”; “Rubber-like gaskets must be affixed to the contact surface of the ring clamp and the test specimen” in 5.1.1 is modified into “Rubber-like gaskets may be affixed to the specimen contact surfaces of both clamps to provide a cushion to minimize thickness variation effects”. 5.1.2 and 5.4 are added. The sequence of the clauses is adjusted. ---Chapter 7 “Conditioning and Testing Atmospheres” is added. Plastics Film and Sheeting - Determination of Impact Resistance by the Free-falling Dart Method - Part 1: Staircase Method1 Scope1.1 This Part of GB/T 9639 specifies methods for the determination of the energy that causes plastics film and sheet less than 1 mm in thickness to fail under specified conditions of impact of a free-falling dart from a specified height that would result in failure of 50% of the specimens tested. 1.2 Two methods of test are described. 1.2.1 Method A employs a dart with a 38 mm ± 1 mm diameter hemispherical head dropped from a height of 0.66 m ± 0.01 m. This method may be used for materials whose impact resistance requires masses of about 0.05 kg to about 2 kg to fracture them. 1.2.2 Method B employs a dart with a 50 mm ± 1 mm diameter hemispherical head dropped from a height of 1.50 m ± 0. 01 m. Its range of applicability is from about 0.3 kg to about 2 kg. 1.3 The measurement technique is the staircase method. A uniform missile mass increment is employed during testing and the missile weight is decreased or increased by the uniform increment after test of each specimen, depending upon the result (failure or no failure) observed for the specimen.2 Normative ReferencesThrough the reference in this Part of GB/T 9639, the clauses of the following documents become clauses of this Part. In terms of references with a specified date, all the subsequent modification sheets (excluding the corrected content) or revised versions are not applicable to this Part. However, the various parties that reach an agreement in accordance with this Part are encouraged to explore the possibility of adopting the latest version of these documents. In terms of references without a specified date, the latest version is applicable to this Part. GB/T 2918-1998 Plastics - Standard Atmospheres for Conditioning and Testing (idt ISO 291:1997) GB/T 6672-2001 Plastics Film and Sheeting - Determination of Thickness by ......Source: Above contents are excerpted from the full-copy PDF -- translated/reviewed by: www.ChineseStandard.net / Wayne Zheng et al. Tips & Frequently Asked Questions:Question 1: How long will the true-PDF of English version of GB/T 9639.1-2008 be delivered?Answer: The full copy PDF of English version of GB/T 9639.1-2008 can be downloaded in 9 seconds, and it will also be emailed to you in 9 seconds (double mechanisms to ensure the delivery reliably), with PDF-invoice.Question 2: Can I share the purchased PDF of GB/T 9639.1-2008_English with my colleagues?Answer: Yes. The purchased PDF of GB/T 9639.1-2008_English will be deemed to be sold to your employer/organization who actually paid for it, including your colleagues and your employer's intranet.Question 3: Does the price include tax/VAT?Answer: Yes. Our tax invoice, downloaded/delivered in 9 seconds, includes all tax/VAT and complies with 100+ countries' tax regulations (tax exempted in 100+ countries) -- See Avoidance of Double Taxation Agreements (DTAs): List of DTAs signed between Singapore and 100+ countriesQuestion 4: Do you accept my currency other than USD?Answer: Yes. www.ChineseStandard.us -- GB/T 9639.1-2008 -- Click this link and select your country/currency to pay, the exact amount in your currency will be printed on the invoice. Full PDF will also be downloaded/emailed in 9 seconds.Question 5: Should I purchase the latest version GB/T 9639.1-2008?Answer: Yes. Unless special scenarios such as technical constraints or academic study, you should always prioritize to purchase the latest version GB/T 9639.1-2008 even if the enforcement date is in future. Complying with the latest version means that, by default, it also complies with all the earlier versions, technically.How to buy and download a true PDF of English version of GB/T 9639.1-2008?A step-by-step guide to download PDF of GB/T 9639.1-2008_EnglishStep 1: Visit website https://www.ChineseStandard.net (Pay in USD), or https://www.ChineseStandard.us (Pay in any currencies such as Euro, KRW, JPY, AUD).Step 2: Search keyword "GB/T 9639.1-2008". Step 3: Click "Add to Cart". If multiple PDFs are required, repeat steps 2 and 3 to add up to 12 PDFs to cart. Step 4: Select payment option (Via payment agents Stripe or PayPal). Step 5: Customize Tax Invoice -- Fill up your email etc. Step 6: Click "Checkout". Step 7: Make payment by credit card, PayPal, Google Pay etc. After the payment is completed and in 9 seconds, you will receive 2 emails attached with the purchased PDFs and PDF-invoice, respectively. Step 8: Optional -- Go to download PDF. Step 9: Optional -- Click Open/Download PDF to download PDFs and invoice. See screenshots for above steps: Steps 1~3 Steps 4~6 Step 7 Step 8 Step 9 |
