GB/T 9438-2013 PDF EnglishUS$185.00 · In stock · Download in 9 seconds
GB/T 9438-2013: Aluminum alloy castings Delivery: 9 seconds. True-PDF full-copy in English & invoice will be downloaded + auto-delivered via email. See step-by-step procedure Status: Valid GB/T 9438: Historical versions

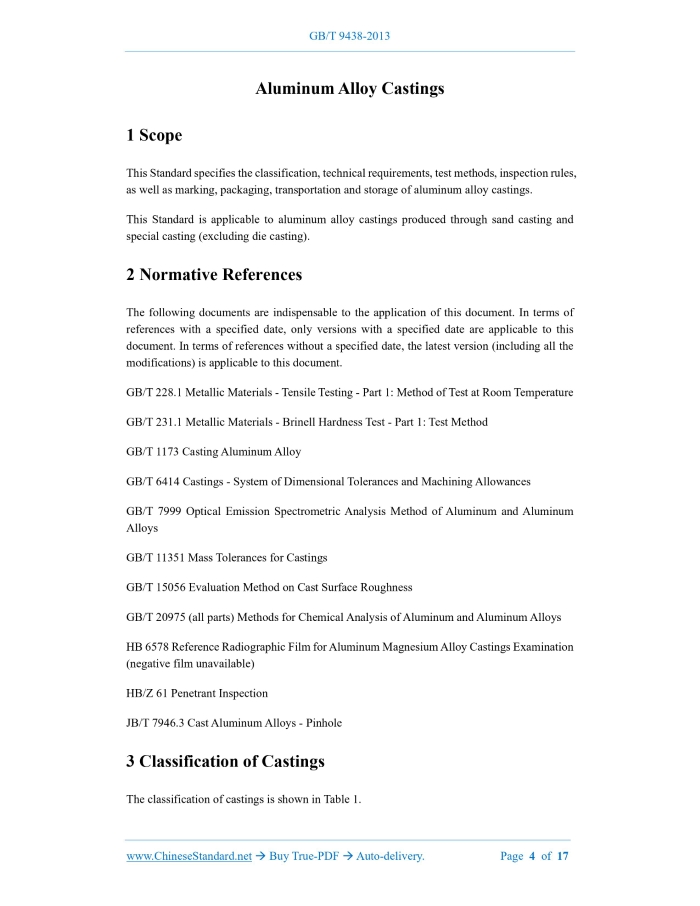

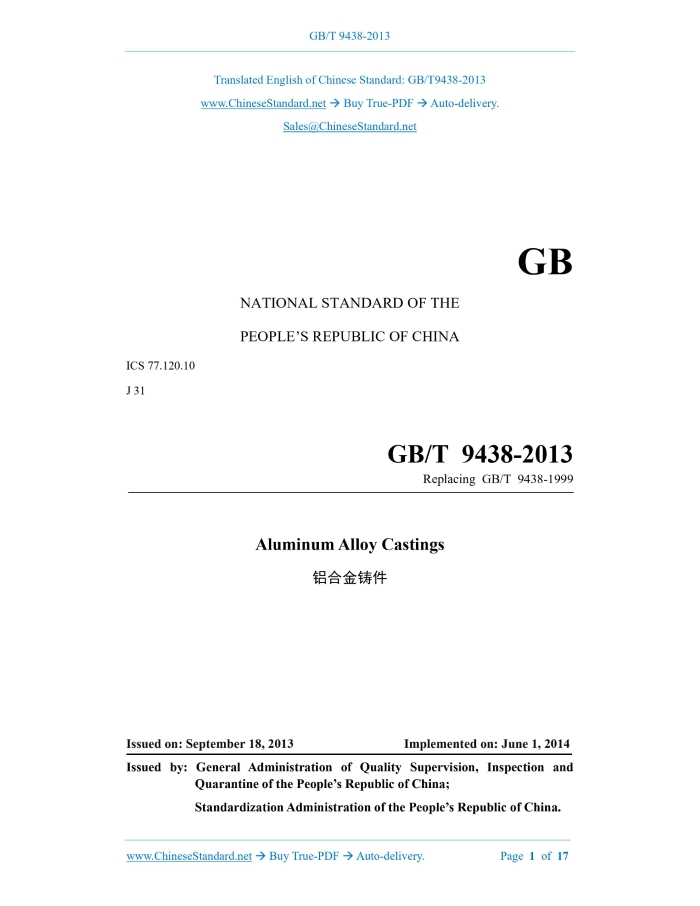

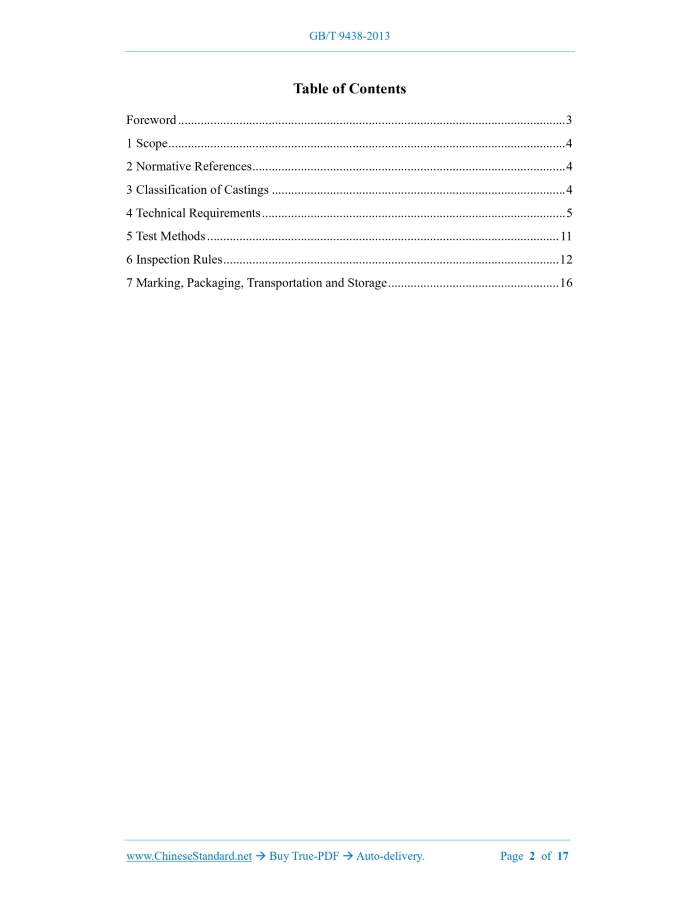

GB/T 9438-2013: Aluminum alloy castings---This is an excerpt. Full copy of true-PDF in English version (including equations, symbols, images, flow-chart, tables, and figures etc.), auto-downloaded/delivered in 9 seconds, can be purchased online: https://www.ChineseStandard.net/PDF.aspx/GBT9438-2013GB NATIONAL STANDARD OF THE PEOPLE’S REPUBLIC OF CHINA ICS 77.120.10 J 31 Replacing GB/T 9438-1999 Aluminum Alloy Castings ISSUED ON: SEPTEMBER 18, 2013 IMPLEMENTED ON: JUNE 1, 2014 Issued by: General Administration of Quality Supervision, Inspection and Quarantine of the People’s Republic of China; Standardization Administration of the People’s Republic of China. Table of ContentsForeword ... 3 1 Scope ... 4 2 Normative References ... 4 3 Classification of Castings ... 4 4 Technical Requirements ... 5 5 Test Methods ... 11 6 Inspection Rules ... 12 7 Marking, Packaging, Transportation and Storage ... 16 Aluminum Alloy Castings1 ScopeThis Standard specifies the classification, technical requirements, test methods, inspection rules, as well as marking, packaging, transportation and storage of aluminum alloy castings. This Standard is applicable to aluminum alloy castings produced through sand casting and special casting (excluding die casting).2 Normative ReferencesThe following documents are indispensable to the application of this document. In terms of references with a specified date, only versions with a specified date are applicable to this document. In terms of references without a specified date, the latest version (including all the modifications) is applicable to this document. GB/T 228.1 Metallic Materials - Tensile Testing - Part 1: Method of Test at Room Temperature GB/T 231.1 Metallic Materials - Brinell Hardness Test - Part 1: Test Method GB/T 1173 Casting Aluminum Alloy GB/T 6414 Castings - System of Dimensional Tolerances and Machining Allowances GB/T 7999 Optical Emission Spectrometric Analysis Method of Aluminum and Aluminum Alloys GB/T 11351 Mass Tolerances for Castings GB/T 15056 Evaluation Method on Cast Surface Roughness GB/T 20975 (all parts) Methods for Chemical Analysis of Aluminum and Aluminum Alloys HB 6578 Reference Radiographic Film for Aluminum Magnesium Alloy Castings Examination (negative film unavailable) HB/Z 61 Penetrant Inspection JB/T 7946.3 Cast Aluminum Alloys - Pinhole3 Classification of CastingsThe classification of castings is shown in Table 1. lower than the provisions of GB/T 1173. 4.3.3 When there are other requirements for the mechanical properties of castings, the technical requirements and inspection methods shall be stipulated in the drawings or technical agreements after negotiation between the supply-side and the demand-side. 4.4 Geometrical Shapes, Dimensions and Weight Tolerances 4.4.1 The geometrical shapes and dimensions of the castings shall comply with the requirements of the drawings, and the dimensional tolerances of the castings shall comply with the provisions of GB/T 6414. 4.4.2 The weight of the castings shall comply with the requirements of the drawings or technical agreements, and the weight tolerances of the castings shall comply with the provisions of GB/T 11351. 4.5 Surface Quality 4.5.1 The surface roughness of the castings shall comply with the requirements of the drawings or technical agreements. 4.5.2 The castings shall be clean and free of burrs and trimmings. The pouring and casting heads on the non-machined surface shall be cleaned to be flush with the surface of the castings. The remaining amount of the pouring and casting heads on the surface to be machined shall be within the margin range specified in the drawings. If there is no special provision, it shall generally not be 5 mm higher than the surface of the castings, but it shall not affect the radiographic inspection. 4.5.3 No cold shuts, cracks, shrinkage cavities, penetrating defects and serious defects (such as: insufficient pouring and mechanical damage, etc.) are not allowed on the surface of the castings. 4.5.4 Any defects that can be removed by machining are allowed on the surface of the castings to be machined. 4.5.5 The area on the castings used as a machining reference shall be flat. 4.5.6 Unless otherwise specified, on the non-machined surface of metal castings, traces, such as: mold parting, misaligned boxes, ejector pins and exhaust plugs, are allowed, but the protrusions shall not exceed the surface by 1 mm, or the recesses shall not be 0.5 mm lower than the surface. 4.5.7 The non-machined surface and machined surface of sand mold and metal mold castings are generally allowed to have: a) Single holes On the non-machined surface, the maximum diameter of single holes shall be not greater than 3 mm, and the depth shall not exceed 1/3 of the wall thickness. On the installation 4.7.7 The castings shall be repaired by welding in the as-cast state. The castings that require welding repair after heat treatment shall be heat treated in their original state after welding repair. Castings after heat treatment shall be re-inspected for mechanical properties of single cast or attached cast specimens. When the area of the argon arc welding zone is less than 2 cm2, the distance between welding zones shall be not less than 100 mm. With the consent of the demand-side, heat treatment may not be performed after welding repairs, but there shall be no more than 5 spots on the same casting. ZL301 and ZL305 alloy castings must be heat treated in their original state after welding repair. 4.7.8 The welding repair of the castings shall be carried out in accordance with the provisions of the welding repair process. There must be no defects, such as: cracks, incomplete penetration or incomplete fusion in the welding repair area. After welding repairs, Category-I and Category- II castings must be inspected by X-ray photography (or other methods). The inspection area shall be not less than twice the welding repair area. The internal quality of the welding repair area shall comply with the provisions of 4.6.1. 4.7.9 All castings that have been repaired by welding shall be marked on the spot of the welding repair or marked on the schematic diagram in the relevant technical documents for inspection. 4.7.10 Castings are allowed to be repaired by other methods agreed between the supply-side and the demand-side, such as: infiltration, bonding and hot isostatic pressing, etc.5 Test Methods5.1 Chemical Composition The inspection method for the chemical composition of the castings shall comply with the provisions of GB/T 20975 (all parts) or GB/T 7999. Under the condition that the accuracy of analysis is guaranteed, other test methods are also allowed to be used. When there is a dispute over the analysis results, arbitration shall be conducted in accordance with GB/T 20975 (all parts). 5.2 Mechanical Properties 5.2.1 The tensile test shall be carried out in accordance with the provisions of GB/T 228.1. 5.2.2 The hardness test shall be carried out in accordance with the provisions of GB/T 231.1. 5.3 Surface Quality 5.3.1 Inspect the appearance quality visually or with appropriate measurement tools, instruments or test methods. 5.3.2 The roughness rating of the non-machined surface of the castings shall be carried out in accordance with the provisions of GB/T 15056. 5.3.3 The pinhole rating of the machined surface of the castings shall be carried out in The surface quality of the castings shall be inspected piece by piece. 6.3.5 Internal quality 6.3.5.1 Category-I and Category-II castings shall be subject to X-ray photography inspection in accordance with the provisions of the drawings and relevant technical documents. The inspection parts and proportions shall be agreed upon by the supply-side and the demand-side. The inspection quantity shall be calculated in accordance with the number of castings poured in each smelting heat. 6.3.5.2 For blind spots that are difficult to perform X-ray photography inspection, sampling and anatomy inspection shall be agreed upon by the supply-side and the demand-side. 6.4 Determination and Re-inspection 6.4.1 Chemical composition When the chemical composition of the alloy is disqualified in the first submission for inspection and analysis, re-sampling and analysis of the disqualified elements are allowed. If it still fails in the second analysis, then, the alloy in that smelting heat shall be determined as disqualified in chemical composition. 6.4.2 Mechanical properties 6.4.2.1 The inspection of mechanical properties of single cast specimens shall be carried out in accordance with the provisions of GB/T 1173. If the single cast specimens are disqualified in mechanical properties, and the attached cast specimens or bulk specimens are qualified in mechanical properties, then, the castings shall be determined as qualified in mechanical properties. 6.4.2.2 If castings in the same heat treatment state in one smelting heat are heat treated in different heat treatment heats, and the specimens in this smelting heat have been inspected and passed in one heat treatment heat, then, the castings from this smelting heat in another heat treatment heat may be delivered as qualified specimens from any smelting heat in the same heat treatment heat. 6.4.2.3 When the sampled bulk specimens of the castings are disqualified in mechanical properties, the sampling size may be doubled to perform a sampling inspection and perform re- sampling to inspect the mechanical properties. If the results of the doubled sampling size in sampling inspection are all qualified, then, the furnace (batch) of castings shall be determined as qualified in mechanical properties, otherwise, they shall be determined as disqualified. When the doubled sampling size for sampling inspection is still disqualified, sampling inspection after re-heat treatment is allowed, but heat treatment is only allowed to be repeated twice. 6.4.2.4 When the specimens have casting defects or the inspection result is disqualified due to fault of the test itself, it will not be counted in the number of inspections, but the specimens need to be replaced and re-submitted for inspection. 6.4.2.5 For castings are delivered in the as-cast state, when they are disqualified in mechanical properties, appropriate heat treatment is allowed on the castings, and the mechanical properties shall still be subject to acceptance inspection in accordance with the as-cast indicators. 6.4.2.6 When there are hardness requirements, follow the provisions of GB/T 1173. If they are disqualified in hardness, after repeating the heat treatment, carry out a re-inspection. If they are still disqualified after the third heat treatment, then, the castings shall be determined as disqualified. 6.4.2.7 When heat treatment is repeated due to disqualified hardness, in addition to the hardness inspection, the mechanical properties of single cast, attached cast or bulk specimens shall also be inspected in accordance with the original requirements. 6.4.3 Geometrical shapes, dimensions and weight tolerances of castings If the geometrical shapes, dimensions and weights of the castings do not comply with the requirements of 4.4 in the inspection, then, the castings shall be determined as disqualified. 6.4.4 Surface quality If the surface quality of the castings does not comply with the requirements of 4.5 in the inspection, then, the castings shall be determined as disqualified. 6.4.5 Internal quality 6.4.5.1 If the internal quality of the castings does not comply with the requirements of 4.6 in the inspection, then, the castings shall be determined as disqualified. 6.4.5.2 If the sampling inspection with X-ray photography is disqualified, a double size of specimens or castings shall be taken. If they are still disqualified, all castings shall be inspected one by one.7 Marking, Packaging, Transportation and Storage7.1 Marking 7.1.1 The castings shall be marked with the alloy code and melting furnace No. etc. in the designated parts of the drawings. The markings shall be clearly visible and traceable. 7.1.2 The castings shall be accompanied by a quality certificate, indicating: a) Supply-side’s name; b) No. and title of the Standard; c) Casting name and alloy designation (code); d) Analysis results of chemical composition, inspection results of mechanical properties ......Source: Above contents are excerpted from the full-copy PDF -- translated/reviewed by: www.ChineseStandard.net / Wayne Zheng et al. Tips & Frequently Asked Questions:Question 1: How long will the true-PDF of English version of GB/T 9438-2013 be delivered?Answer: The full copy PDF of English version of GB/T 9438-2013 can be downloaded in 9 seconds, and it will also be emailed to you in 9 seconds (double mechanisms to ensure the delivery reliably), with PDF-invoice.Question 2: Can I share the purchased PDF of GB/T 9438-2013_English with my colleagues?Answer: Yes. The purchased PDF of GB/T 9438-2013_English will be deemed to be sold to your employer/organization who actually paid for it, including your colleagues and your employer's intranet.Question 3: Does the price include tax/VAT?Answer: Yes. Our tax invoice, downloaded/delivered in 9 seconds, includes all tax/VAT and complies with 100+ countries' tax regulations (tax exempted in 100+ countries) -- See Avoidance of Double Taxation Agreements (DTAs): List of DTAs signed between Singapore and 100+ countriesQuestion 4: Do you accept my currency other than USD?Answer: Yes. www.ChineseStandard.us -- GB/T 9438-2013 -- Click this link and select your country/currency to pay, the exact amount in your currency will be printed on the invoice. Full PDF will also be downloaded/emailed in 9 seconds.Question 5: Should I purchase the latest version GB/T 9438-2013?Answer: Yes. Unless special scenarios such as technical constraints or academic study, you should always prioritize to purchase the latest version GB/T 9438-2013 even if the enforcement date is in future. Complying with the latest version means that, by default, it also complies with all the earlier versions, technically.How to buy and download a true PDF of English version of GB/T 9438-2013?A step-by-step guide to download PDF of GB/T 9438-2013_EnglishStep 1: Visit website https://www.ChineseStandard.net (Pay in USD), or https://www.ChineseStandard.us (Pay in any currencies such as Euro, KRW, JPY, AUD).Step 2: Search keyword "GB/T 9438-2013". Step 3: Click "Add to Cart". If multiple PDFs are required, repeat steps 2 and 3 to add up to 12 PDFs to cart. Step 4: Select payment option (Via payment agents Stripe or PayPal). Step 5: Customize Tax Invoice -- Fill up your email etc. Step 6: Click "Checkout". Step 7: Make payment by credit card, PayPal, Google Pay etc. After the payment is completed and in 9 seconds, you will receive 2 emails attached with the purchased PDFs and PDF-invoice, respectively. Step 8: Optional -- Go to download PDF. Step 9: Optional -- Click Open/Download PDF to download PDFs and invoice. See screenshots for above steps: Steps 1~3 Steps 4~6 Step 7 Step 8 Step 9 |
