GB/T 6891-2018 PDF EnglishUS$150.00 · In stock · Download in 9 seconds
GB/T 6891-2018: Aluminum and Aluminum Alloy Profiled Sheet Delivery: 9 seconds. True-PDF full-copy in English & invoice will be downloaded + auto-delivered via email. See step-by-step procedure Status: Valid GB/T 6891: Historical versions

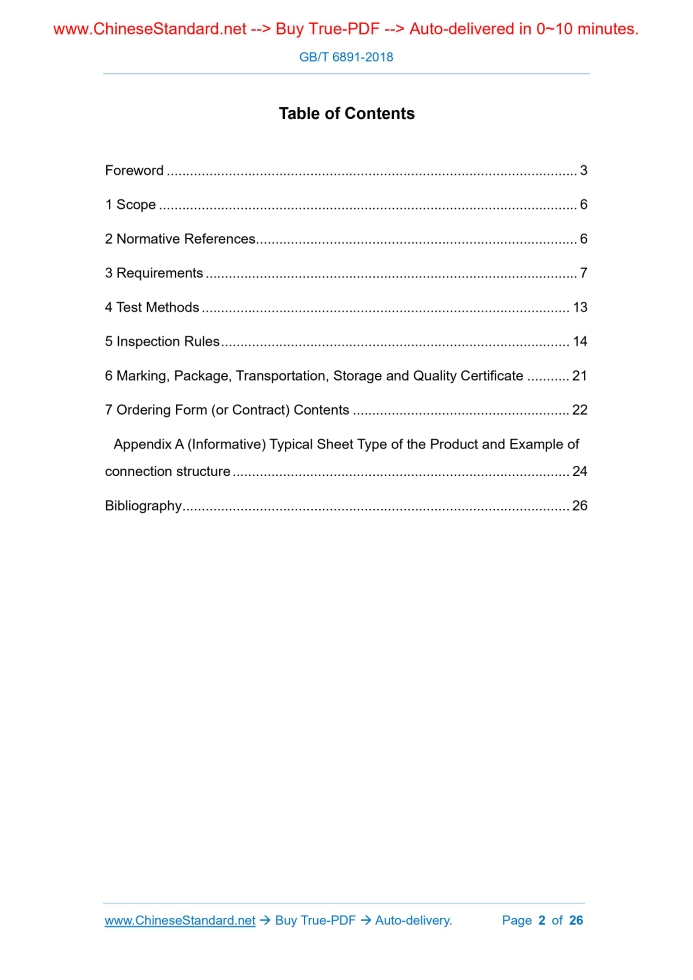

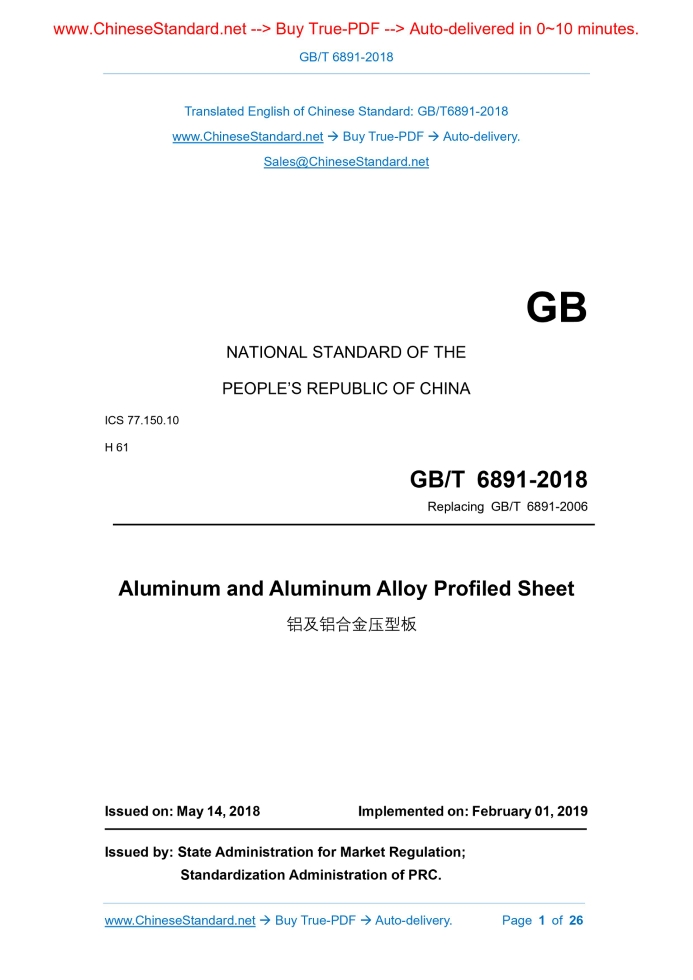

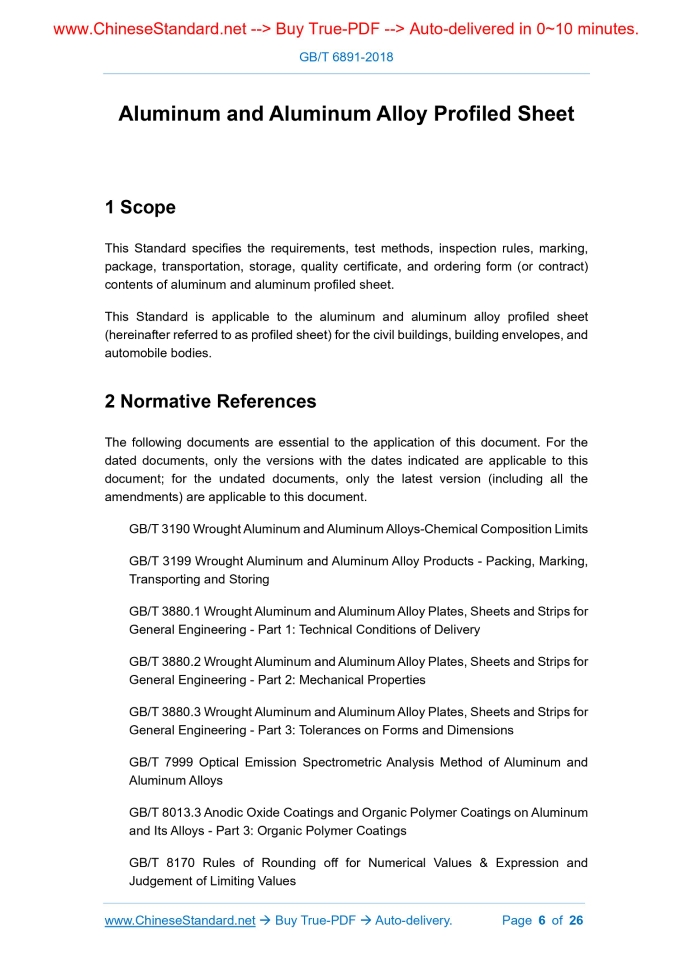

GB/T 6891-2018: Aluminum and Aluminum Alloy Profiled Sheet---This is an excerpt. Full copy of true-PDF in English version (including equations, symbols, images, flow-chart, tables, and figures etc.), auto-downloaded/delivered in 9 seconds, can be purchased online: https://www.ChineseStandard.net/PDF.aspx/GBT6891-2018NATIONAL STANDARD OF THE PEOPLE’S REPUBLIC OF CHINA ICS 77.150.10 H 61 Replacing GB/T 6891-2006 Aluminum and Aluminum Alloy Profiled Sheet ISSUED ON: MAY 14, 2018 IMPLEMENTED ON: FEBRUARY 01, 2019 Issued by: State Administration for Market Regulation; Standardization Administration of PRC. Table of ContentsForeword ... 3 1 Scope ... 6 2 Normative References ... 6 3 Requirements ... 7 4 Test Methods ... 13 5 Inspection Rules ... 14 6 Marking, Package, Transportation, Storage and Quality Certificate ... 21 7 Ordering Form (or Contract) Contents ... 22 Appendix A (Informative) Typical Sheet Type of the Product and Example of connection structure ... 24 Bibliography ... 26 Aluminum and Aluminum Alloy Profiled Sheet1 ScopeThis Standard specifies the requirements, test methods, inspection rules, marking, package, transportation, storage, quality certificate, and ordering form (or contract) contents of aluminum and aluminum profiled sheet. This Standard is applicable to the aluminum and aluminum alloy profiled sheet (hereinafter referred to as profiled sheet) for the civil buildings, building envelopes, and automobile bodies.2 Normative ReferencesThe following documents are essential to the application of this document. For the dated documents, only the versions with the dates indicated are applicable to this document; for the undated documents, only the latest version (including all the amendments) are applicable to this document. GB/T 3190 Wrought Aluminum and Aluminum Alloys-Chemical Composition Limits GB/T 3199 Wrought Aluminum and Aluminum Alloy Products - Packing, Marking, Transporting and Storing GB/T 3880.1 Wrought Aluminum and Aluminum Alloy Plates, Sheets and Strips for General Engineering - Part 1: Technical Conditions of Delivery GB/T 3880.2 Wrought Aluminum and Aluminum Alloy Plates, Sheets and Strips for General Engineering - Part 2: Mechanical Properties GB/T 3880.3 Wrought Aluminum and Aluminum Alloy Plates, Sheets and Strips for General Engineering - Part 3: Tolerances on Forms and Dimensions GB/T 7999 Optical Emission Spectrometric Analysis Method of Aluminum and Aluminum Alloys GB/T 8013.3 Anodic Oxide Coatings and Organic Polymer Coatings on Aluminum and Its Alloys - Part 3: Organic Polymer Coatings GB/T 8170 Rules of Rounding off for Numerical Values & Expression and Judgement of Limiting Values layer code. Example 1: The marking for uncoated profiled sheet with designation of 3105, state of H16, model of YX10001, length of 6000mm is as follows: Profiled sheet GB/T 6891-3105H16-YX10001×6000 Example 2: The marking for the polyester paint roller coating profiled sheet with designation of 3105, state of H46, model of YX10001, length of 6000mm, color number of 2345, film layer code of LRA15 is as follows: Profiled sheet GB/T 6891-3105H46-YX10001×6000 color 2345LRA15 3.2 Quality assurance 3.2.1 Base material The quality of base material shall conform to the provisions of GB/T 3880.1. 3.2.2 Fluorocarbon paint coating The quality of fluorocarbon paint coating can refer to A.2.3 of GB/T 5237.5-2017. 3.3 Chemical composition The chemical composition of the profiled sheet shall conform to the provisions of GB/T 3190. 3.4 Size deviation 3.4.1 The cross-sectional dimension of the profiled sheet shall conform to the provisions of the drawings specified by both the supplier and the purchaser. The marking of the cross-sectional dimension can refer to Figure 1. Key: B – width; Hardness After the pencil scratch test, the hardness of the film layer shall be no less than HB After the pencil scratch test, the hardness of the film layer shall be no less than 1H Adhesion Dry adhesion Reach Level-0 or Level-I Reach Level-0 Wet adhesion --- Reach Level-0 Boiling- water adhesion --- Reach Level-0 Coating flexibility a If it is ≤2T, the film layer shall be free of cracks or peeling off --- Impact resistance The film layer shall be free of cracks or peeling off after the impact test (square impact) The film layer is allowed to crack slightly after the impact test (impact of recoil); however, when the adhesive tape is used for further inspection, the surface of the film layer shall be free of stick-falling phenomenon High temperature water boiling resistance --- The appearance of the film layer after the test shall be free of peeling, blistering, wrinkling, etc.; the adhesion shall reach Level-0 Wear resistance --- Sand-falling test results: the wear factor shall be no less than 1.6L/µm Hydrochloric acid resistance After the hydrochloric acid resistance test, there shall be no bubbles, discoloration or other obvious changes Nitric acid resistance --- After the nitric acid resistance test, compare the exposed and unexposed samples, the color change ΔE * ab≤5 Mortar resistance After the mortar resistance test, there is no peeling off or other obvious changes Solvent resistance 70 times without revealing 100 times without revealing Wipe for 100 times, the film layer after wiping has no revealing phenomenon Table 3 – Continued Item Film layer performance of the following coating sheet Roller coating Spray coating LRA15 LRF2-25 LRF3-34 LF2-25 LF3-34 LF4-55 Detergent resistance --- There shall be no blistering or other obvious changes; the It shall be carried out as per the pencil hardness method specified in GB/T 8013.3. 4.4.2 Flexibility It shall be carried out as per the T-bending method specified in GB/T 8013.3. 4.4.3 Hydrochloric acid resistance 4.4.3.1 The hydrochloric acid resistance of the spray coated profiled sheet shall be carried out as per the dripping method specified in GB/T 8013.3. 4.4.3.2 The hydrochloric acid resistance of the roller coated profiled sheet shall be carried out as per the standing method specified in GB/T 8013.3. 4.4.4 Nitric acid resistance It shall be carried out as per the gas phase method specified in GB/T 8013.3. 4.4.5 Solvent resistance It shall be carried out as per the Wiping Method II specified in GB/T 8013.3. 4.4.6 Heat and humidity resistance It shall be carried out as per the constant heat and humidity test method specified in GB/T 8013.3. 4.4.7 Other film layer performances Other film layer performances shall be carried out as per the provisions of GB/T 8013.3. 4.5 Appearance quality The appearance quality shall be tested as per the visual examination or method agreed by the supplier and the purchaser.5 Inspection Rules5.1 Inspection and acceptance 5.1.1 The product shall be inspected by the supplier to ensure that the product quality conforms to the provisions of this Standard and ordering form (or contract); and fill in the quality certificate. 5.1.2 The purchaser shall inspect the received products as per the provisions of this Standard. If the inspection results are inconsistent with the provisions of this Standard and the ordering form (or contract), it shall be proposed to the supplier in written form; 5.7.7 When the appearance quality of any specimen is unqualified, then such profiled sheet shall be judged to be unqualified.6 Marking, Package, Transportation, Storage andQuality Certificate 6.1 Marking 6.1.1 Product marking On the products that pass the inspection, there shall be the following contents (or labels with the following contents): a) Supplier’s name and address; b) Product name; c) Seal of the supplier’s quality inspection department (or signature or stamp of the quality inspection personnel); d) Designation, state and size specification (or model); e) Film layer code and color (or color number); f) Product batch number or date of production; g) This Standard number. 6.1.2 Marking on package box The marking on package box of the product shall conform to the provisions of GB/T 3199. 6.2 Package, transportation and storage 6.2.1 When profiled sheets are packaged, it shall be folded in a simple package. The sheet stack shall be covered with Kraft paper; cover a thin layer of plastic film on top of the sheet stack; then bundle with strapping band or steel strip. The height of each profiled sheet stack shall not exceed 500mm; the gross weight per stack is no more than 2t. Wooden boards or foam boards are needed to separate the profiled sheets during bundling period; never damage the profiled sheet; the package shall be rain proof. 6.2.2 During the transportation period, there shall be reliable support or fixing measures; avoid non-uniform extrusion, mechanical damage, rain and damp. Others shall conform to the provisions of GB/T 3199. 6.2.3 The profiled sheet shall be stored in a dry and ventilated indoor environment. When stored in the open air, it shall be covered by rainproof cover; and there shall be a slop of no less than 3% in the direction of drainage to prevent the water accumulation. 6.3 Quality certificate Each batch of profiled sheets shall be attached with quality certificate indicating: a) Supplier’s name; b) Product name; c) Designation, state and size specification (or model); d) Film layer code and color (or color number); e) Batch number or date of production; f) Weight or number of pieces; g) Results of each analysis and inspection; and seal for the supplier’s quality inspection department; h) This Standard number.7 Ordering Form (or Contract) ContentsThe ordering form (or contract) ordering the profiled sheets listed in this Standard shall include the following contents: a) Supplier’s name; b) Product name; c) Designation, state and size specification (or model); d) Size deviation, accuracy level; e) Film layer luster value, film layer code and color (or color number); f) Weight or number of pieces; g) The purchaser’s special requirements. --- Test requirements for wear resistance; ......Source: Above contents are excerpted from the full-copy PDF -- translated/reviewed by: www.ChineseStandard.net / Wayne Zheng et al. Tips & Frequently Asked Questions:Question 1: How long will the true-PDF of English version of GB/T 6891-2018 be delivered?Answer: The full copy PDF of English version of GB/T 6891-2018 can be downloaded in 9 seconds, and it will also be emailed to you in 9 seconds (double mechanisms to ensure the delivery reliably), with PDF-invoice.Question 2: Can I share the purchased PDF of GB/T 6891-2018_English with my colleagues?Answer: Yes. The purchased PDF of GB/T 6891-2018_English will be deemed to be sold to your employer/organization who actually paid for it, including your colleagues and your employer's intranet.Question 3: Does the price include tax/VAT?Answer: Yes. Our tax invoice, downloaded/delivered in 9 seconds, includes all tax/VAT and complies with 100+ countries' tax regulations (tax exempted in 100+ countries) -- See Avoidance of Double Taxation Agreements (DTAs): List of DTAs signed between Singapore and 100+ countriesQuestion 4: Do you accept my currency other than USD?Answer: Yes. www.ChineseStandard.us -- GB/T 6891-2018 -- Click this link and select your country/currency to pay, the exact amount in your currency will be printed on the invoice. Full PDF will also be downloaded/emailed in 9 seconds.Question 5: Should I purchase the latest version GB/T 6891-2018?Answer: Yes. Unless special scenarios such as technical constraints or academic study, you should always prioritize to purchase the latest version GB/T 6891-2018 even if the enforcement date is in future. Complying with the latest version means that, by default, it also complies with all the earlier versions, technically.How to buy and download a true PDF of English version of GB/T 6891-2018?A step-by-step guide to download PDF of GB/T 6891-2018_EnglishStep 1: Visit website https://www.ChineseStandard.net (Pay in USD), or https://www.ChineseStandard.us (Pay in any currencies such as Euro, KRW, JPY, AUD).Step 2: Search keyword "GB/T 6891-2018". Step 3: Click "Add to Cart". If multiple PDFs are required, repeat steps 2 and 3 to add up to 12 PDFs to cart. Step 4: Select payment option (Via payment agents Stripe or PayPal). Step 5: Customize Tax Invoice -- Fill up your email etc. Step 6: Click "Checkout". Step 7: Make payment by credit card, PayPal, Google Pay etc. After the payment is completed and in 9 seconds, you will receive 2 emails attached with the purchased PDFs and PDF-invoice, respectively. Step 8: Optional -- Go to download PDF. Step 9: Optional -- Click Open/Download PDF to download PDFs and invoice. See screenshots for above steps: Steps 1~3 Steps 4~6 Step 7 Step 8 Step 9 |
