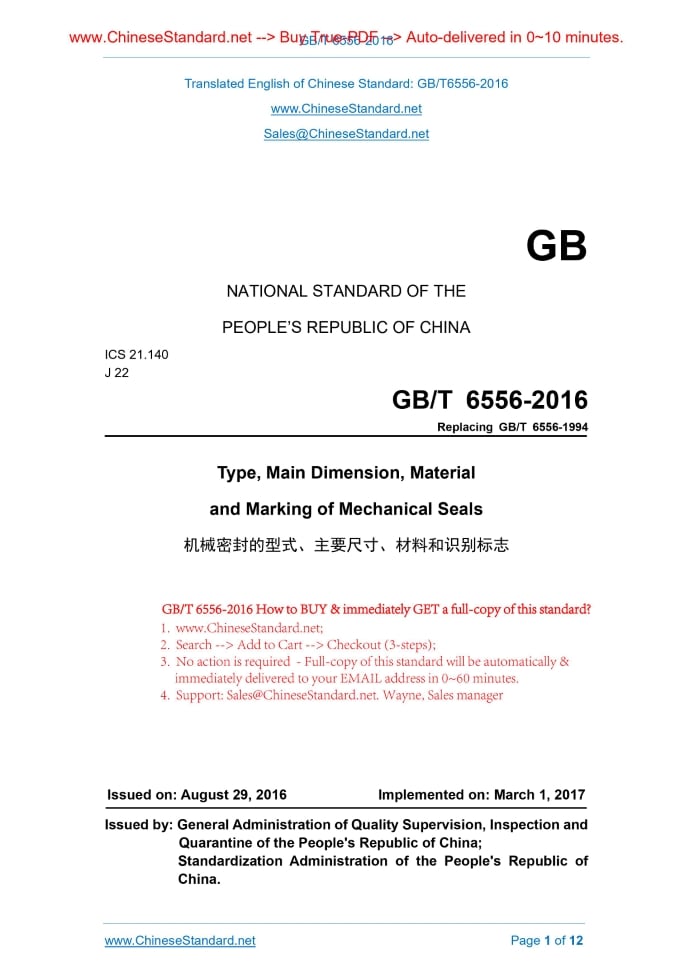

GB/T 6556-2016: Type, Main Dimension, Material and Marking of Mechanical Seals Delivery: 9 seconds. True-PDF full-copy in English & invoice will be downloaded + auto-delivered via email. See step-by-step procedure Status: Valid GB/T 6556: Historical versions

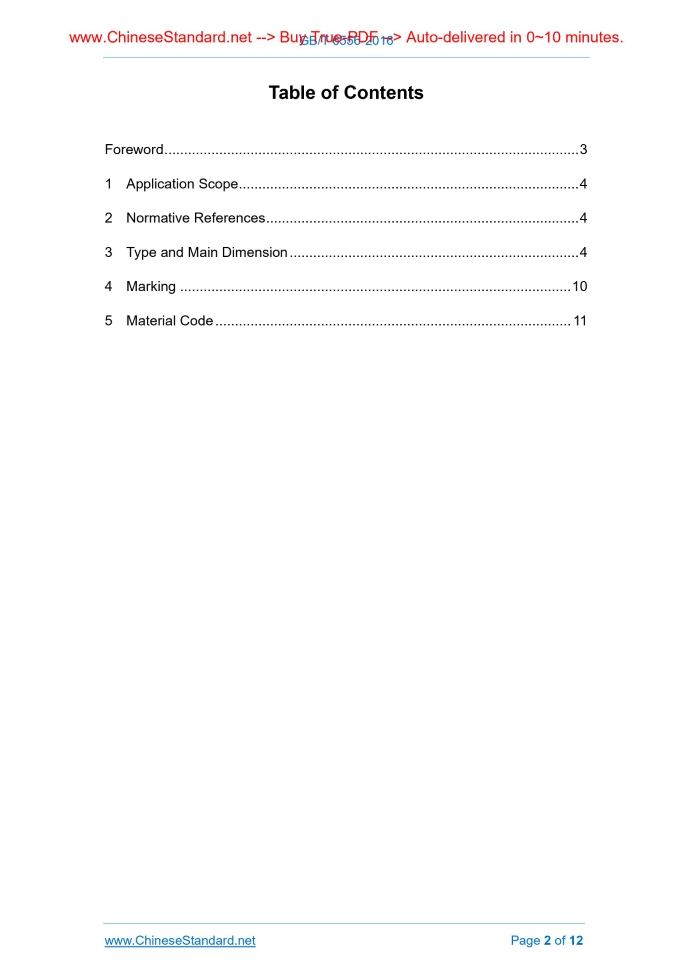

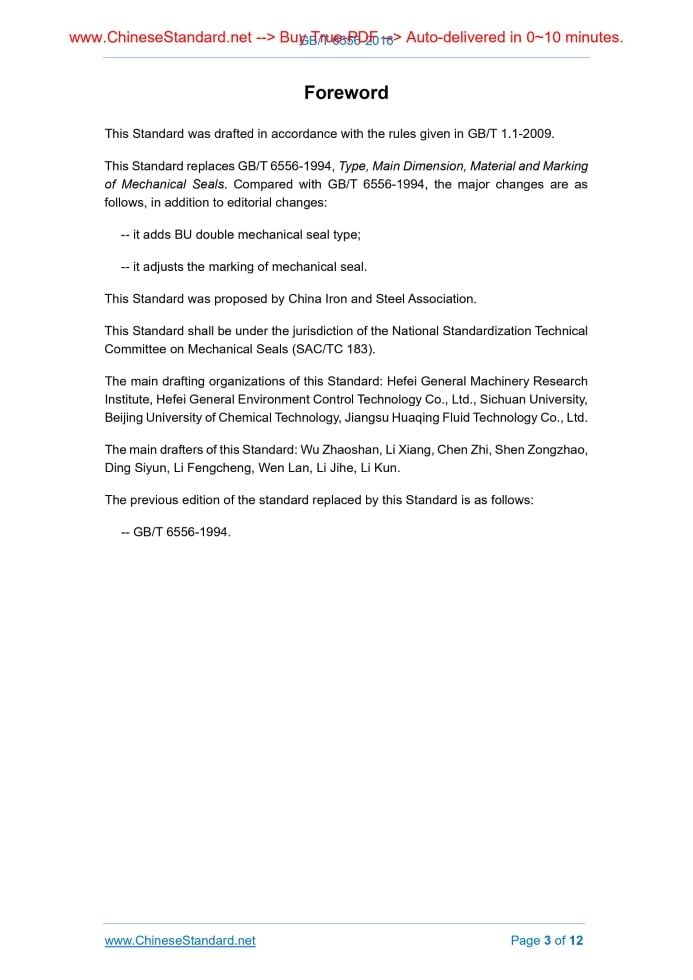

Similar standardsGB/T 6556-2016: Type, Main Dimension, Material and Marking of Mechanical Seals---This is an excerpt. Full copy of true-PDF in English version (including equations, symbols, images, flow-chart, tables, and figures etc.), auto-downloaded/delivered in 9 seconds, can be purchased online: https://www.ChineseStandard.net/PDF.aspx/GBT6556-2016GB NATIONAL STANDARD OF THE PEOPLE’S REPUBLIC OF CHINA ICS 21.140 J 22 Replacing GB/T 6556-1994 Type, Main Dimension, Material and Marking of Mechanical Seals Issued on: AUGUST 29, 2016 Implemented on: MARCH 1, 2017 Issued by. General Administration of Quality Supervision, Inspection and Quarantine of the People's Republic of China; Standardization Administration of the People's Republic of China. 3.No action is required - Full-copy of this standard will be automatically & immediately delivered to your EMAIL address in 0~60 minutes. Table of ContentsForeword... 3 1 Application Scope... 4 2 Normative References... 4 3 Type and Main Dimension... 4 4 Marking... 10 5 Material Code... 11ForewordThis Standard was drafted in accordance with the rules given in GB/T 1.1-2009. This Standard replaces GB/T 6556-1994, Type, Main Dimension, Material and Marking of Mechanical Seals. Compared with GB/T 6556-1994, the major changes are as follows, in addition to editorial changes. -- it adds BU double mechanical seal type; -- it adjusts the marking of mechanical seal. This Standard was proposed by China Iron and Steel Association. This Standard shall be under the jurisdiction of the National Standardization Technical Committee on Mechanical Seals (SAC/TC 183). The main drafting organizations of this Standard. Hefei General Machinery Research Institute, Hefei General Environment Control Technology Co., Ltd., Sichuan University, Beijing University of Chemical Technology, Jiangsu Huaqing Fluid Technology Co., Ltd. The main drafters of this Standard. Wu Zhaoshan, Li Xiang, Chen Zhi, Shen Zongzhao, Ding Siyun, Li Fengcheng, Wen Lan, Li Jihe, Li Kun. The previous edition of the standard replaced by this Standard is as follows. -- GB/T 6556-1994. Type, Main Dimension, Material and Marking of Mechanical Seals1 Application ScopeThis Standard specifies the type, main dimension, marking and material code of mechanical seals for centrifugal pumps and similar rotary machines. This Standard applies to single and double mechanical seals.2 Normative ReferencesThe following referenced documents are indispensable for the application of this document. For dated references, only the edition dated applies to this document. For undated references, the latest edition of the referenced documents (including all amendments) applies to this Standard. GB/T 1804-2000, General Tolerances – Tolerances for Linear and Angular Dimensions Without Individual Tolerance Indications GB/T 10444, Method of Type Establishment for Mechanical Seals3 Type and Main Dimension3.1 General requirements All types of mechanical seals may be of the structures shown in Figure 1 ~ Figure 6, but the dimensions given shall be followed. The figures give the examples in which O ring is used as stationary auxiliary seal ring; the seal rings of other sectional types may also work as stationary auxiliary seal ring. The dimensional tolerances not specified shall be as specified in GB/T 1804-2000, grade f. 3.2 Single mechanical seal type U type. unbalanced single mechanical seal. See Figure 1. B type. balanced single mechanical seal. See Figure 2.4 Marking4.1 Marking of single mechanical seals The marking of single mechanical seals is as follows. EXAMPLE. 108-0-N-R-055-QBPFF indicates type 108 single mechanical seals of. non-cartridge type seal (0), design type N, right rotation (R), nominal diameter d1 55 mm (055), rotary ring material silicon nitride (Q), stationary ring material graphite impregnating resin (B), auxiliary seal ring material nitrile rubber buna (P), spring material chrome-nickel steel (F) and other structural members’ material chrome-nickel steel (F). 4.2 Marking of double mechanical seals The marking of double mechanical seals is as follows. EXAMPLE. UB191-0-080-UAVFF/UBPFF indicates UB191 double mechanical seals of. unbalanced medium side (U), balanced atmospheric side (B), non-cartridge seal (O), nominal diameter 80 mm (080), medium side materials including rotary ring material Co base tungsten carbide (U), stationary ring material graphite impregnating metal (A) and auxiliary seal ring material fluororubber (V), spring material chrome- nickel steel (F) and other structural members’ material chrome-nickel steel (F), atmospheric side materials including rotary ring material Co base tungsten carbide (U), stationary ring material graphite impregnating resin (B), auxiliary seal ring material Material code (see 5.1) Nominal diameter of mechanical seals, expressed with 3 digits; add “0” in front if less than 3 digits Direction of rotation (R for right, L for left and S for any direction) Type of mechanical seal design (N, K) 1 for cartridge seals, 0 for non-cartridge seals (o can be omitted) Type of mechanical seal (as specified in GB/T 10444) Material code (see 5.1) Nominal diameter of mechanical seals, expressed with 3 digits; add “0” in front if less than 3 digits 1 for cartridge seals, 0 for non-cartridge seals (o can be omitted) Mechanical seal type number (as specified in GB/T 10444) ......Source: Above contents are excerpted from the full-copy PDF -- translated/reviewed by: www.ChineseStandard.net / Wayne Zheng et al. |
