GB/T 6402-2024 PDF EnglishUS$440.00 · In stock · Download in 9 seconds
GB/T 6402-2024: Method for ultrasonic testing of steel forgings Delivery: 9 seconds. True-PDF full-copy in English & invoice will be downloaded + auto-delivered via email. See step-by-step procedure Status: Valid GB/T 6402: Historical versions

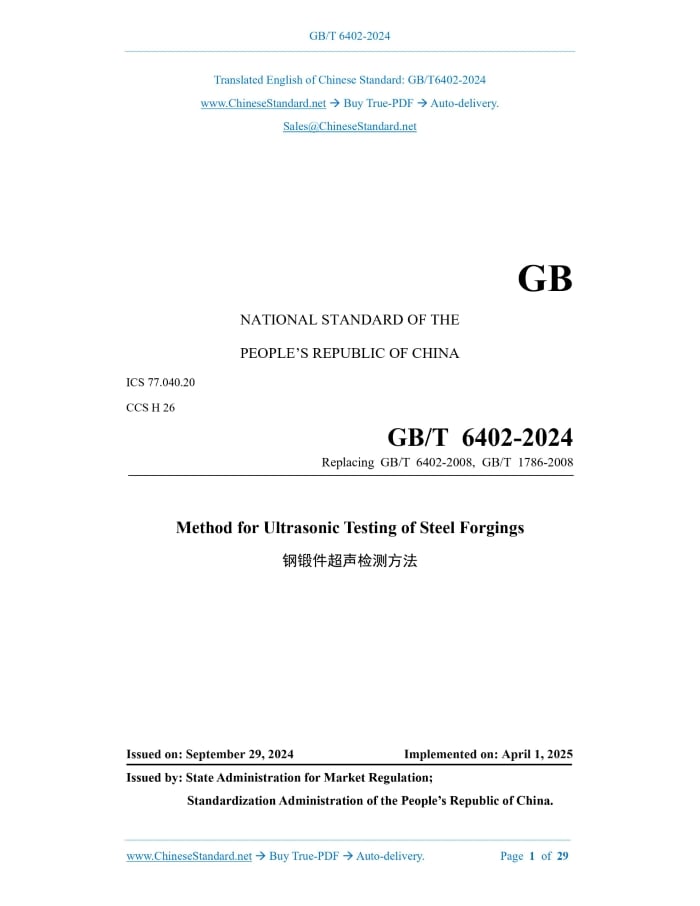

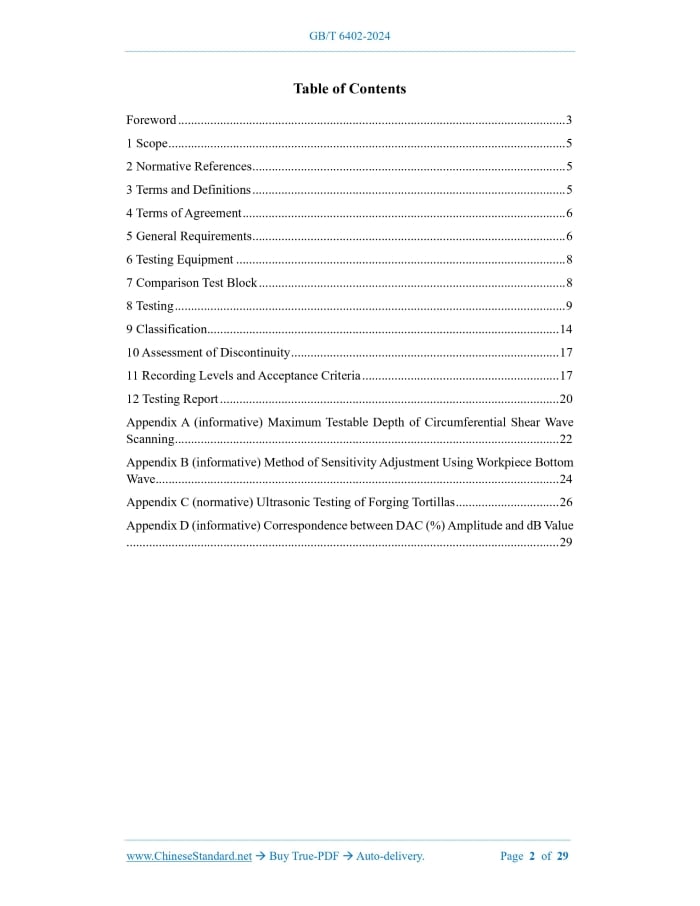

GB/T 6402-2024: Method for ultrasonic testing of steel forgings---This is an excerpt. Full copy of true-PDF in English version (including equations, symbols, images, flow-chart, tables, and figures etc.), auto-downloaded/delivered in 9 seconds, can be purchased online: https://www.ChineseStandard.net/PDF.aspx/GBT6402-2024GB NATIONAL STANDARD OF THE PEOPLE’S REPUBLIC OF CHINA ICS 77.040.20 CCS H 26 Replacing GB/T 6402-2008, GB/T 1786-2008 Method for Ultrasonic Testing of Steel Forgings Issued on. SEPTEMBER 29, 2024 Implemented on. APRIL 1, 2025 Issued by. State Administration for Market Regulation; Standardization Administration of the People’s Republic of China. Table of ContentsForeword... 3 1 Scope... 5 2 Normative References... 5 3 Terms and Definitions... 5 4 Terms of Agreement... 6 5 General Requirements... 6 6 Testing Equipment... 8 7 Comparison Test Block... 8 8 Testing... 9 9 Classification... 14 10 Assessment of Discontinuity... 17 11 Recording Levels and Acceptance Criteria... 17 12 Testing Report... 20 Appendix A (informative) Maximum Testable Depth of Circumferential Shear Wave Scanning... 22 Appendix B (informative) Method of Sensitivity Adjustment Using Workpiece Bottom Wave... 24 Appendix C (normative) Ultrasonic Testing of Forging Tortillas... 26 Appendix D (informative) Correspondence between DAC (%) Amplitude and dB Value ... 291 ScopeThis document specifies the general requirements, testing equipment, comparison test block, testing implementation, classification, assessment, recording levels, acceptance standards and testing report of ultrasonic testing of steel forgings. This document is applicable to ultrasonic pulse reflection testing of ferritic, martensitic and ferritic-martensite steel forgings, austenitic and austenitic-ferritic stainless-steel forgings. It also applies to the ultrasonic testing of forged high-temperature alloys and alloy steel tortillas. Steel forgings with other structures may take this as a reference.2 Normative ReferencesThe content of the following documents constitutes indispensable clauses of this document through normative references in the text. In terms of references with a specified date, only versions with a specified date are applicable to this document. In terms of references without a specified date, the latest version (including all the modifications) is applicable to this document. GB/T 9445 Non-destructive Testing - Qualification and Certification of NDT Personnel GB/T 12604.1 Non-destructive Testing - Terminology - Ultrasonic Testing GB/T 20737 Non-destructive Testing - General Terms and Definitions GB/T 23905 Non-destructive Testing - Blocks for Ultrasonic Testing GB/T 27664.1 Non-destructive Testing - Characterization and Verification of Ultrasonic Test Equipment - Part 1.Instruments GB/T 27664.2 Non-destructive Testing - Characterization and Verification of Ultrasonic Test Equipment - Part 2.Probes GB/T 39239 Non-destructive Testing - Ultrasonic Testing - Characterization and Sizing of Discontinuities GB/T 39242 Non-destructive Testing - Ultrasonic Testing - Sensitivity and Range Setting3 Terms and DefinitionsThe terms and definitions defined in GB/T 12604.1 and GB/T 20737 are applicable to this document.4 Terms of AgreementWhen ordering, the supply-side and the demand-side shall reach a consensus on one or more of the following items related to ultrasonic testing (if the demand-side does not specify, then, the testing method shall be chosen by the supply-side). ---timing of testing (see 5.3); ---whether it is necessary to submit written testing procedures approved by the demand- side (see 5.4); ---whether near-surface testing is required (see 6.2.5); ---other testing requirements for Category 4 complexly shaped forgings or complex parts of forgings (see 8.2.3); ---sensitivity setting method (see 8.3); ---whether it is required to use angle probe for testing (see 8.3.3); ---the range to be tested, and whether to perform grid scanning or 100% scanning (see 8.6.1);5 General Requirements5.1 Personnel Qualifications Personnel engaged in ultrasonic testing in accordance with this document shall comply with the requirements of GB/T 9445 or other corresponding documents and obtain an ultrasonic testing qualification certificate. 5.2 Coupling Agent During sensitivity setting and review, scanning and discontinuity assessment, the same type of coupling agent shall be used. After the testing is completed, if the coupling agent on the surface of the workpiece under test has an adverse effect on the subsequent production, inspection or the integrity of the finished product, then, it shall be removed. 5.3 Timing of Testing Unless otherwise specified in the product standard, ultrasonic testing shall be performed after final heat treatment. Forgings that cannot be tested after the final heat treatment shall be tested at a certain suitable stage before that. For cylindrical and rectangular forgings that require drilling, ultrasonic testing should be performed before drilling. 5.4 Testing Procedures 5.4.1 Ultrasonic testing shall be performed in accordance with testing procedures. When it is specified by a product standard, the testing procedures shall be submitted to the demand-side for approval before testing. 5.4.2 The testing procedures shall be one of the following. 5.4.3 The testing procedures shall at least include the following content.6 Testing Equipment6.1 Ultrasonic Testing Instrument The ultrasonic testing instrument shall comply with the requirements of GB/T 27664.1. 6.2 Probes 6.2.1 Conventional straight probe and angle probe shall comply with the requirements of GB/T 27664.2.If further information is required, other probes may be used for supplementary testing, but the supplementary probes cannot be used for the initial discontinuity testing. 6.2.2 The nominal frequency of the probes is between 1 MHz ~ 10 MHz. 6.2.3 The nominal diameter of the transducer shall be between 10 mm ~ 40 mm. 6.2.4 The refraction angle of the angle probe shall be between 35 ~ 70. The effective area of the nominal transducer shall be between 20 mm2 ~ 625 mm2. 6.2.5 The near-surface testing may use double crystal probe. 6.2.6 The shape grinding method of the probe contact surface shall comply with GB/T 39242. 6.3 Combined Equipment Performance Inspection The performance of combined equipment (ultrasonic testing instrument and probe) shall be regularly inspected.7 Comparison Test Block7.1 The production and inspection of comparison test block shall comply with the requirements of GB/T 23905. 7.2 When adopting the Distance Amplitude Curve (DAC) technique for sensitivity setting and the amplitude of the reflector is referenced to determine the size of the discontinuity, comparison test block shall be provided. The surface condition of the comparison test block shall be the same or similar to that of the workpiece under test. Unless otherwise specified, the comparison test block shall be able to cover at least 3 artificial reflectors throughout the entire testing depth range. 7.3 The comparison test block can be made of one of the following materials. 7.4 The size of the artificial reflector of the comparison test block shall comply with the requirements of the corresponding quality grade.8 Testing8.1 Surface Condition 8.1.1 The scanned surface shall be free of defects, such as. scale, dirt, paint and pits that may affect coupling. If the above situation occurs, appropriate methods shall be used to remove or machine them, so as to satisfy the testing requirements. 8.1.2 When forgings are delivered in forged surface condition, if they can satisfy the specified quality grade inspection requirements, they can be directly tested. NOTE. when it is difficult to conduct comprehensive testing of the forging surface, the method of shot blasting, sandblasting or surface grinding can be used for surface treatment, so as to ensure acoustic coupling. Usually, it merely applies to quality grade 1. 8.2 Testing Range 8.2.1 Classification of forgings This document divides forgings into 4 categories in accordance with shape and production method, see Table 1.Categories 1, 2 and 3 are simply shaped forgings, and Category 4 is complexly shaped forgings or complex parts of forgings. 8.2.2 Simply shaped forgings 8.2.2.1 Table 2 provides the testing range of Categories 1, 2 and 3 forgings when scanning with 8.2.3 Complexly shaped forgings For complexly shaped forgings or complex parts of forgings (Category 4) and small-diameter forgings, the supply-side and the demand-side shall negotiate the scanning requirements, which shall at least include. probe angle, scanning direction and scanning range (grid or 100%). 8.3 Testing Sensitivity 8.3.1 General requirements The testing sensitivity shall ensure the testing of the minimum discontinuity required by the recording level in the specified quality grade. The methods described in 8.3.2 and 8.3.3 shall be used. The corresponding probe shall be used to set the testing sensitivity, and the setting procedures shall comply with the requirements of GB/T 39242. 8.3.2 Straight probe Testing sensitivity can be determined using one of the following methods. 8.3.3 Angle probe Testing sensitivity can be determined using one of the following methods. 8.3.4 Sensitivity in repeated testing If repeated testing is performed, the method of setting sensitivity is the same as 8.3.2 and 8.3.3. 8.4 Transmission Corrections 8.4.1 General requirements When the comparison test block is used to assess indications, the ultrasonic material attenuation and surface loss generated in the test block shall be consistent with that of the workpiece under test. Otherwise, transmission corrections shall be adopted to compensate for material attenuation and surface loss differences. When it is known that the attenuation is negligible, no correction is required. 8.4.3 Angle probe The comparison technology specified in GB/T 39242 can also be used for transmission correction. 8.5 Pulse Repetition Frequency If the pulse repetition frequency is adjustable, it should be high enough to ensure adequate screen brightness and testing of all relevant indications. When testing materials with long sound path and low attenuation, on the premise that no phantom waves are generated, the pulse repetition frequency shall be as high as possible. 8.6 Scanning 8.6.1 General requirements The minimum scanning range required shall depend on the category of forgings, and whether grid scanning or 100% scanning is used shall be specified in the contract. 8.6.2 100% scanning The overlap between two adjacent probe scan traces is at least 10% of the transducer size.9 Classification9.1 Classification of Indications 9.1.1 Type I diagram 9.1.1.1 As the probe moves, Type A display shows a single clear indication that smoothly rises to the maximum amplitude, and then, smoothly drops to 0 (see Figure 1). In Type A display, the X-axis is the time or sound path of the A-scan display at the fixed probe position. In the dynamic waveform diagram, the X-axis is the probe scanning displacement corresponding to the amplitude envelope curve, and the Y-axis is the echo amplitude. 9.1.1.2 Figure 1 is a dynamic echogram of the sound beam profile drawn with a transverse hole, 9.1.2 Type II diagram As the probe moves, Type A display shows a single clear indication that smoothly rises to the maximum amplitude, which is sustained with or without amplitude change, and then, smoothly falls to 0 (see Figure 2). In Type A display, the X-axis is the time or sound path of the A-scan display at the fixed probe position. 9.2 Classification of Discontinuities ......Source: Above contents are excerpted from the full-copy PDF -- translated/reviewed by: www.ChineseStandard.net / Wayne Zheng et al. Tips & Frequently Asked Questions:Question 1: How long will the true-PDF of English version of GB/T 6402-2024 be delivered?Answer: The full copy PDF of English version of GB/T 6402-2024 can be downloaded in 9 seconds, and it will also be emailed to you in 9 seconds (double mechanisms to ensure the delivery reliably), with PDF-invoice.Question 2: Can I share the purchased PDF of GB/T 6402-2024_English with my colleagues?Answer: Yes. The purchased PDF of GB/T 6402-2024_English will be deemed to be sold to your employer/organization who actually paid for it, including your colleagues and your employer's intranet.Question 3: Does the price include tax/VAT?Answer: Yes. Our tax invoice, downloaded/delivered in 9 seconds, includes all tax/VAT and complies with 100+ countries' tax regulations (tax exempted in 100+ countries) -- See Avoidance of Double Taxation Agreements (DTAs): List of DTAs signed between Singapore and 100+ countriesQuestion 4: Do you accept my currency other than USD?Answer: Yes. www.ChineseStandard.us -- GB/T 6402-2024 -- Click this link and select your country/currency to pay, the exact amount in your currency will be printed on the invoice. Full PDF will also be downloaded/emailed in 9 seconds.Question 5: Should I purchase the latest version GB/T 6402-2024?Answer: Yes. Unless special scenarios such as technical constraints or academic study, you should always prioritize to purchase the latest version GB/T 6402-2024 even if the enforcement date is in future. Complying with the latest version means that, by default, it also complies with all the earlier versions, technically.How to buy and download a true PDF of English version of GB/T 6402-2024?A step-by-step guide to download PDF of GB/T 6402-2024_EnglishStep 1: Visit website https://www.ChineseStandard.net (Pay in USD), or https://www.ChineseStandard.us (Pay in any currencies such as Euro, KRW, JPY, AUD).Step 2: Search keyword "GB/T 6402-2024". Step 3: Click "Add to Cart". If multiple PDFs are required, repeat steps 2 and 3 to add up to 12 PDFs to cart. Step 4: Select payment option (Via payment agents Stripe or PayPal). Step 5: Customize Tax Invoice -- Fill up your email etc. Step 6: Click "Checkout". Step 7: Make payment by credit card, PayPal, Google Pay etc. After the payment is completed and in 9 seconds, you will receive 2 emails attached with the purchased PDFs and PDF-invoice, respectively. Step 8: Optional -- Go to download PDF. Step 9: Optional -- Click Open/Download PDF to download PDFs and invoice. See screenshots for above steps: Steps 1~3 Steps 4~6 Step 7 Step 8 Step 9 |
