GB/T 5210-2006 PDF EnglishUS$75.00 · In stock · Download in 9 seconds
GB/T 5210-2006: Paints and varnishes -- Pull-off test for adhesion Delivery: 9 seconds. True-PDF full-copy in English & invoice will be downloaded + auto-delivered via email. See step-by-step procedure Status: Valid GB/T 5210: Historical versions

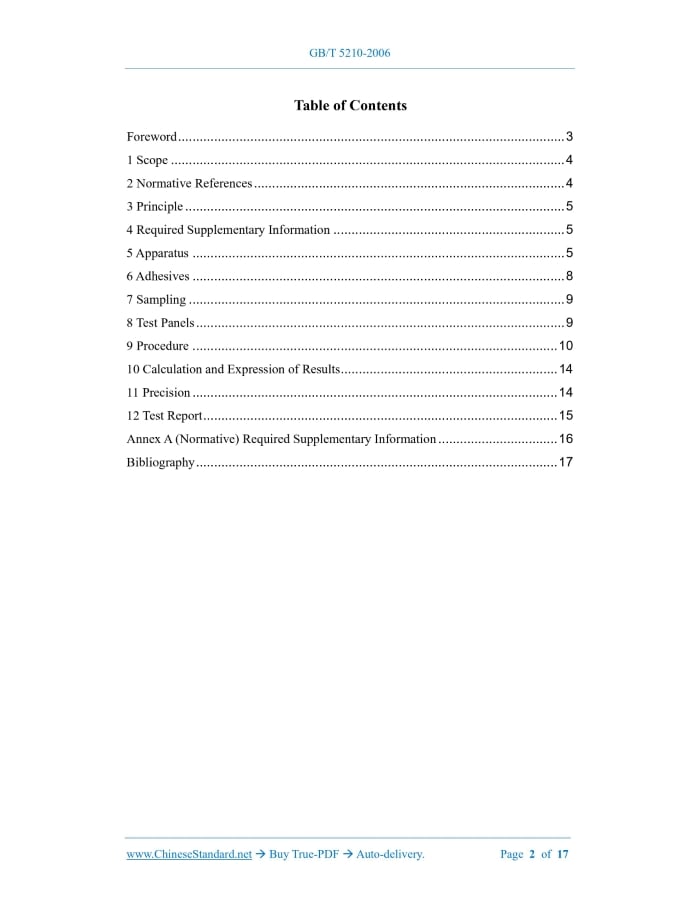

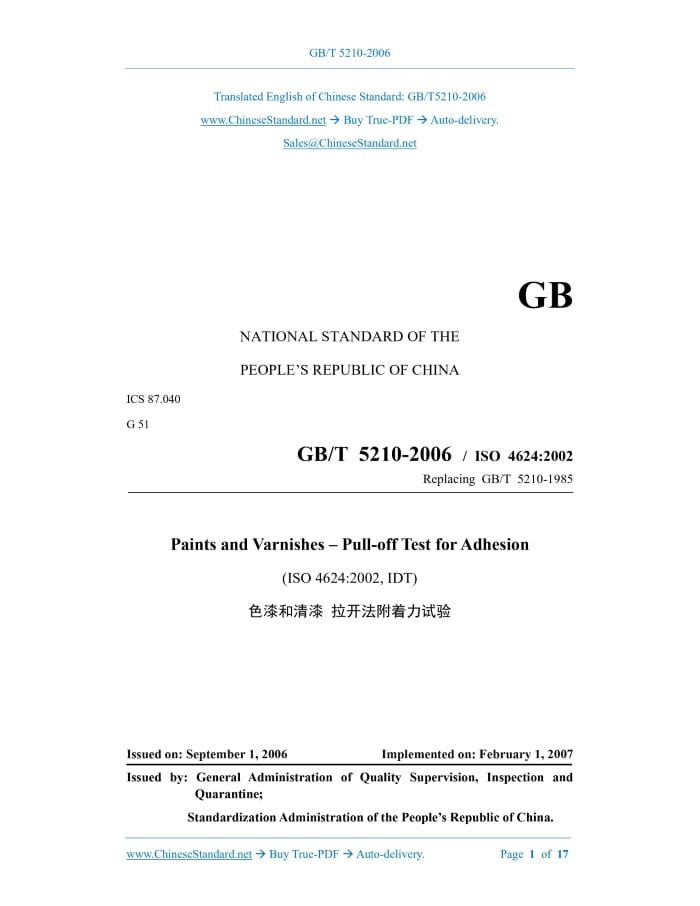

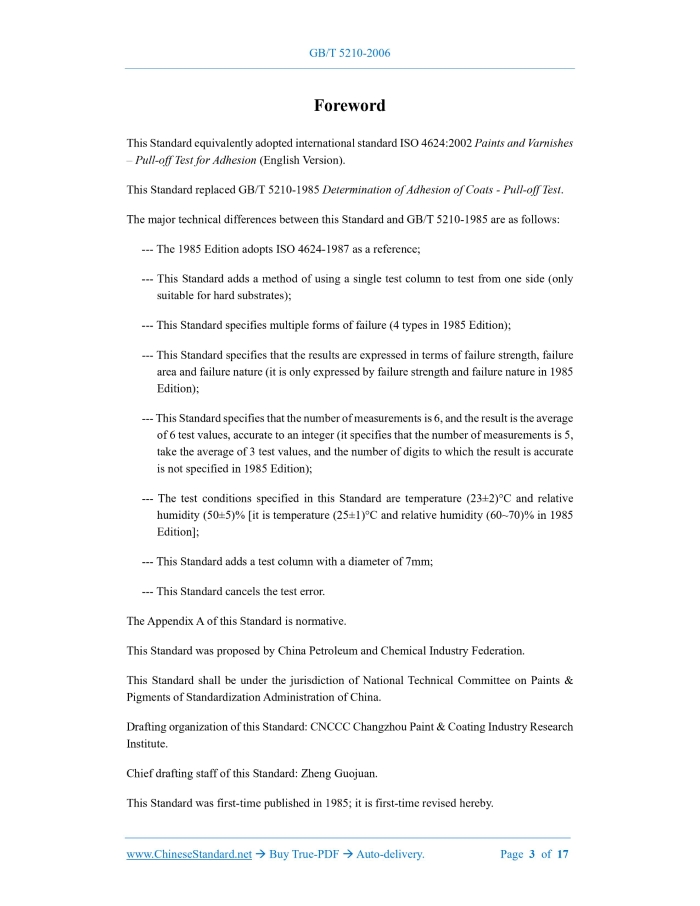

GB/T 5210-2006: Paints and varnishes -- Pull-off test for adhesion---This is an excerpt. Full copy of true-PDF in English version (including equations, symbols, images, flow-chart, tables, and figures etc.), auto-downloaded/delivered in 9 seconds, can be purchased online: https://www.ChineseStandard.net/PDF.aspx/GBT5210-2006GB NATIONAL STANDARD OF THE PEOPLE’S REPUBLIC OF CHINA ICS 87.040 G 51 GB/T 5210-2006 / ISO 4624:2002 Replacing GB/T 5210-1985 Paints and Varnishes – Pull-off Test for Adhesion (ISO 4624:2002, IDT) ISSUED ON: SEPTEMBER 1, 2006 IMPLEMENTED ON: FEBRUARY 1, 2007 Issued by: General Administration of Quality Supervision, Inspection and Quarantine; Standardization Administration of the People’s Republic of China. Table of ContentsForeword ... 3 1 Scope ... 4 2 Normative References ... 4 3 Principle ... 5 4 Required Supplementary Information ... 5 5 Apparatus ... 5 6 Adhesives ... 8 7 Sampling ... 9 8 Test Panels ... 9 9 Procedure ... 10 10 Calculation and Expression of Results ... 14 11 Precision ... 14 12 Test Report ... 15 Annex A (Normative) Required Supplementary Information ... 16 Bibliography ... 17ForewordThis Standard equivalently adopted international standard ISO 4624:2002 Paints and Varnishes – Pull-off Test for Adhesion (English Version). This Standard replaced GB/T 5210-1985 Determination of Adhesion of Coats - Pull-off Test. The major technical differences between this Standard and GB/T 5210-1985 are as follows: --- The 1985 Edition adopts ISO 4624-1987 as a reference; --- This Standard adds a method of using a single test column to test from one side (only suitable for hard substrates); --- This Standard specifies multiple forms of failure (4 types in 1985 Edition); --- This Standard specifies that the results are expressed in terms of failure strength, failure area and failure nature (it is only expressed by failure strength and failure nature in 1985 Edition); --- This Standard specifies that the number of measurements is 6, and the result is the average of 6 test values, accurate to an integer (it specifies that the number of measurements is 5, take the average of 3 test values, and the number of digits to which the result is accurate is not specified in 1985 Edition); --- The test conditions specified in this Standard are temperature (23±2)°C and relative humidity (50±5)% [it is temperature (25±1)°C and relative humidity (60~70)% in 1985 Edition]; --- This Standard adds a test column with a diameter of 7mm; --- This Standard cancels the test error. The Appendix A of this Standard is normative. This Standard was proposed by China Petroleum and Chemical Industry Federation. This Standard shall be under the jurisdiction of National Technical Committee on Paints & Pigments of Standardization Administration of China. Drafting organization of this Standard: CNCCC Changzhou Paint & Coating Industry Research Institute. Chief drafting staff of this Standard: Zheng Guojuan. This Standard was first-time published in 1985; it is first-time revised hereby. Paints and Varnishes – Pull-off Test for Adhesion1 ScopeThis Standard describes methods for determining the adhesion by carrying out a pull-off test on a single coating or a multi-coat system of paint, varnish or related product. These test methods have been found useful in comparing the adhesion behavior of different coatings. It is most useful in providing relative ratings for a series of coated panels exhibiting significant differences in adhesion. The test may be applied using a wide range of substrates. Different procedures are given according to whether the substrate is deformable, for example thin metal, plastics and wood, or rigid, for example thick concrete and metal plates. For special purposes, the coating may be applied directly to the face of a test dolly.2 Normative ReferencesThe provisions in following documents become the provisions of this Standard through reference in this Standard. For dated references, the subsequent amendments (excluding corrigendum) or revisions do not apply to this Standard, however, parties who reach an agreement based on this Standard are encouraged to study if the latest versions of these documents are applicable. For undated references, the latest edition of the referenced document applies. GB/T 3186-2006 Paints, varnishes and raw materials for pains and varnishes – Sampling (ISO 15528:2000, IDT) GB/T 9271 Paints and varnishes – Standard panels for testing (GB/T 9271-1988, eqv ISO 1514:1984) GB 9278 Paints and varnishes and their raw materials – Temperatures and humidities for conditioning and testing (GB 9278-1988, eqv ISO 3270:1984) GB/T 13452.2 Paints and varnishes – Determination of film thickness (GB/T 13452.2- 1992, idt ISO 2808:1974) ISO 1513:1992 Paints and varnishes – Examination and preparation of samples for testing 8.4 Thickness of coating The thickness of the coating shall be specified and agreed between the interested parties. Determine the thickness, in micrometers, of the dried coating by one of the procedures specified in GB/T 13452.2.9 Procedure9.1 Number of determinations Carry out at least six determinations, i.e., using at least six test assemblies (see 9.4). 9.2 Ambient conditions Carry out the test at (23±2)°C and a relative humidity of (50±5)%, unless otherwise agreed (see GB 9278). 9.3 Adhesive Prepare and apply the adhesive (see Clause 6) in accordance with the manufacturer's instructions. Use the minimum quantity of adhesive required to produce a firm, continuous and even bond between the components of the test assembly. Remove any excess adhesive immediately if possible. 9.4 Test assemblies 9.4.1 General method (using two dollies) for testing both rigid and deformable substrates Use as the test piece an area, cut from the coated substrate (disc of minimum 30mm diameter or square of minimum side 30mm). Take care not to distort the test piece. Apply the adhesive evenly to the surfaces of two freshly-cleaned dollies (5.2) of equal diameter (see NOTEs 1 and 2). Place the test piece between the adhesive-coated faces of the dollies such that the dollies are coaxially aligned in the center of the test piece, as shown in Figure 4. Align the test assembly in the centering device (5.3) and maintain the alignment for a period equal to the curing time of the adhesive. In special tests under highly humid conditions, the curing time of the adhesive shall be as short as possible, the use of two-pack quick-drying epoxy adhesive is preferable in these situations. At the end of this period, carefully use the cutting device (5.4) to cut around the circumference of the dollies through to the substrate, unless otherwise specified or agreed (see 5.4). NOTE 1: The adhesion at the adhesive/coating interface may be improved by lightly abrading the surface of the dried coating and the surface of the test dolly before application of the adhesive. NOTE 2: In the method for deformable substrates, if a poor adhesive bond is expected between the Chinese Standards This is an excerpt of the PDF (Some pages are marked off intentionally) Full-copy PDF can be purchased from 1 of 2 websites: 1. https://www.ChineseStandard.us SEARCH the standard ID, such as GB 4943.1-2022. Select your country (currency), for example: USA (USD); Germany (Euro). Full-copy of PDF (text-editable, true-PDF) can be downloaded in 9 seconds. Tax invoice can be downloaded in 9 seconds. Receiving emails in 9 seconds (with download links). SEARCH the standard ID, such as GB 4943.1-2022. Full-copy of PDF (text-editable, true-PDF) can be downloaded in 9 seconds. Receiving emails in 9 seconds (with PDFs attached, invoice and download links). Translated by: Field Test Asia Pte. Ltd. (Incorporated & taxed in Singapore. Tax ID: 201302277C) Linkin: https://www.linkedin.com/in/waynezhengwenrui/ ------ The End ------ ......Source: Above contents are excerpted from the full-copy PDF -- translated/reviewed by: www.ChineseStandard.net / Wayne Zheng et al. Tips & Frequently Asked Questions:Question 1: How long will the true-PDF of English version of GB/T 5210-2006 be delivered?Answer: The full copy PDF of English version of GB/T 5210-2006 can be downloaded in 9 seconds, and it will also be emailed to you in 9 seconds (double mechanisms to ensure the delivery reliably), with PDF-invoice.Question 2: Can I share the purchased PDF of GB/T 5210-2006_English with my colleagues?Answer: Yes. The purchased PDF of GB/T 5210-2006_English will be deemed to be sold to your employer/organization who actually paid for it, including your colleagues and your employer's intranet.Question 3: Does the price include tax/VAT?Answer: Yes. Our tax invoice, downloaded/delivered in 9 seconds, includes all tax/VAT and complies with 100+ countries' tax regulations (tax exempted in 100+ countries) -- See Avoidance of Double Taxation Agreements (DTAs): List of DTAs signed between Singapore and 100+ countriesQuestion 4: Do you accept my currency other than USD?Answer: Yes. www.ChineseStandard.us -- GB/T 5210-2006 -- Click this link and select your country/currency to pay, the exact amount in your currency will be printed on the invoice. Full PDF will also be downloaded/emailed in 9 seconds.Question 5: Should I purchase the latest version GB/T 5210-2006?Answer: Yes. Unless special scenarios such as technical constraints or academic study, you should always prioritize to purchase the latest version GB/T 5210-2006 even if the enforcement date is in future. Complying with the latest version means that, by default, it also complies with all the earlier versions, technically.How to buy and download a true PDF of English version of GB/T 5210-2006?A step-by-step guide to download PDF of GB/T 5210-2006_EnglishStep 1: Visit website https://www.ChineseStandard.net (Pay in USD), or https://www.ChineseStandard.us (Pay in any currencies such as Euro, KRW, JPY, AUD).Step 2: Search keyword "GB/T 5210-2006". Step 3: Click "Add to Cart". If multiple PDFs are required, repeat steps 2 and 3 to add up to 12 PDFs to cart. Step 4: Select payment option (Via payment agents Stripe or PayPal). Step 5: Customize Tax Invoice -- Fill up your email etc. Step 6: Click "Checkout". Step 7: Make payment by credit card, PayPal, Google Pay etc. After the payment is completed and in 9 seconds, you will receive 2 emails attached with the purchased PDFs and PDF-invoice, respectively. Step 8: Optional -- Go to download PDF. Step 9: Optional -- Click Open/Download PDF to download PDFs and invoice. See screenshots for above steps: Steps 1~3 Steps 4~6 Step 7 Step 8 Step 9 |
