GB/T 5097-2020: Non-destructive testing--Penetrant testing and magnetic particle testing--Viewing conditions


---This is an excerpt. Full copy of true-PDF in English version (including equations, symbols, images, flow-chart, tables, and figures etc.), auto-downloaded/delivered in 9 seconds, can be purchased online: https://www.ChineseStandard.net/PDF.aspx/GBT5097-2020

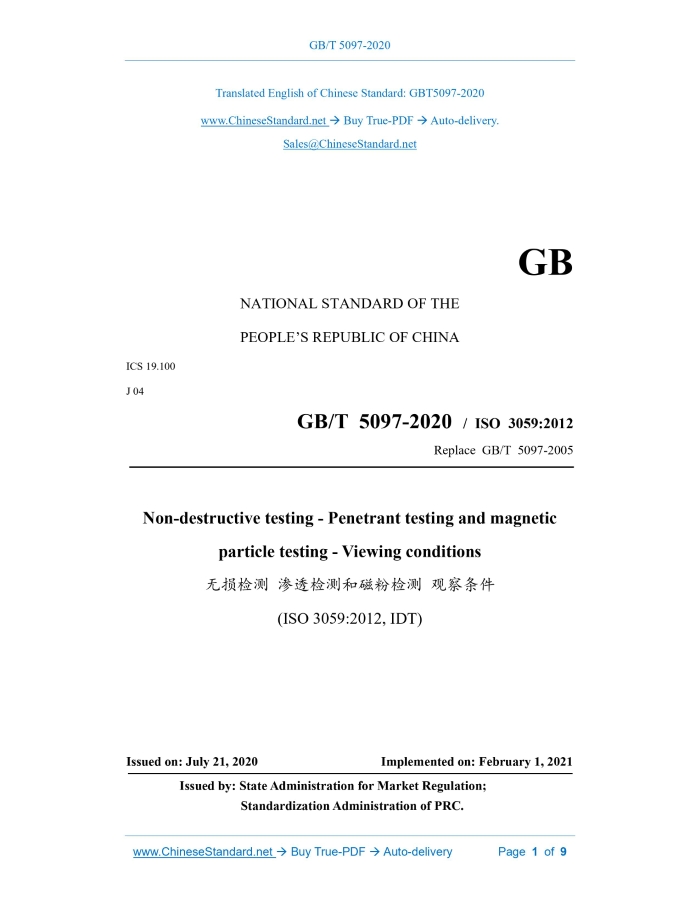

GB NATIONAL STANDARD OF THE PEOPLE’S REPUBLIC OF CHINA ICS 19.100 J 04 GB/T 5097-2020 / ISO 3059.2012 Replace GB/T 5097-2005 Non-destructive testing - Penetrant testing and magnetic particle testing - Viewing conditions (ISO 3059.2012, IDT) Issued on: JULY 21, 2020 Implemented on: FEBRUARY 1, 2021 Issued by. State Administration for Market Regulation; Standardization Administration of PRC.

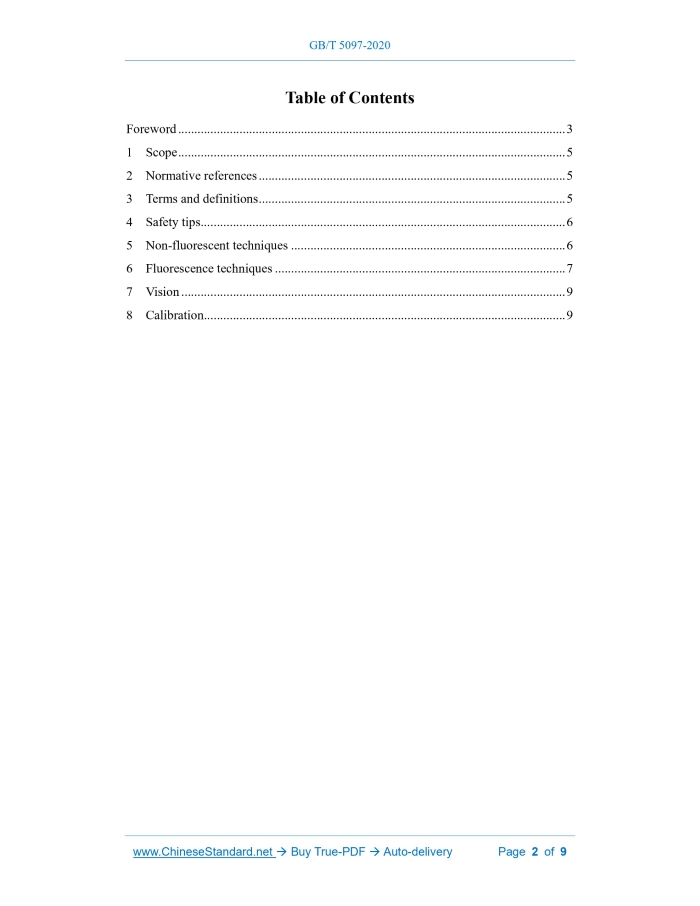

Table of Contents

Foreword... 3 1 Scope... 5 2 Normative references... 5 3 Terms and definitions... 5 4 Safety tips... 6 5 Non-fluorescent techniques... 6 6 Fluorescence techniques... 7 7 Vision... 9 8 Calibration... 9

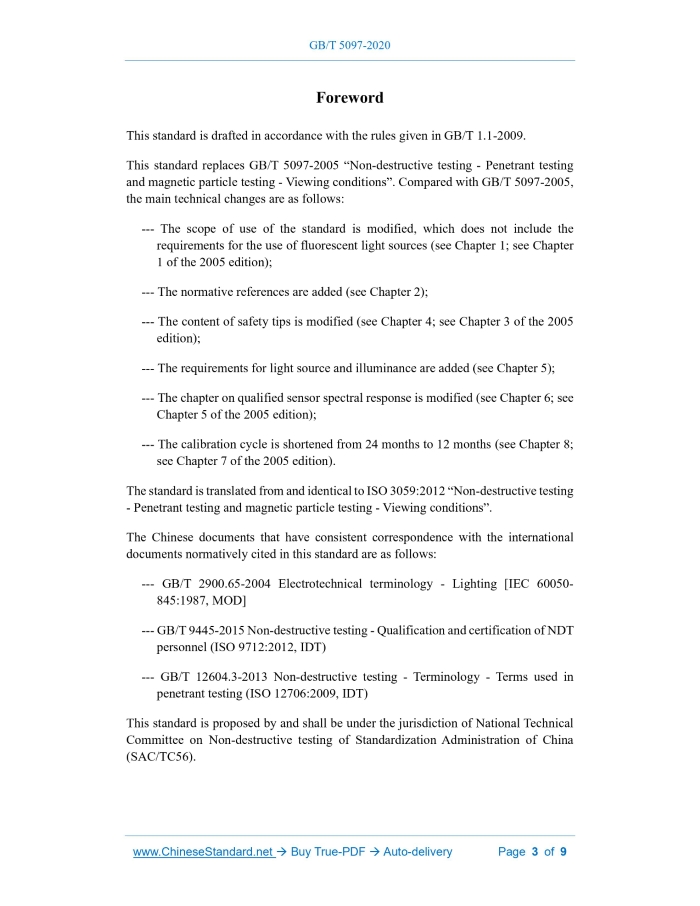

Foreword

This standard is drafted in accordance with the rules given in GB/T 1.1-2009. This standard replaces GB/T 5097-2005 “Non-destructive testing - Penetrant testing and magnetic particle testing - Viewing conditions”. Compared with GB/T 5097-2005, the main technical changes are as follows. --- The scope of use of the standard is modified, which does not include the requirements for the use of fluorescent light sources (see Chapter 1; see Chapter 1 of the 2005 edition); --- The normative references are added (see Chapter 2); --- The content of safety tips is modified (see Chapter 4; see Chapter 3 of the 2005 edition); --- The requirements for light source and illuminance are added (see Chapter 5); --- The chapter on qualified sensor spectral response is modified (see Chapter 6; see Chapter 5 of the 2005 edition); --- The calibration cycle is shortened from 24 months to 12 months (see Chapter 8; see Chapter 7 of the 2005 edition). The standard is translated from and identical to ISO 3059.2012 “Non-destructive testing - Penetrant testing and magnetic particle testing - Viewing conditions”. The Chinese documents that have consistent correspondence with the international documents normatively cited in this standard are as follows. --- GB/T 2900.65-2004 Electrotechnical terminology - Lighting [IEC 60050- 845.1987, MOD] --- GB/T 9445-2015 Non-destructive testing - Qualification and certification of NDT personnel (ISO 9712.2012, IDT) --- GB/T 12604.3-2013 Non-destructive testing - Terminology - Terms used in penetrant testing (ISO 12706.2009, IDT) This standard is proposed by and shall be under the jurisdiction of National Technical Committee on Non-destructive testing of Standardization Administration of China (SAC/TC56). Non-destructive testing - Penetrant testing and magnetic particle testing - Viewing conditions

1 Scope

This standard specifies the control requirements for the viewing conditions of magnetic particle testing and penetrant testing, including the minimum requirements for the white light illuminance and ultraviolet irradiance and their measurement methods, which are applicable to the detection method of observing with the naked eye. This standard does not include requirements for the use of actinic blue light sources.

2 Normative references

The following documents are essential to the application of this document. For the dated documents, only the versions with the dates indicated are applicable to this document; for the undated documents, only the latest version (including all the amendments) is applicable to this standard. ISO 9712 Non-destructive testing - Qualification and certification of personnel ISO 12706 Non-destructive testing - Penetrant testing - Vocabulary ISO 12707 Non-destructive testing - Terminology - Terms used in magnetic particle testing IEC 60050-845 International electrotechnical vocabulary - Chapter 845.lighting EN 1330-1 Non-destructive testing - Terminology - Part 1.List of general terms EN 1330-2 Non-destructive testing - Terminology - Part 2.Terms common to the non-destructive testing methods

3 Terms and definitions

Terms and definitions defined in ISO 12706, ISO 12707, EN 1330-1, and EN 1330-2 apply to this document. ......
Source: Above contents are excerpted from the full-copy PDF -- translated/reviewed by: www.ChineseStandard.net / Wayne Zheng et al.
