GB/T 4857.11-2005: Packaging -- Basic tests for transport packages -- Part 11: Horizontal impact test methods Delivery: 9 seconds. True-PDF full-copy in English & invoice will be downloaded + auto-delivered via email. See step-by-step procedure Status: Valid GB/T 4857.11: Historical versions

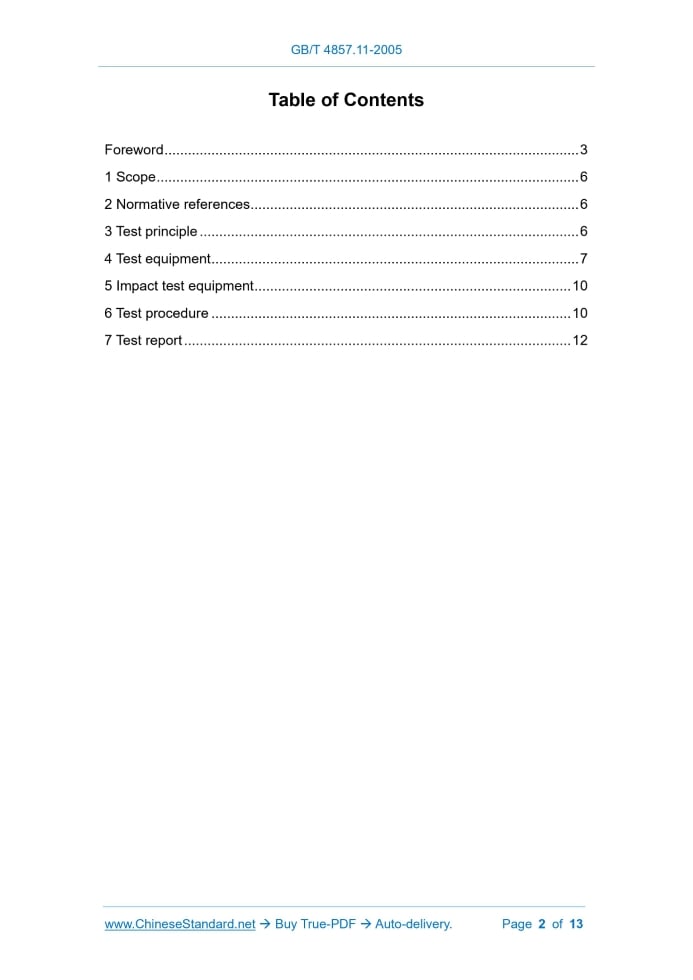

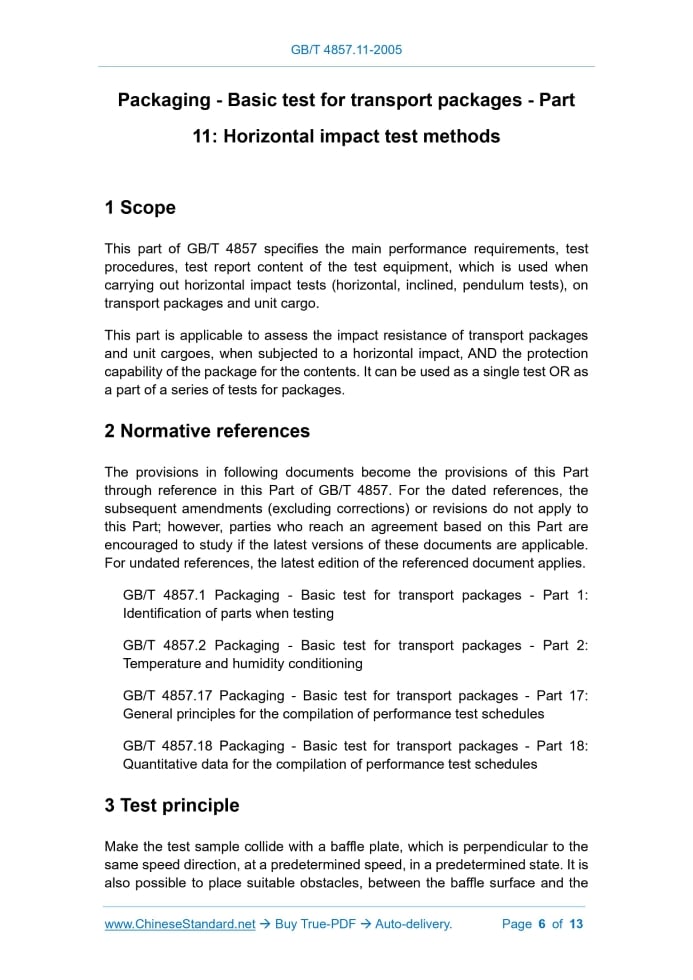

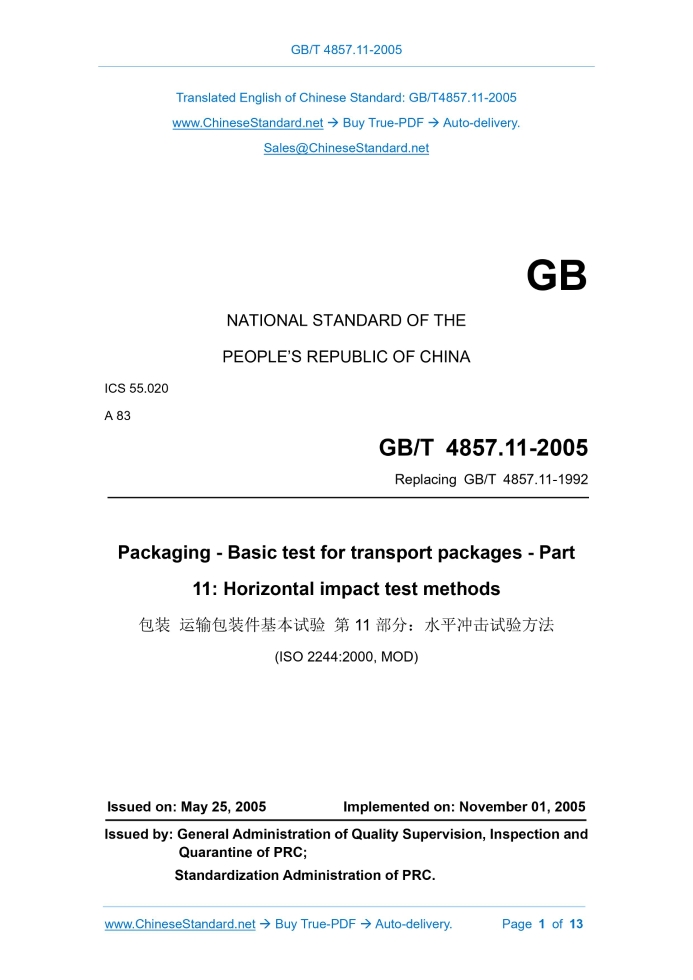

Similar standardsGB/T 4857.11-2005: Packaging -- Basic tests for transport packages -- Part 11: Horizontal impact test methods---This is an excerpt. Full copy of true-PDF in English version (including equations, symbols, images, flow-chart, tables, and figures etc.), auto-downloaded/delivered in 9 seconds, can be purchased online: https://www.ChineseStandard.net/PDF.aspx/GBT4857.11-2005 GB NATIONAL STANDARD OF THE PEOPLE’S REPUBLIC OF CHINA ICS 55.020 A 83 Replacing GB/T 4857.11-1992 Packaging - Basic test for transport packages - Part 11: Horizontal impact test methods (ISO 2244:2000, MOD) ISSUED ON: MAY 25, 2005 IMPLEMENTED ON: NOVEMBER 01, 2005 Issued by: General Administration of Quality Supervision, Inspection and Quarantine of PRC; Standardization Administration of PRC. Table of ContentsForeword ... 3 1 Scope ... 6 2 Normative references ... 6 3 Test principle ... 6 4 Test equipment ... 7 5 Impact test equipment ... 10 6 Test procedure ... 10 7 Test report ... 12 Packaging - Basic test for transport packages - Part 11: Horizontal impact test methods1 ScopeThis part of GB/T 4857 specifies the main performance requirements, test procedures, test report content of the test equipment, which is used when carrying out horizontal impact tests (horizontal, inclined, pendulum tests), on transport packages and unit cargo. This part is applicable to assess the impact resistance of transport packages and unit cargoes, when subjected to a horizontal impact, AND the protection capability of the package for the contents. It can be used as a single test OR as a part of a series of tests for packages.2 Normative referencesThe provisions in following documents become the provisions of this Part through reference in this Part of GB/T 4857. For the dated references, the subsequent amendments (excluding corrections) or revisions do not apply to this Part; however, parties who reach an agreement based on this Part are encouraged to study if the latest versions of these documents are applicable. For undated references, the latest edition of the referenced document applies. GB/T 4857.1 Packaging - Basic test for transport packages - Part 1: Identification of parts when testing GB/T 4857.2 Packaging - Basic test for transport packages - Part 2: Temperature and humidity conditioning GB/T 4857.17 Packaging - Basic test for transport packages - Part 17: General principles for the compilation of performance test schedules GB/T 4857.18 Packaging - Basic test for transport packages - Part 18: Quantitative data for the compilation of performance test schedules3 Test principleMake the test sample collide with a baffle plate, which is perpendicular to the same speed direction, at a predetermined speed, in a predetermined state. It is also possible to place suitable obstacles, between the baffle surface and the impact surface and edge of the test sample, to simulate the impact under special circumstances.4 Test equipment4.1 Horizontal impact testing machine The horizontal impact testing machine is composed of steel rails, trolleys, baffles. 4.1.1 Steel rail Two straight steel rails, which are fixed in parallel, on a horizontal plane. 4.1.2 Trolleys 4.1.2.1 There shall be a driving device. Meanwhile it can control the impact speed of the trolley. 4.1.2.2 There shall be a certain friction, between the platform of the trolley and the test sample, so that the test sample and the trolley have no relative movement, during the movement process from static to before the impact. However, during impact, the test sample shall be able to move freely, as relative to the trolley. 4.1.3 Baffle 4.1.3.1 The baffle shall be installed at one end of the rail. Its surface shall form an angle of 90°±1°, with the direction of movement of the trolley. 4.1.3.2 The impact surface of the baffle shall be flat. Its size shall be larger than the size of the impacted part of the test sample. 4.1.3.3 The impact surface of the baffle shall have sufficient hardness and strength. When the surface is subjected to a load of 160 kg/cm2, the deformation shall not be greater than 0.25 mm. 4.1.3.4 When necessary, an obstacle can be installed on the baffle, to perform a concentrated impact test, on a special part of the test sample. 4.1.3.5 The baffle structure frame shall enable the trolley to continue to travel a certain distance, under the baffle, after the test sample impacts the baffle, so as to ensure that the test sample impacts the baffle, before the trolley stops. 4.2 Inclined impact testing machine The inclined impact testing machine is composed of steel rails, trolleys, baffles,5 Impact test equipmentWhen necessary, the test instrument shall be installed on the trolley or platen. Measure and record the peak acceleration and impact rate.6 Test procedure6.1 Preparation of test samples Prepare test samples, according to the requirements of GB/T 4857.17. 6.2 The number of each part of the test sample Number each part of the test sample, according to the provisions of GB/T 4857.1. 6.3 Pretreatment of test samples Select a condition, to carry out temperature and humidity pretreatment of the test sample, according to the provisions of GB/T 4857.2. 6.4 Temperature and humidity conditions during the test The test shall be carried out, under the same temperature and humidity conditions as the pretreatment. If the pretreatment conditions are not reached, the test must be started, within 5 minutes, after the test sample leaves the pretreatment conditions. 6.5 Selection of test strength value Select the test strength value, according to the provisions of GB/T4857.18. 6.6 Test procedure 6.6.1 Place the test sample on the trolley (horizontal impact tester and inclined impact tester) OR platen (pendulum impact tester), according to the predetermined state. 6.6.1.1 When using an inclined or horizontal impact testing machine to carry out the test, the impact surface or edge of the test sample shall be flush with the front edge of the trolley. When pendulum impact tester is used to carry out the test, in case the freely suspended platen is in the static state, the impact surface or edge of the test sample just touches the impact surface of the baffle. 6.6.1.2 When the test sample is subjected to surface impact, the angle between the impact surface and the impact surface of the baffle shall not be greater than 2°. 6.6.1.3 When performing edge impact on the test sample, the angle, α, between the impact edge and the impact surface of the baffle, shall not be greater than 2°. If the test sample is a parallelepiped, the error of the angle, β, BETWEEN one of the two surfaces, which constitute the edge, AND the impact surface of the baffle, shall not exceed ±5° or within ±10% of the predetermined angle (whichever is larger), as shown in Figure 3. 6.6.1.4 When the test sample is subjected to angular impact, the test sample shall impact the baffle. The error of the angle, β, BETWEEN any plane, which is adjacent to the test angle, AND the baffle, shall not exceed ±5° or within ±10% of the predetermined angle (whichever is larger), as shown in Figure 4. 6.6.2 When using a horizontal impact testing machine for testing, make the trolley move along the rail, at a predetermined speed, AND reach the required impact speed, when it reaches the impact surface of the baffle. 6.6.3 When using the inclined surface impact testing machine to carry out the test, lift the trolley along the inclined surface of the rail, to a corresponding height, where the required impact speed can be obtained. Then release it. 6.6.4 When using the pendulum impact testing machine to carry out the test, pull-open the platen, to increase the position. Release it, when the distance, between the platen and the impact surface of the baffle, can produce the required impact speed. 6.6.5 No matter what kind of testing machine is used for the test, the impact speed error shall be within ±5% of the predetermined impact speed. 6.6.6 After the test, check the damage of the packaging and contents, according to the relevant standards. Analyze the test results. ......Source: Above contents are excerpted from the full-copy PDF -- translated/reviewed by: www.ChineseStandard.net / Wayne Zheng et al. Tips & Frequently Asked Questions:Question 1: How long will the true-PDF of English version of GB/T 4857.11-2005 be delivered?Answer: The full copy PDF of English version of GB/T 4857.11-2005 can be downloaded in 9 seconds, and it will also be emailed to you in 9 seconds (double mechanisms to ensure the delivery reliably), with PDF-invoice.Question 2: Can I share the purchased PDF of GB/T 4857.11-2005_English with my colleagues?Answer: Yes. The purchased PDF of GB/T 4857.11-2005_English will be deemed to be sold to your employer/organization who actually paid for it, including your colleagues and your employer's intranet.Question 3: Does the price include tax/VAT?Answer: Yes. Our tax invoice, downloaded/delivered in 9 seconds, includes all tax/VAT and complies with 100+ countries' tax regulations (tax exempted in 100+ countries) -- See Avoidance of Double Taxation Agreements (DTAs): List of DTAs signed between Singapore and 100+ countriesQuestion 4: Do you accept my currency other than USD?Answer: Yes. www.ChineseStandard.us -- GB/T 4857.11-2005 -- Click this link and select your country/currency to pay, the exact amount in your currency will be printed on the invoice. Full PDF will also be downloaded/emailed in 9 seconds.Question 5: Should I purchase the latest version GB/T 4857.11-2005?Answer: Yes. Unless special scenarios such as technical constraints or academic study, you should always prioritize to purchase the latest version GB/T 4857.11-2005 even if the enforcement date is in future. Complying with the latest version means that, by default, it also complies with all the earlier versions, technically.How to buy and download a true PDF of English version of GB/T 4857.11-2005?A step-by-step guide to download PDF of GB/T 4857.11-2005_EnglishStep 1: Visit website https://www.ChineseStandard.net (Pay in USD), or https://www.ChineseStandard.us (Pay in any currencies such as Euro, KRW, JPY, AUD).Step 2: Search keyword "GB/T 4857.11-2005". Step 3: Click "Add to Cart". If multiple PDFs are required, repeat steps 2 and 3 to add up to 12 PDFs to cart. Step 4: Select payment option (Via payment agents Stripe or PayPal). Step 5: Customize Tax Invoice -- Fill up your email etc. Step 6: Click "Checkout". Step 7: Make payment by credit card, PayPal, Google Pay etc. After the payment is completed and in 9 seconds, you will receive 2 emails attached with the purchased PDFs and PDF-invoice, respectively. Step 8: Optional -- Go to download PDF. Step 9: Optional -- Click Open/Download PDF to download PDFs and invoice. See screenshots for above steps: Steps 1~3 Steps 4~6 Step 7 Step 8 Step 9 |
