GB/T 4744-2013 PDF EnglishUS$70.00 · In stock · Download in 9 seconds
GB/T 4744-2013: Textiles -- Testing and evaluation for water resistance -- Hydrostatic pressure method Delivery: 9 seconds. True-PDF full-copy in English & invoice will be downloaded + auto-delivered via email. See step-by-step procedure Status: Valid GB/T 4744: Historical versions

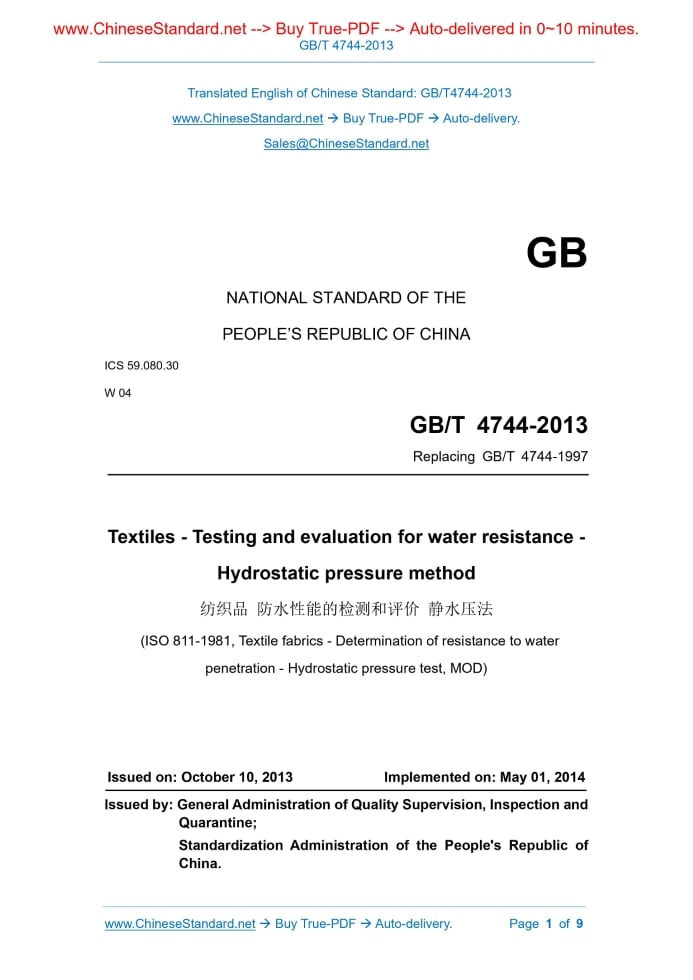

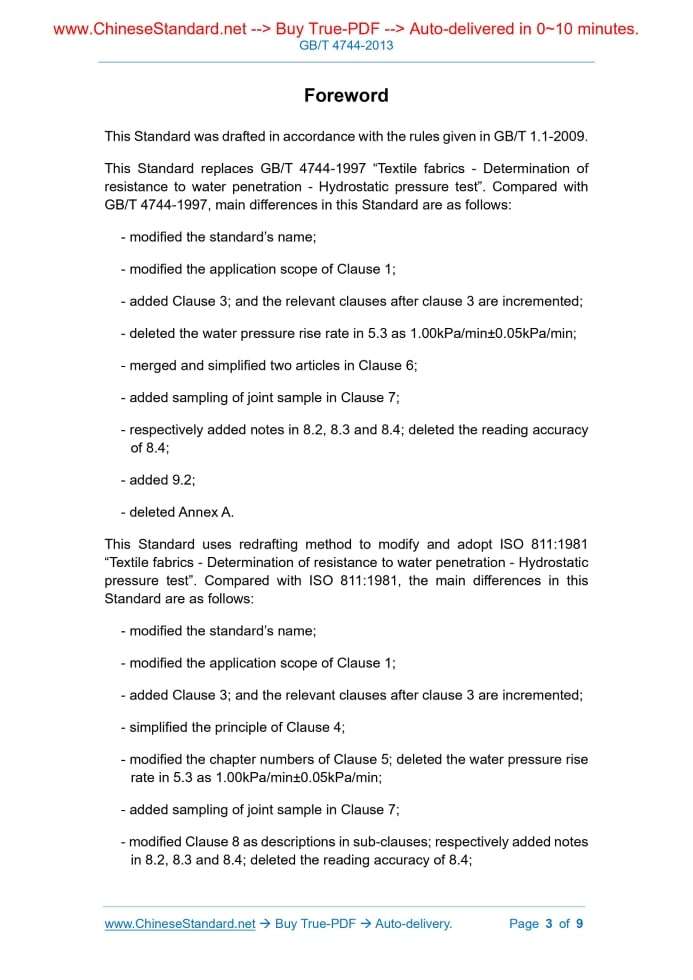

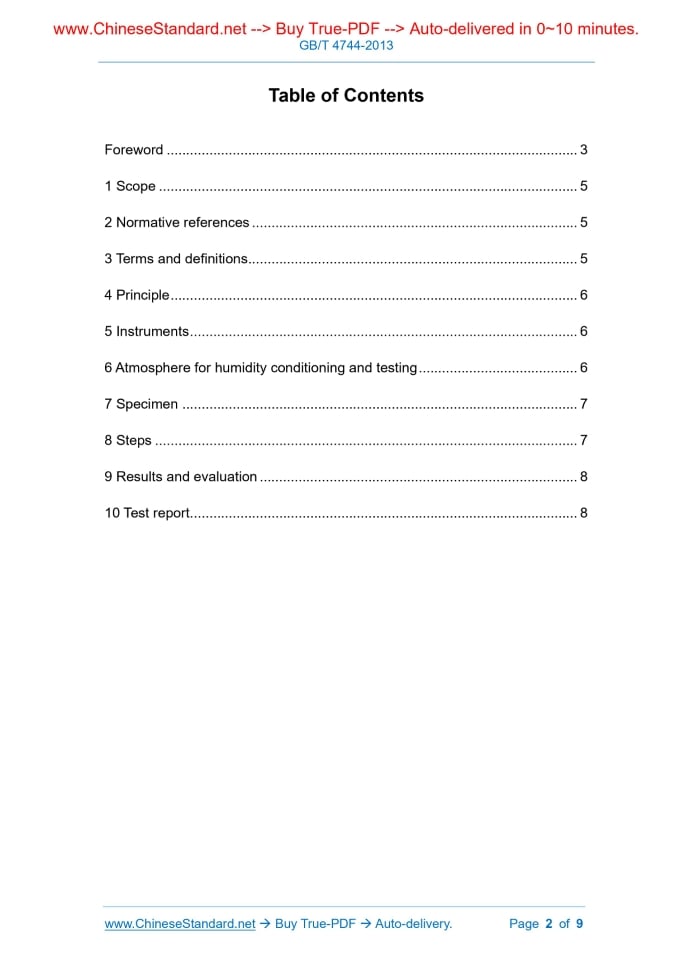

Similar standardsGB/T 4744-2013: Textiles -- Testing and evaluation for water resistance -- Hydrostatic pressure method---This is an excerpt. Full copy of true-PDF in English version (including equations, symbols, images, flow-chart, tables, and figures etc.), auto-downloaded/delivered in 9 seconds, can be purchased online: https://www.ChineseStandard.net/PDF.aspx/GBT4744-2013 NATIONAL STANDARD OF THE PEOPLE’S REPUBLIC OF CHINA ICS 59.080.30 W 04 Replacing GB/T 4744-1997 Textiles - Testing and evaluation for water resistance - Hydrostatic pressure method (ISO 811-1981, Textile fabrics - Determination of resistance to water penetration - Hydrostatic pressure test, MOD) ISSUED ON: OCTOBER 10, 2013 IMPLEMENTED ON: MAY 01, 2014 Issued by: General Administration of Quality Supervision, Inspection and Quarantine; Standardization Administration of the People's Republic of China. Table of ContentsForeword ... 3 1 Scope ... 5 2 Normative references ... 5 3 Terms and definitions ... 5 4 Principle ... 6 5 Instruments ... 6 6 Atmosphere for humidity conditioning and testing ... 6 7 Specimen ... 7 8 Steps ... 7 9 Results and evaluation ... 8 10 Test report ... 8ForewordThis Standard was drafted in accordance with the rules given in GB/T 1.1-2009. This Standard replaces GB/T 4744-1997 “Textile fabrics - Determination of resistance to water penetration - Hydrostatic pressure test”. Compared with GB/T 4744-1997, main differences in this Standard are as follows: - modified the standard’s name; - modified the application scope of Clause 1; - added Clause 3; and the relevant clauses after clause 3 are incremented; - deleted the water pressure rise rate in 5.3 as 1.00kPa/min±0.05kPa/min; - merged and simplified two articles in Clause 6; - added sampling of joint sample in Clause 7; - respectively added notes in 8.2, 8.3 and 8.4; deleted the reading accuracy of 8.4; - added 9.2; - deleted Annex A. This Standard uses redrafting method to modify and adopt ISO 811:1981 “Textile fabrics - Determination of resistance to water penetration - Hydrostatic pressure test”. Compared with ISO 811:1981, the main differences in this Standard are as follows: - modified the standard’s name; - modified the application scope of Clause 1; - added Clause 3; and the relevant clauses after clause 3 are incremented; - simplified the principle of Clause 4; - modified the chapter numbers of Clause 5; deleted the water pressure rise rate in 5.3 as 1.00kPa/min±0.05kPa/min; - added sampling of joint sample in Clause 7; - modified Clause 8 as descriptions in sub-clauses; respectively added notes in 8.2, 8.3 and 8.4; deleted the reading accuracy of 8.4; Textiles - Testing and evaluation for water resistance - Hydrostatic pressure method1 ScopeThis Standard specifies the method that uses hydrostatic pressure test to determine water resistance of textiles and gives evaluation on water resistance. This Standard is applicable to various fabrics (including composite fabrics) and their products.2 Normative referencesThe following referenced documents are indispensable for the application of this document. For dated references, only the edition cited applies. For undated references, the latest edition of the referenced document (including any amendments) applies. GB/T 6529, Textiles - Standard atmospheres for conditioning and testing (GB/T 6529-2008, ISO 139:2005, MOD)3 Terms and definitionsFor the purposes of this document, the following terms and definitions apply. 3.1 water resistance The resistance of fabrics to wetting and penetration by water. The water resistance of fabrics is characterized by wetting level, hydrostatic pressure rating, water penetration. 3.2 hydrostatic pressure rating The degree to which the fabric resists penetration by water. 3.3 face The externally visible surface in the finished product.7 SpecimenAfter sampling, minimize handling of specimen. Avoid forceful folding. Do not conduct other treatments except humidity conditioning (such as ironing). Cut at least 5 specimens from different parts of the fabric. The size of the specimen shall be able to meet the requirements of the test area. The specimen shall be as representative as possible. It may test without cutting the specimen. It shall not test in areas with deep wrinkles or creases. If it is necessary to determine the hydrostatic pressure at the joint, the joint shall be located in the middle of the specimen.8 Steps8.1 Each specimen uses clean distilled water or deionized water to test. 8.2 Wipe the test water on the surface of clamping device. Clamp the specimen that has been subjected to humidity conditioning to make the specimen face in contact with water surface. When clamping the specimen, ensure that the test water does not penetrate the specimen due to pressure before the test begins. NOTE: If the fabric face cannot be determined, the coated side of the single-side coated fabric is in contact with water surface. Respectively test both sides of other fabrics. Respectively report the results. 8.3 At a water pressure rise rate of 6.0kPa/min ± 0.3kPa/min (60cm H2O/min ± 3cm H2O/min), apply an increasing water pressure to the specimen and observe water seepage. NOTE: If other water pressure rise rates are used, such as 1.0kPa/min, indicate in the report. 8.4 Record the hydrostatic pressure value when the third drop of water on the specimen just appears. Do not consider the tiny droplets that do not grow after formation. Continuous water droplets exuding at the same place of the fabric are not accumulated. If the third water droplet appears on the edge of the clamping device, and the hydrostatic pressure value of the third water droplet is lower than the lowest value of other specimens of the same sample, then exclude this data, add specimens to test separately until normal test results are obtained. NOTE: If the fabric breaks during the test, the water column sprays out or the composite fabric swells with water, record the pressure at this time and explain the test phenomenon in the report. ......Source: Above contents are excerpted from the full-copy PDF -- translated/reviewed by: www.ChineseStandard.net / Wayne Zheng et al. Tips & Frequently Asked Questions:Question 1: How long will the true-PDF of English version of GB/T 4744-2013 be delivered?Answer: The full copy PDF of English version of GB/T 4744-2013 can be downloaded in 9 seconds, and it will also be emailed to you in 9 seconds (double mechanisms to ensure the delivery reliably), with PDF-invoice.Question 2: Can I share the purchased PDF of GB/T 4744-2013_English with my colleagues?Answer: Yes. The purchased PDF of GB/T 4744-2013_English will be deemed to be sold to your employer/organization who actually paid for it, including your colleagues and your employer's intranet.Question 3: Does the price include tax/VAT?Answer: Yes. Our tax invoice, downloaded/delivered in 9 seconds, includes all tax/VAT and complies with 100+ countries' tax regulations (tax exempted in 100+ countries) -- See Avoidance of Double Taxation Agreements (DTAs): List of DTAs signed between Singapore and 100+ countriesQuestion 4: Do you accept my currency other than USD?Answer: Yes. www.ChineseStandard.us -- GB/T 4744-2013 -- Click this link and select your country/currency to pay, the exact amount in your currency will be printed on the invoice. Full PDF will also be downloaded/emailed in 9 seconds.Question 5: Should I purchase the latest version GB/T 4744-2013?Answer: Yes. Unless special scenarios such as technical constraints or academic study, you should always prioritize to purchase the latest version GB/T 4744-2013 even if the enforcement date is in future. Complying with the latest version means that, by default, it also complies with all the earlier versions, technically.How to buy and download a true PDF of English version of GB/T 4744-2013?A step-by-step guide to download PDF of GB/T 4744-2013_EnglishStep 1: Visit website https://www.ChineseStandard.net (Pay in USD), or https://www.ChineseStandard.us (Pay in any currencies such as Euro, KRW, JPY, AUD).Step 2: Search keyword "GB/T 4744-2013". Step 3: Click "Add to Cart". If multiple PDFs are required, repeat steps 2 and 3 to add up to 12 PDFs to cart. Step 4: Select payment option (Via payment agents Stripe or PayPal). Step 5: Customize Tax Invoice -- Fill up your email etc. Step 6: Click "Checkout". Step 7: Make payment by credit card, PayPal, Google Pay etc. After the payment is completed and in 9 seconds, you will receive 2 emails attached with the purchased PDFs and PDF-invoice, respectively. Step 8: Optional -- Go to download PDF. Step 9: Optional -- Click Open/Download PDF to download PDFs and invoice. See screenshots for above steps: Steps 1~3 Steps 4~6 Step 7 Step 8 Step 9 |
