GB/T 45098-2024: Technology requirements for battery swap service of commercial pure electric vehicles Delivery: 9 seconds. True-PDF full-copy in English & invoice will be downloaded + auto-delivered via email. See step-by-step procedure Status: Valid

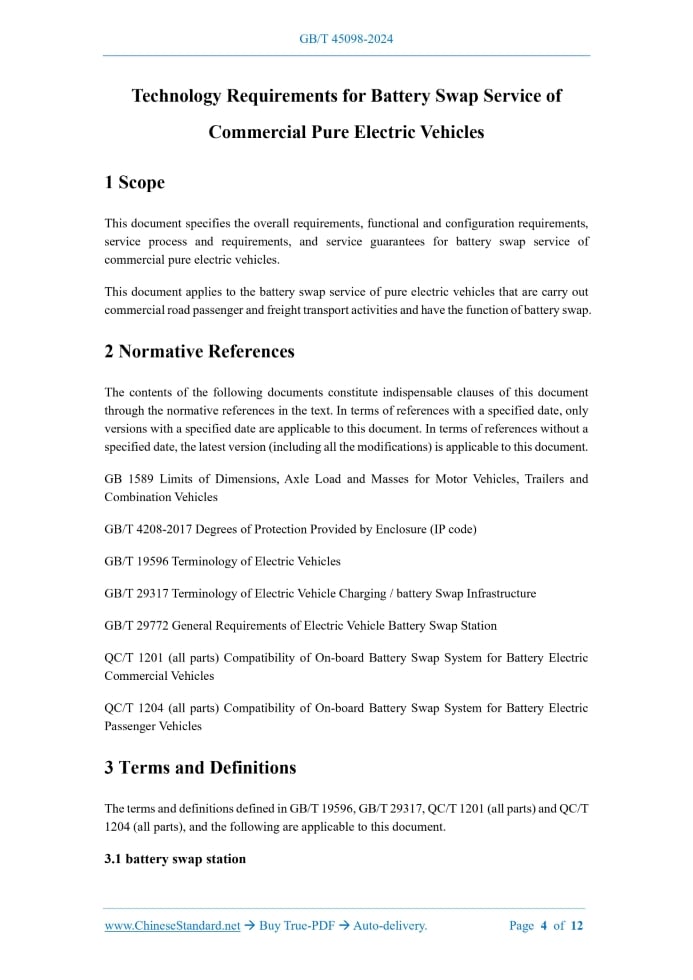

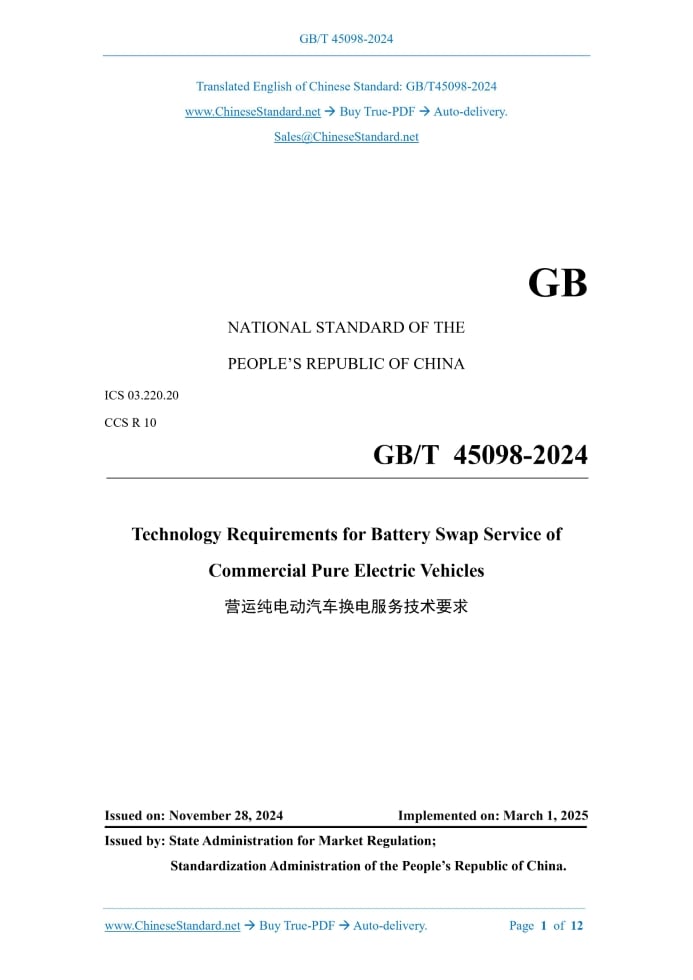

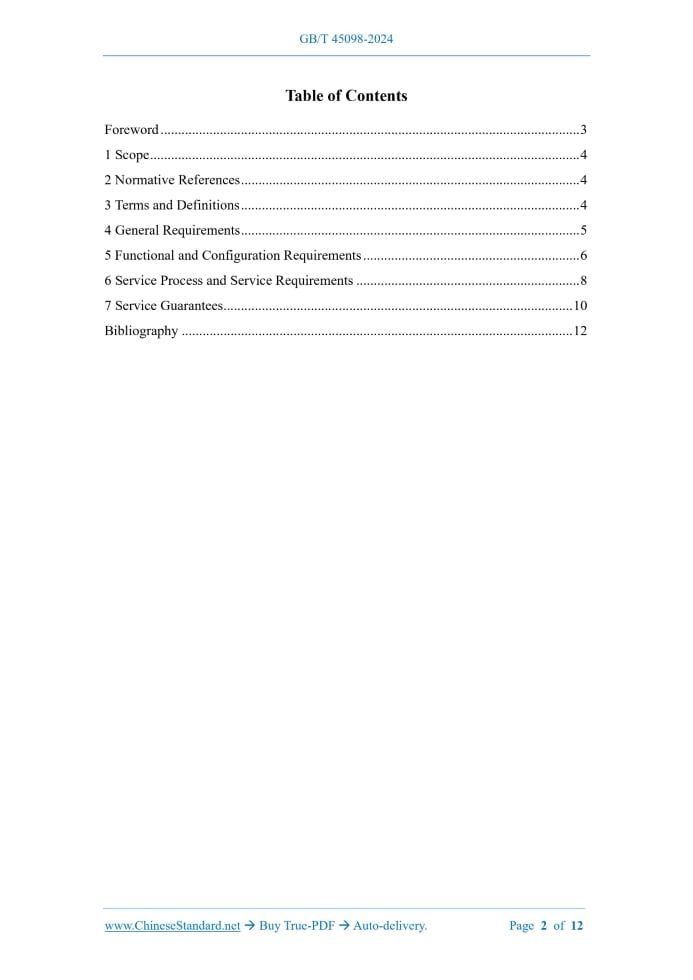

Similar standardsGB/T 45098-2024: Technology requirements for battery swap service of commercial pure electric vehicles---This is an excerpt. Full copy of true-PDF in English version (including equations, symbols, images, flow-chart, tables, and figures etc.), auto-downloaded/delivered in 9 seconds, can be purchased online: https://www.ChineseStandard.net/PDF.aspx/GBT45098-2024 GB NATIONAL STANDARD OF THE PEOPLE’S REPUBLIC OF CHINA ICS 03.220.20 CCS R 10 Technology Requirements for Battery Swap Service of Commercial Pure Electric Vehicles ISSUED ON: NOVEMBER 28, 2024 IMPLEMENTED ON: MARCH 1, 2025 Issued by: State Administration for Market Regulation; Standardization Administration of the People’s Republic of China. Table of ContentsForeword ... 3 1 Scope ... 4 2 Normative References ... 4 3 Terms and Definitions ... 4 4 General Requirements ... 5 5 Functional and Configuration Requirements ... 6 6 Service Process and Service Requirements ... 8 7 Service Guarantees ... 10 Bibliography ... 12 Technology Requirements for Battery Swap Service of Commercial Pure Electric Vehicles1 ScopeThis document specifies the overall requirements, functional and configuration requirements, service process and requirements, and service guarantees for battery swap service of commercial pure electric vehicles. This document applies to the battery swap service of pure electric vehicles that are carry out commercial road passenger and freight transport activities and have the function of battery swap.2 Normative ReferencesThe contents of the following documents constitute indispensable clauses of this document through the normative references in the text. In terms of references with a specified date, only versions with a specified date are applicable to this document. In terms of references without a specified date, the latest version (including all the modifications) is applicable to this document. GB 1589 Limits of Dimensions, Axle Load and Masses for Motor Vehicles, Trailers and Combination Vehicles GB/T 4208-2017 Degrees of Protection Provided by Enclosure (IP code) GB/T 19596 Terminology of Electric Vehicles GB/T 29317 Terminology of Electric Vehicle Charging / battery Swap Infrastructure GB/T 29772 General Requirements of Electric Vehicle Battery Swap Station QC/T 1201 (all parts) Compatibility of On-board Battery Swap System for Battery Electric Commercial Vehicles QC/T 1204 (all parts) Compatibility of On-board Battery Swap System for Battery Electric Passenger Vehicles3 Terms and DefinitionsThe terms and definitions defined in GB/T 19596, GB/T 29317, QC/T 1201 (all parts) and QC/T 1204 (all parts), and the following are applicable to this document. 3.1 battery swap station A place that provides battery swap service for electric vehicles. [source: GB/T 29317-2021, 3.1.2.1] 3.2 organization of battery swap service An organization that is equipped with the facilities and equipment required for battery swap of pure electric vehicles and provides battery swap service. NOTE: it includes road transport enterprises or third-party battery swap service enterprises with the capability of battery swap service.4 General Requirements4.1 Planning and Site Selection of Battery Swap Stations The planning and site selection of battery swap stations follow the following principles: a) The planning and site selection of battery swap stations of commercial pure electric vehicles should comprehensively consider factors, such as: operation scenarios, transportation demands, urban construction planning, road traffic planning, power grid planning, land planning and environmental protection, etc.; b) The site selection, construction, power supply system, charging and battery swap system of battery swap stations of commercial pure electric vehicles shall comply with the relevant requirements of GB/T 29772; c) The site selection of battery swap stations along highways, at ports and transport operation sites shall be combined with the routes of cargo loading and unloading operations and transshipment to reduce the redundant driving distance caused by battery swapping; d) The operation shall not have any impact on the surrounding environment. The environmental noise of the battery swap stations should comply with 4.2 of GB 12348-2008; e) Under the premise of ensuring safety, battery swap stations should utilize surrounding areas like public parking lots; f) The battery swap stations shall not affect the road traffic safety and efficiency in the area or section; g) The battery swap stations should not be located in low-lying areas or places prone to water accumulation. When it is impossible to avoid it, water supply and drainage facilities and flood prevention and drainage facilities shall be installed in accordance with the requirements of 5.2.4f). 4.2 Battery Swap Compatibility 4.2.1 For commercial pure electric vehicles with compatibility and interchangeability, the same or compatible matching solutions should be adopted in the software and hardware interaction interface between the battery swap system and the vehicle. The interchangeability of the on- board battery swap system of rear-mounted commercial pure electric trucks should comply with the relevant requirements of QC/T 1201 (all parts), and the interchangeability of the on-board battery swap system of pure electric passenger vehicles should comply with the relevant requirements of QC/T 1204 (all parts). 4.2.2 The interchangeability of battery swap stations should comply with GB/T 32879 and GB/T 33341 and be compatible with two or more brands and two or more vehicle models for battery swapping. 4.2.3 After battery swapping, the vehicle’s overall dimensions and mass shall comply with the requirements of GB 1589. 4.3 Ground Bearing Capacity The ground of the battery swap stations shall have a bearing capacity that can support the static and dynamic loads generated by the commercial pure electric vehicles and battery swap equipment during operation.5 Functional and Configuration Requirements5.1 Functional Requirements 5.1.1 The duration of a single battery swap for a battery swap station to swap battery for commercial pure electric city taxis (including online booking taxis) shall not exceed 4 minutes, and the duration of a single battery swap for other commercial pure electric vehicles shall not exceed 6 minutes. The duration of a single battery swap for other commercial pure electric vehicles at highway service areas should not exceed 5 minutes. NOTE: the duration of a single battery swap refers to the time from when the vehicle is in place to when the battery swap is completed. 5.1.2 The number of battery storage spaces configured for the initial construction of a battery swap station shall be no less than 3, and it is advisable to have the function of expanding the battery storage spaces. 5.1.3 The battery swap station shall have the function of identifying and screening the battery status. The swapped battery shall be fault-free, and the state of charge (SOC) of the power battery shall generally not be less than 80% of the full charge. 5.1.4 The battery swap system equipped at the battery swap station shall have manual operation and one-button emergency stop functions. swap efficiency, transportation demands and operating routes. In addition, it shall be able to carry out network scheduling of the commercial battery swap vehicles and power batteries. 5.2.4 In addition to satisfying the relevant requirements of 5.2.1 ~ 5.2.3, the battery swap stations within the port shall also meet the following requirements: a) The battery swap stations can withstand an operational wind resistance level of 8 and a main body wind resistance level of 12; b) The battery swap stations use a solid foundation and anchoring system; c) The battery swap stations use corrosion-resistant metal materials or perform special surface treatment on metal components; d) The waterproof level of key components of the battery swap stations meets the IP54 requirement in GB/T 4208-2017; e) The main structures and components of the battery swap stations are made of moisture-proof materials and sealing technology, and the equipment and components can normally operate in a high humidity environment; f) The battery swap stations are equipped with a reasonable water drainage system. Drainage ditches, rainwater collectors, drainage pumps and other devices are set up in accordance with the surrounding terrain and climatic conditions, and waterproof pads or waterproof grooves are set up under the equipment. 5.2.5 In addition to satisfying the relevant requirements of 5.2.1 ~ 5.2.3, the battery swap stations in mining areas and transportation stations shall also meet the following requirements: a) The battery swap stations shall use materials, such as: metal or plastic with smooth surface that are not easy to absorb flying dust and easy to clean; b) The air intake and ventilation system of the battery swap stations should be equipped with high-efficiency air filtration devices; c) The battery swap stations should be equipped with automatic cleaning devices, for example, automatic water spraying system or air purging system, and regularly clean the flying dust inside and outside the battery swap stations.6 Service Process and Service Requirements6.1 Before Battery Swapping 6.1.1 Before a vehicle enters a battery swap station, if the charge of the replaceable battery in the battery swap station is less than 80% of the full charge, the driver shall be informed. 6.1.2 After a vehicle enters a battery swap station, the vehicle information shall be verified and the battery swap operation can only be carried out after the vehicle passes the identity recognition. 6.1.3 After a vehicle enters the battery swap channel, it shall first be positioned and its positioning status checked. If the vehicle positioning fails, at least one obvious alarm signal shall be issued in the form of voice, text, etc. 6.1.4 After the vehicle is successfully positioned, the on-site staff and driver shall perform the battery swap operation in accordance with the following steps: a) Clearly inform the passengers not to get on or off the vehicle during the battery swap process; b) Treat the high voltage AC power converted by inverter; c) The driver performs parking procedures in accordance with the vehicle design requirements; d) Exchange information between the vehicle and the battery swap station, and send information, such as: high voltage AC power converted by inverter and vehicle parking to the battery swap station; e) Start the battery swap operation. 6.2 During Battery Swapping 6.2.1 The battery swap station should avoid abnormal movement of the vehicles that may affect battery swapping. 6.2.2 The battery swap station shall provide the driver with real-time status information of battery swapping through at least one mode, such as: screen display, voice prompt, client-end and vehicle-end. 6.2.3 When the system identifies that a person has entered the dangerous area determined by the battery swap station, the battery swapping shall be automatically stopped. 6.2.4 The battery swap equipment shall smoothly operate, and the battery swap system shall not be collided, deformed or damaged. 6.2.5 The electrical interface for battery swap shall not be energized, and the voltage between the positive and negative poles shall not be greater than 36 V. 6.2.6 The cooling interface for battery swap shall be automatically closed when separated, and the coolant leakage shall not exceed 0.5 mL when separated. 6.2.7 The battery swap system shall detect the status of the locking mechanism to confirm that it is properly locked or unlocked. ......Source: Above contents are excerpted from the full-copy PDF -- translated/reviewed by: www.ChineseStandard.net / Wayne Zheng et al. Tips & Frequently Asked Questions:Question 1: How long will the true-PDF of English version of GB/T 45098-2024 be delivered?Answer: The full copy PDF of English version of GB/T 45098-2024 can be downloaded in 9 seconds, and it will also be emailed to you in 9 seconds (double mechanisms to ensure the delivery reliably), with PDF-invoice.Question 2: Can I share the purchased PDF of GB/T 45098-2024_English with my colleagues?Answer: Yes. The purchased PDF of GB/T 45098-2024_English will be deemed to be sold to your employer/organization who actually paid for it, including your colleagues and your employer's intranet.Question 3: Does the price include tax/VAT?Answer: Yes. Our tax invoice, downloaded/delivered in 9 seconds, includes all tax/VAT and complies with 100+ countries' tax regulations (tax exempted in 100+ countries) -- See Avoidance of Double Taxation Agreements (DTAs): List of DTAs signed between Singapore and 100+ countriesQuestion 4: Do you accept my currency other than USD?Answer: Yes. www.ChineseStandard.us -- GB/T 45098-2024 -- Click this link and select your country/currency to pay, the exact amount in your currency will be printed on the invoice. Full PDF will also be downloaded/emailed in 9 seconds.How to buy and download a true PDF of English version of GB/T 45098-2024?A step-by-step guide to download PDF of GB/T 45098-2024_EnglishStep 1: Visit website https://www.ChineseStandard.net (Pay in USD), or https://www.ChineseStandard.us (Pay in any currencies such as Euro, KRW, JPY, AUD).Step 2: Search keyword "GB/T 45098-2024". Step 3: Click "Add to Cart". If multiple PDFs are required, repeat steps 2 and 3 to add up to 12 PDFs to cart. Step 4: Select payment option (Via payment agents Stripe or PayPal). Step 5: Customize Tax Invoice -- Fill up your email etc. Step 6: Click "Checkout". Step 7: Make payment by credit card, PayPal, Google Pay etc. After the payment is completed and in 9 seconds, you will receive 2 emails attached with the purchased PDFs and PDF-invoice, respectively. Step 8: Optional -- Go to download PDF. Step 9: Optional -- Click Open/Download PDF to download PDFs and invoice. See screenshots for above steps: Steps 1~3 Steps 4~6 Step 7 Step 8 Step 9 |
