GB/T 44489-2024 PDF EnglishUS$215.00 · In stock · Download in 9 seconds
GB/T 44489-2024: Requirements for examination of advanced assistant driving map Delivery: 9 seconds. True-PDF full-copy in English & invoice will be downloaded + auto-delivered via email. See step-by-step procedure Status: Valid

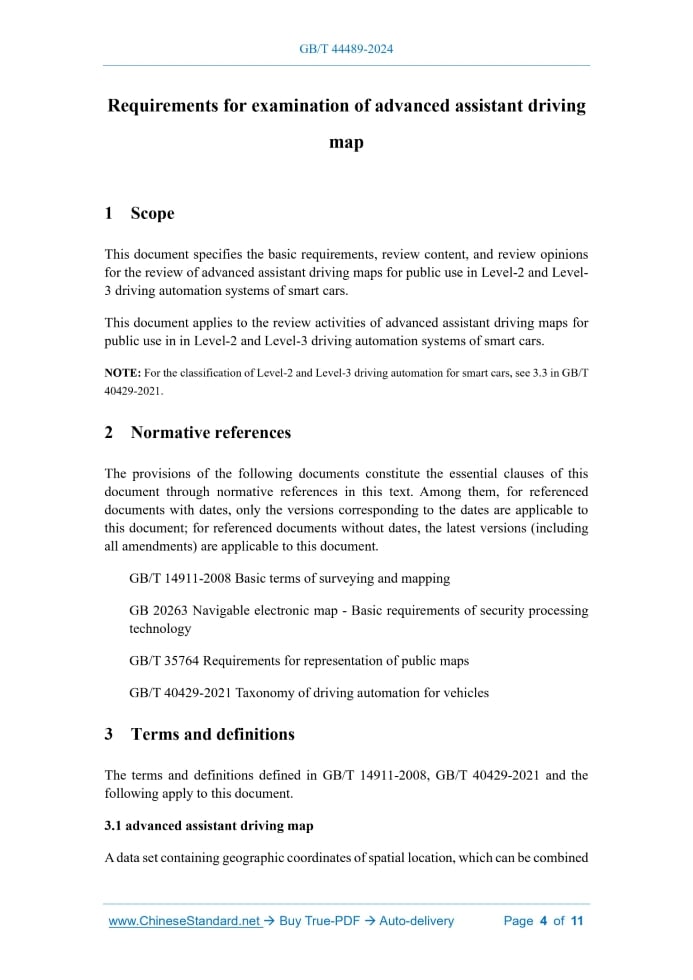

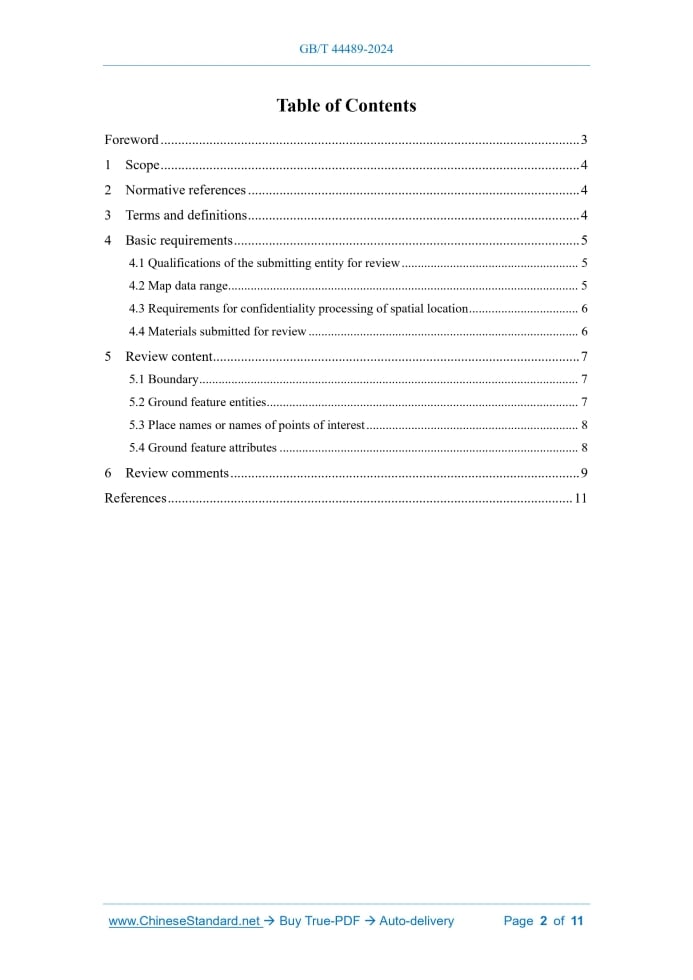

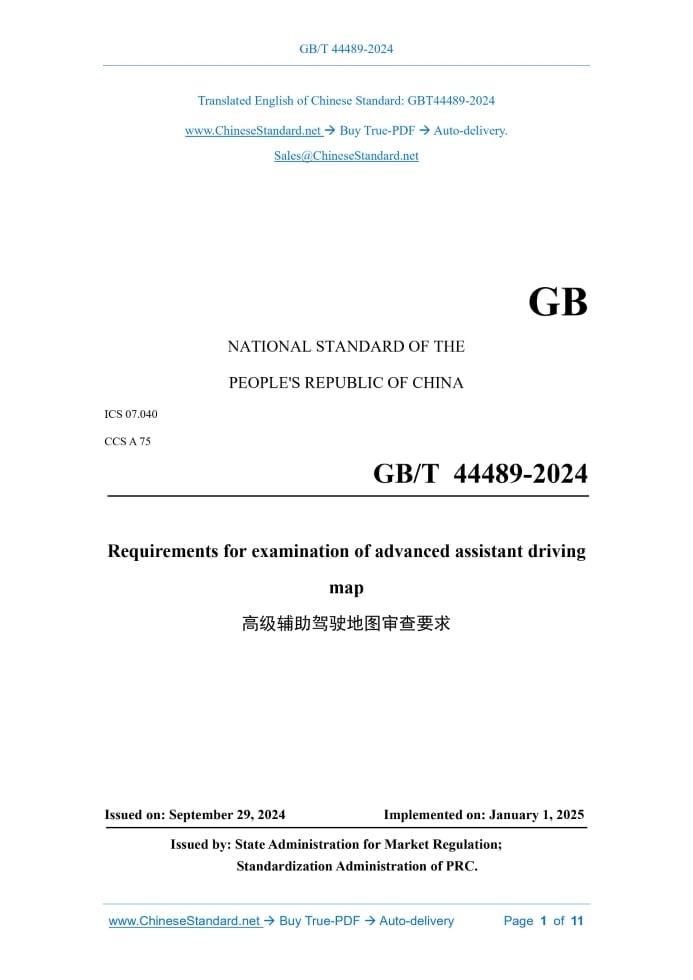

Similar standardsGB/T 44489-2024: Requirements for examination of advanced assistant driving map---This is an excerpt. Full copy of true-PDF in English version (including equations, symbols, images, flow-chart, tables, and figures etc.), auto-downloaded/delivered in 9 seconds, can be purchased online: https://www.ChineseStandard.net/PDF.aspx/GBT44489-2024GB NATIONAL STANDARD OF THE PEOPLE'S REPUBLIC OF CHINA ICS 07.040 CCS A 75 Requirements for examination of advanced assistant driving map ISSUED ON: SEPTEMBER 29, 2024 IMPLEMENTED ON: JANUARY 1, 2025 Issued by: State Administration for Market Regulation; Standardization Administration of PRC. Table of ContentsForeword ... 3 1 Scope ... 4 2 Normative references ... 4 3 Terms and definitions ... 4 4 Basic requirements ... 5 4.1 Qualifications of the submitting entity for review ... 5 4.2 Map data range ... 5 4.3 Requirements for confidentiality processing of spatial location ... 6 4.4 Materials submitted for review ... 6 5 Review content ... 7 5.1 Boundary ... 7 5.2 Ground feature entities ... 7 5.3 Place names or names of points of interest ... 8 5.4 Ground feature attributes ... 8 6 Review comments ... 9 References ... 11 Requirements for examination of advanced assistant driving map1 ScopeThis document specifies the basic requirements, review content, and review opinions for the review of advanced assistant driving maps for public use in Level-2 and Level- 3 driving automation systems of smart cars. This document applies to the review activities of advanced assistant driving maps for public use in in Level-2 and Level-3 driving automation systems of smart cars. NOTE: For the classification of Level-2 and Level-3 driving automation for smart cars, see 3.3 in GB/T 40429-2021.2 Normative referencesThe provisions of the following documents constitute the essential clauses of this document through normative references in this text. Among them, for referenced documents with dates, only the versions corresponding to the dates are applicable to this document; for referenced documents without dates, the latest versions (including all amendments) are applicable to this document. GB/T 14911-2008 Basic terms of surveying and mapping GB 20263 Navigable electronic map - Basic requirements of security processing technology GB/T 35764 Requirements for representation of public maps GB/T 40429-2021 Taxonomy of driving automation for vehicles3 Terms and definitionsThe terms and definitions defined in GB/T 14911-2008, GB/T 40429-2021 and the following apply to this document. 3.1 advanced assistant driving map A data set containing geographic coordinates of spatial location, which can be combined g) Internal roads and special roads within units and residential areas are not included. NOTE: For the description of rural roads and farm machinery roads, see 4.4 of GB/T 20257.1-2017. 4.3 Requirements for confidentiality processing of spatial location 4.3.1 Processing methods The spatial location confidentiality processing of the advanced assistant driving map shall be completed in accordance with the methods specified in GB 20263. 4.3.2 Processing accuracy The plan-positional accuracy of the advanced assistant driving map after spatial position confidentiality processing shall not be better than 10 m (not included). NOTE: Precision is measured by standard deviation. 4.3.3 Supporting documents The spatial location confidentiality processing method used by the advanced assistant driving map shall obtain a supporting document that has been approved by the national competent authority. 4.4 Materials submitted for review Materials submitted for review of the advanced assistant driving map shall include but not be limited to the following materials. a) Application form for map review. b) Data of map submitted for review. c) Map description, including: 1) Description of map data, including data source, data coverage, user objects, data volume, data storage method, principles for handling confidential content, and examples of handling confidential content; 2) Map data application description, including product functions, usage, etc.; 3) Description of map data application management measures, including safety emergency response mechanism, emergency response time, etc. d) Documents proving that the spatial location has been kept confidential, and g) Other content that is prohibited from being disclosed by the state. 5.2.2 Road entities The road entities involved in the advanced assistant driving map shall meet the following requirements: a) Facilities on the roadside and above the road are expressed as point symbols (single points) to indicate the existence of ground features; b) Do not use point clouds, real-life images or other measured results to express roads and their related attribute information. NOTE: Facilities on the roadside and above the road mainly include traffic lights, traffic signs, poles, obstacles (such as safety islands), etc. 5.3 Place names or names of points of interest The place names or names of points of interest in the advanced assistant driving map shall meet the following requirements: a) Do not contain the names of the ground feature entities in 5.2.1; b) Other place names or names of points of interest shall comply with the requirements of GB/T 35764. 5.4 Ground feature attributes 5.4.1 Ground feature attributes that shall not be included The advanced assistant driving map shall not contain the following ground feature attributes: a) The height limit, width limit, clearance, load capacity and slope of the bridge; b) the height and width of the tunnel; c) Road paving materials; d) The relative heights of facilities on the roadside and above the road; e) Elevation. 5.4.2 Road slope and curvature 5.4.2.1 Road slope The road slope field in the advanced assistant driving map shall meet the following requirements. a) Do not express the true slope value. b) The slope value can be expressed using graded values after grading processing and in accordance with the following rules: 1) The slope angle value is graded, and the grading interval is not better than 0.1°; 2) If expressed in other ways, the grading interval after conversion into the slope angle value shall not be better than 0.1°. NOTE: The slope includes the transverse slope value and the longitudinal slope value. 5.4.2.2 Road curvature The road curvature field in the advanced assistant driving map shall meet the following requirements. a) Do not express the true curvature value. b) The curvature value can be expressed using the graded value after grading processing and in accordance with the following rules: 1) The curvature value is graded, and the grade interval is not better than 10- 5m-1; 2) If expressed in other ways, the grading interval after conversion into the curvature value shall not be better than 10-5m-1. NOTE: The curvature value is the reciprocal of the curvature radius.6 Review commentsThe review comments are divided into the following categories: a) Those that do not comply with the provisions of 4.1 and 4.4 will not be reviewed; b) If there is any non-compliance with 4.2, 4.3 and Chapter 5, the advanced assistant driving map is deemed to have failed the review; c) If none of the above situations exist, the advanced assistant driving map is deemed to have passed the review. ......Source: Above contents are excerpted from the full-copy PDF -- translated/reviewed by: www.ChineseStandard.net / Wayne Zheng et al. Tips & Frequently Asked Questions:Question 1: How long will the true-PDF of English version of GB/T 44489-2024 be delivered?Answer: The full copy PDF of English version of GB/T 44489-2024 can be downloaded in 9 seconds, and it will also be emailed to you in 9 seconds (double mechanisms to ensure the delivery reliably), with PDF-invoice.Question 2: Can I share the purchased PDF of GB/T 44489-2024_English with my colleagues?Answer: Yes. The purchased PDF of GB/T 44489-2024_English will be deemed to be sold to your employer/organization who actually paid for it, including your colleagues and your employer's intranet.Question 3: Does the price include tax/VAT?Answer: Yes. Our tax invoice, downloaded/delivered in 9 seconds, includes all tax/VAT and complies with 100+ countries' tax regulations (tax exempted in 100+ countries) -- See Avoidance of Double Taxation Agreements (DTAs): List of DTAs signed between Singapore and 100+ countriesQuestion 4: Do you accept my currency other than USD?Answer: Yes. www.ChineseStandard.us -- GB/T 44489-2024 -- Click this link and select your country/currency to pay, the exact amount in your currency will be printed on the invoice. Full PDF will also be downloaded/emailed in 9 seconds.How to buy and download a true PDF of English version of GB/T 44489-2024?A step-by-step guide to download PDF of GB/T 44489-2024_EnglishStep 1: Visit website https://www.ChineseStandard.net (Pay in USD), or https://www.ChineseStandard.us (Pay in any currencies such as Euro, KRW, JPY, AUD).Step 2: Search keyword "GB/T 44489-2024". Step 3: Click "Add to Cart". If multiple PDFs are required, repeat steps 2 and 3 to add up to 12 PDFs to cart. Step 4: Select payment option (Via payment agents Stripe or PayPal). Step 5: Customize Tax Invoice -- Fill up your email etc. Step 6: Click "Checkout". Step 7: Make payment by credit card, PayPal, Google Pay etc. After the payment is completed and in 9 seconds, you will receive 2 emails attached with the purchased PDFs and PDF-invoice, respectively. Step 8: Optional -- Go to download PDF. Step 9: Optional -- Click Open/Download PDF to download PDFs and invoice. See screenshots for above steps: Steps 1~3 Steps 4~6 Step 7 Step 8 Step 9 |
