GB/T 43407.1-2023 PDF EnglishUS$380.00 · In stock · Download in 9 seconds
GB/T 43407.1-2023: Road vehicles -- Ergonomic requirements for the driver' s compartment in low-floor line-service buses -- Part 1: General description and basic requirements Delivery: 9 seconds. True-PDF full-copy in English & invoice will be downloaded + auto-delivered via email. See step-by-step procedure Status: Valid

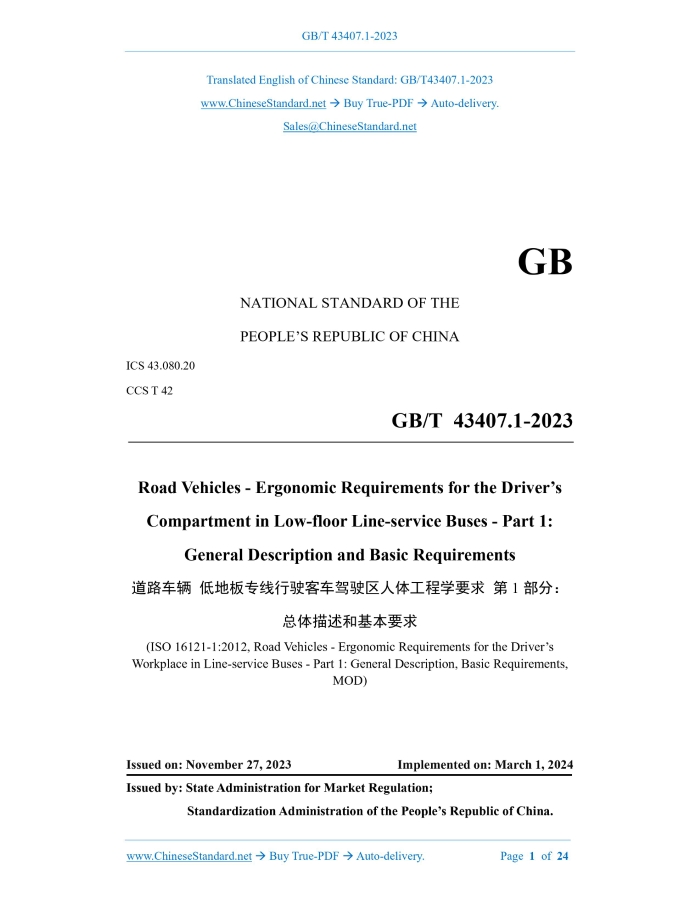

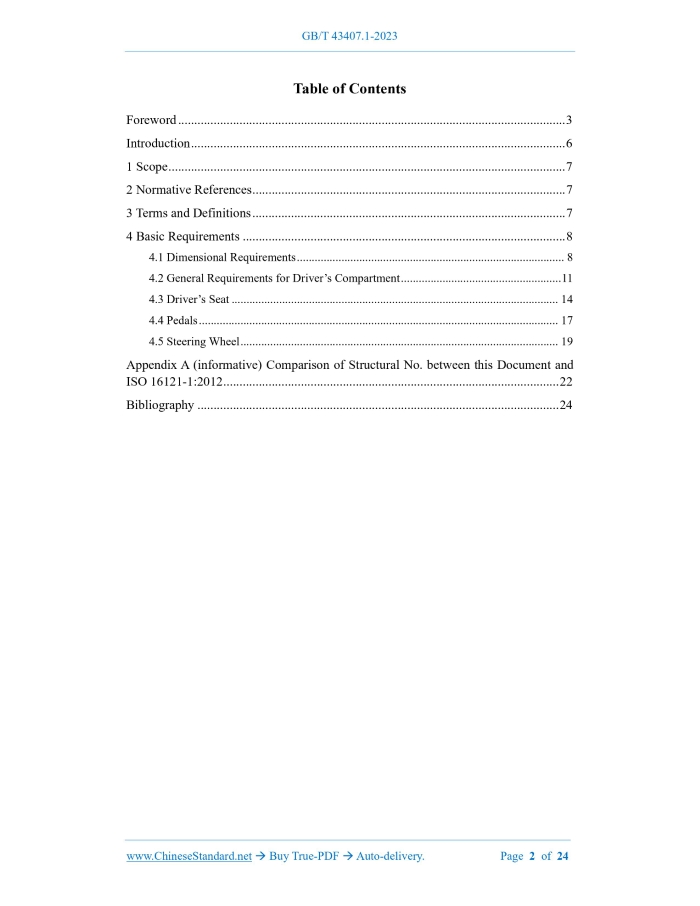

Similar standardsGB/T 43407.1-2023: Road vehicles -- Ergonomic requirements for the driver' s compartment in low-floor line-service buses -- Part 1: General description and basic requirements---This is an excerpt. Full copy of true-PDF in English version (including equations, symbols, images, flow-chart, tables, and figures etc.), auto-downloaded/delivered in 9 seconds, can be purchased online: https://www.ChineseStandard.net/PDF.aspx/GBT43407.1-2023 GB NATIONAL STANDARD OF THE PEOPLE’S REPUBLIC OF CHINA ICS 43.080.20 CCS T 42 Road Vehicles - Ergonomic Requirements for the Driver’s Compartment in Low-floor Line-service Buses - Part 1: General Description and Basic Requirements (ISO 16121-1:2012, Road Vehicles - Ergonomic Requirements for the Driver’s Workplace in Line-service Buses - Part 1: General Description, Basic Requirements, MOD) ISSUED ON: NOVEMBER 27, 2023 IMPLEMENTED ON: MARCH 1, 2024 Issued by: State Administration for Market Regulation; Standardization Administration of the People’s Republic of China. Table of ContentsForeword ... 3 Introduction ... 6 1 Scope ... 7 2 Normative References ... 7 3 Terms and Definitions ... 7 4 Basic Requirements ... 8 4.1 Dimensional Requirements ... 8 4.2 General Requirements for Driver’s Compartment ... 11 4.3 Driver’s Seat ... 14 4.4 Pedals ... 17 4.5 Steering Wheel ... 19 Appendix A (informative) Comparison of Structural No. between this Document and ISO 16121-1:2012 ... 22 Bibliography ... 24 Road Vehicles - Ergonomic Requirements for the Driver’s Compartment in Low-floor Line-service Buses - Part 1: General Description and Basic Requirements1 ScopeThis document specifies the basic requirements for ergonomics and comfort in the driver’s compartment of low-floor line-service buses. This document is applicable to the design of the driver’s compartment of Category-M3 low- floor line-service buses with a width greater than 2.30 m.2 Normative ReferencesThe contents of the following documents constitute indispensable clauses of this document through the normative references in the text. In terms of references with a specified date, only versions with a specified date are applicable to this document. In terms of references without a specified date, the latest version (including all the modifications) is applicable to this document. GB/T 13053 Bus Inner Dimensions GB 13094 The Safety Requirements for Bus Construction GB/T 43407.3-2023 Road Vehicles - Ergonomic Requirements for the Driver’s Compartment in Low-floor Line-service Buses - Part 3: Information Devices and Controls (ISO 16121-3:2011, MOD) ISO 2575 Road Vehicles - Symbols for Controls, Indicators and Tell-tales3 Terms and DefinitionsThe following terms and definitions are applicable to this document. 3.1 line-service buses Passenger cars that travel on fixed routes and have fixed stops. 3.2 low-floor For line-service buses, each passenger door step is a first-level step, and the floor of the central passage area in the compartment (for double-decker buses, the lower compartment) from the front passenger door to the center line of the rear axle (or beyond the center line) is a single step-free area. [source: GB 19260-2016, 3.1, modified] 3.3 required values Ergonomic design values applicable to the driver’s compartment. 3.4 recommended values Values complying with optimal ergonomic conditions of the driver’s compartment. 3.5 accelerator heel point; AHP After the two-dimensional human body design prototype is positioned in accordance with the hinged accelerator pedal and H-point in the free state, the contact point of the heel with the floor surface (considering the collapse of the carpet) or other heel supports. NOTE: it is also known as heel point. [source: GB/T 13053-2008, 3.4.19, modified] 3.6 zero-X-plane The transverse plane perpendicular to the longitudinal center plane of the bus and passing through the accelerator heel point (AHP). 3.7 zero-Y-plane The center plane of the driver (in the driving state) parallel to the longitudinal center plane of the buses. 3.8 zero-Z-plane The horizontal plane passing through the accelerator heel point (AHP).4 Basic Requirements4.1 Dimensional Requirements 4.1.1 Reference coordinates 4.1.1.1 The reference coordinate system consists of mutually perpendicular zero-X-plane, zero- Y-plane and zero-Z-plane (see Figure 1). All dimensions in the driver’s compartment are all based on the driver’s position as the reference coordinate system. 800 mm. 4.2.2 Access to driver’s compartment 4.2.2.1 The driver’s compartment should be arranged on a platform with a height of (300 50) mm from the floor and which can be reached by one step. If the platform height is greater than 350 mm, then, corresponding steps shall be provided. The maximum height of each step shall be less than or equal to 250 mm, and the minimum height shall be greater than or equal to 125 mm. 4.2.2.2 The net width of the protective door opening shall be greater than or equal to 450 mm. 4.2.2.3 The requirements for the passage area of the driver’s compartment shall comply with the stipulations of GB 13094. 4.2.3 Stowage space 4.2.3.1 Stowage space for the driver’s belongings shall be provided in the driver’s compartment. The stowage space shall ensure that the driver can easily access the items. The stowage space shall have anti-slip function or a device to restrain the items placed there. 4.2.3.2 Clothes hooks or hangers can be installed in the driver’s compartment. Clothes hung on the clothes hooks shall not interfere with the driver’s operation and shall not obstruct the driver’s sight. 4.2.3.3 There should be a lockable storage compartment in the driver’s compartment for the storage of valuables. 4.2.4 Protective plate of driver’s compartment A protective plate shall be installed behind the driver’s seat. 4.3 Driver’s Seat 4.3.1 Positioning, seat dimensions and adjustment range The center line of the driver’s seat shall be aligned with the center line of the steering wheel, allowing a maximum offset of 25 mm. The seat point-H shall coincide with the seat point-H reference position (see Figure 4). The seat dimensions and adjustment range shall satisfy the requirements of Table 1 (see Figure 5). ......Source: Above contents are excerpted from the full-copy PDF -- translated/reviewed by: www.ChineseStandard.net / Wayne Zheng et al. Tips & Frequently Asked Questions:Question 1: How long will the true-PDF of English version of GB/T 43407.1-2023 be delivered?Answer: The full copy PDF of English version of GB/T 43407.1-2023 can be downloaded in 9 seconds, and it will also be emailed to you in 9 seconds (double mechanisms to ensure the delivery reliably), with PDF-invoice.Question 2: Can I share the purchased PDF of GB/T 43407.1-2023_English with my colleagues?Answer: Yes. The purchased PDF of GB/T 43407.1-2023_English will be deemed to be sold to your employer/organization who actually paid for it, including your colleagues and your employer's intranet.Question 3: Does the price include tax/VAT?Answer: Yes. Our tax invoice, downloaded/delivered in 9 seconds, includes all tax/VAT and complies with 100+ countries' tax regulations (tax exempted in 100+ countries) -- See Avoidance of Double Taxation Agreements (DTAs): List of DTAs signed between Singapore and 100+ countriesQuestion 4: Do you accept my currency other than USD?Answer: Yes. www.ChineseStandard.us -- GB/T 43407.1-2023 -- Click this link and select your country/currency to pay, the exact amount in your currency will be printed on the invoice. Full PDF will also be downloaded/emailed in 9 seconds.How to buy and download a true PDF of English version of GB/T 43407.1-2023?A step-by-step guide to download PDF of GB/T 43407.1-2023_EnglishStep 1: Visit website https://www.ChineseStandard.net (Pay in USD), or https://www.ChineseStandard.us (Pay in any currencies such as Euro, KRW, JPY, AUD).Step 2: Search keyword "GB/T 43407.1-2023". Step 3: Click "Add to Cart". If multiple PDFs are required, repeat steps 2 and 3 to add up to 12 PDFs to cart. Step 4: Select payment option (Via payment agents Stripe or PayPal). Step 5: Customize Tax Invoice -- Fill up your email etc. Step 6: Click "Checkout". Step 7: Make payment by credit card, PayPal, Google Pay etc. After the payment is completed and in 9 seconds, you will receive 2 emails attached with the purchased PDFs and PDF-invoice, respectively. Step 8: Optional -- Go to download PDF. Step 9: Optional -- Click Open/Download PDF to download PDFs and invoice. See screenshots for above steps: Steps 1~3 Steps 4~6 Step 7 Step 8 Step 9 |
