GB/T 43402-2023: Passenger cars - Driver hand-control reach Delivery: 9 seconds. True-PDF full-copy in English & invoice will be downloaded + auto-delivered via email. See step-by-step procedure Status: Valid

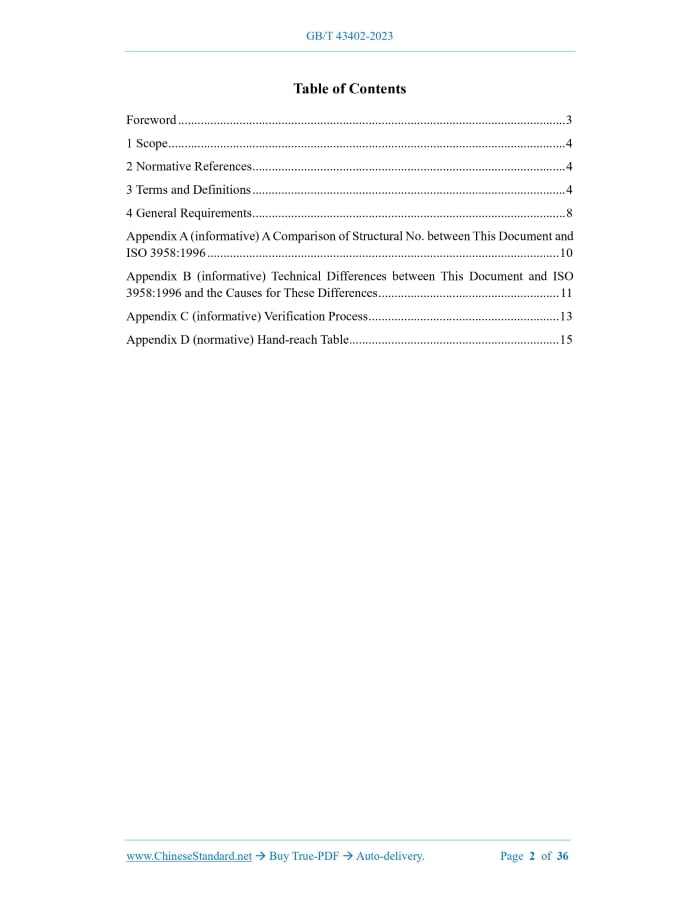

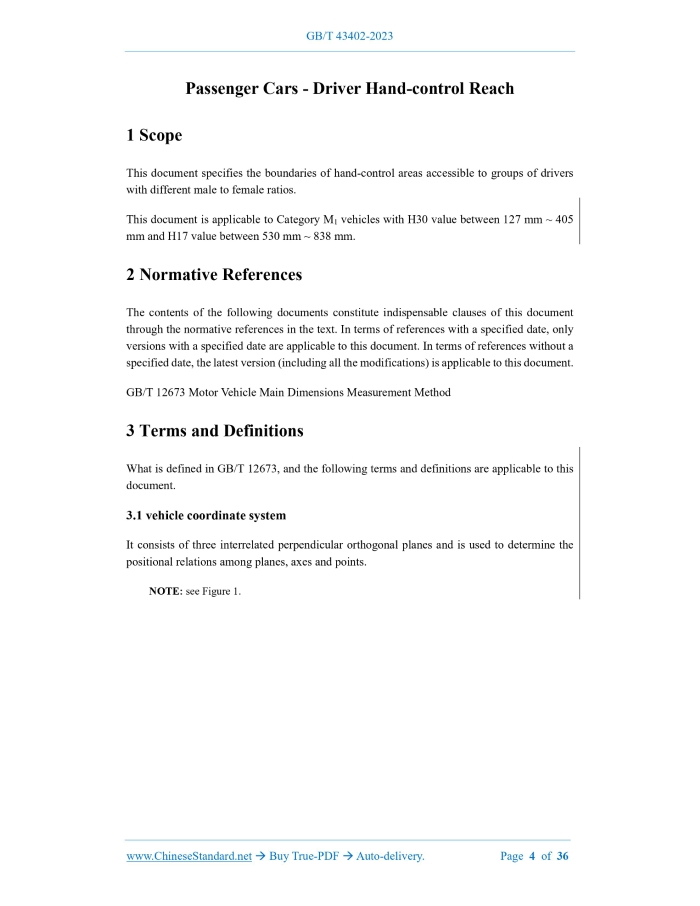

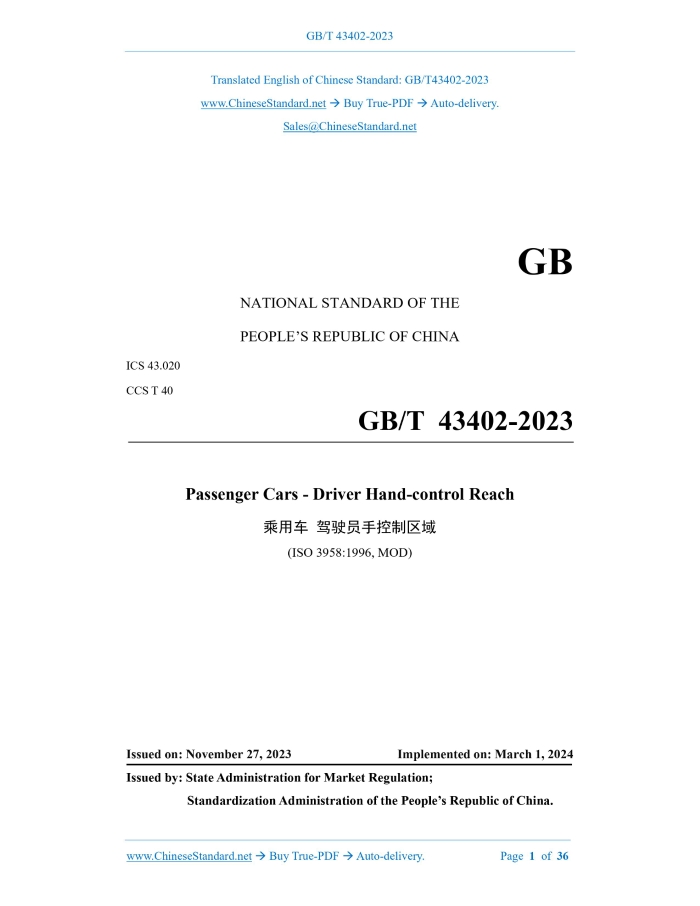

Similar standardsGB/T 43402-2023: Passenger cars - Driver hand-control reach---This is an excerpt. Full copy of true-PDF in English version (including equations, symbols, images, flow-chart, tables, and figures etc.), auto-downloaded/delivered in 9 seconds, can be purchased online: https://www.ChineseStandard.net/PDF.aspx/GBT43402-2023GB NATIONAL STANDARD OF THE PEOPLE’S REPUBLIC OF CHINA ICS 43.020 CCS T 40 Passenger Cars - Driver Hand-control Reach (ISO 3958:1996, MOD) ISSUED ON: NOVEMBER 27, 2023 IMPLEMENTED ON: MARCH 1, 2024 Issued by: State Administration for Market Regulation; Standardization Administration of the People’s Republic of China. Table of ContentsForeword ... 3 1 Scope ... 4 2 Normative References ... 4 3 Terms and Definitions ... 4 4 General Requirements ... 8 Appendix A (informative) A Comparison of Structural No. between This Document and ISO 3958:1996 ... 10 Appendix B (informative) Technical Differences between This Document and ISO 3958:1996 and the Causes for These Differences ... 11 Appendix C (informative) Verification Process ... 13 Appendix D (normative) Hand-reach Table ... 15 Passenger Cars - Driver Hand-control Reach1 ScopeThis document specifies the boundaries of hand-control areas accessible to groups of drivers with different male to female ratios. This document is applicable to Category M1 vehicles with H30 value between 127 mm ~ 405 mm and H17 value between 530 mm ~ 838 mm.2 Normative ReferencesThe contents of the following documents constitute indispensable clauses of this document through the normative references in the text. In terms of references with a specified date, only versions with a specified date are applicable to this document. In terms of references without a specified date, the latest version (including all the modifications) is applicable to this document. GB/T 12673 Motor Vehicle Main Dimensions Measurement Method3 Terms and DefinitionsWhat is defined in GB/T 12673, and the following terms and definitions are applicable to this document. 3.1 vehicle coordinate system It consists of three interrelated perpendicular orthogonal planes and is used to determine the positional relations among planes, axes and points. NOTE: see Figure 1. The design H point position set by the manufacturer, specifically designated as R point or SgRP, and satisfy all the following requirements: a) The basic datum point used to establish occupant adjustment tools and dimensions; b) Simulate the hinge center position of the human trunk and thigh; c) With coordinates established relative to the structure of the vehicle being designed; d) The H point at the rearmost position of each designated seating position or the normal driving and seating position specified by the manufacturer is established. It takes into account all adjustment states of the seat, including horizontal, vertical and tilting, but seat movement for non-normal driving and riding purposes is not included. [source: GB/T 12673-2019, 3.2.3] 3.6 accelerator heel point; AHP When the ankle angle is 87, and the shoe is placed on the uncompressed accelerator pedal plane, the intersection of the heel of the shoe and the compressed floor covering. NOTE: if the intersection of the shoe and the lateral support does not cause the AHP and BOFRP to shift, then, the lateral position (the Y coordinate) is the same as the BOFRP. [source: GB/T 12673-2019, 3.3.10] 3.7 center plane of occupant C/PO The Y coordinate plane of each designated riding position R-point. NOTE: for single seats, it generally refers to the center plane of the seats. For bench seats, the center plane of occupant is specified by the manufacturer. [source: GB/T 12673-2019, 3.3.16, modified] 3.8 general package factor A single index value that characterizes the spatial position of the driver of a specific vehicle (see Formula 1). NOTE: G is a comprehensive variable that provides a quantitative indicator of the geometric structure of the driver’s workspace. It is calculated by substituting the main dimensions (see Figure 2) of the vehicle seat configuration into Formula (1), and the unit is (mm).Appendix C(informative) Verification Process C.1 Determination of Reference Origin Position the reference origin at R-point of the vehicle seat. C.2 Determination of Datum Plane In accordance with a set of orthogonal datum planes, position the hand-reach envelope inside the vehicle. The orthogonal datum planes are the X datum plane passing through R-point, the plane parallel to the Y datum plane and passing through R-point, and the Z datum plane passing through the R-point. C.3 Selection of Hand-reach Table to be Used Explicitly describe the dimensions of the geometric structure of the vehicle seat configuration and calculate the value of the general package factor G defined in 3.8. In accordance with the value of the general package factor G, the type of torso restraint and the male-female mix ratio, select the hand-reach table from Appendix D that is suitable for the vehicle and the designated driver group. C.4 Determination of Whether the Control is within Reach Method 1: in accordance with the following steps, respectively draw the hand-reach envelope on the left side of C/PO and the right side of C/PO. a) Based on the reference origin, position the horizontal angle as 30, the vertical angle as 0 and the radius as the coordinate point of corresponding values in the hand-reach table. Along the vertical direction, successively position the coordinate points upward and downward when the vertical angle is 15, 15, 30, 45 and 60; b) In accordance with the above steps, successively position the coordinate points when the horizontal angle is 45, 60, 75 and 90, and the vertical angle is 15, 0, 15, 30, 45 and 60; c) Fit the coordinate points at the same horizontal angle to a straight line, fit the uppermost point in the Z direction to a straight line, and fit the bottommost point in the Z direction to a straight line; d) Fit all straight lines into a curved surface. Thus, the hand-reach envelope is obtained. The deviation of the surface from the values in the Table does not exceed 1 mm. If the geometric center of the surface of the control (in a normal or static state) closest to the driver is tangent to or inside the hand-reach envelope, then, it means that the control is within ......Source: Above contents are excerpted from the full-copy PDF -- translated/reviewed by: www.ChineseStandard.net / Wayne Zheng et al. Tips & Frequently Asked Questions:Question 1: How long will the true-PDF of English version of GB/T 43402-2023 be delivered?Answer: The full copy PDF of English version of GB/T 43402-2023 can be downloaded in 9 seconds, and it will also be emailed to you in 9 seconds (double mechanisms to ensure the delivery reliably), with PDF-invoice.Question 2: Can I share the purchased PDF of GB/T 43402-2023_English with my colleagues?Answer: Yes. The purchased PDF of GB/T 43402-2023_English will be deemed to be sold to your employer/organization who actually paid for it, including your colleagues and your employer's intranet.Question 3: Does the price include tax/VAT?Answer: Yes. Our tax invoice, downloaded/delivered in 9 seconds, includes all tax/VAT and complies with 100+ countries' tax regulations (tax exempted in 100+ countries) -- See Avoidance of Double Taxation Agreements (DTAs): List of DTAs signed between Singapore and 100+ countriesQuestion 4: Do you accept my currency other than USD?Answer: Yes. www.ChineseStandard.us -- GB/T 43402-2023 -- Click this link and select your country/currency to pay, the exact amount in your currency will be printed on the invoice. Full PDF will also be downloaded/emailed in 9 seconds.How to buy and download a true PDF of English version of GB/T 43402-2023?A step-by-step guide to download PDF of GB/T 43402-2023_EnglishStep 1: Visit website https://www.ChineseStandard.net (Pay in USD), or https://www.ChineseStandard.us (Pay in any currencies such as Euro, KRW, JPY, AUD).Step 2: Search keyword "GB/T 43402-2023". Step 3: Click "Add to Cart". If multiple PDFs are required, repeat steps 2 and 3 to add up to 12 PDFs to cart. Step 4: Select payment option (Via payment agents Stripe or PayPal). Step 5: Customize Tax Invoice -- Fill up your email etc. Step 6: Click "Checkout". Step 7: Make payment by credit card, PayPal, Google Pay etc. After the payment is completed and in 9 seconds, you will receive 2 emails attached with the purchased PDFs and PDF-invoice, respectively. Step 8: Optional -- Go to download PDF. Step 9: Optional -- Click Open/Download PDF to download PDFs and invoice. See screenshots for above steps: Steps 1~3 Steps 4~6 Step 7 Step 8 Step 9 |
