GB/T 43255-2023 PDF EnglishUS$260.00 · In stock · Download in 9 seconds
GB/T 43255-2023: Test methods for sub-zero cold start performances of fuel cell electric vehicles Delivery: 9 seconds. True-PDF full-copy in English & invoice will be downloaded + auto-delivered via email. See step-by-step procedure Status: Valid

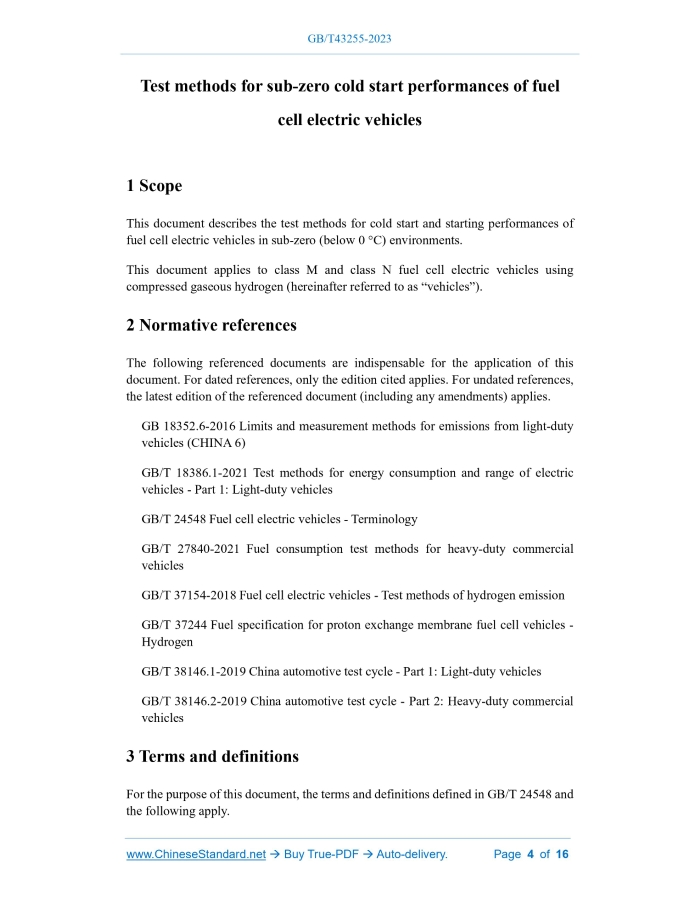

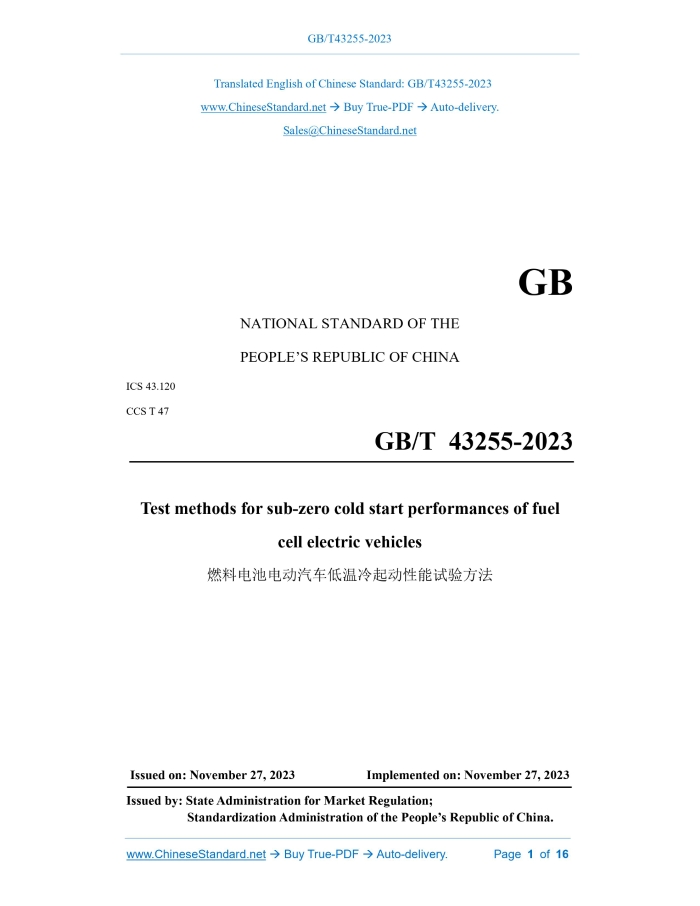

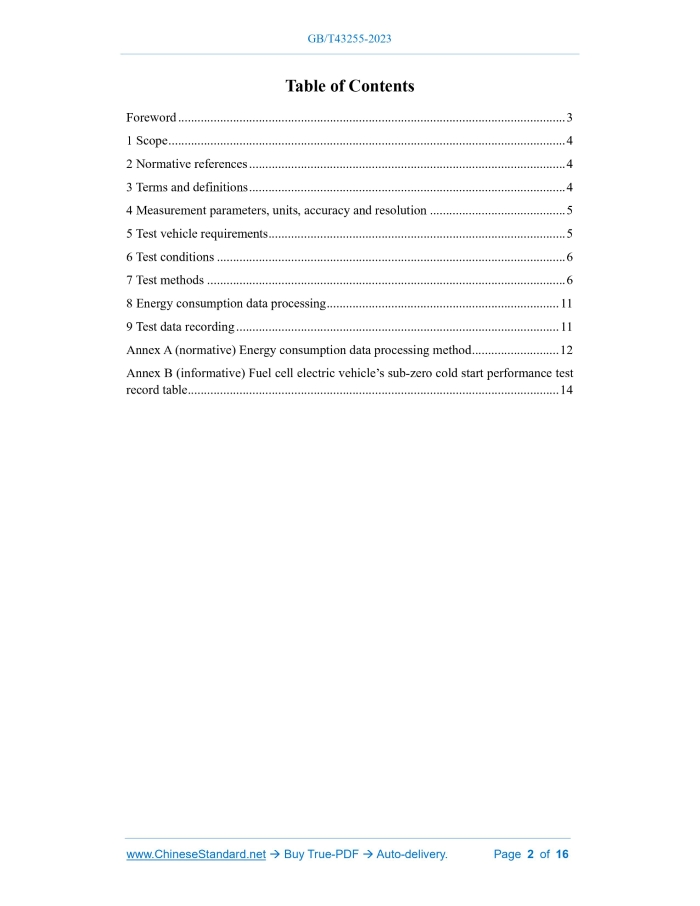

Similar standardsGB/T 43255-2023: Test methods for sub-zero cold start performances of fuel cell electric vehicles---This is an excerpt. Full copy of true-PDF in English version (including equations, symbols, images, flow-chart, tables, and figures etc.), auto-downloaded/delivered in 9 seconds, can be purchased online: https://www.ChineseStandard.net/PDF.aspx/GBT43255-2023GB NATIONAL STANDARD OF THE PEOPLE’S REPUBLIC OF CHINA ICS 43.120 CCS T 47 GB/T 43255-2023 Test methods for sub-zero cold start performances of fuel cell electric vehicles ISSUED ON: NOVEMBER 27, 2023 IMPLEMENTED ON: NOVEMBER 27, 2023 Issued by: State Administration for Market Regulation; Standardization Administration of the People’s Republic of China. Table of ContentsForeword ... 3 1 Scope ... 4 2 Normative references ... 4 3 Terms and definitions ... 4 4 Measurement parameters, units, accuracy and resolution ... 5 5 Test vehicle requirements ... 5 6 Test conditions ... 6 7 Test methods ... 6 8 Energy consumption data processing ... 11 9 Test data recording ... 11 Annex A (normative) Energy consumption data processing method ... 12 Annex B (informative) Fuel cell electric vehicle’s sub-zero cold start performance test record table ... 14 Test methods for sub-zero cold start performances of fuel cell electric vehicles1 ScopeThis document describes the test methods for cold start and starting performances of fuel cell electric vehicles in sub-zero (below 0 °C) environments. This document applies to class M and class N fuel cell electric vehicles using compressed gaseous hydrogen (hereinafter referred to as “vehicles”).2 Normative referencesThe following referenced documents are indispensable for the application of this document. For dated references, only the edition cited applies. For undated references, the latest edition of the referenced document (including any amendments) applies. GB 18352.6-2016 Limits and measurement methods for emissions from light-duty vehicles (CHINA 6) GB/T 18386.1-2021 Test methods for energy consumption and range of electric vehicles - Part 1: Light-duty vehicles GB/T 24548 Fuel cell electric vehicles - Terminology GB/T 27840-2021 Fuel consumption test methods for heavy-duty commercial vehicles GB/T 37154-2018 Fuel cell electric vehicles - Test methods of hydrogen emission GB/T 37244 Fuel specification for proton exchange membrane fuel cell vehicles - Hydrogen GB/T 38146.1-2019 China automotive test cycle - Part 1: Light-duty vehicles GB/T 38146.2-2019 China automotive test cycle - Part 2: Heavy-duty commercial vehicles3 Terms and definitionsFor the purpose of this document, the terms and definitions defined in GB/T 24548 and the following apply. From the start of the vehicle starting operation to the end of the vehicle stopping process (including the purge process), record the fuel cell stack voltage UFC, fuel cell stack current IFC, REESS voltage UREESS, REESS current IREESS, and hydrogen volume concentration CH2 at the vehicle tailpipe. CH2 is measured in accordance with 6.1.3 of GB/T 37154-2018. The average hydrogen volume concentration within any continuous 3 s does not exceed 4 %, and the instantaneous hydrogen volume concentration does not exceed 8 %. 7.2.2 Test steps The vehicle shall be tested for sub-zero cold start performance in the following steps. a) Perform vehicle immersion in accordance with the requirements of 7.1. b) After the vehicle immersion is completed, start the vehicle in accordance with the starting operation steps recommended by the manufacturer. c) After starting the vehicle, it can turn on the heater, air conditioner, etc. in accordance with the manufacturer’s regulations to consume power. d) Record the duration, t1, from when the vehicle is started to when the vehicle drive system is ready (the vehicle instrument displays “READY” or “OK”). e) When the fuel cell stack can run continuously for at least 10 min at a power of not less than 1 kW, or within 20 min, it can run for at least 10 min at a power of not less than 1 kW, record the sub-zero cold start time t2. f) Stop the vehicle according to the stopping steps recommended by the manufacturer. g) If all the above steps are completed and the vehicle’s hydrogen emissions meet the requirements for hydrogen volume concentration in 7.2.1, the vehicle is considered to have successfully cold started at the set temperature. If the vehicle has an alarm or fault during the starting process, or the hydrogen volume concentration at the vehicle tailpipe does not meet the requirements, the cold start is considered to have failed. 7.3 Sub-zero starting performance test 7.3.1 Setting of vehicle road load 7.3.1.1 The chassis dynamometer setting of class M1 and class N1 vehicles and class M2 vehicles with a total mass not exceeding 3500 kg shall be carried out in accordance with the provisions of Annex CC in GB 18352.6-2016. The chassis dynamometer setting of other types of vehicles shall be carried out in accordance with the provisions of Annex C in GB/T 27840-2021, where the additional mass of city buses is 65 % of the maximum design load mass. When conducting the coasting test on the road and chassis dynamometer, the brake energy recovery system function shall be turned off. If the driving resistance curve is provided by the automobile manufacturer, it shall provide a test report, calculation report or other relevant information and be inspected by the testing organization. 7.3.1.2 It shall adjust the resistance setting of the chassis dynamometer to simulate the operation of the vehicle on the road in a sub-zero environment. The adjustment can be based on the change of the road driving resistance determined in the sub-zero environment; or the resistance obtained by reducing the coasting time of the driving resistance determined in accordance with 7.3.1.1 by 10 % can be used as an alternative road driving resistance. 7.3.2 Selection of driving mode The driving mode shall be set according to the selection of driving mode in C.2 of GB/T 18386.1-2021. 7.3.3 Test method From the start of the vehicle starting operation to the end of the vehicle stopping process (including the purge process), record the fuel cell stack voltage UFC, fuel cell stack current IFC, REESS voltage UREESS, and REESS current IREESS. The vehicle shall be tested for sub-zero starting performance in accordance with the following steps. a) Perform vehicle immersion in accordance with the requirements of 7.1. b) After the vehicle immersion is completed, start the vehicle in accordance with the operating steps recommended by the manufacturer c) Record the duration, t3, from when the vehicle is started to when the vehicle drive system is ready (the vehicle instrument displays “READY” or “OK”). d) After the vehicle drive system is ready, switch the vehicle state to the drivable mode and run at full throttle until the output power of the fuel cell stack reaches 50 % of the rated power of the fuel cell system (PFCE) for the first time, and record the time t4. e) Keep the gear unchanged, release the accelerator pedal, slowly press the brake pedal, and complete the parking within 1 min. f) Within 3 min after parking, continue to test according to the test cycle specified in Table 2 and complete 1 test cycle. g) Stop the vehicle according to the operating steps recommended by the manufacturer, and the test is over. h) After completing all the above steps, it is considered that the vehicle starts successfully at the set temperature. If the test termination conditions in 7.3.5 are met during the test, the start fails. Figure 1 -- Schematic diagram of reference curve and tolerance The allowable tolerance between the actual vehicle speed and the speed specified in the test cycle is as follows: - For class M1 and class N1 vehicles and class M2 vehicles with a maximum design gross mass not exceeding 3500 kg, the speed tolerance is ±2.0 km/h and the time tolerance is ±1.0 s; - For other types of vehicles, the speed tolerance is ±3.0 km/h and the time tolerance is ±1.0 s, see Figure 1. Class M1 and class N1 vehicles and class M2 vehicles with a maximum design gross mass not exceeding 3500 kg shall comply with the provisions of C.1.2.6.6 in GB 18352.6-2016. If the maximum speed declared by the vehicle is less than the maximum speed of the CLTC, the test cycle shall be corrected in accordance with the provisions of CA.5 in Annex CA of GB 18352.6-2016 for the part exceeding the maximum speed declared by the vehicle. At this time, the driver is required to step on the accelerator pedal to the bottom, allowing the actual vehicle speed to exceed the upper tolerance limit specified in C.1.2.6.6 in GB 18352.6-2016, but not the lower tolerance limit. Other types of vehicles shall comply with the provisions of 5.5.1 of GB/T 27840-2021. If the maximum speed declared by the vehicle is less than the maximum speed of the China heavy-duty commercial vehicle test cycle (CHTC), the test cycle shall be corrected in accordance with the provisions of CA.5 in Annex CA of GB 18352.6-2016 for the part exceeding the maximum speed declared by the vehicle. At this time, the driver is required to step on the accelerator pedal to the bottom, allowing the actual vehicle speed to exceed the upper tolerance limit specified in 5.5.1 of GB/T 27840- 2021, but not the lower tolerance limit. 7.3.5 Conditions for termination of the test The test shall be stopped when the following situations occur: a) The on-board instrument displays a stop indication; b) The on-board instrument displays an alarm or fault signal; c) During the test, the vehicle has more than 10 speed deviations specified in 7.3.4; d) The maximum speed declared by the vehicle is less than the maximum speed of the test cycle, and the vehicle cannot reach the declared maximum speed. 7.4 Data collection requirements Test data collection shall meet the following requirements: a) The data sampling frequency in the test shall not be less than 5 Hz; ......Source: Above contents are excerpted from the full-copy PDF -- translated/reviewed by: www.ChineseStandard.net / Wayne Zheng et al. Tips & Frequently Asked Questions:Question 1: How long will the true-PDF of English version of GB/T 43255-2023 be delivered?Answer: The full copy PDF of English version of GB/T 43255-2023 can be downloaded in 9 seconds, and it will also be emailed to you in 9 seconds (double mechanisms to ensure the delivery reliably), with PDF-invoice.Question 2: Can I share the purchased PDF of GB/T 43255-2023_English with my colleagues?Answer: Yes. The purchased PDF of GB/T 43255-2023_English will be deemed to be sold to your employer/organization who actually paid for it, including your colleagues and your employer's intranet.Question 3: Does the price include tax/VAT?Answer: Yes. Our tax invoice, downloaded/delivered in 9 seconds, includes all tax/VAT and complies with 100+ countries' tax regulations (tax exempted in 100+ countries) -- See Avoidance of Double Taxation Agreements (DTAs): List of DTAs signed between Singapore and 100+ countriesQuestion 4: Do you accept my currency other than USD?Answer: Yes. www.ChineseStandard.us -- GB/T 43255-2023 -- Click this link and select your country/currency to pay, the exact amount in your currency will be printed on the invoice. Full PDF will also be downloaded/emailed in 9 seconds.How to buy and download a true PDF of English version of GB/T 43255-2023?A step-by-step guide to download PDF of GB/T 43255-2023_EnglishStep 1: Visit website https://www.ChineseStandard.net (Pay in USD), or https://www.ChineseStandard.us (Pay in any currencies such as Euro, KRW, JPY, AUD).Step 2: Search keyword "GB/T 43255-2023". Step 3: Click "Add to Cart". If multiple PDFs are required, repeat steps 2 and 3 to add up to 12 PDFs to cart. Step 4: Select payment option (Via payment agents Stripe or PayPal). Step 5: Customize Tax Invoice -- Fill up your email etc. Step 6: Click "Checkout". Step 7: Make payment by credit card, PayPal, Google Pay etc. After the payment is completed and in 9 seconds, you will receive 2 emails attached with the purchased PDFs and PDF-invoice, respectively. Step 8: Optional -- Go to download PDF. Step 9: Optional -- Click Open/Download PDF to download PDFs and invoice. See screenshots for above steps: Steps 1~3 Steps 4~6 Step 7 Step 8 Step 9 |
