GB/T 42698-2023 PDF EnglishUS$185.00 · In stock · Download in 9 seconds
GB/T 42698-2023: Textiles - Testing and evaluation for anti-seeing-through property Delivery: 9 seconds. True-PDF full-copy in English & invoice will be downloaded + auto-delivered via email. See step-by-step procedure Status: Valid

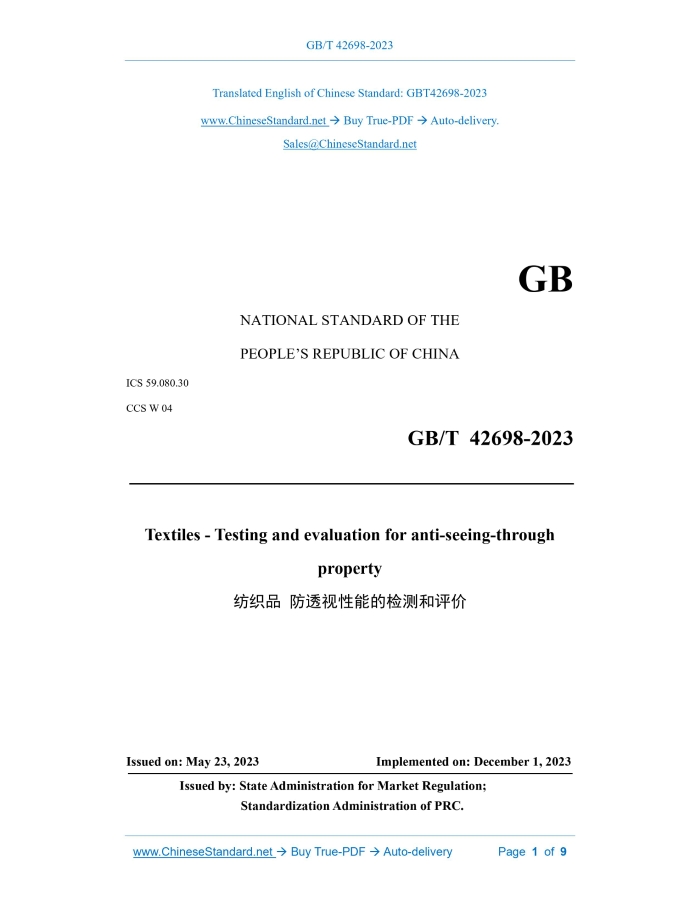

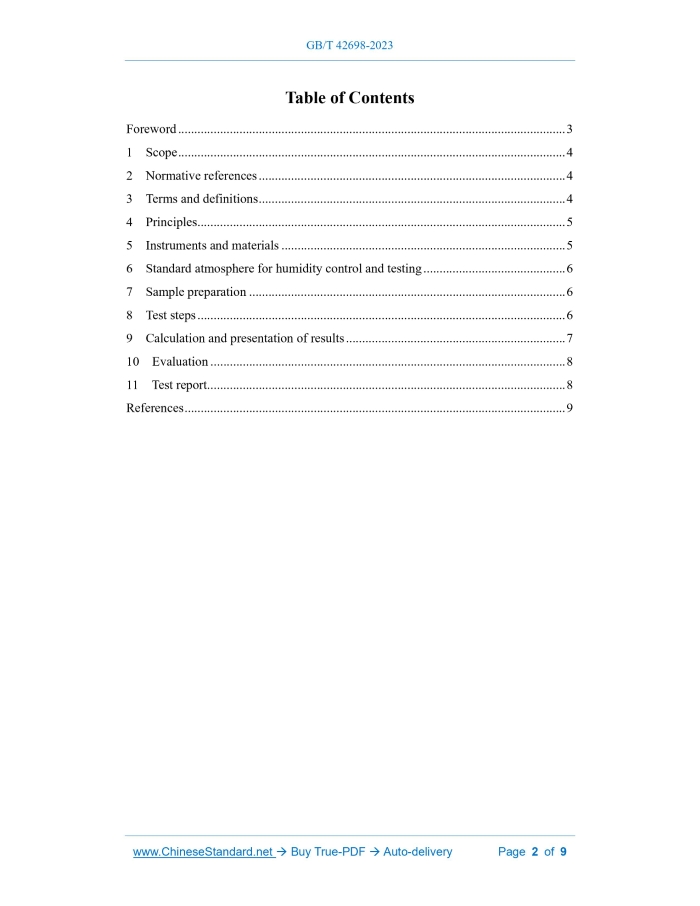

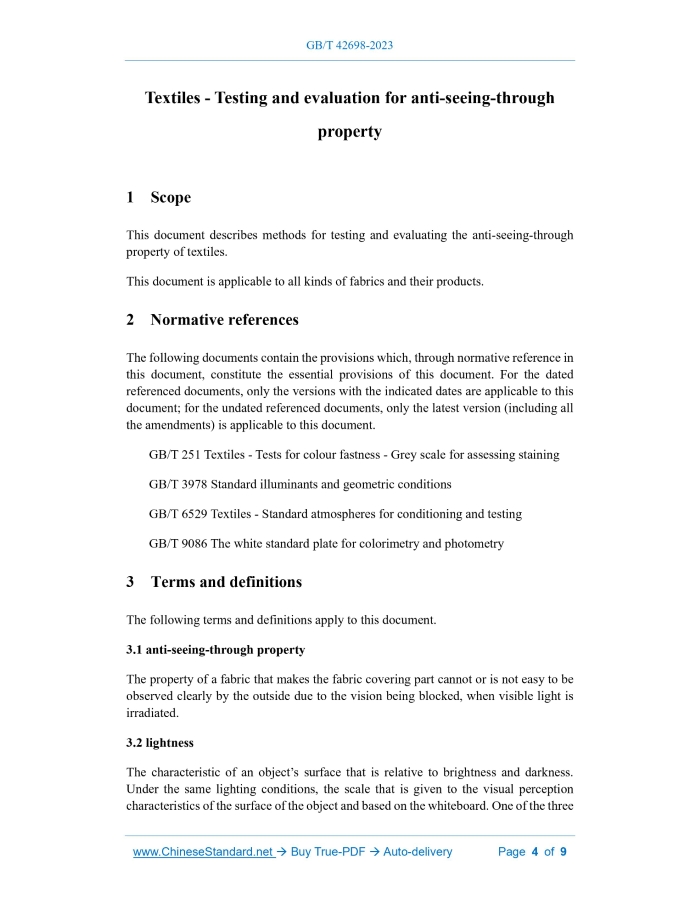

Similar standardsGB/T 42698-2023: Textiles - Testing and evaluation for anti-seeing-through property---This is an excerpt. Full copy of true-PDF in English version (including equations, symbols, images, flow-chart, tables, and figures etc.), auto-downloaded/delivered in 9 seconds, can be purchased online: https://www.ChineseStandard.net/PDF.aspx/GBT42698-2023GB NATIONAL STANDARD OF THE PEOPLE’S REPUBLIC OF CHINA ICS 59.080.30 CCS W 04 Textiles - Testing and evaluation for anti-seeing-through property ISSUED ON: MAY 23, 2023 IMPLEMENTED ON: DECEMBER 1, 2023 Issued by: State Administration for Market Regulation; Standardization Administration of PRC. Table of ContentsForeword ... 3 1 Scope ... 4 2 Normative references ... 4 3 Terms and definitions ... 4 4 Principles ... 5 5 Instruments and materials ... 5 6 Standard atmosphere for humidity control and testing ... 6 7 Sample preparation ... 6 8 Test steps ... 6 9 Calculation and presentation of results ... 7 10 Evaluation ... 8 11 Test report ... 8 References ... 9 Textiles - Testing and evaluation for anti-seeing-through property1 ScopeThis document describes methods for testing and evaluating the anti-seeing-through property of textiles. This document is applicable to all kinds of fabrics and their products.2 Normative referencesThe following documents contain the provisions which, through normative reference in this document, constitute the essential provisions of this document. For the dated referenced documents, only the versions with the indicated dates are applicable to this document; for the undated referenced documents, only the latest version (including all the amendments) is applicable to this document. GB/T 251 Textiles - Tests for colour fastness - Grey scale for assessing staining GB/T 3978 Standard illuminants and geometric conditions GB/T 6529 Textiles - Standard atmospheres for conditioning and testing GB/T 9086 The white standard plate for colorimetry and photometry3 Terms and definitionsThe following terms and definitions apply to this document. 3.1 anti-seeing-through property The property of a fabric that makes the fabric covering part cannot or is not easy to be observed clearly by the outside due to the vision being blocked, when visible light is irradiated. 3.2 lightness The characteristic of an object’s surface that is relative to brightness and darkness. Under the same lighting conditions, the scale that is given to the visual perception characteristics of the surface of the object and based on the whiteboard. One of the three attributes of color. [Source: GB/T 5698-2001, 5.8] 3.3 anti-seeing-through index It is to characterize the degree of anti-seeing-through property, the ratio of the lightness values measured when the sample is backed with a blackboard and a whiteboard. NOTE: The larger the ratio, the better the anti-seeing-through property of the sample.4 Principles4.1 Method A (instrumental method) Under the specified test conditions, a colorimeter is used to measure the lightness values when the sample is backed with a blackboard and a whiteboard, and then the anti- seeing-through index is calculated to represent the anti-seeing-through property. 4.2 Method B (visual inspection method) Under the specified test conditions, the grey scale for staining evaluation is used to rate the color difference between the blackboard part covered by the sample and the whiteboard part covered by the sample, and the grades are used to characterize the anti- seeing-through property.5 Instruments and materials5.1 Colorimeter Illumination conditions with standard illuminant D65, CIE 10° observer, and measurement geometric conditions shall comply with the provisions of GB/T 3978; specular component excluded, the wavelength range is at least 400 nm~700 nm, and the wavelength interval is 5 nm; other wavelength intervals shall be indicated in the report. The recommended diameter range of the test hole is 1 cm~3 cm. 5.2 Whiteboard The whiteboard used for the colorimeter calibration and the test shall comply with the provisions of GB/T 9086. There is a uniform white layer on the surface. Under the conditions of D65 standard light source, CIE 10° observer, and specular component excluded, the measured lightness value L is above 90, and the side length of a square is not less than 45 mm or the diameter of a circle is not less than 25 mm. fluorescence first. 8.1.2 Attach the back of the sample flatly to the whiteboard (5.2), let the front of the sample face the test hole of the colorimeter, keep the warp or vertical direction upward, and measure the lightness value Lw. 8.1.3 Attach the back of the sample flatly to the blackboard (5.3), let the front of the sample face the test hole of the colorimeter, keep the warp or vertical direction upward, and measure the lightness value Lb. 8.1.4 Test the rest of the samples according to the steps 8.1.2 and 8.1.3. 8.2 Method B (visual inspection method) 8.2.1 In the standard light source box (5.4), place the whiteboard (5.2) and the blackboard (5.3) side by side on the same plane, forming an angle of about 45° with the incident light. 8.2.2 Cover the sample on the blackboard and whiteboard, and the back of the sample shall be flatly attached to the blackboard and whiteboard, with the warp or vertical direction upward. 8.2.3 The observation direction is roughly perpendicular to the surface of the sample, and the observation distance is about 30 cm. Use the grey scale for assessing staining (5.5) to evaluate the color difference between the part of the blackboard covered by the sample and the part of the whiteboard covered by the sample. 8.2.4 Test the rest of the samples according to the steps 8.2.2 and 8.2.3.9 Calculation and presentation of results9.1 Method A (instrumental method) 9.1.1 The anti-seeing-through index of the sample is calculated according to formula (1). where: S -- the anti-seeing-through index of the sample; Lb -- the lightness value of the sample that is backed with a blackboard; Lw -- the lightness value of the sample that is backed with a whiteboard. ......Source: Above contents are excerpted from the full-copy PDF -- translated/reviewed by: www.ChineseStandard.net / Wayne Zheng et al. Tips & Frequently Asked Questions:Question 1: How long will the true-PDF of English version of GB/T 42698-2023 be delivered?Answer: The full copy PDF of English version of GB/T 42698-2023 can be downloaded in 9 seconds, and it will also be emailed to you in 9 seconds (double mechanisms to ensure the delivery reliably), with PDF-invoice.Question 2: Can I share the purchased PDF of GB/T 42698-2023_English with my colleagues?Answer: Yes. The purchased PDF of GB/T 42698-2023_English will be deemed to be sold to your employer/organization who actually paid for it, including your colleagues and your employer's intranet.Question 3: Does the price include tax/VAT?Answer: Yes. Our tax invoice, downloaded/delivered in 9 seconds, includes all tax/VAT and complies with 100+ countries' tax regulations (tax exempted in 100+ countries) -- See Avoidance of Double Taxation Agreements (DTAs): List of DTAs signed between Singapore and 100+ countriesQuestion 4: Do you accept my currency other than USD?Answer: Yes. www.ChineseStandard.us -- GB/T 42698-2023 -- Click this link and select your country/currency to pay, the exact amount in your currency will be printed on the invoice. Full PDF will also be downloaded/emailed in 9 seconds.How to buy and download a true PDF of English version of GB/T 42698-2023?A step-by-step guide to download PDF of GB/T 42698-2023_EnglishStep 1: Visit website https://www.ChineseStandard.net (Pay in USD), or https://www.ChineseStandard.us (Pay in any currencies such as Euro, KRW, JPY, AUD).Step 2: Search keyword "GB/T 42698-2023". Step 3: Click "Add to Cart". If multiple PDFs are required, repeat steps 2 and 3 to add up to 12 PDFs to cart. Step 4: Select payment option (Via payment agents Stripe or PayPal). Step 5: Customize Tax Invoice -- Fill up your email etc. Step 6: Click "Checkout". Step 7: Make payment by credit card, PayPal, Google Pay etc. After the payment is completed and in 9 seconds, you will receive 2 emails attached with the purchased PDFs and PDF-invoice, respectively. Step 8: Optional -- Go to download PDF. Step 9: Optional -- Click Open/Download PDF to download PDFs and invoice. See screenshots for above steps: Steps 1~3 Steps 4~6 Step 7 Step 8 Step 9 |
