GB/T 4184-2021: Tungsten-rhenium alloy wires Delivery: 9 seconds. True-PDF full-copy in English & invoice will be downloaded + auto-delivered via email. See step-by-step procedure Status: Valid GB/T 4184: Historical versions

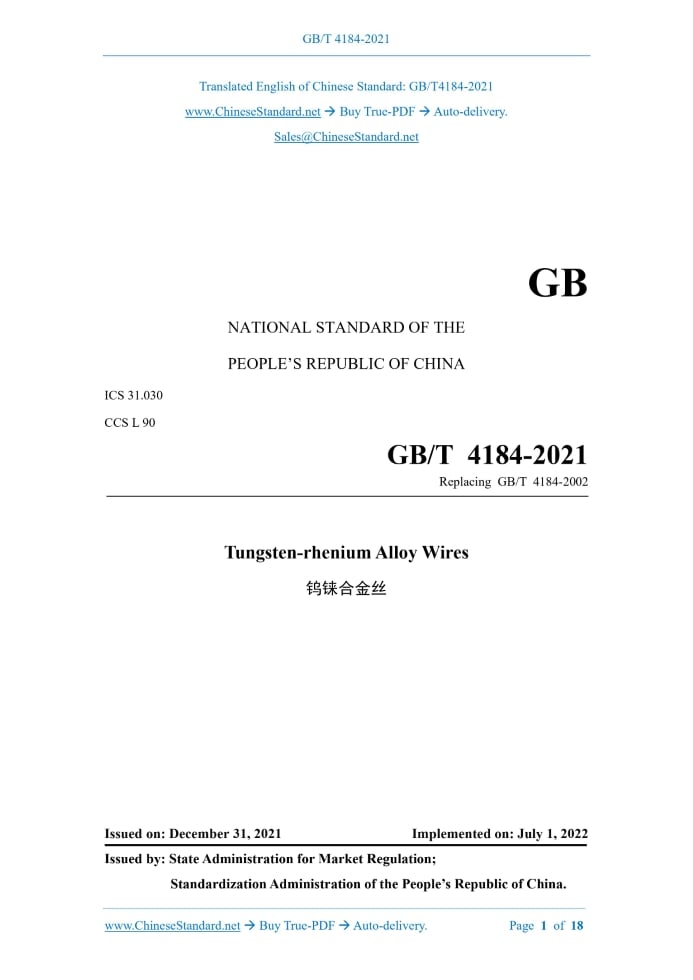

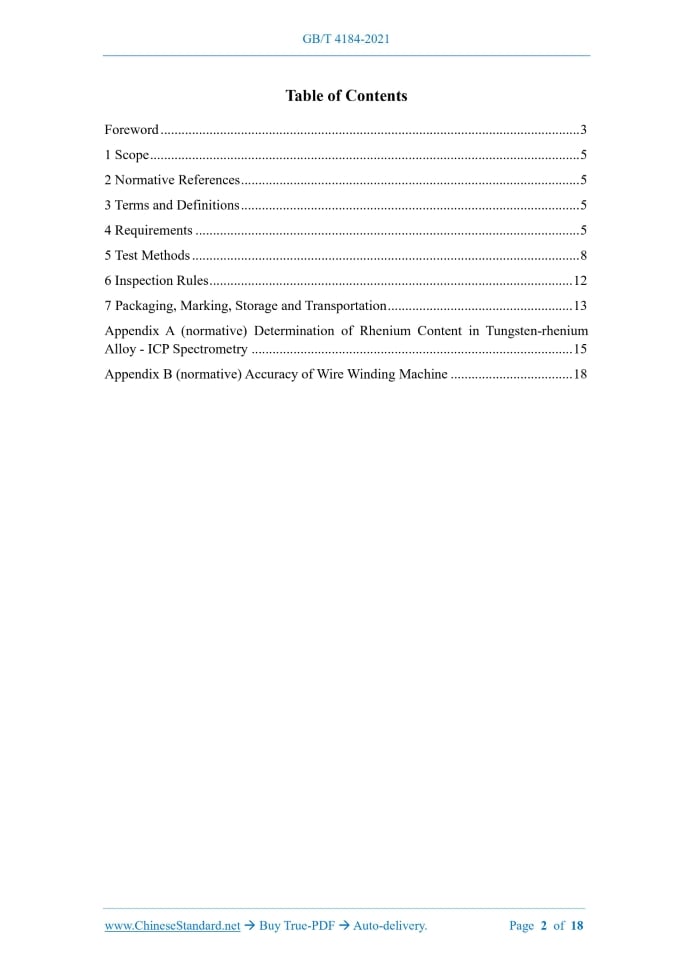

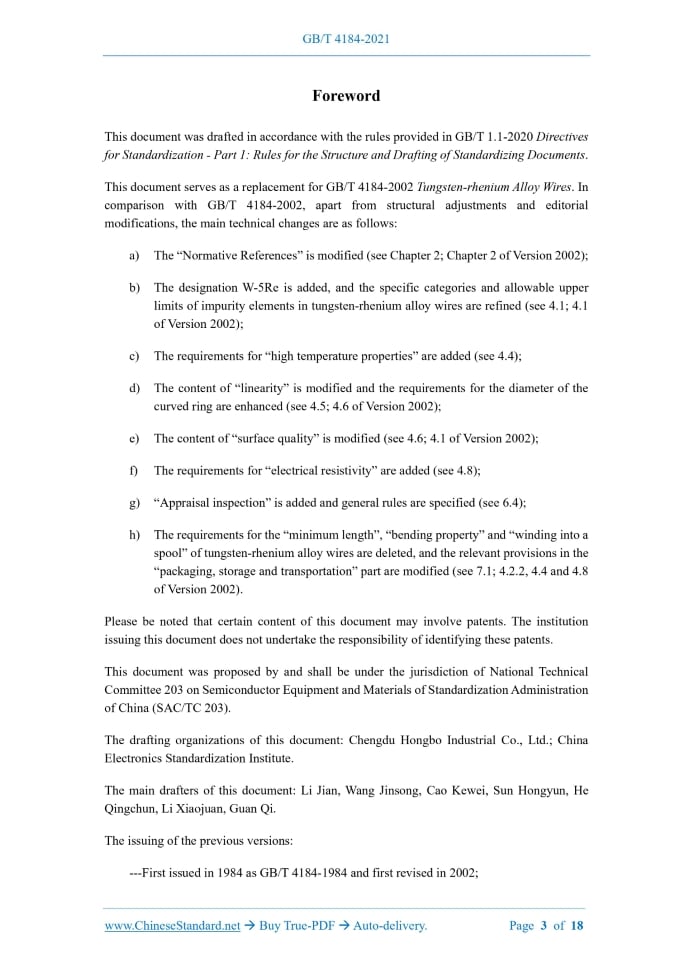

Similar standardsGB/T 4184-2021: Tungsten-rhenium alloy wires---This is an excerpt. Full copy of true-PDF in English version (including equations, symbols, images, flow-chart, tables, and figures etc.), auto-downloaded/delivered in 9 seconds, can be purchased online: https://www.ChineseStandard.net/PDF.aspx/GBT4184-2021GB NATIONAL STANDARD OF THE PEOPLE’S REPUBLIC OF CHINA ICS 31.030 CCS L 90 Replacing GB/T 4184-2002 Tungsten-rhenium Alloy Wires Issued on: DECEMBER 31, 2021 Implemented on: JULY 1, 2022 Issued by. State Administration for Market Regulation; Standardization Administration of the People’s Republic of China. Table of ContentsForeword... 3 1 Scope... 5 2 Normative References... 5 3 Terms and Definitions... 5 4 Requirements... 5 5 Test Methods... 8 6 Inspection Rules... 12 7 Packaging, Marking, Storage and Transportation... 13 Appendix A (normative) Determination of Rhenium Content in Tungsten-rhenium Alloy - ICP Spectrometry... 15 Appendix B (normative) Accuracy of Wire Winding Machine... 18ForewordThis document was drafted in accordance with the rules provided in GB/T 1.1-2020 Directives for Standardization - Part 1.Rules for the Structure and Drafting of Standardizing Documents. This document serves as a replacement for GB/T 4184-2002 Tungsten-rhenium Alloy Wires. In comparison with GB/T 4184-2002, apart from structural adjustments and editorial modifications, the main technical changes are as follows. a) The “Normative References” is modified (see Chapter 2; Chapter 2 of Version 2002); b) The designation W-5Re is added, and the specific categories and allowable upper limits of impurity elements in tungsten-rhenium alloy wires are refined (see 4.1; 4.1 of Version 2002); c) The requirements for “high temperature properties” are added (see 4.4); d) The content of “linearity” is modified and the requirements for the diameter of the curved ring are enhanced (see 4.5; 4.6 of Version 2002); e) The content of “surface quality” is modified (see 4.6; 4.1 of Version 2002); f) The requirements for “electrical resistivity” are added (see 4.8); g) “Appraisal inspection” is added and general rules are specified (see 6.4); h) The requirements for the “minimum length”, “bending property” and “winding into a spool” of tungsten-rhenium alloy wires are deleted, and the relevant provisions in the “packaging, storage and transportation” part are modified (see 7.1; 4.2.2, 4.4 and 4.8 of Version 2002). Please be noted that certain content of this document may involve patents. The institution issuing this document does not undertake the responsibility of identifying these patents. This document was proposed by and shall be under the jurisdiction of National Technical Committee 203 on Semiconductor Equipment and Materials of Standardization Administration of China (SAC/TC 203). The drafting organizations of this document. Chengdu Hongbo Industrial Co., Ltd.; China Electronics Standardization Institute. The main drafters of this document. Li Jian, Wang Jinsong, Cao Kewei, Sun Hongyun, He Qingchun, Li Xiaojuan, Guan Qi. The issuing of the previous versions. ---First issued in 1984 as GB/T 4184-1984 and first revised in 2002; Tungsten-rhenium Alloy Wires1 ScopeThis document specifies the designations, requirements, test methods, inspection rules, packaging, marking, transportation and storage of tungsten-rhenium alloy wires. This document is applicable to the production of tungsten-rhenium alloy wires for electric light source filaments, vacuum electron device hot wires, grid electrodes and supports.2 Normative ReferencesThe contents of the following documents constitute indispensable clauses of this document through the normative references in the text. In terms of references with a specified date, only versions with a specified date are applicable to this document. In terms of references without a specified date, the latest version (including all the modifications) is applicable to this document. GB/T 228.1 Metallic Materials - Tensile Testing - Part 1.Method of Test at Room Temperature GB/T 4324 (all parts) Methods for Chemical Analysis of Tungsten YS/T 502 Determination of Rhenium in Tungsten-Rhenium Alloy - Diacetyl Oxime Colorimetric Method3 Terms and DefinitionsThis document does not have terms and definitions that need to be defined.4 Requirements4.1 Chemical Composition In accordance with chemical composition, tungsten-rhenium alloy wires are divided into three designations. W-1Re, W-3Re and W-5Re. The chemical composition of tungsten-rhenium alloy wires shall comply with the provisions in Table 1. Electrical resistivity 4.8 5.8 6.4.3 Disqualification judgment If the sample under test passes the inspection of all items listed in Table 10, then, it is judged as qualified. If it fails in the inspection of one or more items, then, it is judged as disqualified. 6.5 Quality Conformity Inspection 6.5.1 Inspection items The quality conformity inspection items shall be carried out in accordance with Table 10. 6.5.2 Inspection batch Products of the same designation, same raw materials, same process, same production batch number and same production period are one inspection batch. 6.5.3 Sampling and qualification judgment Group A and Group B are subject to 100% inspection and disqualified products are eliminated. Group C inspection is carried out on one specimen randomly taken from each inspection batch. If one or more results fail to comply with the requirements, double sampling shall be performed in the inspection batch and the disqualified items shall be inspected. If one or more results still fail to comply with the requirements, then, the batch will be judged as disqualified. 6.6 Re-inspection The demand-side shall conduct re-inspection in accordance with this document within three months from the date of receipt of the product. If the inspection result is inconsistent with the product certificate or product quality certificate, an appraisal or inspection shall be jointly carried out, or a third party recognized by both sides shall be entrusted to conduct an inspection. If it still fails to meet the requirements, then, it shall be deemed disqualified.7 Packaging, Marking, Storage and Transportation7.1 Packaging, Storage and Transportation Tungsten-rhenium alloy wire with a diameter 0.35 mm shall be evenly rewound on the wire coil without local accumulation or the phenomenon of pressed wire being unable to be released. The exposed wire head needs to be fixed, the surface shall be sealed with flint-glazed paper, and then, loaded into a plastic cylinder. The material and specifications of the wire coil shall be determined by negotiation between the supply-side and the demand-side. When winding tungsten-rhenium alloy wire with a diameter > 0.35 mm, it shall be wound into a coil and tied with soft metal wire in 3 to 4 sites to prevent the wire from bouncing openAppendix A(normative) Determination of Rhenium Content in Tungsten-rhenium Alloy - ICP Spectrometry A.1 Overview The method provided in this Appendix is for the determination of rhenium in tungsten-rhenium alloy. The mass fraction of rhenium ranges from 1% to 10%. A.2 Method Summary The specimens are decomposed by hydrogen peroxide and determined by inductively coupled plasma emission spectrometer. A.3 Reagents A.3.1 Nitric acid. (1 + 1) analytically pure. A.3.2 Hydrogen peroxide. mass concentration c is 1.10 g/mL. A.3.3 Hydrochloric acid. (1+1) guaranteed reagent. A.3.4 Rhenium standard solution. weigh-take 1.0000 g of metallic rhenium powder ( 99.99%) into a 150 mL beaker, add 20 mL of hydrochloric acid (see A.3.3) and 5 mL of nitric acid (see A.3.1), heat, until it is completely dissolved, cool to room temperature, transfer into a 1,000 mL volumetric flask, use deionized water to dilute it to the scale, and mix it well. The rhenium mass concentration c of this solution is 1,000 g/mL. A.3.5 Pure tungsten solution. weigh-take 5.0000 g of metallic tungsten powder (99.99%) into a 150 mL beaker, in several times, dropwise add 30 mL of hydrogen peroxide (see A.3.2), heat at low temperature, until it is completely dissolved, add 10 mL of deionized water, boil, remove and cool to room temperature. Transfer it to a 1,000 mL volumetric flask, use deionized water to dilute it to the scale, and mix it well. The tungsten mass concentration c of this solution is 5,000 g/mL. A.4 Instruments Inductively coupled plasma emission spectrometer. A.5 Specimens The specimens shall be prepared into a state that is easy to dissolve. A.6 Analytical Steps A.6.1 Number of determinations Perform two independent determinations and take the average value. A.6.2 Test portion Weigh-take 0.1 g of specimen, accurate to 0.0001 g. A.6.3 Blank test Carry out a blank test along with the test portion. A.6.4 Determination A.6.4.1 Place the test portion (see A.6.2) in a 150 mL beaker, use an appropriate amount of deionized water to moisten it, dropwise add 6 mL of hydrogen peroxide (see A.3.2), heat at low temperature, until the test portion is completely dissolved, add 10 mL of deionized water, boil, remove and cool to room temperature. Transfer it to a 100 mL volumetric flask, use deionized water to dilute to the scale, and mix it well. A.6.4.2 Draw a working curve. respectively pipette 0.00 mL, 1.00 mL, 3.00 mL, 5.00 mL, 8.00 mL and 10.00 mL of the rhenium standard solution (see A.3.4) into a set of 100 mL volumetric flasks, add 20.00 mL of the pure tungsten solution (see A.3.5), use deionized water to dilute it to the scale, and mix it well. Ignite the plasma, wait for the instrument to stabilize, and then, at a wavelength of 358.015 nm, in the sequence of increasing concentration, successively determine and draw the working curve. A.6.4.3 Determine the solution (see A.6.4.1) at a wavelength of 358.015 nm and obtain the corresponding rhenium content based on the working curve. A.7 Result Calculation In accordance with Formula (A.1), calculate the mass fraction of rhenium. Where, wRe---the mass fraction of rhenium element; c1---the mass concentration of the element under test in the specimen solution, expressed in (g/mL); c0---the mass concentration of the element under test in the sample blank solution, expressed in (g/mL); V---the volume of the solution under test, expressed in (mL); m---the mass of the specimen, expressed in (g). ......Source: Above contents are excerpted from the full-copy PDF -- translated/reviewed by: www.ChineseStandard.net / Wayne Zheng et al. Tips & Frequently Asked Questions:Question 1: How long will the true-PDF of English version of GB/T 4184-2021 be delivered?Answer: The full copy PDF of English version of GB/T 4184-2021 can be downloaded in 9 seconds, and it will also be emailed to you in 9 seconds (double mechanisms to ensure the delivery reliably), with PDF-invoice.Question 2: Can I share the purchased PDF of GB/T 4184-2021_English with my colleagues?Answer: Yes. The purchased PDF of GB/T 4184-2021_English will be deemed to be sold to your employer/organization who actually paid for it, including your colleagues and your employer's intranet.Question 3: Does the price include tax/VAT?Answer: Yes. Our tax invoice, downloaded/delivered in 9 seconds, includes all tax/VAT and complies with 100+ countries' tax regulations (tax exempted in 100+ countries) -- See Avoidance of Double Taxation Agreements (DTAs): List of DTAs signed between Singapore and 100+ countriesQuestion 4: Do you accept my currency other than USD?Answer: Yes. www.ChineseStandard.us -- GB/T 4184-2021 -- Click this link and select your country/currency to pay, the exact amount in your currency will be printed on the invoice. Full PDF will also be downloaded/emailed in 9 seconds.Question 5: Should I purchase the latest version GB/T 4184-2021?Answer: Yes. Unless special scenarios such as technical constraints or academic study, you should always prioritize to purchase the latest version GB/T 4184-2021 even if the enforcement date is in future. Complying with the latest version means that, by default, it also complies with all the earlier versions, technically.How to buy and download a true PDF of English version of GB/T 4184-2021?A step-by-step guide to download PDF of GB/T 4184-2021_EnglishStep 1: Visit website https://www.ChineseStandard.net (Pay in USD), or https://www.ChineseStandard.us (Pay in any currencies such as Euro, KRW, JPY, AUD).Step 2: Search keyword "GB/T 4184-2021". Step 3: Click "Add to Cart". If multiple PDFs are required, repeat steps 2 and 3 to add up to 12 PDFs to cart. Step 4: Select payment option (Via payment agents Stripe or PayPal). Step 5: Customize Tax Invoice -- Fill up your email etc. Step 6: Click "Checkout". Step 7: Make payment by credit card, PayPal, Google Pay etc. After the payment is completed and in 9 seconds, you will receive 2 emails attached with the purchased PDFs and PDF-invoice, respectively. Step 8: Optional -- Go to download PDF. Step 9: Optional -- Click Open/Download PDF to download PDFs and invoice. See screenshots for above steps: Steps 1~3 Steps 4~6 Step 7 Step 8 Step 9 |
