GB/T 41607-2022 PDF EnglishUS$260.00 · In stock · Download in 9 seconds
GB/T 41607-2022: Test method for inertia absorption durability of friction elements in wet automatic transmission Delivery: 9 seconds. True-PDF full-copy in English & invoice will be downloaded + auto-delivered via email. See step-by-step procedure Status: Valid

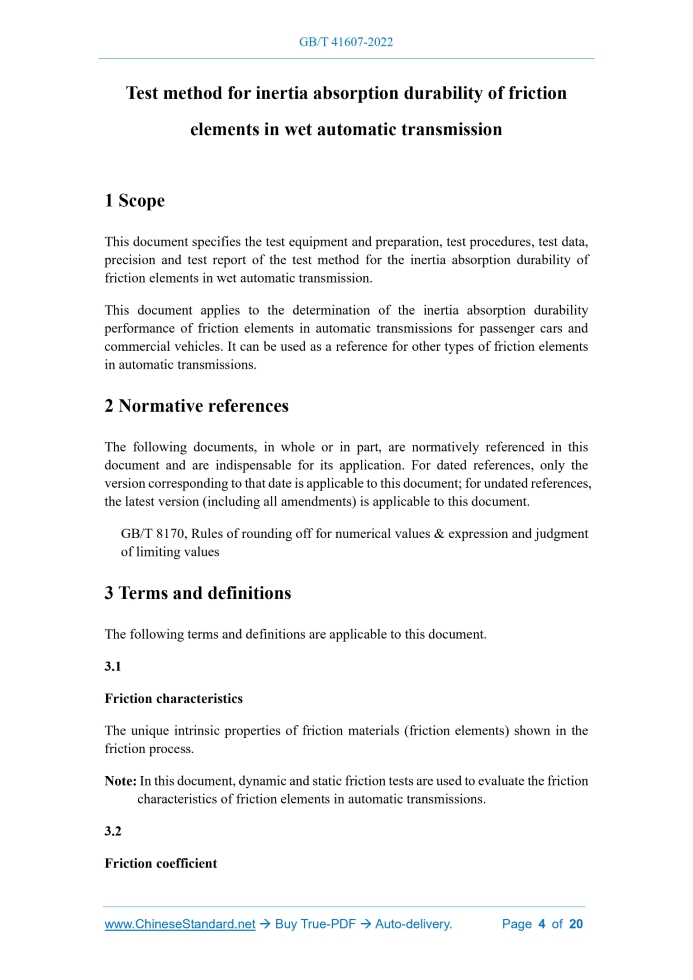

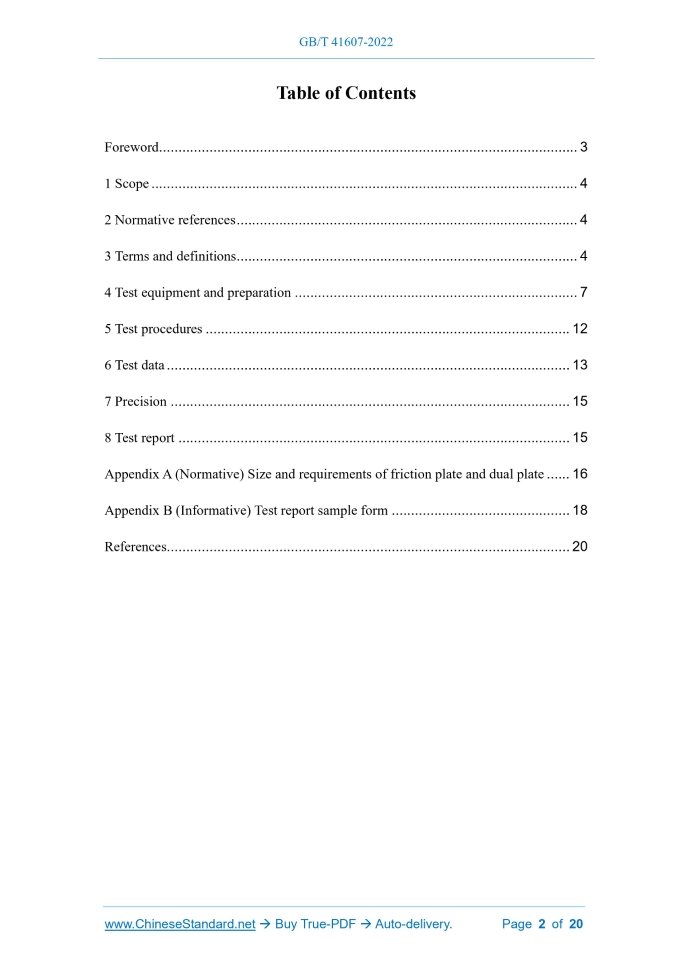

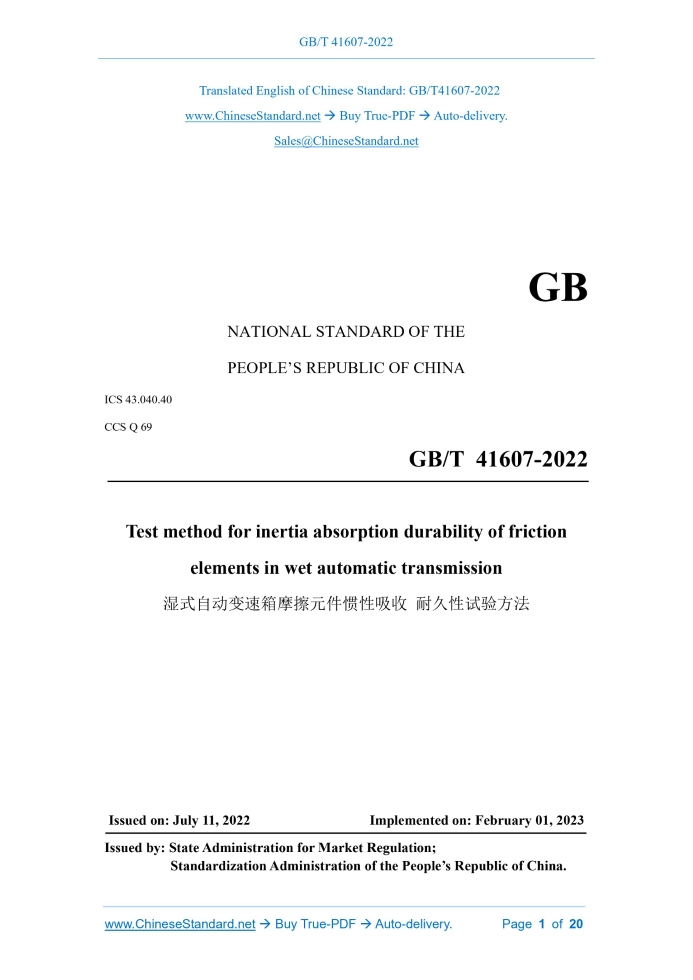

Similar standardsGB/T 41607-2022: Test method for inertia absorption durability of friction elements in wet automatic transmission---This is an excerpt. Full copy of true-PDF in English version (including equations, symbols, images, flow-chart, tables, and figures etc.), auto-downloaded/delivered in 9 seconds, can be purchased online: https://www.ChineseStandard.net/PDF.aspx/GBT41607-2022 NATIONAL STANDARD OF THE PEOPLE’S REPUBLIC OF CHINA ICS 43.040.40 CCS Q 69 Test method for inertia absorption durability of friction elements in wet automatic transmission ISSUED ON: JULY 11, 2022 IMPLEMENTED ON: FEBRUARY 01, 2023 Issued by: State Administration for Market Regulation; Standardization Administration of the People’s Republic of China. Table of ContentsForeword ... 3 1 Scope ... 4 2 Normative references ... 4 3 Terms and definitions... 4 4 Test equipment and preparation ... 7 5 Test procedures ... 12 6 Test data ... 13 7 Precision ... 15 8 Test report ... 15 Appendix A (Normative) Size and requirements of friction plate and dual plate ... 16 Appendix B (Informative) Test report sample form ... 18 References ... 20 Test method for inertia absorption durability of friction elements in wet automatic transmission1 ScopeThis document specifies the test equipment and preparation, test procedures, test data, precision and test report of the test method for the inertia absorption durability of friction elements in wet automatic transmission. This document applies to the determination of the inertia absorption durability performance of friction elements in automatic transmissions for passenger cars and commercial vehicles. It can be used as a reference for other types of friction elements in automatic transmissions.2 Normative referencesThe following documents, in whole or in part, are normatively referenced in this document and are indispensable for its application. For dated references, only the version corresponding to that date is applicable to this document; for undated references, the latest version (including all amendments) is applicable to this document. GB/T 8170, Rules of rounding off for numerical values & expression and judgment of limiting values3 Terms and definitionsThe following terms and definitions are applicable to this document. 3.1 Friction characteristics The unique intrinsic properties of friction materials (friction elements) shown in the friction process. Note: In this document, dynamic and static friction tests are used to evaluate the friction characteristics of friction elements in automatic transmissions. 3.2 Friction coefficient The ratio of the friction force generated TO the force exerted on the friction element when there is relative movement or relative movement tendency between the friction plate and the dual plate. Note 1: The friction coefficient is divided into dynamic friction coefficient and static friction coefficient. Note 2: The dynamic friction coefficient and static friction coefficient shall be calculated according to Formula (1), and the results shall be rounded off to 3 decimal places according to GB/T 8170. Where: μ – friction coefficient; T – friction torque, in Newton meter (N·m); n – number of friction plates (n=3); r – average effective friction radius, in millimeters (mm), which shall be 57.4 mm; p – the surface pressure loaded on the friction surface of the friction plate, in kilopascals (kPa), which shall be 785 kPa; A – the friction area of the friction plate, in square millimeters (mm2), which shall be 4 434 mm2. 3.3 Dynamic friction coefficient The ratio BETWEEN the friction force generated by the relative motion between the friction plate and the dual plate AND the positive pressure, when there is relative motion between the friction plate and the dual plate, Note: The dynamic friction coefficient (μd, μ0) is calculated according to Formula (2) and Formula (3). Where: 4.2 Test preparation 4.2.1 Friction plate preparation The size of the friction plate shall meet the requirements of A.1 in Appendix A. Soak the friction plate which is stored in the desiccator in the test oil for more than 2 h; take it out and wipe the test oil. Then, use a micrometer to measure the thickness of the friction plate at four points every 90°, accurate to 0.001 mm. Mark test points on surfaces that are not rubbed. 4.2.2 Dual plate preparation The size of the dual plate shall meet the requirements of A.2. The dual plate used shall be cleaned of oil on the surface using ultrasonic waves in a solvent such as hexane, wiped with lint-free paper, and dried at room temperature. 4.2.3 Testing machine preparation After each test, the test oil chamber and each oil pipe shall be thoroughly cleaned and dried with a solvent such as hexane. When measuring the oil temperature, the thermocouple shall be fixed at a position 2 mm from the end face and horizontal to the test oil chamber. 4.2.4 Installation of friction components Install the friction plate and the dual plate one by one; pay attention to adjusting the friction gap at the position of 0.8 mm ± 0.2 mm. The dual plate and friction plate shall be installed as shown in Figure 5; pay attention to the installation direction (A, B and A’, B’ in Figure 5); the clearance between the friction components is calculated according to Formula (6) and adjusted to 0.8 mm ± 0.2 mm. As shown in Figure 5, the total thickness of the friction components shall be measured when the pressure is loaded. Where: CL – clearance, in millimeters (mm); Ls – total length of the test oil tank, in millimeters (mm); Ld – total thickness of friction components, in millimeters (mm). 6.2.1 Friction plate After 5 000 times of braking, observe the 6 faces of the friction plate, observe and record the following conditions: a) Wear and tear of the friction plate; b) Discoloration or ablation on the surface of the friction plate; c) Whether there is material peeling on the friction surface; d) Whether there is blocking on the surface of the friction material. 6.2.2 Dual plate After 5 000 times of braking, observe the 8 faces of the dual plate, observe and record the following conditions: a) Wear and tear of the dual plate; b) Discoloration on the surface of the dual plate, and whether there is a high temperature ablation point. 6.3 Record 6.3.1 Test curve Curves of torque, revolutions and pressure generated in the 1st, 50th, 200th, 500th, 1 000th, 3 000th, and 5 000th test cycles of the dynamic friction test and the static friction test. 6.3.2 Calculation results 6.3.2.1 Calculate Rd according to Formula (7), round off the result to 2 decimal places according to GB/T8170. Where: Rd – the ratio of the friction coefficient at the midpoint TO the initial dynamic friction coefficient; μ0 – the dynamic friction coefficient calculated from T0 in each test cycle; μd – the dynamic friction coefficient calculated from Td in each test cycle. 6.3.2.2 Calculate Ra according to Formula (8), round off the result to an integer according to GB/T 8170. Where: Ra – change rate of friction coefficient at midpoint, %; μdmax – the maximum value of μd in the test cycle with the number of revolutions of 50 ~ 5 000 times; μdmin – the minimum value of μd in the test cycle with the number of revolutions of 50 ~ 5 000 times.7 Precision7.1 Reproducibility After the last test runs for 3 000 h or 12 months (whichever is shorter), use the same test equipment to conduct one or more tests before starting the next test. The deviation of the average value of μt shown in the last three 5 000-cycle tests (including the above test) shall be within ±5% of the average value of μt of three or more 5 000-cycle tests; the test of the automatic transmission oil, friction plate, and dual plate used in the test shall be judged as a valid test. 7.2 Repeatability During the last three 5 000-cycle tests, the μt value shall fluctuate within ±2%.8 Test reportSee Appendix B for the format of the test report. ......Source: Above contents are excerpted from the full-copy PDF -- translated/reviewed by: www.ChineseStandard.net / Wayne Zheng et al. Tips & Frequently Asked Questions:Question 1: How long will the true-PDF of English version of GB/T 41607-2022 be delivered?Answer: The full copy PDF of English version of GB/T 41607-2022 can be downloaded in 9 seconds, and it will also be emailed to you in 9 seconds (double mechanisms to ensure the delivery reliably), with PDF-invoice.Question 2: Can I share the purchased PDF of GB/T 41607-2022_English with my colleagues?Answer: Yes. The purchased PDF of GB/T 41607-2022_English will be deemed to be sold to your employer/organization who actually paid for it, including your colleagues and your employer's intranet.Question 3: Does the price include tax/VAT?Answer: Yes. Our tax invoice, downloaded/delivered in 9 seconds, includes all tax/VAT and complies with 100+ countries' tax regulations (tax exempted in 100+ countries) -- See Avoidance of Double Taxation Agreements (DTAs): List of DTAs signed between Singapore and 100+ countriesQuestion 4: Do you accept my currency other than USD?Answer: Yes. www.ChineseStandard.us -- GB/T 41607-2022 -- Click this link and select your country/currency to pay, the exact amount in your currency will be printed on the invoice. Full PDF will also be downloaded/emailed in 9 seconds.How to buy and download a true PDF of English version of GB/T 41607-2022?A step-by-step guide to download PDF of GB/T 41607-2022_EnglishStep 1: Visit website https://www.ChineseStandard.net (Pay in USD), or https://www.ChineseStandard.us (Pay in any currencies such as Euro, KRW, JPY, AUD).Step 2: Search keyword "GB/T 41607-2022". Step 3: Click "Add to Cart". If multiple PDFs are required, repeat steps 2 and 3 to add up to 12 PDFs to cart. Step 4: Select payment option (Via payment agents Stripe or PayPal). Step 5: Customize Tax Invoice -- Fill up your email etc. Step 6: Click "Checkout". Step 7: Make payment by credit card, PayPal, Google Pay etc. After the payment is completed and in 9 seconds, you will receive 2 emails attached with the purchased PDFs and PDF-invoice, respectively. Step 8: Optional -- Go to download PDF. Step 9: Optional -- Click Open/Download PDF to download PDFs and invoice. See screenshots for above steps: Steps 1~3 Steps 4~6 Step 7 Step 8 Step 9 |
