GB/T 40934-2021: Rotational moulding - Test method for powder flowability Delivery: 9 seconds. True-PDF full-copy in English & invoice will be downloaded + auto-delivered via email. See step-by-step procedure Status: Valid

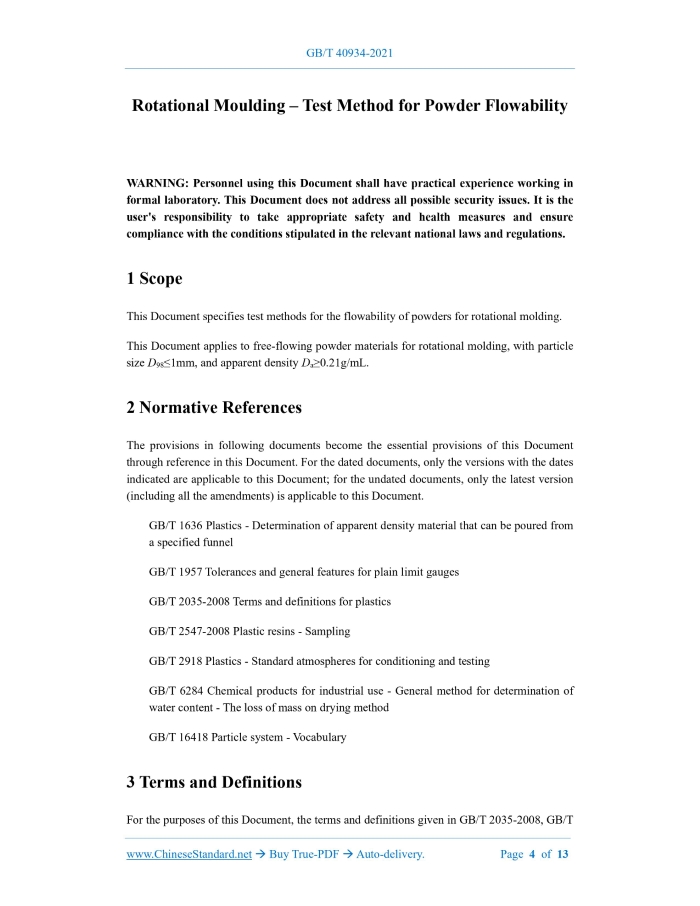

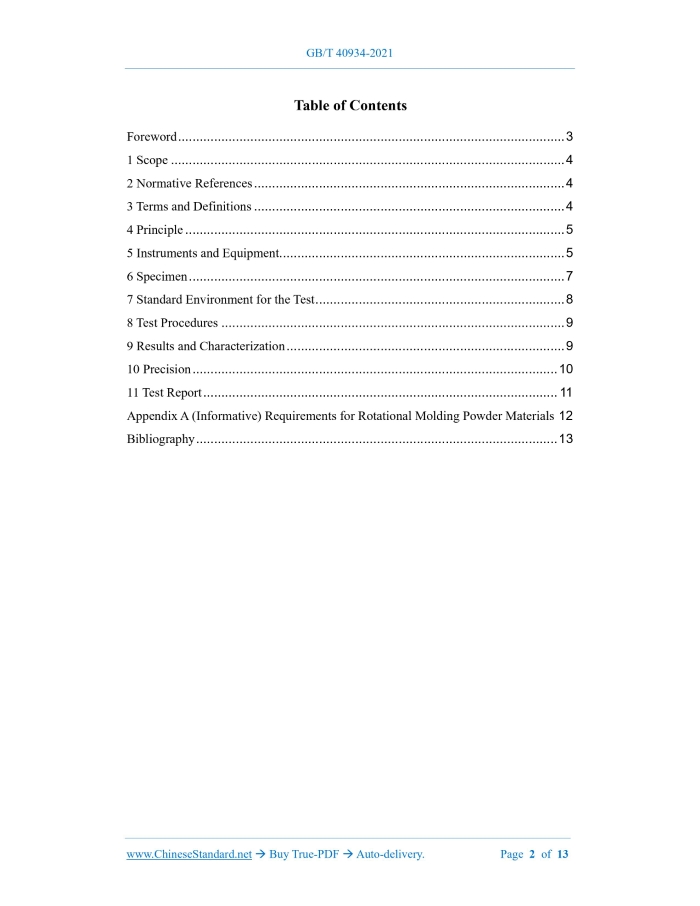

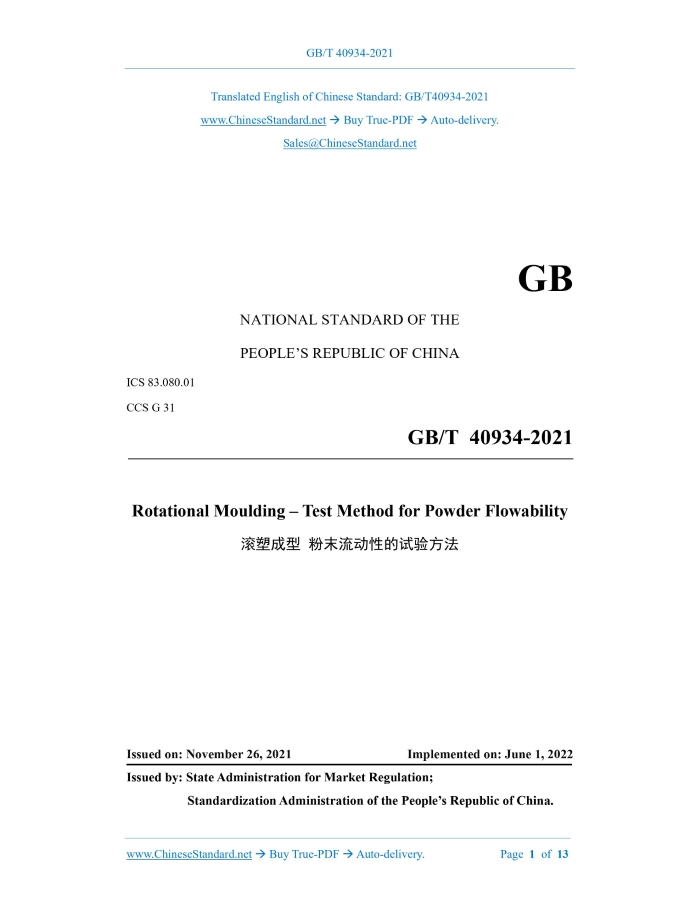

Similar standardsGB/T 40934-2021: Rotational moulding - Test method for powder flowability---This is an excerpt. Full copy of true-PDF in English version (including equations, symbols, images, flow-chart, tables, and figures etc.), auto-downloaded/delivered in 9 seconds, can be purchased online: https://www.ChineseStandard.net/PDF.aspx/GBT40934-2021GB NATIONAL STANDARD OF THE PEOPLE’S REPUBLIC OF CHINA ICS 83.080.01 CCS G 31 Rotational Moulding – Test Method for Powder Flowability ISSUED ON: NOVEMBER 26, 2021 IMPLEMENTED ON: JUNE 1, 2022 Issued by: State Administration for Market Regulation; Standardization Administration of the People’s Republic of China. Table of ContentsForeword ... 3 1 Scope ... 4 2 Normative References ... 4 3 Terms and Definitions ... 4 4 Principle ... 5 5 Instruments and Equipment... 5 6 Specimen ... 7 7 Standard Environment for the Test ... 8 8 Test Procedures ... 9 9 Results and Characterization ... 9 10 Precision ... 10 11 Test Report ... 11 Appendix A (Informative) Requirements for Rotational Molding Powder Materials 12 Bibliography ... 13 Rotational Moulding – Test Method for Powder Flowability WARNING: Personnel using this Document shall have practical experience working in formal laboratory. This Document does not address all possible security issues. It is the user's responsibility to take appropriate safety and health measures and ensure compliance with the conditions stipulated in the relevant national laws and regulations.1 ScopeThis Document specifies test methods for the flowability of powders for rotational molding. This Document applies to free-flowing powder materials for rotational molding, with particle size D98≤1mm, and apparent density Da≥0.21g/mL.2 Normative ReferencesThe provisions in following documents become the essential provisions of this Document through reference in this Document. For the dated documents, only the versions with the dates indicated are applicable to this Document; for the undated documents, only the latest version (including all the amendments) is applicable to this Document. GB/T 1636 Plastics - Determination of apparent density material that can be poured from a specified funnel GB/T 1957 Tolerances and general features for plain limit gauges GB/T 2035-2008 Terms and definitions for plastics GB/T 2547-2008 Plastic resins - Sampling GB/T 2918 Plastics - Standard atmospheres for conditioning and testing GB/T 6284 Chemical products for industrial use - General method for determination of water content - The loss of mass on drying method GB/T 16418 Particle system - Vocabulary3 Terms and DefinitionsFor the purposes of this Document, the terms and definitions given in GB/T 2035-2008, GB/T 16418 and the following apply. 3.1 Rotational moulding The processing method that puts the resin molding material into the mold; heats the mold and make it rotate continuously at low speed; the resin in the mold is gradually coated and adhered to the inner surface of the mold under the action of gravity and heat to form the required shape; and the plastic product is obtained after cooling. [SOURCE: GB/T 2035-2008, 2.873, modified] 3.2 Powder flowability; dk The rate at which a dry powder flows through a defined funnel under the action of gravity only.4 Principle4.1 The principle of this test method is to characterize the free-flowing ability of the powder only under its own gravity by measuring the time it takes for a unit mass of powder sample to flow out of a funnel of specified size. 4.2 This test method can be used to characterize the following properties: - the performance of powdery materials suitable for rotational molding process; - the conveying performance of the powdery material, that is, the performance of the powdery material passing through the hopper or feeding device evenly; - The performance of the powdery material to flow evenly on all surfaces of the mold. NOTE 1: Materials with poor powder flowability may cause defects such as bridging, uneven wall thickness, rough inner surface, pinholes and color swirls in rotationally molded products. NOTE 2: The conditions that affect the powder flowability results include: the shape, size, inner surface condition, inner surface roughness of the funnel and powder temperature. 4.3 Combined with the apparent density data measured in GB/T 1636, the basis for judging that powdery materials are suitable for rotational molding can refer to Appendix A.5 Instruments and Equipment5.1 Funnel The funnel used in the test shall meet the following conditions:8 Test ProceduresThe test is carried out in the following procedures. a) Close the outflow port of the funnel with a baffle. b) Weigh the mass of the specimen, the unit is gram, and retain one digits after the decimal point. c) Gently pour the specimen into the funnel along the wall of the funnel to prevent compaction and avoid any tilting. The funnel shall not be vibrated to promote the accumulation of the specimen. d) Quickly open the baffle; and press the timer at the same time to start counting. Use a pen or ruler to gently tap the funnel to promote flow. The tap shall not cause the position of the funnel to move, but fixed mechanical vibration device that can promote flow shall not be used. e) Observe from the top of the funnel and stop timing when the outflow port is visible. f) Observe the flow pattern of the specimen: --- Continuous flow: the specimen flows out continuously until it completely flows out of the funnel, denoted by c; --- Intermittent flow: the specimen flows out intermittently until it completely flows out of the funnel, represented by i; --- No flow: The specimen does not flow out of the funnel or stops flowing out of the funnel during of the test. g) Use the same specimen to repeat the measurement for 3 times. For hygroscopic specimen, the measurement shall be completed within 5min. h) After each measurement, any residue adhering to the inner wall of the funnel shall be cleaned.9 Results and Characterization9.1 Powder outflow time Take the arithmetic mean of 3 measurements as the measurement result of the powder outflow time. The result is rounded off to one digit after the decimal point. If one of the three measurements is "no flow", the test result should be "NG". 9.2 Powder flowability The powder flowability is calculated according to the Formula (1), and the result is rounded off to one digit after the decimal point. NOTE: For powders whose powder outflow time is "NG", the powder flowability test is not conducted. Where: dk - powder flowability, in s/100g; k represents the flow type. If k takes c, it shall mean continuous flow; if k takes i, it shall mean intermittent flow; t - the powder outflow time, in s; m - the mass of the specimen, in g. EXAMPLE: 100.2g of a certain powder is used for testing; the measured values of powder outflow time are 25.7s, 26.1s and 25.5s; and the flow type is continuous flow. Calculated powder flow time t=(25.7s+26.1s+25.5s)/3=25.8s, powder flowability dc=100×25.8s/100.2g=25.7s/100g.10 PrecisionIn the same laboratory, the same operator uses the same equipment, according to the same test method, and tests the same measured object independently within a short period of time, and the absolute difference between the obtained two independent test results does not exceed the repeatability limit (r); the repeatability limit (r) is calculated according to the Formula (2): Where: dk - the average value of two measured values, in s/100g. In different laboratories, different operators use different equipment, according to the same test method, the absolute difference between the obtained two independent test results by independently testing the same measured object is no greater than the reproducibility limit (R) 2.808; on the premise that the cases greater than the reproducibility limit (R) 2.808 do not exceed 5%. ......Source: Above contents are excerpted from the full-copy PDF -- translated/reviewed by: www.ChineseStandard.net / Wayne Zheng et al. Tips & Frequently Asked Questions:Question 1: How long will the true-PDF of English version of GB/T 40934-2021 be delivered?Answer: The full copy PDF of English version of GB/T 40934-2021 can be downloaded in 9 seconds, and it will also be emailed to you in 9 seconds (double mechanisms to ensure the delivery reliably), with PDF-invoice.Question 2: Can I share the purchased PDF of GB/T 40934-2021_English with my colleagues?Answer: Yes. The purchased PDF of GB/T 40934-2021_English will be deemed to be sold to your employer/organization who actually paid for it, including your colleagues and your employer's intranet.Question 3: Does the price include tax/VAT?Answer: Yes. Our tax invoice, downloaded/delivered in 9 seconds, includes all tax/VAT and complies with 100+ countries' tax regulations (tax exempted in 100+ countries) -- See Avoidance of Double Taxation Agreements (DTAs): List of DTAs signed between Singapore and 100+ countriesQuestion 4: Do you accept my currency other than USD?Answer: Yes. www.ChineseStandard.us -- GB/T 40934-2021 -- Click this link and select your country/currency to pay, the exact amount in your currency will be printed on the invoice. Full PDF will also be downloaded/emailed in 9 seconds.How to buy and download a true PDF of English version of GB/T 40934-2021?A step-by-step guide to download PDF of GB/T 40934-2021_EnglishStep 1: Visit website https://www.ChineseStandard.net (Pay in USD), or https://www.ChineseStandard.us (Pay in any currencies such as Euro, KRW, JPY, AUD).Step 2: Search keyword "GB/T 40934-2021". Step 3: Click "Add to Cart". If multiple PDFs are required, repeat steps 2 and 3 to add up to 12 PDFs to cart. Step 4: Select payment option (Via payment agents Stripe or PayPal). Step 5: Customize Tax Invoice -- Fill up your email etc. Step 6: Click "Checkout". Step 7: Make payment by credit card, PayPal, Google Pay etc. After the payment is completed and in 9 seconds, you will receive 2 emails attached with the purchased PDFs and PDF-invoice, respectively. Step 8: Optional -- Go to download PDF. Step 9: Optional -- Click Open/Download PDF to download PDFs and invoice. See screenshots for above steps: Steps 1~3 Steps 4~6 Step 7 Step 8 Step 9 |
