GB/T 40913-2021: Method for the determination of the hot-end coating thickness of glass bottle Delivery: 9 seconds. True-PDF full-copy in English & invoice will be downloaded + auto-delivered via email. See step-by-step procedure Status: Valid

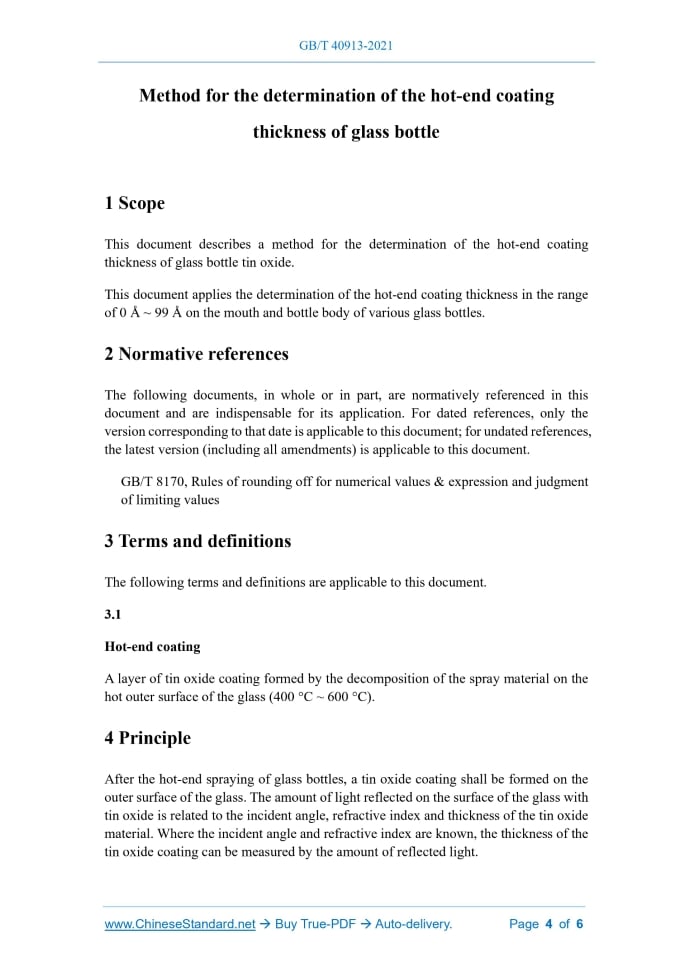

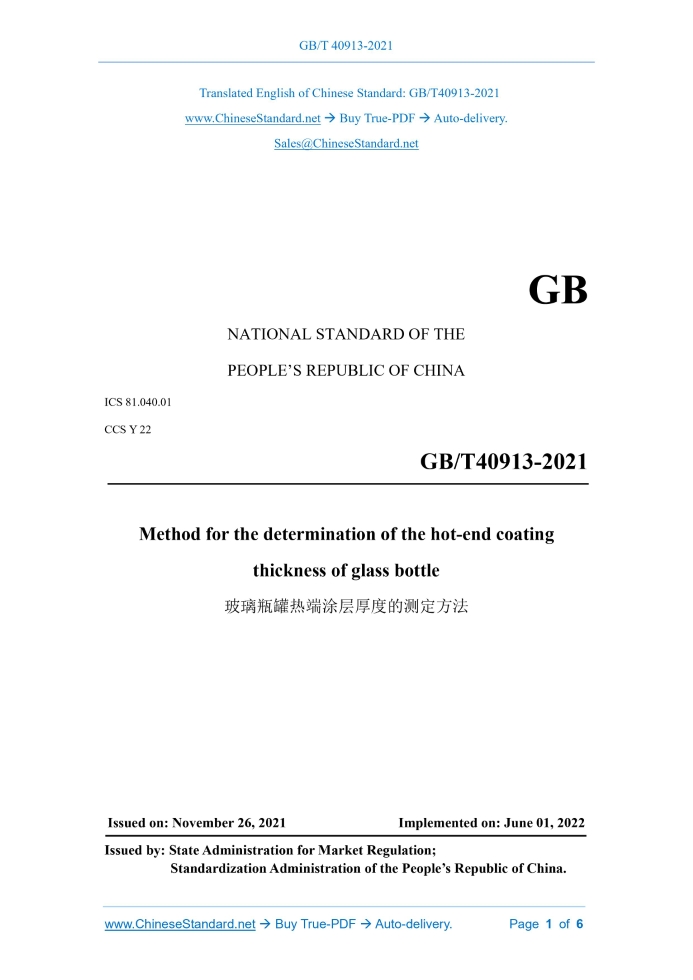

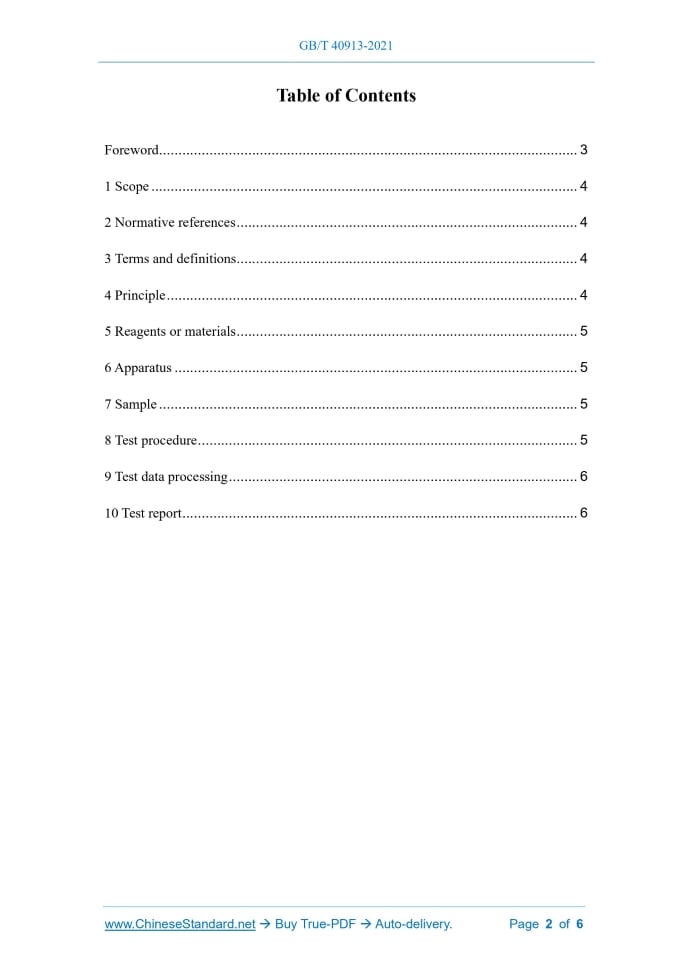

Similar standardsGB/T 40913-2021: Method for the determination of the hot-end coating thickness of glass bottle---This is an excerpt. Full copy of true-PDF in English version (including equations, symbols, images, flow-chart, tables, and figures etc.), auto-downloaded/delivered in 9 seconds, can be purchased online: https://www.ChineseStandard.net/PDF.aspx/GBT40913-2021NATIONAL STANDARD OF THE PEOPLE’S REPUBLIC OF CHINA ICS 81.040.01 CCS Y 22 GB/T40913-2021 Method for the determination of the hot-end coating thickness of glass bottle Issued on: NOVEMBER 26, 2021 Implemented on: JUNE 01, 2022 Issued by. State Administration for Market Regulation; Standardization Administration of the People’s Republic of China. Table of ContentsForeword... 3 1 Scope... 4 2 Normative references... 4 3 Terms and definitions... 4 4 Principle... 4 5 Reagents or materials... 5 6 Apparatus... 5 7 Sample... 5 8 Test procedure... 5 9 Test data processing... 6 10 Test report... 6 Method for the determination of the hot-end coating thickness of glass bottle1 ScopeThis document describes a method for the determination of the hot-end coating thickness of glass bottle tin oxide. This document applies the determination of the hot-end coating thickness in the range of 0 Å ~ 99 Å on the mouth and bottle body of various glass bottles.2 Normative referencesThe following documents, in whole or in part, are normatively referenced in this document and are indispensable for its application. For dated references, only the version corresponding to that date is applicable to this document; for undated references, the latest version (including all amendments) is applicable to this document. GB/T 8170, Rules of rounding off for numerical values & expression and judgment of limiting values3 Terms and definitionsThe following terms and definitions are applicable to this document. 3.1 Hot-end coating A layer of tin oxide coating formed by the decomposition of the spray material on the hot outer surface of the glass (400 °C ~ 600 °C).4 PrincipleAfter the hot-end spraying of glass bottles, a tin oxide coating shall be formed on the outer surface of the glass. The amount of light reflected on the surface of the glass with tin oxide is related to the incident angle, refractive index and thickness of the tin oxide material. Where the incident angle and refractive index are known, the thickness of the tin oxide coating can be measured by the amount of reflected light.5 Reagents or materials5.1 Induction fluid The refractive index is close to the refractive index of conventional glass nD20 = 1.5 (Sodium lamp D line with wavelength of 5 893 × 10-10 m); there shall be no bubbles; it should be stored in the dark and avoid humid environment. 5.2 Calibration samples 5.2.1 Standard parts without hot-end spraying (0 Å). 5.2.2 Standard parts with known hot-end spraying thickness (17 Å ~ 35 Å). Note. Å is the unit of measurement data of the hot-end coating thickness of glass bottles. The glass industry at home and abroad usually adopts CTU (coating thickness unit), 1 CTU ≈ 1 Å (10-10 m).6 Apparatus6.1 Hot-end coating thickness measuring equipment, with an accuracy of 2 Å. 6.2 The equipment shall include a testing table that can fix glass bottles, and the testing table shall be able to rotate manually or automatically.7 Sample7.1 The thickness of the glass at the measured position of the sample shall not be less than 1.1 mm. 7.2 The measured position of the sample shall be free from defects such as stains and bubbles. 7.3 The sample shall be annealed normally, cooled to room temperature, and kept dry.8 Test procedure8.1 Turn on the hot-end coating thickness measuring instrument; check the induction liquid pipe, and confirm that there are no air bubbles. Use calibration samples to check the measurement accuracy of the instrument after the equipment is turned on the day of use. 8.2 Put the sample on the testing table and adjust the measuring probe to the target height. ......Source: Above contents are excerpted from the full-copy PDF -- translated/reviewed by: www.ChineseStandard.net / Wayne Zheng et al. Tips & Frequently Asked Questions:Question 1: How long will the true-PDF of English version of GB/T 40913-2021 be delivered?Answer: The full copy PDF of English version of GB/T 40913-2021 can be downloaded in 9 seconds, and it will also be emailed to you in 9 seconds (double mechanisms to ensure the delivery reliably), with PDF-invoice.Question 2: Can I share the purchased PDF of GB/T 40913-2021_English with my colleagues?Answer: Yes. The purchased PDF of GB/T 40913-2021_English will be deemed to be sold to your employer/organization who actually paid for it, including your colleagues and your employer's intranet.Question 3: Does the price include tax/VAT?Answer: Yes. Our tax invoice, downloaded/delivered in 9 seconds, includes all tax/VAT and complies with 100+ countries' tax regulations (tax exempted in 100+ countries) -- See Avoidance of Double Taxation Agreements (DTAs): List of DTAs signed between Singapore and 100+ countriesQuestion 4: Do you accept my currency other than USD?Answer: Yes. www.ChineseStandard.us -- GB/T 40913-2021 -- Click this link and select your country/currency to pay, the exact amount in your currency will be printed on the invoice. Full PDF will also be downloaded/emailed in 9 seconds.How to buy and download a true PDF of English version of GB/T 40913-2021?A step-by-step guide to download PDF of GB/T 40913-2021_EnglishStep 1: Visit website https://www.ChineseStandard.net (Pay in USD), or https://www.ChineseStandard.us (Pay in any currencies such as Euro, KRW, JPY, AUD).Step 2: Search keyword "GB/T 40913-2021". Step 3: Click "Add to Cart". If multiple PDFs are required, repeat steps 2 and 3 to add up to 12 PDFs to cart. Step 4: Select payment option (Via payment agents Stripe or PayPal). Step 5: Customize Tax Invoice -- Fill up your email etc. Step 6: Click "Checkout". Step 7: Make payment by credit card, PayPal, Google Pay etc. After the payment is completed and in 9 seconds, you will receive 2 emails attached with the purchased PDFs and PDF-invoice, respectively. Step 8: Optional -- Go to download PDF. Step 9: Optional -- Click Open/Download PDF to download PDFs and invoice. See screenshots for above steps: Steps 1~3 Steps 4~6 Step 7 Step 8 Step 9 |
