GB/T 39859-2021 PDF EnglishUS$230.00 · In stock · Download in 9 seconds
GB/T 39859-2021: Gallium-based liquid metal Delivery: 9 seconds. True-PDF full-copy in English & invoice will be downloaded + auto-delivered via email. See step-by-step procedure Status: Valid

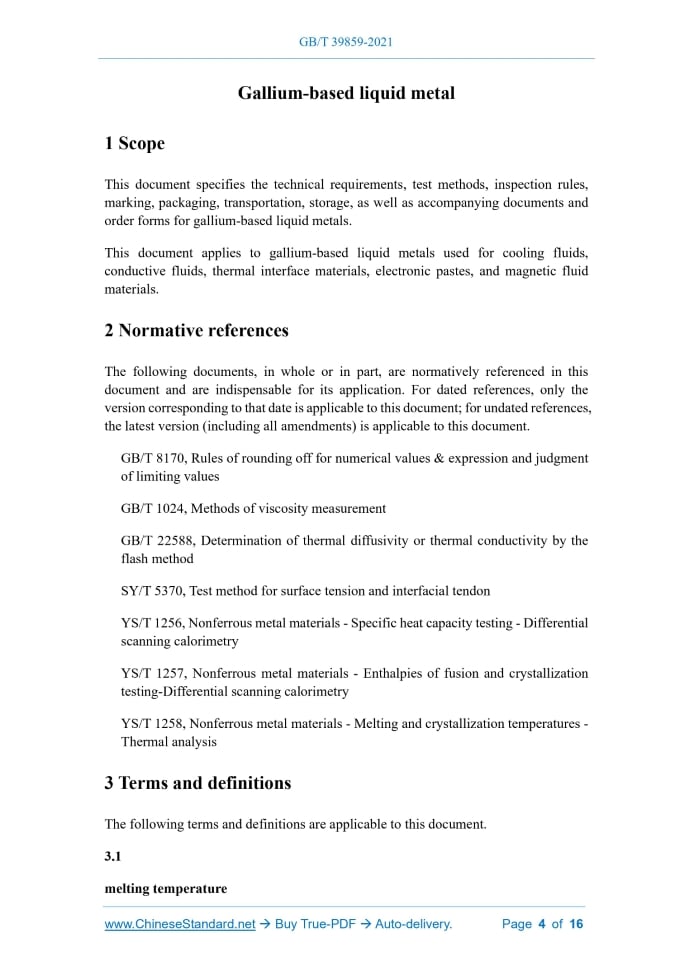

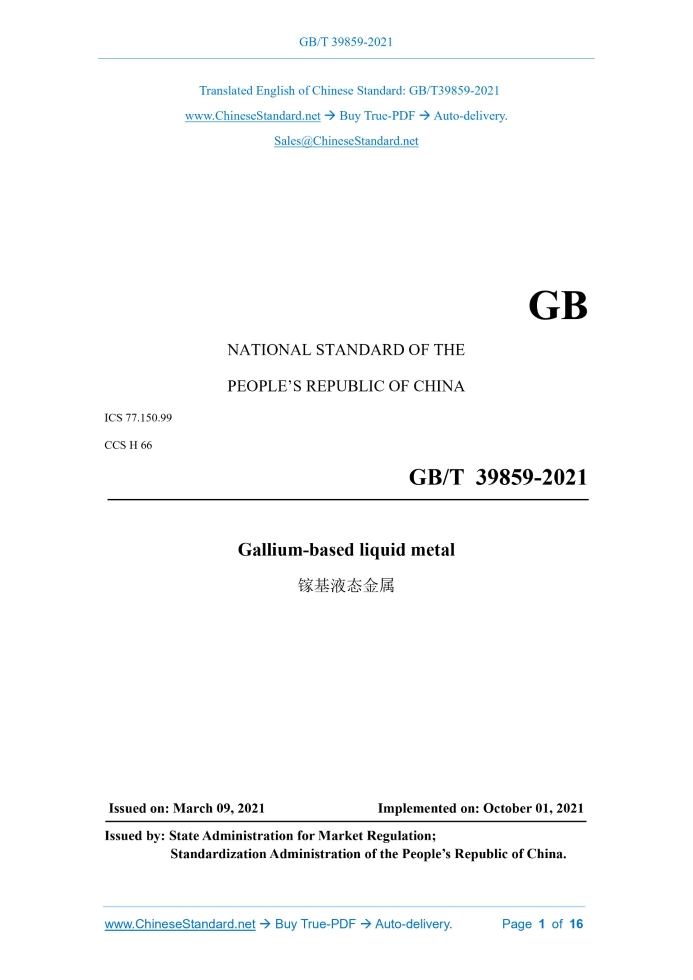

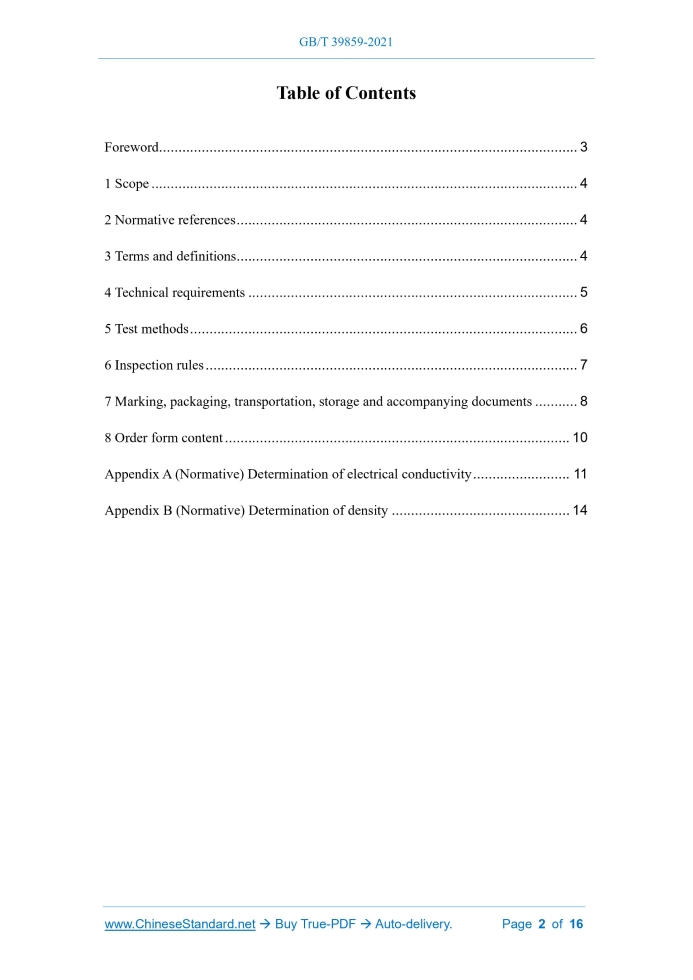

Similar standardsGB/T 39859-2021: Gallium-based liquid metal---This is an excerpt. Full copy of true-PDF in English version (including equations, symbols, images, flow-chart, tables, and figures etc.), auto-downloaded/delivered in 9 seconds, can be purchased online: https://www.ChineseStandard.net/PDF.aspx/GBT39859-2021NATIONAL STANDARD OF THE PEOPLE’S REPUBLIC OF CHINA ICS 77.150.99 CCS H 66 Gallium-based liquid metal ISSUED ON: MARCH 09, 2021 IMPLEMENTED ON: OCTOBER 01, 2021 Issued by: State Administration for Market Regulation; Standardization Administration of the People’s Republic of China. Table of ContentsForeword ... 3 1 Scope ... 4 2 Normative references ... 4 3 Terms and definitions... 4 4 Technical requirements ... 5 5 Test methods ... 6 6 Inspection rules ... 7 7 Marking, packaging, transportation, storage and accompanying documents ... 8 8 Order form content ... 10 Appendix A (Normative) Determination of electrical conductivity ... 11 Appendix B (Normative) Determination of density ... 14 Gallium-based liquid metal1 ScopeThis document specifies the technical requirements, test methods, inspection rules, marking, packaging, transportation, storage, as well as accompanying documents and order forms for gallium-based liquid metals. This document applies to gallium-based liquid metals used for cooling fluids, conductive fluids, thermal interface materials, electronic pastes, and magnetic fluid materials.2 Normative referencesThe following documents, in whole or in part, are normatively referenced in this document and are indispensable for its application. For dated references, only the version corresponding to that date is applicable to this document; for undated references, the latest version (including all amendments) is applicable to this document. GB/T 8170, Rules of rounding off for numerical values & expression and judgment of limiting values GB/T 1024, Methods of viscosity measurement GB/T 22588, Determination of thermal diffusivity or thermal conductivity by the flash method SY/T 5370, Test method for surface tension and interfacial tendon YS/T 1256, Nonferrous metal materials - Specific heat capacity testing - Differential scanning calorimetry YS/T 1257, Nonferrous metal materials - Enthalpies of fusion and crystallization testing-Differential scanning calorimetry YS/T 1258, Nonferrous metal materials - Melting and crystallization temperatures - Thermal analysis3 Terms and definitionsThe following terms and definitions are applicable to this document. 3.1 melting temperature 5.2.7 The determination of specific heat capacity shall comply with the provisions of YS/T 1256. 5.2.8 The determination of enthalpy of melting shall comply with the provisions of YS/T 1257.6 Inspection rules6.1 Inspection and acceptance 6.1.1 The product shall be inspected by the quality inspection department of the supplier to ensure that the product conforms to the provisions of this document (or order form), and the accompanying documents shall be filled out. 6.1.2 The buyer can inspect the received products according to the provisions of this document. Where the inspection results are inconsistent with the provisions of this document, they shall be sealed separately, which, within 30 days from the date of receipt of the product or within the time specified in the sales contract, shall be submitted to the supplier in writing, and negotiated and solved by both the supplier and the buyer. If arbitration is required, arbitration sampling shall be carried out jointly by both the supplier and the buyer in the products received by the buyer. 6.2 Batching Products shall be submitted for acceptance in batches. Each batch shall consist of products of the same heat number and the same type. The total amount of each batch shall not exceed 200 kg. 6.3 Sampling Randomly take 5% of the number of bottles from each batch of products (not less than 5 bottles; where the batch is less than 5 bottles, take all); take 5 g ~ 25 g from each bottle; mix them evenly. 6.4 Inspection items Each batch of products shall be inspected for appearance quality and physical properties according to the requirements of Chapter 4 and the test methods of Chapter 5. 6.5 Determination of test results 6.5.1 When the appearance quality inspection is unqualified, judge the batch of products as unqualified. 6.5.2 If the melting temperature, thermal conductivity, and electrical conductivity fail to pass the inspection, a double number of samples shall be taken from this batch of e) outer box size; f) production date; g) markings such as anti-pressure and anti-dumping. 7.2 Packaging 7.2.1 Inner package The product comes in a single package. After the products are melted, put them into plastic bottles such as polypropylene; the net weight of each bottle shall be no more than 1 kg, and it shall be filled with inert gas or vacuum sealed. If the buyer has special requirements, it will be indicated in the order form after negotiation and confirmation between the supplier and the buyer. 7.2.2 Outer package The outer packaging of the product shall be firm and meet the requirements of anti- pressure, shock-proof and moisture-proof. 7.3 Transportation During transportation of the product, squeezing, inversion, sun exposure, rain and bumping shall be avoided. 7.4 Storage The product shall be stored in a well-ventilated, dry storage room where the ambient temperature is 0 °C ~ 40 °C and the relative humidity is not more than 70%. There shall be no corrosive gases such as acid and alkali in the room. The packing box shall be elevated, at least 20 cm above the ground, and at least 50 cm away from walls, heating equipment or air conditioning equipment. 7.5 Accompanying documents Each batch of products shall be accompanied by accompanying documents, which shall include supplier information, product information, reference to this document (GB/T 39859), date of manufacture or packaging date, and should also include: a) Product quality guarantee: ● Main performance and technical parameters of the product; ● Product features (including the features of manufacturing process and raw materials); ● Responsibility for product quality; ● Quality certification obtained by the product and various analysis and inspection results checked and printed by the technical supervision department of the supplier. b) Product certification; ● Inspection items and their results or inspection conclusions; ● Batch or batch number; ● Inspection date; ● Inspector's signature or seal. c) Inspection report during product quality control and inspection report of finished product; d) Product instructions: correct handling, use, and storage methods; e) Other.8 Order form contentThe order form for the products listed in this document shall contain the following: a) product name; b) product model; c) quantity; d) packaging method; e) special requirements, specified in this document, which shall be negotiated by both the supplier and the buyer; f) reference to this document (GB/T 39859). A.2.2 Digital voltmeter It can measure the voltage of 0.01 mV ~ 100 mV; the measurement error is less than ±0.5%. The input impedance of the instrument shall be more than 3 orders of magnitude greater than the resistance of the sample. A.2.3 Probe It does not dissolve or react in the sample. It can be made of graphite, tungsten, molybdenum, etc. A.2.4 Conductivity cell In accordance with the structure in Figure A.1, the ratio of the cross-sectional area of the quartz container between the voltage probes to the length of the sample is not greater than 0.2 mm. A.2.5 Constant temperature bath Water bath or oil bath, where the temperature error at constant temperature should not exceed ±0.5 °C. A.2.6 Others Fixtures and spreaders for conductivity cells, probes. A.3 Test temperature In the range of 25 °C ~ 30 °C, not lower than the melting temperature of the sample, which shall be indicated in the test report. A.4 Test steps A.4.1 Set the temperature of the constant temperature bath to the test temperature; fix the conductivity cell in the constant temperature bath. A.4.2 Put the liquid metal sample into the conductivity cell; fix the four probes connected to the constant current power supply and the digital voltmeter at the preset positions according to Figure A.1. The height of the sample liquid level shall ensure that the tip of the probe is not less than 0.5 cm immersed in the sample. A.4.3 Start the constant current power supply to pass a constant direct current to the sample; read after the indication of the voltmeter is stable; record the voltage between the two voltage probes. A.5 Test data processing A.5.1 Calculation of resistivity A.5.1.1 The resistivity of the sample is calculated according to Formula (A.1): Where: ρ – resistivity, in ohm-meters (Ω·m); S – cross-sectional area of the sample between the voltage probes, in square meters (m2); ΔU – voltage between the voltage probes, in volts (V); L – length of the sample between the voltage probes, in meters (m); I – constant current passing between the current probes, in amperes (A). Reserve three significant figures for the calculation result; carry out rounding of the numerical value according to the provisions of GB/T 8170. A.5.1.2 The resistivity of the sample can also be calculated according to Formula (A.2): C – conductivity cell constant calibrated with the standard sample, in meters (m). Reserve three significant figures for the calculation result; carry out rounding of the numerical value according to the provisions of GB/T 8170. A.5.2 Calculation of conductivity The conductivity of the sample is calculated according to Formula (A.3): Where: σ – conductivity of the sample, in Siemens per meter (S/m). Reserve three significant figures for the calculation result; carry out rounding of the numerical value according to the provisions of GB/T 8170. B.5 Test steps B.5.1 Let the sample, pure water and test equipment stand still at the test temperature for not less than 1 h. B.5.2 Weigh the mass (m) of the empty sample cup in air. B.5.3 Put the empty sample cup on the water spreader and immerse it completely in water; weigh the mass (m1). B.5.4 After the sample cup is completely dried, put the liquid metal sample into the sample cup; weigh the mass (M) in air. B.5.5 Place the sample cup containing the liquid metal sample on the water spreader; make the water completely immerse the liquid metal sample; weigh the mass (M1). B.5.6 The water temperature can be the average value of the two measured temperatures before and after weighing in water. B.6 Test data processing The density of the sample is calculated according to Formula (B.1): Where: ρ – density of the sample, in grams per cubic centimeter (g/cm3); M – mass of the sample and sample cup weighed in air, in grams (g); m – mass of the sample cup weighed in air, in grams (g); ρt – density of water at temperature t, in grams per cubic centimeter (g/cm3), which can be found in Table B.1; M1 – mass of the sample and sample cup weighed on the water spreader, in grams (g); m1 – mass of the sample cup weighed on the water spreader, in grams (g). Reserve three significant figures for the calculation result; carry out rounding of the numerical value according to the provisions of GB/T 8170. ......Source: Above contents are excerpted from the full-copy PDF -- translated/reviewed by: www.ChineseStandard.net / Wayne Zheng et al. Tips & Frequently Asked Questions:Question 1: How long will the true-PDF of English version of GB/T 39859-2021 be delivered?Answer: The full copy PDF of English version of GB/T 39859-2021 can be downloaded in 9 seconds, and it will also be emailed to you in 9 seconds (double mechanisms to ensure the delivery reliably), with PDF-invoice.Question 2: Can I share the purchased PDF of GB/T 39859-2021_English with my colleagues?Answer: Yes. The purchased PDF of GB/T 39859-2021_English will be deemed to be sold to your employer/organization who actually paid for it, including your colleagues and your employer's intranet.Question 3: Does the price include tax/VAT?Answer: Yes. Our tax invoice, downloaded/delivered in 9 seconds, includes all tax/VAT and complies with 100+ countries' tax regulations (tax exempted in 100+ countries) -- See Avoidance of Double Taxation Agreements (DTAs): List of DTAs signed between Singapore and 100+ countriesQuestion 4: Do you accept my currency other than USD?Answer: Yes. www.ChineseStandard.us -- GB/T 39859-2021 -- Click this link and select your country/currency to pay, the exact amount in your currency will be printed on the invoice. Full PDF will also be downloaded/emailed in 9 seconds.How to buy and download a true PDF of English version of GB/T 39859-2021?A step-by-step guide to download PDF of GB/T 39859-2021_EnglishStep 1: Visit website https://www.ChineseStandard.net (Pay in USD), or https://www.ChineseStandard.us (Pay in any currencies such as Euro, KRW, JPY, AUD).Step 2: Search keyword "GB/T 39859-2021". Step 3: Click "Add to Cart". If multiple PDFs are required, repeat steps 2 and 3 to add up to 12 PDFs to cart. Step 4: Select payment option (Via payment agents Stripe or PayPal). Step 5: Customize Tax Invoice -- Fill up your email etc. Step 6: Click "Checkout". Step 7: Make payment by credit card, PayPal, Google Pay etc. After the payment is completed and in 9 seconds, you will receive 2 emails attached with the purchased PDFs and PDF-invoice, respectively. Step 8: Optional -- Go to download PDF. Step 9: Optional -- Click Open/Download PDF to download PDFs and invoice. See screenshots for above steps: Steps 1~3 Steps 4~6 Step 7 Step 8 Step 9 |
