GB/T 39763-2021 PDF EnglishUS$175.00 · In stock · Download in 9 seconds
GB/T 39763-2021: Technical requirements for on-site and rapid collection equipment of volatile organic compounds from furniture Delivery: 9 seconds. True-PDF full-copy in English & invoice will be downloaded + auto-delivered via email. See step-by-step procedure Status: Valid

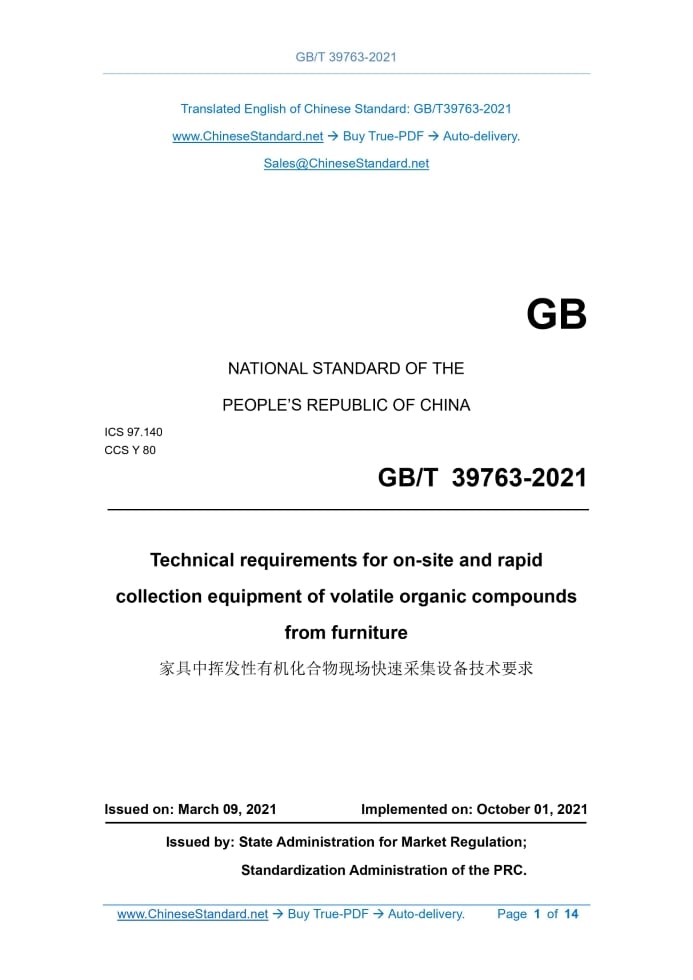

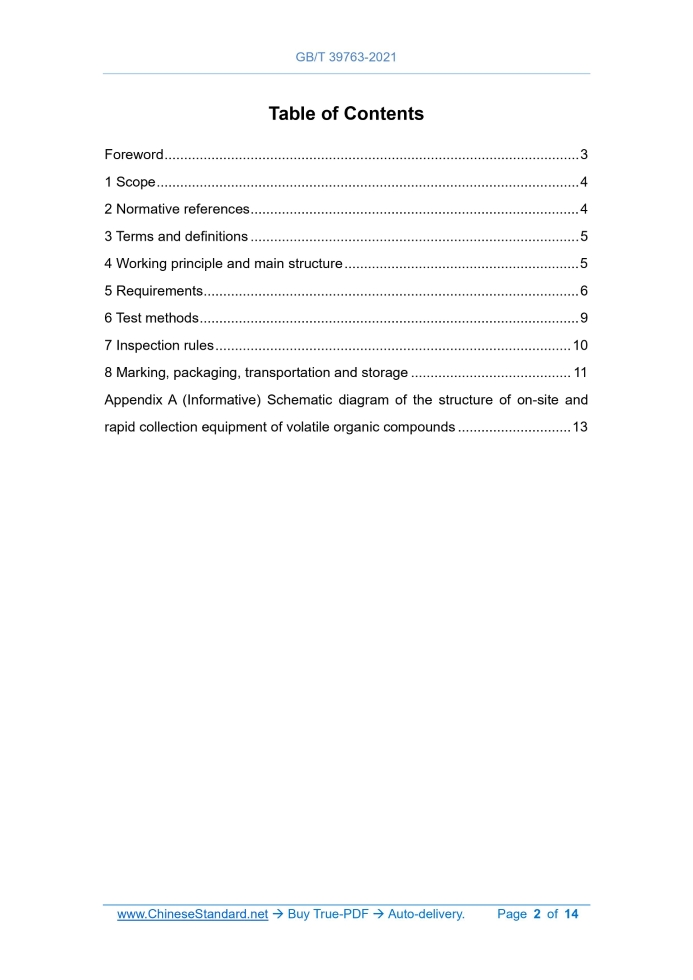

Similar standardsGB/T 39763-2021: Technical requirements for on-site and rapid collection equipment of volatile organic compounds from furniture---This is an excerpt. Full copy of true-PDF in English version (including equations, symbols, images, flow-chart, tables, and figures etc.), auto-downloaded/delivered in 9 seconds, can be purchased online: https://www.ChineseStandard.net/PDF.aspx/GBT39763-2021 GB NATIONAL STANDARD OF THE PEOPLE’S REPUBLIC OF CHINA ICS 97.140 CCS Y 80 Technical requirements for on-site and rapid collection equipment of volatile organic compounds from furniture ISSUED ON: MARCH 09, 2021 IMPLEMENTED ON: OCTOBER 01, 2021 Issued by: State Administration for Market Regulation; Standardization Administration of the PRC. Table of ContentsForeword ... 3 1 Scope ... 4 2 Normative references ... 4 3 Terms and definitions ... 5 4 Working principle and main structure ... 5 5 Requirements ... 6 6 Test methods ... 9 7 Inspection rules ... 10 8 Marking, packaging, transportation and storage ... 11 Appendix A (Informative) Schematic diagram of the structure of on-site and rapid collection equipment of volatile organic compounds ... 13 Technical requirements for on-site and rapid collection equipment of volatile organic compounds from furniture1 ScopeThis document specifies the terms and definitions, working principle and main structure, requirements, test methods, inspection rules, marking, packaging, transportation and storage for on-site and rapid collection equipment of volatile organic compounds from furniture. This document applies to the on-site and rapid collection equipment of volatile organic compounds from furniture.2 Normative referencesThe contents of the following documents, through normative references in this text, constitute indispensable provisions of this document. Among them, for dated references, only the edition corresponding to that date applies to this document. For undated references, the latest edition (including all amendments) applies to this document. GB/T 191 Packaging - Pictorial marking for handling of goods GB/T 9969 General principles for preparation of instructions for use of industrial products GB/T 13306 Plates GB/T 14436 General principles of industrial product guarantee documents GB/T 32443-2015 Determination of the emission of volatile organic compounds from furniture - Emission test cell method JJF 1101 Calibration Specification for Environmental Testing Equipment for Temperature and Humidity Parameters JJG 1132 Thermal Mass Gas Flowmeters The main structure of the on-site and rapid collection equipment of volatile organic compounds from wooden furniture includes an intake system and a pressing collector. The structure diagram is shown in Figure A.1 in Appendix A. The intake system includes a high-purity gas supply device (cylinder or gas generator, etc.), a thermostat, a flowmeter and a gas pipe. The pressing collector includes a collector and a sucker; is provided with an intake port, an exhaust port, and a gas sampling port. The main structure of the on-site and rapid collection equipment for volatile organic compounds from upholstered furniture includes an an intake system, a counterweight collector and a circulatory system. The structure diagram is shown in Figure A.2. The intake system includes a high-purity gas supply device (cylinder or gas generator, etc.), a thermostat, a flowmeter and a gas pipe. The counterweight collector includes a collector and a counterweight; is provided with an intake port (supply port), a gas sampling port (exhaust port), and a circulating gas interface. The circulatory system consists of a gas pipe, a flowmeter, a mixing filter pipe and a gas pump. 4.3 Working process Place the collector on the surface of the furniture; press the collector tightly. The intake system passes a certain temperature and volume of high-purity gas into the collector for replacement. After the replacement, keep the load for a certain time. The gas in the collector is uniformly mixed with the volatilized gas on the surface of the furniture, to form the gas to be measured.5 Requirements5.1 Materials The collector, pipelines, and gas flow parts shall be made of materials such as glass, stainless steel, polytetrafluoroethylene, which do not absorb and release volatile organic compounds. 5.2 Air tightness of equipment The flow rate of the exhaust port shall not be less than 95% of the flow rate of the intake port. 5.3 Intake system and circulatory system 5.3.1 Intake requirements It shall use high-purity gas which does not react with volatile organic compounds. High-purity nitrogen with a purity of not less than 99.999% can be 5.7 Recovery rate The average recovery rate of toluene and n-dodecane shall be greater than 80%.6 Test methods6.1 Test conditions The test temperature and relative humidity are set according to the furniture product standards. If the product standards do not stipulate, it should be carried out under the conditions of indoor temperature of (23±2)°C and relative humidity of (45±5)%. And it shall be indicated in the inspection report. Before the test, the equipment shall be cleaned. The gas pipe and connecting parts shall be checked, to ensure that the equipment can operate normally to meet the test requirements. 6.2 Materials Use the method of visual inspection, to check the consistency of the material and the product’s instructions for use. Through the background concentration determination (see 6.9), verify the performance that the material does not absorb and does not release volatile organic compounds. 6.3 Air tightness of equipment It shall be carried out according to the provisions of 8.4 in GB/T 32443-2015. 6.4 Intake requirements Check whether the gas identification on the high-purity gas supply device indicates a high-purity gas. 6.5 Flowmeter It shall be carried out according to the provisions of JJG 1132. 6.6 Thermostat It shall be carried out according to the provisions of JJF 1101. 6.7 Pressing collector Use a caliper with an accuracy of not less than 0.1 mm to measure the radius8 Marking, packaging, transportation and storage8.1 Marking 8.1.1 Each product shall have a plate fixed on an obvious location. The plate shall meet the requirements of GB/T 13306. It shall include: a) Product model and name; b) Name and address of the manufacturer; c) Main technical parameters and executive standard number; d) Exit-factory number; e) Exit-factory date. 8.1.2 The packaging pictorial marking for handling of goods shall meet the requirements of GB/T 191. 8.1.3 The transport package shipping mark shall meet the requirements of GB/T 9969. 8.2 Packaging Before product packaging, the exposed parts and coated parts shall be treated with rust prevention. The products are packed in separate boxes. Each packaging box shall have a serial number. Parts, which must not be placed upside down and are fragile, shall be clearly marked. The technical documents are placed in the first packaging box. The technical documents shall include at least: a) Product conformity certificate. The preparation of the product conformity certificate shall meet the requirements of GB/T 14436; b) Instructions for use. The preparation of instructions for use shall meet the requirements of GB/T 9969; c) Packing list. If the storage period exceeds 1 year, before leaving the factory, it shall be unpacked and inspected. If the product packaging does not meet the relevant regulations, it shall be repackaged. 8.3 Transportation ......Source: Above contents are excerpted from the full-copy PDF -- translated/reviewed by: www.ChineseStandard.net / Wayne Zheng et al. Tips & Frequently Asked Questions:Question 1: How long will the true-PDF of English version of GB/T 39763-2021 be delivered?Answer: The full copy PDF of English version of GB/T 39763-2021 can be downloaded in 9 seconds, and it will also be emailed to you in 9 seconds (double mechanisms to ensure the delivery reliably), with PDF-invoice.Question 2: Can I share the purchased PDF of GB/T 39763-2021_English with my colleagues?Answer: Yes. The purchased PDF of GB/T 39763-2021_English will be deemed to be sold to your employer/organization who actually paid for it, including your colleagues and your employer's intranet.Question 3: Does the price include tax/VAT?Answer: Yes. Our tax invoice, downloaded/delivered in 9 seconds, includes all tax/VAT and complies with 100+ countries' tax regulations (tax exempted in 100+ countries) -- See Avoidance of Double Taxation Agreements (DTAs): List of DTAs signed between Singapore and 100+ countriesQuestion 4: Do you accept my currency other than USD?Answer: Yes. www.ChineseStandard.us -- GB/T 39763-2021 -- Click this link and select your country/currency to pay, the exact amount in your currency will be printed on the invoice. Full PDF will also be downloaded/emailed in 9 seconds.How to buy and download a true PDF of English version of GB/T 39763-2021?A step-by-step guide to download PDF of GB/T 39763-2021_EnglishStep 1: Visit website https://www.ChineseStandard.net (Pay in USD), or https://www.ChineseStandard.us (Pay in any currencies such as Euro, KRW, JPY, AUD).Step 2: Search keyword "GB/T 39763-2021". Step 3: Click "Add to Cart". If multiple PDFs are required, repeat steps 2 and 3 to add up to 12 PDFs to cart. Step 4: Select payment option (Via payment agents Stripe or PayPal). Step 5: Customize Tax Invoice -- Fill up your email etc. Step 6: Click "Checkout". Step 7: Make payment by credit card, PayPal, Google Pay etc. After the payment is completed and in 9 seconds, you will receive 2 emails attached with the purchased PDFs and PDF-invoice, respectively. Step 8: Optional -- Go to download PDF. Step 9: Optional -- Click Open/Download PDF to download PDFs and invoice. See screenshots for above steps: Steps 1~3 Steps 4~6 Step 7 Step 8 Step 9 |
