GB/T 3954-2014: Aluminium and aluminium alloys rod for electrical purpose Delivery: 9 seconds. True-PDF full-copy in English & invoice will be downloaded + auto-delivered via email. See step-by-step procedure Status: Obsolete GB/T 3954: Historical versions

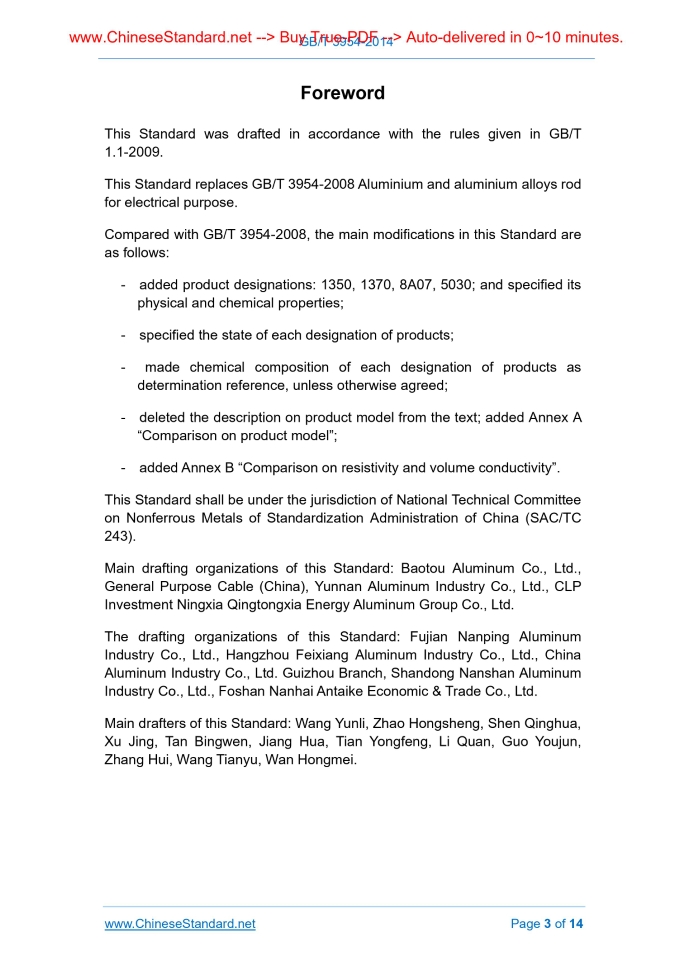

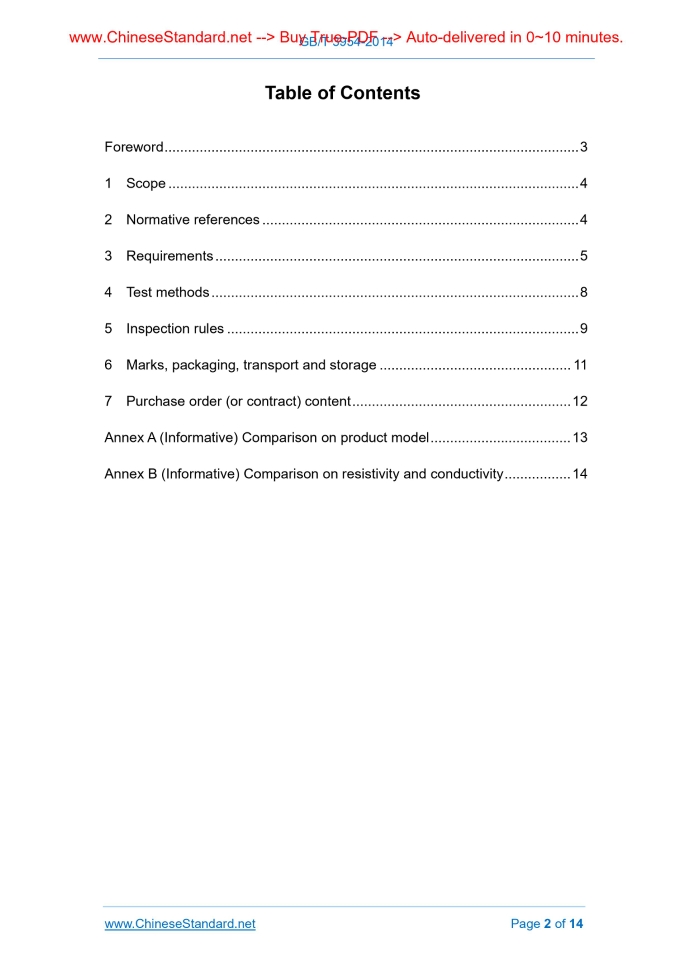

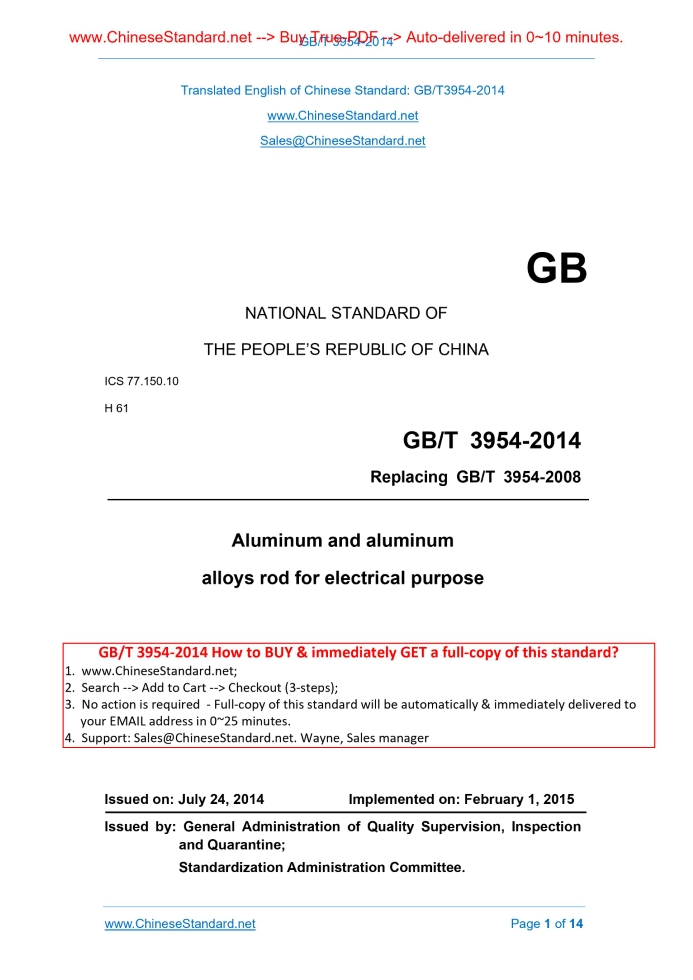

Similar standardsGB/T 3954-2014: Aluminium and aluminium alloys rod for electrical purpose---This is an excerpt. Full copy of true-PDF in English version (including equations, symbols, images, flow-chart, tables, and figures etc.), auto-downloaded/delivered in 9 seconds, can be purchased online: https://www.ChineseStandard.net/PDF.aspx/GBT3954-2014GB NATIONAL STANDARD OF THE PEOPLE’S REPUBLIC OF CHINA ICS 77.150.10 H 61 Replacing GB/T 3954-2008 Aluminum and aluminum alloys rod for electrical purpose Issued on: JULY 24, 2014 Implemented on: FEBRUARY 1, 2015 Issued by. General Administration of Quality Supervision, Inspection and Quarantine; Standardization Administration Committee. Table of ContentsForeword... 3 1 Scope... 4 2 Normative references... 4 3 Requirements... 5 4 Test methods... 8 5 Inspection rules... 9 6 Marks, packaging, transport and storage... 11 7 Purchase order (or contract) content... 12 Annex A (Informative) Comparison on product model... 13 Annex B (Informative) Comparison on resistivity and conductivity... 14ForewordThis Standard was drafted in accordance with the rules given in GB/T 1.1-2009. This Standard replaces GB/T 3954-2008 Aluminium and aluminium alloys rod for electrical purpose. Compared with GB/T 3954-2008, the main modifications in this Standard are as follows. - added product designations. 1350, 1370, 8A07, 5030; and specified its physical and chemical properties; - specified the state of each designation of products; - made chemical composition of each designation of products as determination reference, unless otherwise agreed; - deleted the description on product model from the text; added Annex A “Comparison on product model”; - added Annex B “Comparison on resistivity and volume conductivity”. This Standard shall be under the jurisdiction of National Technical Committee on Nonferrous Metals of Standardization Administration of China (SAC/TC 243). Main drafting organizations of this Standard. Baotou Aluminum Co., Ltd., General Purpose Cable (China), Yunnan Aluminum Industry Co., Ltd., CLP Investment Ningxia Qingtongxia Energy Aluminum Group Co., Ltd. The drafting organizations of this Standard. Fujian Nanping Aluminum Industry Co., Ltd., Hangzhou Feixiang Aluminum Industry Co., Ltd., China Aluminum Industry Co., Ltd. Guizhou Branch, Shandong Nanshan Aluminum Industry Co., Ltd., Foshan Nanhai Antaike Economic & Trade Co., Ltd. Main drafters of this Standard. Wang Yunli, Zhao Hongsheng, Shen Qinghua, Xu Jing, Tan Bingwen, Jiang Hua, Tian Yongfeng, Li Quan, Guo Youjun, Zhang Hui, Wang Tianyu, Wan Hongmei. Aluminum and aluminum alloys rod for electrical purpose1 ScopeThis Standard specifies the requirements, test methods, inspection rules, marks, packaging, storage, quality certificate and purchase order (or contract) of aluminum and aluminum alloys rod for electrical purpose. This Standard is applicable to continuous casting and rolling electric aluminum and aluminum alloys rod for electrical purpose of drawn wire, cable conductive wire with round aluminum wire, aluminum wire and other electrical aluminum conductor.2 Normative referencesThe following referenced documents are indispensable for the application of this document. For dated references, only the edition cited applies. For undated references, the latest edition of the referenced document (including any amendments) applies. GB/T 3048.2, Test methods for electrical properties of electric cables and wires - Part 2.Test of electrical resistivity of metallic materials GB/T 3190, Wrought aluminium and aluminium alloy - Chemical composition GB/T 4909.2, Test methods for bare wires - Part 2.Measurement of dimensions GB/T 4909.3, Test methods for bare wires - Part 3.Tensile test GB/T 7999, Optical emission spectrometric analysis method of aluminum and aluminum alloys GB/T 8170, Rules of rounding off for numerical values & expression and judgement of limiting values GB/T 17432, Methods for sampling for analyzing the chemical composition of wrought aluminum and aluminum alloys GB/T 20975 (all parts), Methods for chemical analysis of aluminium and The measurements of tensile strength and elongation rate shall comply with the provisions of GB/T 4909.3. 4.4 Resistivity The resistivity test shall be carried out according to the provisions of GB/T 3048.2. 4.5 Heat resistance The heat resistance inspection method of aluminum and aluminum alloys rod for electrical purpose with designation of 8A07 shall be carried out according to the following steps. a) insulate the 8A07 aluminum alloy rod in the insulation furnace for 1h according to the requirements of Table 5; b) inspect the tensile strength after naturally cooling the insulated aluminum alloy rod to room temperature; c) 8A07 aluminum alloy rod heat resistance (tensile strength residual rate). the same designation shall be in accordance with the ratio BETWEEN tensile strength after method a) insulation treatment AND un-insulated tensile strength under natural state after production. 4.6 Appearance quality The appearance quality shall be visually inspected. 4.7 Numerical value rounding and determination The numerical value rounding and determination shall be carried out according to the provisions of GB/T 8170.5 Inspection rules5.1 Inspection and acceptance 5.1.1 The aluminum and aluminum alloys rod for electrical purpose shall be inspected by the supplier’s technical supervision department to ensure that the product quality shall be in accordance with the provisions of this Standard (or purchase contract). And fill in the quality certificate. 5.1.2 The purchaser shall inspect the product received according to the provisions of this Standard. If the inspection results do not comply with the provisions of this Standard and purchase order, the purchaser shall put forward to the supplier within one month since the date of receipt of the 5.5.2 If any indicator in tensile strength, elongation, resistivity and 8A07 aluminum alloy rod heat resistance fails, for big roll, it shall extract double samples from the roll represented by the unqualified sample to repeat the test. If there is still a sample failed, then this roll shall be determined as unqualified. For small roll, it shall extract double samples from the roll represented by the unqualified sample to repeat the test. If there is still a sample failed, then these 2 rolls shall be determined as unqualified. However, the inspection by rolls shall be carried out after agreement by the supplier and the purchaser. Qualified delivery. 5.5.3 When the size deviation is unqualified, this roll shall be determined as unqualified. 5.5.4 When the appearance quality is unqualified, this roll shall be determined as unqualified. But the supplier is allowed to cut out the unqualified part for re-inspection. Qualified delivery.6 Marks, packaging, transport and storage6.1 Marks Each roll of qualified aluminum and aluminum alloys rod for electrical purpose shall be attached with label, at least indicating the following information. a) supplier’s name; b) product’s name, designation; c) diameter; d) batch number; e) state; f) net weight; g) date of production; h) reference to this Standard. 6.2 Packaging The aluminum and aluminum alloys rod for electrical purpose shall be packaged in rolls and well tied. If purchaser has special requirements for packaging, it shall be negotiated by the supplier and the purchaser and indicated in the purchase order (or contract). 6.3 Transport, storage ......Source: Above contents are excerpted from the full-copy PDF -- translated/reviewed by: www.ChineseStandard.net / Wayne Zheng et al. |
