GB/T 39494-2020: Determination for Coating Adhesion of Rare Earth Permanent Magnetic Materials for Drive Motor of New Energy Vehicle Delivery: 9 seconds. True-PDF full-copy in English & invoice will be downloaded + auto-delivered via email. See step-by-step procedure Status: Valid

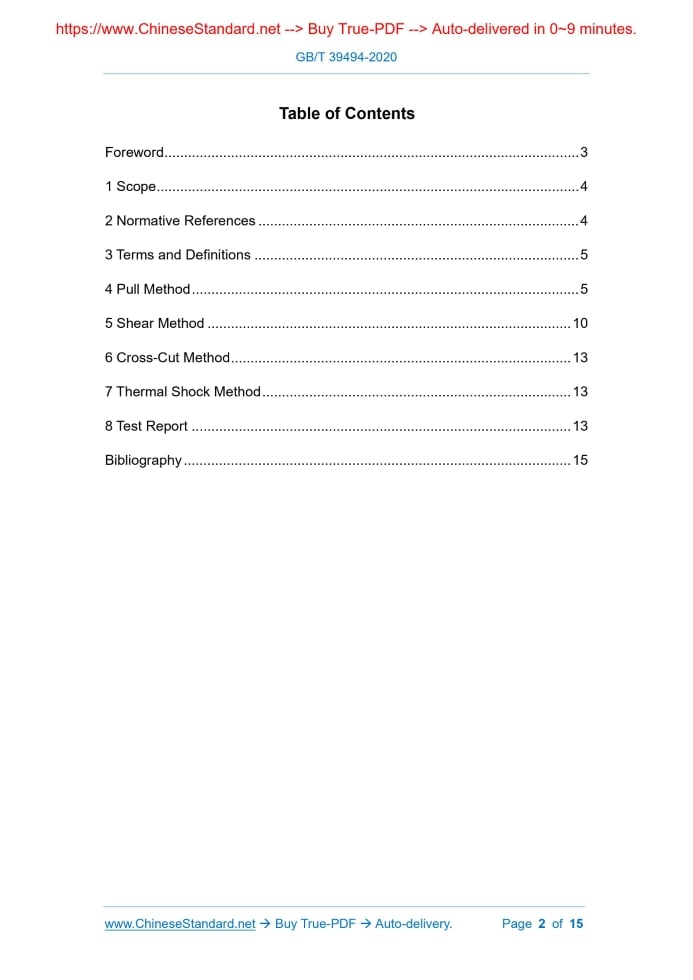

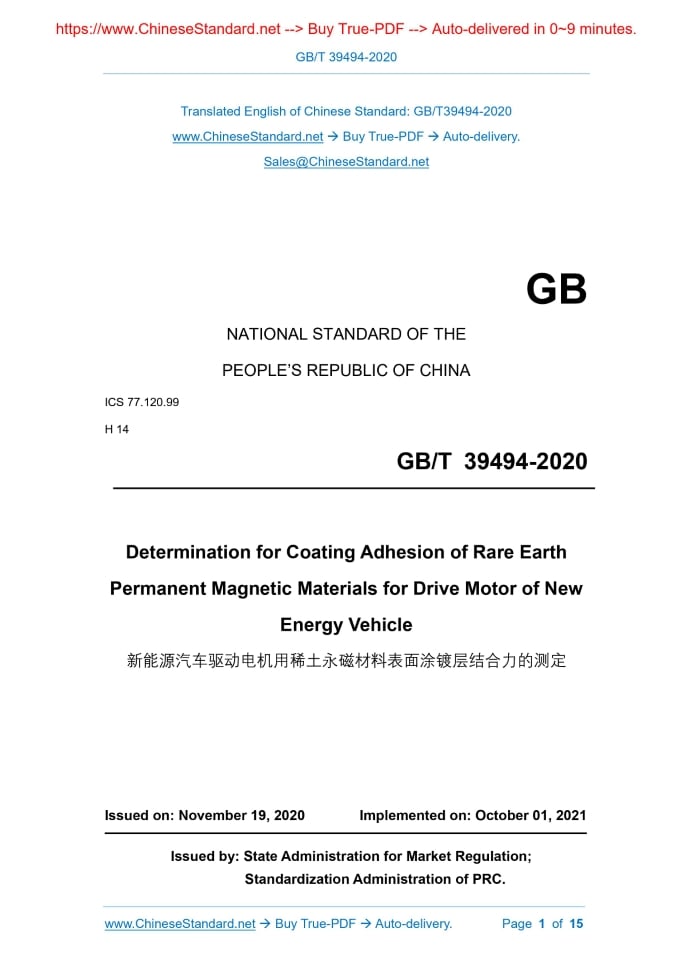

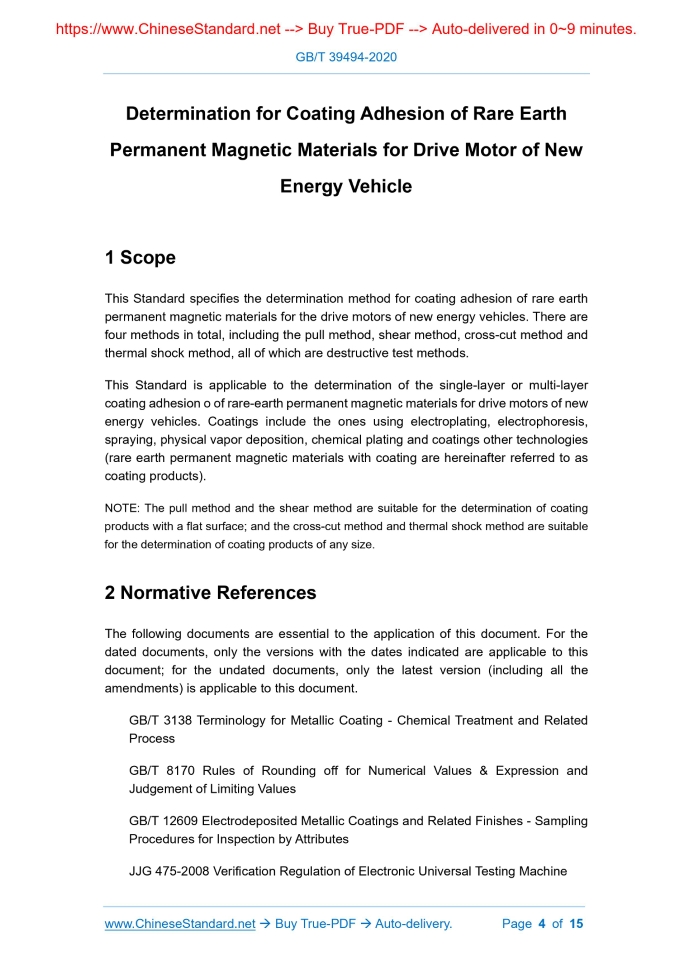

Similar standardsGB/T 39494-2020: Determination for Coating Adhesion of Rare Earth Permanent Magnetic Materials for Drive Motor of New Energy Vehicle---This is an excerpt. Full copy of true-PDF in English version (including equations, symbols, images, flow-chart, tables, and figures etc.), auto-downloaded/delivered in 9 seconds, can be purchased online: https://www.ChineseStandard.net/PDF.aspx/GBT39494-2020 GB NATIONAL STANDARD OF THE PEOPLE’S REPUBLIC OF CHINA ICS 77.120.99 H 14 Determination for Coating Adhesion of Rare Earth Permanent Magnetic Materials for Drive Motor of New Energy Vehicle ISSUED ON: NOVEMBER 19, 2020 IMPLEMENTED ON: OCTOBER 01, 2021 Issued by: State Administration for Market Regulation; Standardization Administration of PRC. Table of ContentsForeword ... 3 1 Scope ... 4 2 Normative References ... 4 3 Terms and Definitions ... 5 4 Pull Method ... 5 5 Shear Method ... 10 6 Cross-Cut Method ... 13 7 Thermal Shock Method ... 13 8 Test Report ... 13 Bibliography ... 15 Determination for Coating Adhesion of Rare Earth Permanent Magnetic Materials for Drive Motor of New Energy Vehicle1 ScopeThis Standard specifies the determination method for coating adhesion of rare earth permanent magnetic materials for the drive motors of new energy vehicles. There are four methods in total, including the pull method, shear method, cross-cut method and thermal shock method, all of which are destructive test methods. This Standard is applicable to the determination of the single-layer or multi-layer coating adhesion o of rare-earth permanent magnetic materials for drive motors of new energy vehicles. Coatings include the ones using electroplating, electrophoresis, spraying, physical vapor deposition, chemical plating and coatings other technologies (rare earth permanent magnetic materials with coating are hereinafter referred to as coating products). NOTE: The pull method and the shear method are suitable for the determination of coating products with a flat surface; and the cross-cut method and thermal shock method are suitable for the determination of coating products of any size.2 Normative ReferencesThe following documents are essential to the application of this document. For the dated documents, only the versions with the dates indicated are applicable to this document; for the undated documents, only the latest version (including all the amendments) is applicable to this document. GB/T 3138 Terminology for Metallic Coating - Chemical Treatment and Related Process GB/T 8170 Rules of Rounding off for Numerical Values & Expression and Judgement of Limiting Values GB/T 12609 Electrodeposited Metallic Coatings and Related Finishes - Sampling Procedures for Inspection by Attributes JJG 475-2008 Verification Regulation of Electronic Universal Testing Machine 4.2.3.2 Test column The test column is composed of a stainless-steel cylinder. One end of the test column is connected to the tensile testing machine; and the other end is bonded with the coating by adhesive. The bonding surface of the test column shall be perpendicular to the axis of the test column (90°±0.5°); and the edges shall be kept at a right angle without chamfering. The surface needs to be polished, and the surface roughness Rα value of the polished surface is in the range of 0.4μm~12.5μm, which may be adjusted appropriately according to the properties of the adhesive. The diameter of the bonding surface of the test column is 10mm~20mm, and the length of the test column is no less than its diameter. If the coating product is a non-planar product such as a tile shape, the bonding surface of the test column shall be processed to a corresponding arc according to the size of the coating product to ensure that the bonding surface of the test column may be closely attached to the bonding surface of the coating. 4.2.3.3 Steel sheet The thickness of the steel sheet is 5mm to ensure that no deformation occurs during the test. The area of the bonding surface of the steel sheet shall be greater than the area of the test surface of the coating product. The upper and lower surfaces shall be smooth, and the roughness Rα value shall be in the range of 0.4μm~12.5μm. 4.2.4 Adhesive 4.2.4.1 The bonding strength of the adhesive shall be greater than the adhesion between the coating and the substrate under test; and it cannot react with the coating. polyurethane methacrylate or epoxy resin adhesives may be used. If the measurement results of different adhesives are different, the measurement result with the lower acceptance value shall be adopted. In order to reduce the influence of the adhesive itself on the measurement results, the same adhesive shall be used as much as possible. 4.2.4.2 The use and curing of the adhesive shall be carried out in accordance with the technical requirements of its manufacturer. Since heating may change the adhesion of the coating, the curing temperature should be no higher than 100°C, and the heating time should not exceed 30min. 4.3 Sampling Sampling according to the sampling plan specified in GB/T 12609; 5 or more pieces of each batch of products shall be randomly sampled. 4.4 Specimen The test surface of the coating product shall be regular, without deformation such as deflection or skew; and the area of the test surface shall be larger than the area of the selected test column. Due to the particularity of rare earth permanent magnetic materials, the specimens shall not be replaced by standard sample boards or products of other specifications. 4.5 Test environment temperature The test shall be carried out in an environment with a temperature of 10°C~30°C and a relative humidity of 30%~70%. 4.6 Test procedure 4.6.1 Pre-treatment of the sample Refer to the test Na in GB/T 2423.22: the rapid temperature change part of the specified conversion time conducts the high and low temperature alternating treatment against the coating products. Expose the coating product to a low temperature of (-40 ± 5) °C, keep it for 30min, then convert the coating product to a high temperature of (120 ± 5) °C, continuously keep it for 30min, and the conversion time should not exceed 3min. After many cycles, observe whether the coating is blistering or peeling off by naked eyes. Unless otherwise specified in relevant specifications, the preferred number of test cycles is 5. 4.6.2 Preparation of test samples Wipe the oil stains on the surfaces of the coated product, test column or steel sheet by absolute ethanol. Apply the adhesive as evenly and thinly as possible on the surface of the coating product, the test column or the steel sheet; and it is required to produce a firm and continuous bonding surface among the coating product, the test column and the steel sheet. During the curing period of the adhesive, connect the coating layer (near the center) coated with the adhesive to the test column or steel sheet; and remove the spilled adhesive during the bonding process in time. After the adhesive is completely cured, if there is still adhesive around the test column, use a blade to remove it. NOTE: Too much adhesive or adhesive is not evenly coated, which easily causes the applied load not to be perpendicular to the surface of the coating, and further affects the accuracy of the test results. 4.6.3 Test Fix the test device in the upper and lower clamps of the tensile testing machine; and apply the tensile force to evenly act on the test surface. There shall be no torsion or slippage between the adhesive surface and the test column. Apply a tensile force in the normal direction of the test surface of the coated product; and the moving speed Key: 1 – substrate; 2 – adhesive; 3 – coating on the substrate surface; 4 – test column; 5 – fixture base; 6 – bonding area; F - compressive force. Figure 2 – Schematic Diagram for Test Device of Shear Method 5.2.3.2 Test column The test column is composed of stainless steel. The bonding surface of the test column shall be perpendicular to the base part (90°±0.5°); and the edges shall be kept at a right angle without chamfering. The bonding surface needs to be polished; and the polished surface roughness Rα value is 0.4μm~12.5μm. Within the range, it can be adjusted appropriately according to the properties of the adhesive. The size of the bonding surface of the test column is 10mm×10mm. 5.2.4 Adhesive The requirements for the adhesive are the same as 4.2.4. 5.2.5 Safety shield It is used to prevent the broken pieces of the specimen from flying out and hurting the test personnel. 5.3 Sampling Sampling according to the sampling plan specified in GB/T 12609; 5 or more pieces of each batch of products shall be randomly sampled. 5.4 Specimen The test surface of the coating product is flat, and there shall be no deformation such as deflection or skew; and the area shall be larger than the area of the selected test column. Due to the particularity of rare earth permanent magnetic materials, the specimens to be tested shall not be replaced by standard templates or products of other specifications. 5.5 Test environmental conditions The test shall be carried out in an environment at a temperature of 10°C~30°C and a relative humidity of 30%~70%. 5.6 Test procedures 5.6.1 Pretreatment of the specimen The pretreatment method of the specimen shall be carried out according to 4.6.1. 5.6.2 Preparation of the test sample Wipe clean the oil stains on the bonding surface of the coating product and the test device by absolute ethanol. The rest is the same as 4.6.2. 5.6.3 Test Fix the test device in the pressure testing machine and use a suitable safety shield for protection. Apply a compressive force in a direction parallel to the measured plane of the coating product, and the moving speed of the beam of the pressure testing machine shall be controlled at a constant value in the range of 0.1mm/min~0.5mm/min, until the coating product is separated from the test column. Record the maximum compressive force F that separates the coating product from the test column. 5.7 Test results 5.7.1 The adhesion τ (in MPa) of the coating of rare earth permanent magnetic material shall be calculated by Formula (2): Where: F - the maximum force that separates the coating product from the test column, in N; A - the bonding area between the coating product and the test column, in mm2. 5.7.2 If the rare earth permanent magnetic material is tile-shaped and other non-planar specifications, use the maximum force value F to replace the adhesion τ index (τ=F); meanwhile mark the arc length, curvature radius and other dimensions of the bonding surface of the test column. 5.7.3 The binding force calculation results are rounded-off according to GB/T 8170, accurate to the one digit after the decimal point. The test results of the same batch of samples are expressed by the arithmetic mean, highest value and lowest value of the adhesion. ......Source: Above contents are excerpted from the full-copy PDF -- translated/reviewed by: www.ChineseStandard.net / Wayne Zheng et al. Tips & Frequently Asked Questions:Question 1: How long will the true-PDF of English version of GB/T 39494-2020 be delivered?Answer: The full copy PDF of English version of GB/T 39494-2020 can be downloaded in 9 seconds, and it will also be emailed to you in 9 seconds (double mechanisms to ensure the delivery reliably), with PDF-invoice.Question 2: Can I share the purchased PDF of GB/T 39494-2020_English with my colleagues?Answer: Yes. The purchased PDF of GB/T 39494-2020_English will be deemed to be sold to your employer/organization who actually paid for it, including your colleagues and your employer's intranet.Question 3: Does the price include tax/VAT?Answer: Yes. Our tax invoice, downloaded/delivered in 9 seconds, includes all tax/VAT and complies with 100+ countries' tax regulations (tax exempted in 100+ countries) -- See Avoidance of Double Taxation Agreements (DTAs): List of DTAs signed between Singapore and 100+ countriesQuestion 4: Do you accept my currency other than USD?Answer: Yes. www.ChineseStandard.us -- GB/T 39494-2020 -- Click this link and select your country/currency to pay, the exact amount in your currency will be printed on the invoice. Full PDF will also be downloaded/emailed in 9 seconds.How to buy and download a true PDF of English version of GB/T 39494-2020?A step-by-step guide to download PDF of GB/T 39494-2020_EnglishStep 1: Visit website https://www.ChineseStandard.net (Pay in USD), or https://www.ChineseStandard.us (Pay in any currencies such as Euro, KRW, JPY, AUD).Step 2: Search keyword "GB/T 39494-2020". Step 3: Click "Add to Cart". If multiple PDFs are required, repeat steps 2 and 3 to add up to 12 PDFs to cart. Step 4: Select payment option (Via payment agents Stripe or PayPal). Step 5: Customize Tax Invoice -- Fill up your email etc. Step 6: Click "Checkout". Step 7: Make payment by credit card, PayPal, Google Pay etc. After the payment is completed and in 9 seconds, you will receive 2 emails attached with the purchased PDFs and PDF-invoice, respectively. Step 8: Optional -- Go to download PDF. Step 9: Optional -- Click Open/Download PDF to download PDFs and invoice. See screenshots for above steps: Steps 1~3 Steps 4~6 Step 7 Step 8 Step 9 |
