GB/T 39160-2020 PDF EnglishUS$110.00 · In stock · Download in 9 seconds
GB/T 39160-2020: Cadmium zinc telluride target for thin-film solar cells Delivery: 9 seconds. True-PDF full-copy in English & invoice will be downloaded + auto-delivered via email. See step-by-step procedure Status: Valid

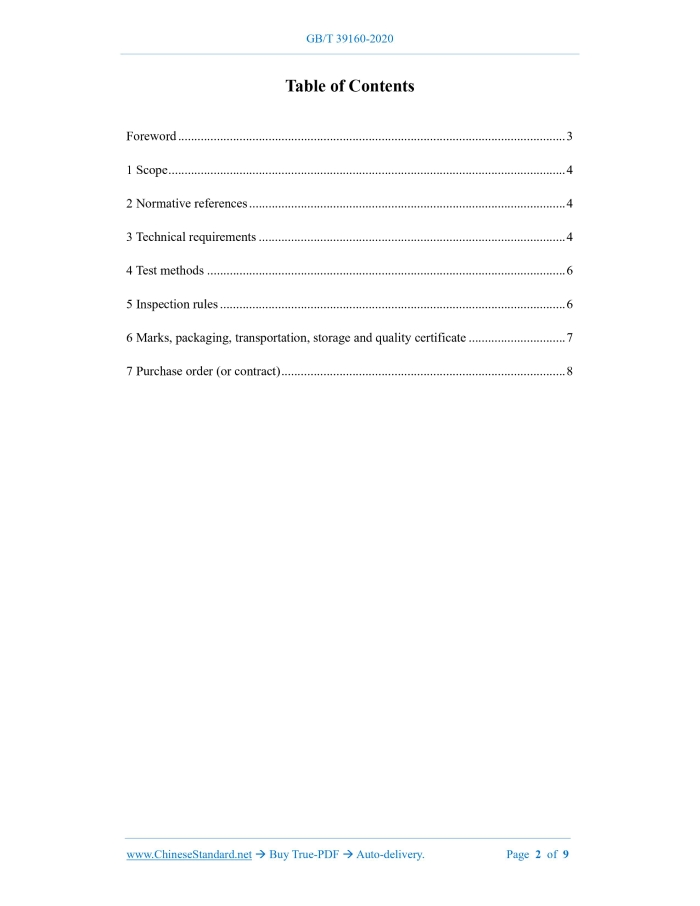

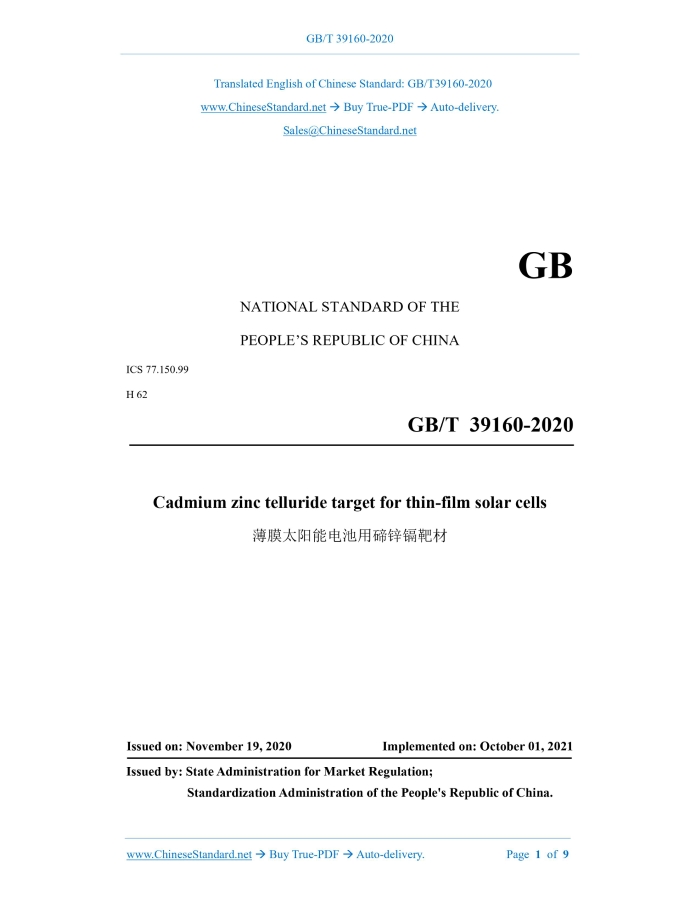

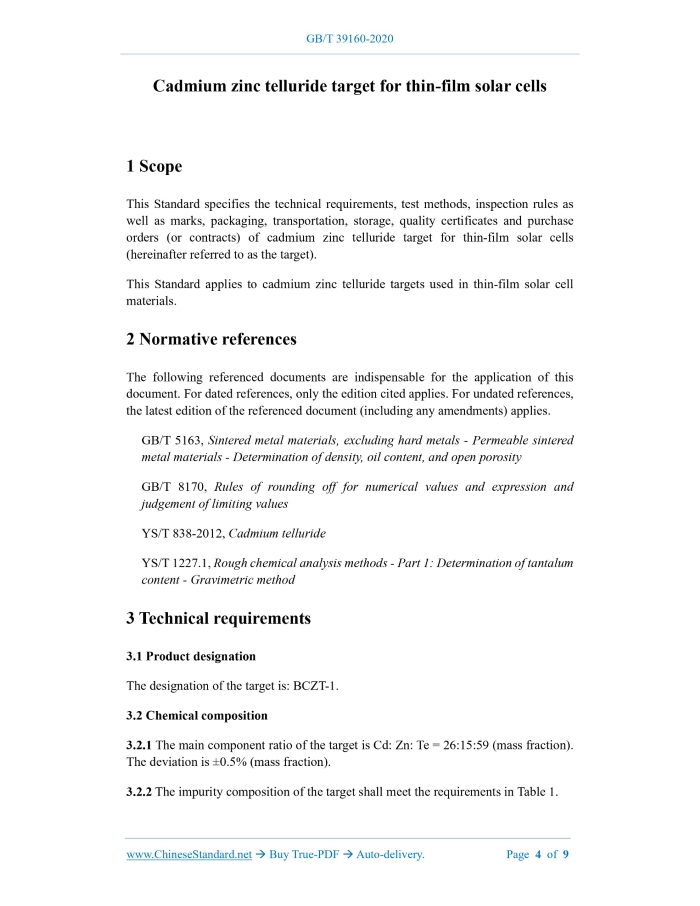

Similar standardsGB/T 39160-2020: Cadmium zinc telluride target for thin-film solar cells---This is an excerpt. Full copy of true-PDF in English version (including equations, symbols, images, flow-chart, tables, and figures etc.), auto-downloaded/delivered in 9 seconds, can be purchased online: https://www.ChineseStandard.net/PDF.aspx/GBT39160-2020GB NATIONAL STANDARD OF THE PEOPLE’S REPUBLIC OF CHINA ICS 77.150.99 H 62 Cadmium zinc telluride target for thin-film solar cells ISSUED ON: NOVEMBER 19, 2020 IMPLEMENTED ON: OCTOBER 01, 2021 Issued by: State Administration for Market Regulation; Standardization Administration of the People's Republic of China. Table of ContentsForeword ... 3 1 Scope ... 4 2 Normative references ... 4 3 Technical requirements ... 4 4 Test methods ... 6 5 Inspection rules ... 6 6 Marks, packaging, transportation, storage and quality certificate ... 7 7 Purchase order (or contract) ... 8 Cadmium zinc telluride target for thin-film solar cells1 ScopeThis Standard specifies the technical requirements, test methods, inspection rules as well as marks, packaging, transportation, storage, quality certificates and purchase orders (or contracts) of cadmium zinc telluride target for thin-film solar cells (hereinafter referred to as the target). This Standard applies to cadmium zinc telluride targets used in thin-film solar cell materials.2 Normative referencesThe following referenced documents are indispensable for the application of this document. For dated references, only the edition cited applies. For undated references, the latest edition of the referenced document (including any amendments) applies. GB/T 5163, Sintered metal materials, excluding hard metals - Permeable sintered metal materials - Determination of density, oil content, and open porosity GB/T 8170, Rules of rounding off for numerical values and expression and judgement of limiting values YS/T 838-2012, Cadmium telluride YS/T 1227.1, Rough chemical analysis methods - Part 1: Determination of tantalum content - Gravimetric method3 Technical requirements3.1 Product designation The designation of the target is: BCZT-1. 3.2 Chemical composition 3.2.1 The main component ratio of the target is Cd: Zn: Te = 26:15:59 (mass fraction). The deviation is ±0.5% (mass fraction). 3.2.2 The impurity composition of the target shall meet the requirements in Table 1.4 Test methods4.1 Chemical composition 4.1.1 The testing method of tellurium content in the target shall be carried out according to the provisions of YS/T 1227.1. The determination methods of cadmium content and zinc content shall be determined through negotiation between the supplier and the purchaser. 4.1.2 The impurity composition testing of the target is carried out according to Annex A of YS/T 838-2012. 4.2 Density The density determination of the target shall be carried out according to the provisions of GB/T 5163. 4.3 Dimensions and allowable deviation The size of the target is measured with a measuring instrument of corresponding precision. 4.4 Surface roughness The surface roughness of the target is inspected with corresponding instruments. 4.5 Appearance quality The appearance quality of the target is inspected visually.5 Inspection rules5.1 Inspection and acceptance 5.1.1 The target shall be inspected by the quality and technical supervision department of the supplier. Ensure that the product quality complies with the provisions of this Standard or the purchase order (or contract). Fill in the quality certificate. 5.1.2 The purchaser shall inspect the received products according to the provisions of this Standard. If the inspection results are inconsistent with the provisions of this Standard or the purchase order (or contract), it shall be reported to the supplier within 30 days from the date of receipt of the product. It will be resolved through negotiation between the supplier and the purchaser. If arbitration is required, arbitration sampling shall be carried out jointly by both the supplier and the purchaser. 5.2 Batching The targets shall be submitted for inspection in batches. Each batch shall be composed of products produced by the same production process and the same batch of raw materials. 5.3 Inspection items 5.3.1 Each batch of targets shall be inspected for chemical composition and density. 5.3.2 Each block (piece) of target shall be inspected for its external dimensions, allowable deviation, surface roughness, and appearance quality. 5.4 Sampling and sample preparation Randomly select 10% samples from the products by block (piece), but not less than 1 piece. Use a wire cutter to cut 2 equidistant portions. One portion is grated and divided into 3 servings. It is not less than 100 g per serving, used for the testing of chemical composition. The other portion is used for density testing. Or the sampling method shall be agreed upon by the supplier and the purchaser. 5.5 Judgment of inspection results 5.5.1 The judgment of the inspection results shall be carried out according to the round- off value comparison method stipulated in GB/T 8170. 5.5.2 If the inspection results of the chemical composition and density of the targets do not conform to the provisions of this Standard, the batch shall be rejected. 5.5.3 If the appearance size, allowable deviation, and surface quality of the target are inconsistent with the provisions of this Standard, the block (piece) shall be rejected.6 Marks, packaging, transportation, storage and qualitycertificate 6.1 Marks Each batch of products shall be accompanied by a label indicating: a) Name and address of the supplier; b) Product name, designation, batch number; c) Net weight and gross weight of the product; d) Date of manufacture. 6.2 Packaging ......Source: Above contents are excerpted from the full-copy PDF -- translated/reviewed by: www.ChineseStandard.net / Wayne Zheng et al. Tips & Frequently Asked Questions:Question 1: How long will the true-PDF of English version of GB/T 39160-2020 be delivered?Answer: The full copy PDF of English version of GB/T 39160-2020 can be downloaded in 9 seconds, and it will also be emailed to you in 9 seconds (double mechanisms to ensure the delivery reliably), with PDF-invoice.Question 2: Can I share the purchased PDF of GB/T 39160-2020_English with my colleagues?Answer: Yes. The purchased PDF of GB/T 39160-2020_English will be deemed to be sold to your employer/organization who actually paid for it, including your colleagues and your employer's intranet.Question 3: Does the price include tax/VAT?Answer: Yes. Our tax invoice, downloaded/delivered in 9 seconds, includes all tax/VAT and complies with 100+ countries' tax regulations (tax exempted in 100+ countries) -- See Avoidance of Double Taxation Agreements (DTAs): List of DTAs signed between Singapore and 100+ countriesQuestion 4: Do you accept my currency other than USD?Answer: Yes. www.ChineseStandard.us -- GB/T 39160-2020 -- Click this link and select your country/currency to pay, the exact amount in your currency will be printed on the invoice. Full PDF will also be downloaded/emailed in 9 seconds.How to buy and download a true PDF of English version of GB/T 39160-2020?A step-by-step guide to download PDF of GB/T 39160-2020_EnglishStep 1: Visit website https://www.ChineseStandard.net (Pay in USD), or https://www.ChineseStandard.us (Pay in any currencies such as Euro, KRW, JPY, AUD).Step 2: Search keyword "GB/T 39160-2020". Step 3: Click "Add to Cart". If multiple PDFs are required, repeat steps 2 and 3 to add up to 12 PDFs to cart. Step 4: Select payment option (Via payment agents Stripe or PayPal). Step 5: Customize Tax Invoice -- Fill up your email etc. Step 6: Click "Checkout". Step 7: Make payment by credit card, PayPal, Google Pay etc. After the payment is completed and in 9 seconds, you will receive 2 emails attached with the purchased PDFs and PDF-invoice, respectively. Step 8: Optional -- Go to download PDF. Step 9: Optional -- Click Open/Download PDF to download PDFs and invoice. See screenshots for above steps: Steps 1~3 Steps 4~6 Step 7 Step 8 Step 9 |
