GB/T 38893-2020: Industrial trucks - Safety monitoring system Delivery: 9 seconds. True-PDF full-copy in English & invoice will be downloaded + auto-delivered via email. See step-by-step procedure Status: Valid

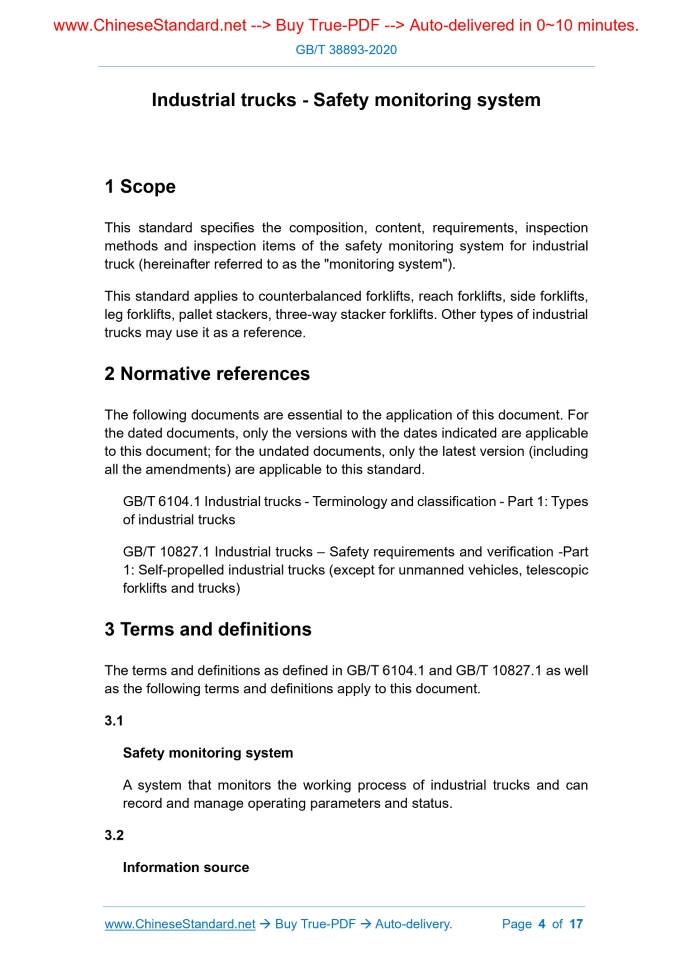

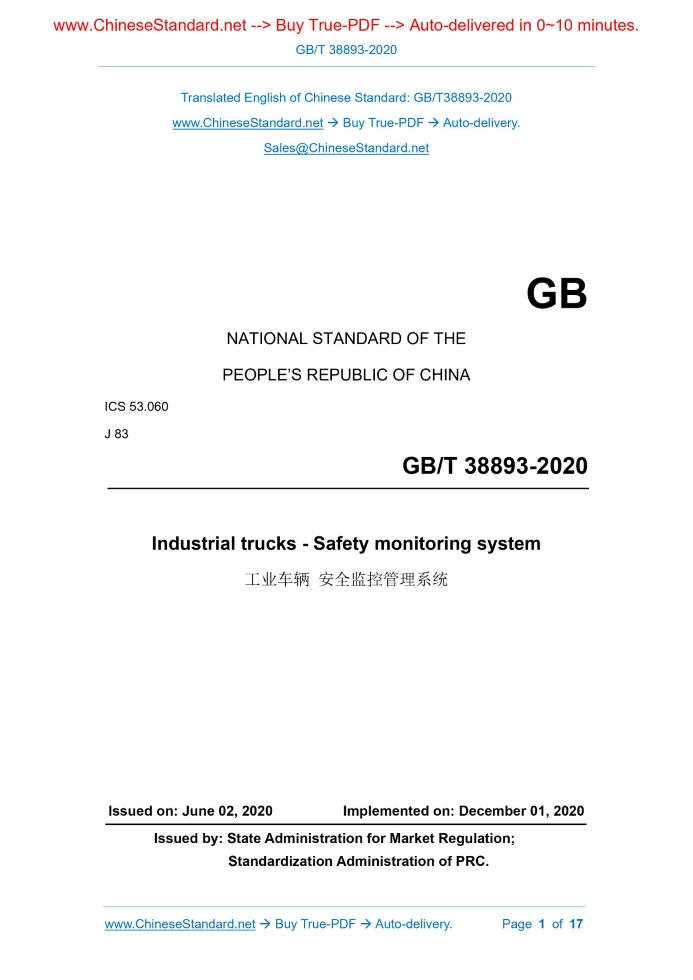

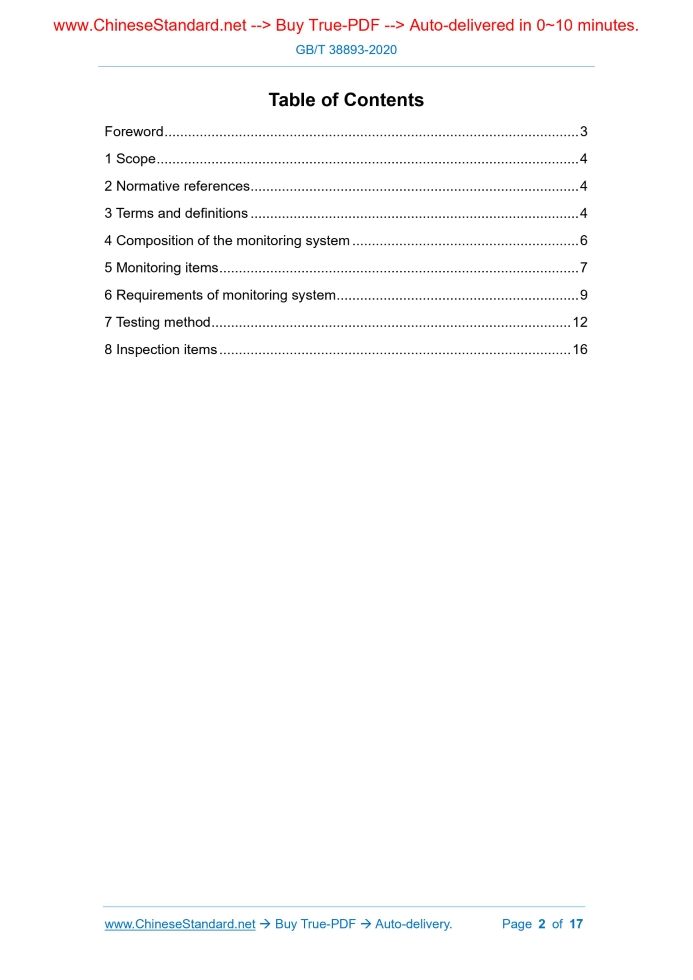

Similar standardsGB/T 38893-2020: Industrial trucks - Safety monitoring system---This is an excerpt. Full copy of true-PDF in English version (including equations, symbols, images, flow-chart, tables, and figures etc.), auto-downloaded/delivered in 9 seconds, can be purchased online: https://www.ChineseStandard.net/PDF.aspx/GBT38893-2020GB NATIONAL STANDARD OF THE PEOPLE’S REPUBLIC OF CHINA ICS 53.060 J 83 Industrial trucks - Safety monitoring system ISSUED ON: JUNE 02, 2020 IMPLEMENTED ON: DECEMBER 01, 2020 Issued by: State Administration for Market Regulation; Standardization Administration of PRC. Table of ContentsForeword ... 3 1 Scope ... 4 2 Normative references ... 4 3 Terms and definitions ... 4 4 Composition of the monitoring system ... 6 5 Monitoring items ... 7 6 Requirements of monitoring system ... 9 7 Testing method ... 12 8 Inspection items ... 16 Industrial trucks - Safety monitoring system1 ScopeThis standard specifies the composition, content, requirements, inspection methods and inspection items of the safety monitoring system for industrial truck (hereinafter referred to as the "monitoring system"). This standard applies to counterbalanced forklifts, reach forklifts, side forklifts, leg forklifts, pallet stackers, three-way stacker forklifts. Other types of industrial trucks may use it as a reference.2 Normative referencesThe following documents are essential to the application of this document. For the dated documents, only the versions with the dates indicated are applicable to this document; for the undated documents, only the latest version (including all the amendments) are applicable to this standard. GB/T 6104.1 Industrial trucks - Terminology and classification - Part 1: Types of industrial trucks GB/T 10827.1 Industrial trucks – Safety requirements and verification -Part 1: Self-propelled industrial trucks (except for unmanned vehicles, telescopic forklifts and trucks)3 Terms and definitionsThe terms and definitions as defined in GB/T 6104.1 and GB/T 10827.1 as well as the following terms and definitions apply to this document. 3.1 Safety monitoring system A system that monitors the working process of industrial trucks and can record and manage operating parameters and status. 3.2 Information source The maximum relative error between the measured value and the set value of the monitoring system. 3.11 Remote monitoring center A device whose remote server receives the information transmitted by the remote information transfer unit, monitors and manages the information. 3.12 Working time During the power-on of industrial trucks, the specific time corresponding to each working state, which is the clock time (year / month / day / hour / minute / second) when recording a working state. 3.13 Blind area When the industrial truck operator is located in the normal operating position, the area which cannot be directly observed by his sight because it is blocked by the truck or cargo. Note: The blind area can be divided into front blind area and rear blind area.4 Composition of the monitoring system4.1 The monitoring system shall consist of hardware and software. Its functional units shall include information collection unit, information processing unit, control output unit, information storage unit, information display unit, information output interface unit, etc. Note: This monitoring system is an integral part of the electrical control system of industrial trucks and is not an independent product. 4.2 The structure mode of the monitoring system shall be as shown in Figure 1. 6.3 Comprehensive error Under actual operating conditions of industrial trucks, the comprehensive system error shall not be greater than 10%. 6.4 Communication protocol requirements 6.4.1 The communication protocol of the system shall comply with the current national standards. 6.4.2 The communication protocol related to safety monitoring parameters and status shall be open to the outside world. 6.5 Recording and control functions 6.5.1 The monitoring system shall be configured with information collection units according to Table 1. 6.5.2 The monitoring system shall have recording and traceability functions. 6.5.3 The monitoring system shall have a self-check function when it is turned on. 6.5.4 When the monitoring system fails and such failure affects normal use, it shall immediately send out an alarm signal. 6.5.5 The monitoring system of industrial trucks shall have warning and reminding functions during operation. 6.5.6 When the monitoring system detects that the operator leaves the operating position and the industrial truck is in a non-parking brake state, the monitoring system shall issue an alarm. 6.5.7 When an industrial truck is equipped with a corresponding monitoring device, the industrial truck shall have the following control functions and issue warning messages: a) When the monitoring system detects that the actual lifting capacity of the industrial truck exceeds the rated lifting capacity, the system shall alarm; b) For electric industrial trucks, the monitoring system shall limit the operating speed of industrial trucks based on the detected lifting height; c) For electric industrial trucks, when the monitoring system detects the turning of the industrial truck, it shall be able to achieve automatic speed reduction; d) When the monitoring system detects that the operator leaves the 6.8 Display requirements 6.8.1 The monitoring system shall ensure that the displayed information is clearly identifiable under the use environmental conditions of the truck. 6.8.2 The monitoring system shall have a real-time display function of the operating status of industrial trucks; it can display the operating status and operating parameters of industrial trucks in the form of graphics, images, charts or text. 6.8.3 The text displayed by the monitoring system shall be in simplified Chinese. 6.9 Management authority requirements 6.9.1 The management personnel of the monitoring system shall be authorized. 6.9.2 The operators of industrial trucks shall have corresponding qualifications and be authorized.7 Testing method7.1 Lifting weight When the industrial truck is stationary, lift the test load. Select 60%, 70%, 100% of the rated lifting capacity as the test load. During the test, check the lifting capacity value recorded and displayed by the monitoring system in real time; verify whether the comprehensive error meets the requirements. 7.2 Lifting height The industrial truck carries out the lifting operation under no load. Select 20%, 50%, 80% of the maximum lifting height as the test lifting height. During the test, check the lifting height value recorded and displayed by the monitoring system in real time； verify whether the comprehensive error meets the requirements. 7.3 Tilt angle of mast Tilt the mast to any position. Respectively select two different angle positions for forward and backward tilting operations. During the test, check the mast tilt angle as recorded and displayed in real time of the monitoring system; verify whether the comprehensive error meets the requirements. 7.4 Running speed Make the vehicle drive at a steady speed. Respectively select two different running speeds to run forward and backward. During the test, check the running speed values recorded and displayed by the monitoring system in real time; information collection and incorrect information collection in turn. Check whether the industrial truck will send out a reminder that the collection is completed; whether the correct information collection and incorrect information collection reminders are inconsistent. 7.12 Video device Observe the front and rear blind area status of industrial trucks from the normal operating position of the operator. Check whether the monitoring system records the blind area’s video information in real time. 7.13 Lifting overload alarm The industrial truck lifts 1.1 times the load of the rated lifting capacity. Check whether the industrial truck issues an alarm. 7.14 Operation speed control during lifting In the rated load state, the electric industrial truck is lifted to the lifting height corresponding to the design speed limit; observe whether the maximum operating speed of the industrial truck is restricted. 7.15 Turning speed limit control In the no-load state, the electric industrial truck turns in the left and right directions at the steering wheel angle corresponding to the design speed limit value, to observe whether the industrial truck can automatically limit the speed. 7.16 Operator off-position control When the industrial truck is in normal working condition, the operator leaves from the seat or standing area, to observe whether the industrial truck can automatically lock the running and operation actions. 7.17 Personnel sensing distance control Set obstacles (simulators) in the traveling direction of industrial trucks. Drive the industrial trucks slowly toward the obstacles. When the distance between the obstacles and the industrial trucks is less than the set safe working distance, observe whether the industrial trucks can issue an alarm; whether it can automatically limit the speed. 7.18 Real-time data transmission function The industrial truck is in an unloaded state. It is verified on the spot whether the monitoring system has a real-time display function of industrial truck operating status; whether it can display the working status and working parameters of industrial trucks in the form of graphics, images, icons or text. ......Source: Above contents are excerpted from the full-copy PDF -- translated/reviewed by: www.ChineseStandard.net / Wayne Zheng et al. Tips & Frequently Asked Questions:Question 1: How long will the true-PDF of English version of GB/T 38893-2020 be delivered?Answer: The full copy PDF of English version of GB/T 38893-2020 can be downloaded in 9 seconds, and it will also be emailed to you in 9 seconds (double mechanisms to ensure the delivery reliably), with PDF-invoice.Question 2: Can I share the purchased PDF of GB/T 38893-2020_English with my colleagues?Answer: Yes. The purchased PDF of GB/T 38893-2020_English will be deemed to be sold to your employer/organization who actually paid for it, including your colleagues and your employer's intranet.Question 3: Does the price include tax/VAT?Answer: Yes. Our tax invoice, downloaded/delivered in 9 seconds, includes all tax/VAT and complies with 100+ countries' tax regulations (tax exempted in 100+ countries) -- See Avoidance of Double Taxation Agreements (DTAs): List of DTAs signed between Singapore and 100+ countriesQuestion 4: Do you accept my currency other than USD?Answer: Yes. www.ChineseStandard.us -- GB/T 38893-2020 -- Click this link and select your country/currency to pay, the exact amount in your currency will be printed on the invoice. Full PDF will also be downloaded/emailed in 9 seconds.How to buy and download a true PDF of English version of GB/T 38893-2020?A step-by-step guide to download PDF of GB/T 38893-2020_EnglishStep 1: Visit website https://www.ChineseStandard.net (Pay in USD), or https://www.ChineseStandard.us (Pay in any currencies such as Euro, KRW, JPY, AUD).Step 2: Search keyword "GB/T 38893-2020". Step 3: Click "Add to Cart". If multiple PDFs are required, repeat steps 2 and 3 to add up to 12 PDFs to cart. Step 4: Select payment option (Via payment agents Stripe or PayPal). Step 5: Customize Tax Invoice -- Fill up your email etc. Step 6: Click "Checkout". Step 7: Make payment by credit card, PayPal, Google Pay etc. After the payment is completed and in 9 seconds, you will receive 2 emails attached with the purchased PDFs and PDF-invoice, respectively. Step 8: Optional -- Go to download PDF. Step 9: Optional -- Click Open/Download PDF to download PDFs and invoice. See screenshots for above steps: Steps 1~3 Steps 4~6 Step 7 Step 8 Step 9 |
