GB/T 38804-2020: Test method for oxidation of metallic materials exposed in high-temperature steam Delivery: 9 seconds. True-PDF full-copy in English & invoice will be downloaded + auto-delivered via email. See step-by-step procedure Status: Valid

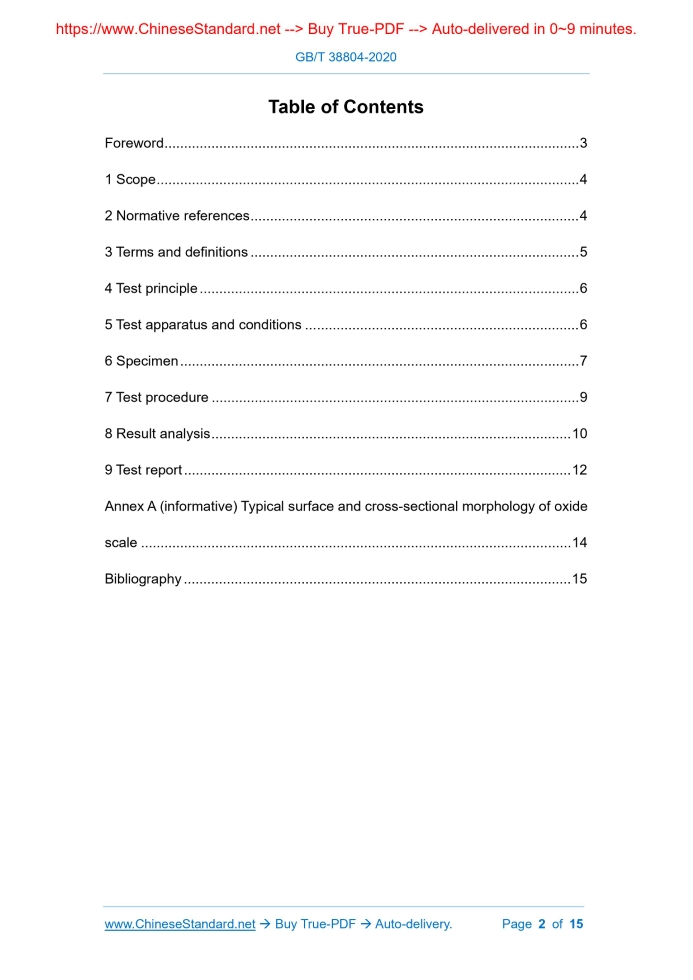

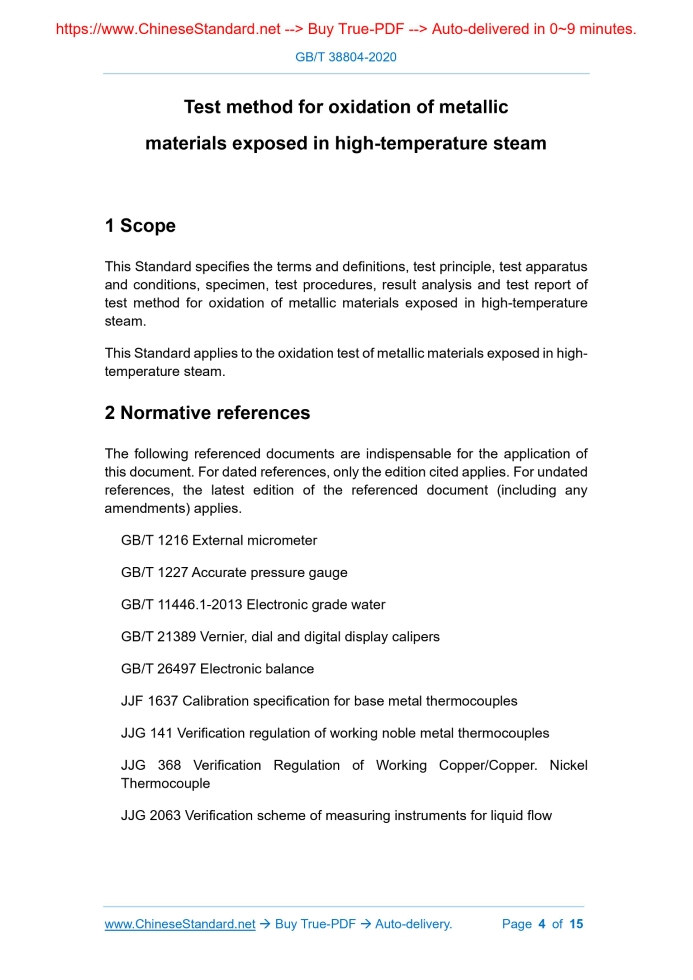

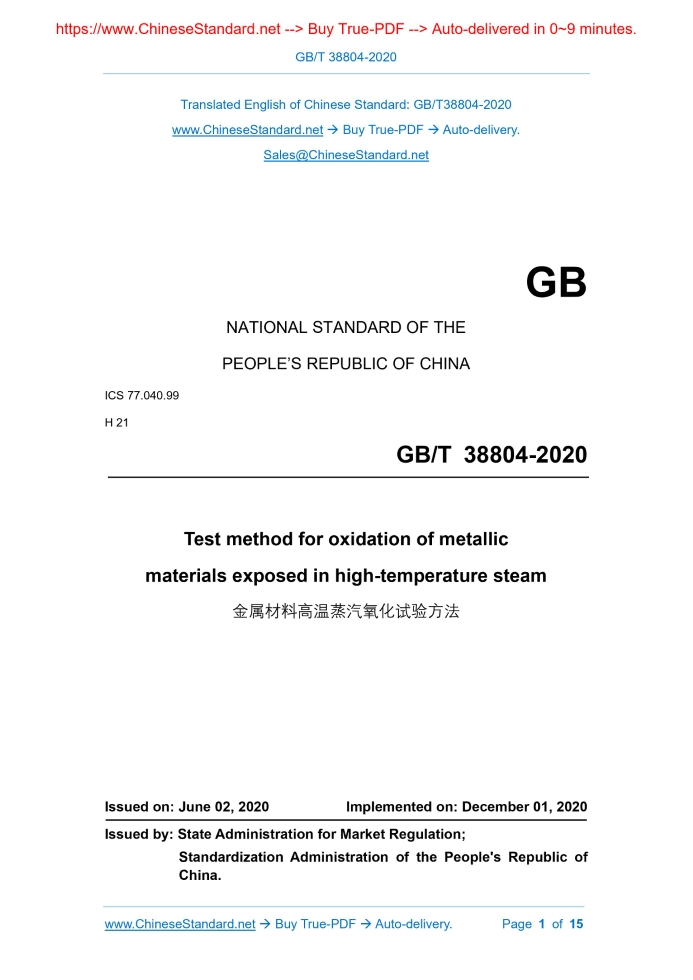

Similar standardsGB/T 38804-2020: Test method for oxidation of metallic materials exposed in high-temperature steam---This is an excerpt. Full copy of true-PDF in English version (including equations, symbols, images, flow-chart, tables, and figures etc.), auto-downloaded/delivered in 9 seconds, can be purchased online: https://www.ChineseStandard.net/PDF.aspx/GBT38804-2020 GB NATIONAL STANDARD OF THE PEOPLE’S REPUBLIC OF CHINA ICS 77.040.99 H 21 Test method for oxidation of metallic materials exposed in high-temperature steam ISSUED ON: JUNE 02, 2020 IMPLEMENTED ON: DECEMBER 01, 2020 Issued by: State Administration for Market Regulation; Standardization Administration of the People's Republic of China. Table of ContentsForeword ... 3 1 Scope ... 4 2 Normative references ... 4 3 Terms and definitions ... 5 4 Test principle ... 6 5 Test apparatus and conditions ... 6 6 Specimen ... 7 7 Test procedure ... 9 8 Result analysis ... 10 9 Test report ... 12 Annex A (informative) Typical surface and cross-sectional morphology of oxide scale ... 14 Bibliography ... 15 Test method for oxidation of metallic materials exposed in high-temperature steam1 ScopeThis Standard specifies the terms and definitions, test principle, test apparatus and conditions, specimen, test procedures, result analysis and test report of test method for oxidation of metallic materials exposed in high-temperature steam. This Standard applies to the oxidation test of metallic materials exposed in high- temperature steam.2 Normative referencesThe following referenced documents are indispensable for the application of this document. For dated references, only the edition cited applies. For undated references, the latest edition of the referenced document (including any amendments) applies. GB/T 1216 External micrometer GB/T 1227 Accurate pressure gauge GB/T 11446.1-2013 Electronic grade water GB/T 21389 Vernier, dial and digital display calipers GB/T 26497 Electronic balance JJF 1637 Calibration specification for base metal thermocouples JJG 141 Verification regulation of working noble metal thermocouples JJG 368 Verification Regulation of Working Copper/Copper. Nickel Thermocouple JJG 2063 Verification scheme of measuring instruments for liquid flow 7 - Protective gas; 8 - Steam; 9 - Specimen; 10 - Test water. Figure 1 -- Schematic diagram of test apparatus 5.2 Test section’s temperature The temperature of the test section reflects both the temperature of the steam and the specimen. The temperature of the test section is controlled by a temperature control device, and thermocouples are used for real-time temperature monitoring. The selection and use of thermocouples shall comply with the provisions of JJG 141, JJF 1637 or JJG 368. The temperature deviation of the test section shall comply with the following provisions: a) it shall be less than ±3 °C when below 650 °C; b) it shall be less than ±4 °C when at 650 °C ~ 800 °C; c) it shall be less than ±5 °C when above 800 °C. 5.3 Reaction chamber’s pressure During the test, a pressure gauge or pressure sensor is used to monitor the pressure of the reaction chamber. The selection and use of pressure gauges and pressure sensors shall comply with the provisions of GB/T 1227. The pressure deviation of the reaction chamber shall be minimized. When the test pressure value is greater than 10 MPa, the pressure deviation of the reaction chamber shall be less than ±2 %. 5.4 Test steam The test steam is prepared from deionized water or distilled water, and the test water shall comply with the provisions of Class III electronic water in GB/T 11446.1-2013. The test water shall be deoxygenated before the steam is produced, and the oxygen content in the steam or test water shall be indicated in the test report. If other gases are added to the steam, the final gas content ratio of the steam shall be indicated in the test report. 5.5 Flowmeter During the test, the steam flow rate or water flow rate shall be monitored. The selection and use of flowmeters shall comply with the provisions of JJG 2063.6 Specimen6.1 Shape and size The storage environment of specimens shall be kept dry.7 Test procedure7.1 Preparing the specimen After machining, the specimen is subjected to surface treatment according to 6.3. Measure size and mass and record the initial value. Avoid touching the specimen directly with your hands during measurement. 7.2 Placing the specimen 7.2.1 When placing the specimen, it should be suspended so that the surface of the largest area of the specimen is parallel to the direction of steam flow. The diameter of the specimen hanging hole shall be 1 mm, and if it is larger than 1 mm, it shall be indicated in the report. There shall be enough space between the suspended specimens to prevent the specimens from touching each other. When hanging the specimen, the contact between the hanging wire and the specimen shall be reduced, and nickel-chromium alloy is recommended as the hanging wire. 7.2.2 When hanging specimens cannot be used due to equipment layout and other problems, the specimen can be placed flat in the tubular specimen holder. When laying the specimen flat, the contact area between the specimen and the specimen holder shall be minimized. Each specimen shall be placed separately and shall not be in contact with each other. The surface of the largest area of the specimen shall be parallel to the direction of steam flow. The material of the specimen holder should be corundum. 7.3 Deoxygenating the reaction chamber After the specimen is placed in the reaction chamber, close the reaction chamber to ensure that air cannot enter the reaction chamber, and use inert gas argon or nitrogen to purge the reaction chamber so that the oxygen content (volume fraction) in the reaction chamber is less than 0.0003 %. 7.4 Heating up the reaction chamber The reaction chamber begins to heat up after deoxygenation, and the temperature rise rate shall not be too fast to cause the oxide scale to exfoliate. The recommended temperature rise rate is 55 °C/h ~ 220 °C/h. When the difference between the temperature of the test section and the preset test temperature is less than 50 °C, steam is filled. When the temperature of the test section reaches the preset temperature and stabilizes, it is regarded as the starting time of the test timing. If the test needs to be carried out under high in square centimeters (cm2); a1 - the average mass gain per unit area of the reference specimen, in milligrams per square centimeter (mg/cm2); B - the total area of the non-machined surface of the specimen before the test, in square centimeters (cm2). 8.3 Oxide scale thickness The measurement of oxide scale thickness requires cross-sectional observation of the specimen. The oxide scale shall be protected by electroplating, inlay, etc. before preparation of the cross-section specimen. The cross-section of the oxide scale is prepared by wire cutting or sanding, and the cross-section shall be perpendicular to the surface of the specimen. When measuring the thickness, the cross-sectional characteristics of the oxide scale shall be considered, and the oxide scale thickness at the edge position or exfoliating position shall not be recorded as the general thickness. During recording, it shall observe a cross-section with a length of at least 10 mm, and record including but not limited to the maximum thickness, minimum thickness, and average thickness above 5 data points. If there is delamination in the specimen, the inner layer, outer layer, internal oxidation zone and total thickness of the oxide scale (inner oxide scale + outer oxide scale + internal oxidation zone) shall be recorded separately. 8.4 Observation of oxide scale morphology 8.4.1 The surface morphology of oxide scale should be observed and recorded using a scanning electron microscope. See Figure A.1 for the surface morphology of typical oxide scale. 8.4.2 The cross-sectional morphology of oxide scale should be observed and recorded using an optical metallographic microscope or a scanning electron microscope with backscatter mode. See Figure A.2 for the cross-sectional morphology of typical oxide scale.9 Test reportThe test report shall include but not limited to the following: a) serial number of this Standard; b) material name, designation, specification, batch number and other relevant information; c) specimen size and surface treatment method; ......Source: Above contents are excerpted from the full-copy PDF -- translated/reviewed by: www.ChineseStandard.net / Wayne Zheng et al. Tips & Frequently Asked Questions:Question 1: How long will the true-PDF of English version of GB/T 38804-2020 be delivered?Answer: The full copy PDF of English version of GB/T 38804-2020 can be downloaded in 9 seconds, and it will also be emailed to you in 9 seconds (double mechanisms to ensure the delivery reliably), with PDF-invoice.Question 2: Can I share the purchased PDF of GB/T 38804-2020_English with my colleagues?Answer: Yes. The purchased PDF of GB/T 38804-2020_English will be deemed to be sold to your employer/organization who actually paid for it, including your colleagues and your employer's intranet.Question 3: Does the price include tax/VAT?Answer: Yes. Our tax invoice, downloaded/delivered in 9 seconds, includes all tax/VAT and complies with 100+ countries' tax regulations (tax exempted in 100+ countries) -- See Avoidance of Double Taxation Agreements (DTAs): List of DTAs signed between Singapore and 100+ countriesQuestion 4: Do you accept my currency other than USD?Answer: Yes. www.ChineseStandard.us -- GB/T 38804-2020 -- Click this link and select your country/currency to pay, the exact amount in your currency will be printed on the invoice. Full PDF will also be downloaded/emailed in 9 seconds.How to buy and download a true PDF of English version of GB/T 38804-2020?A step-by-step guide to download PDF of GB/T 38804-2020_EnglishStep 1: Visit website https://www.ChineseStandard.net (Pay in USD), or https://www.ChineseStandard.us (Pay in any currencies such as Euro, KRW, JPY, AUD).Step 2: Search keyword "GB/T 38804-2020". Step 3: Click "Add to Cart". If multiple PDFs are required, repeat steps 2 and 3 to add up to 12 PDFs to cart. Step 4: Select payment option (Via payment agents Stripe or PayPal). Step 5: Customize Tax Invoice -- Fill up your email etc. Step 6: Click "Checkout". Step 7: Make payment by credit card, PayPal, Google Pay etc. After the payment is completed and in 9 seconds, you will receive 2 emails attached with the purchased PDFs and PDF-invoice, respectively. Step 8: Optional -- Go to download PDF. Step 9: Optional -- Click Open/Download PDF to download PDFs and invoice. See screenshots for above steps: Steps 1~3 Steps 4~6 Step 7 Step 8 Step 9 |
