GB/T 38714-2020: High thermal conductivity magnesium alloy profiles Delivery: 9 seconds. True-PDF full-copy in English & invoice will be downloaded + auto-delivered via email. See step-by-step procedure Status: Valid

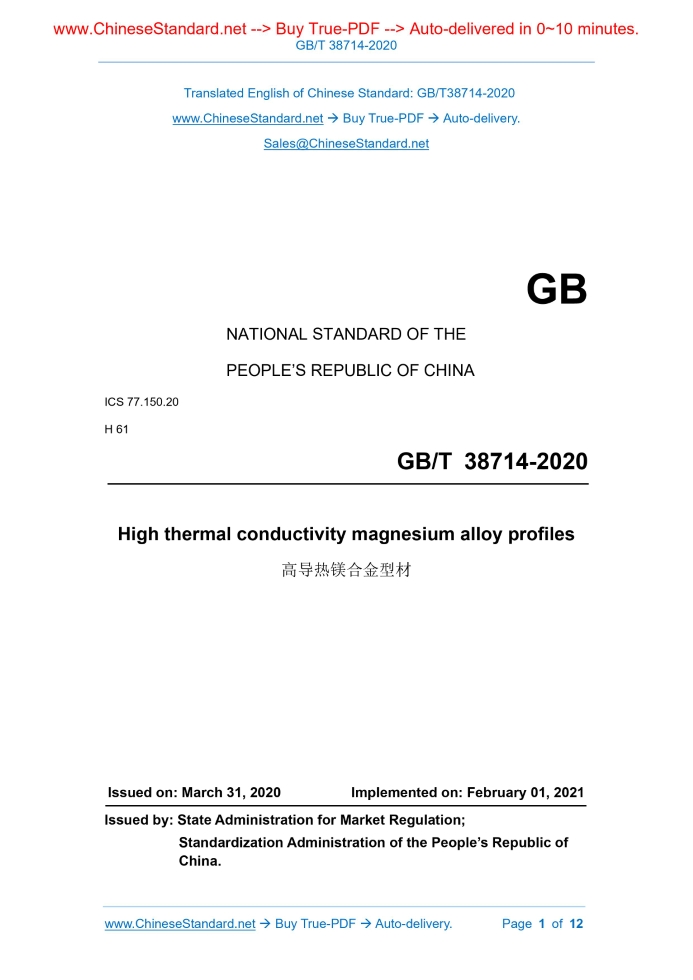

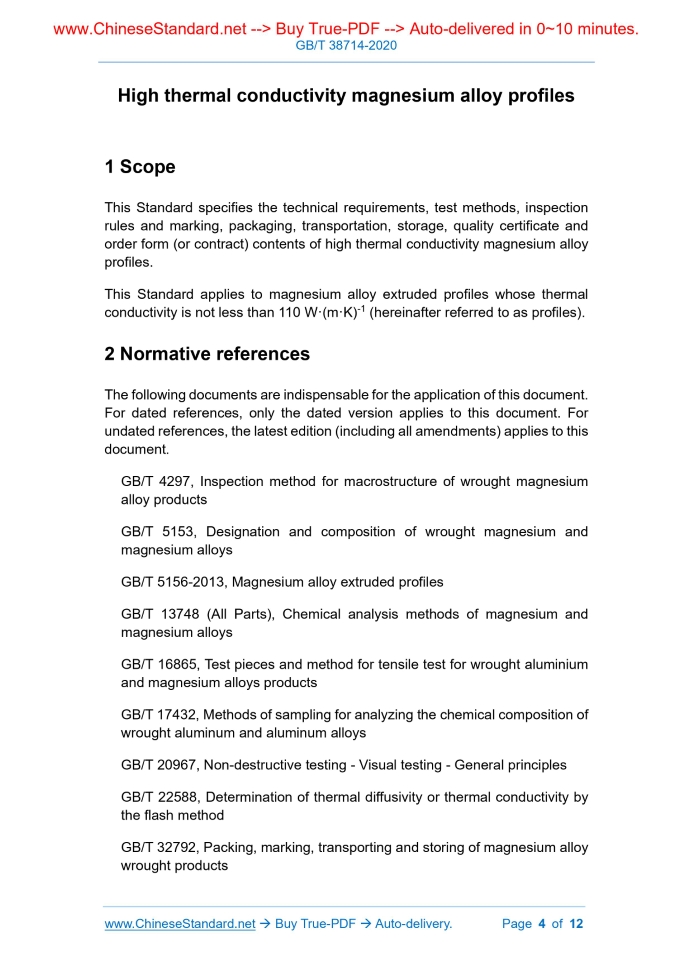

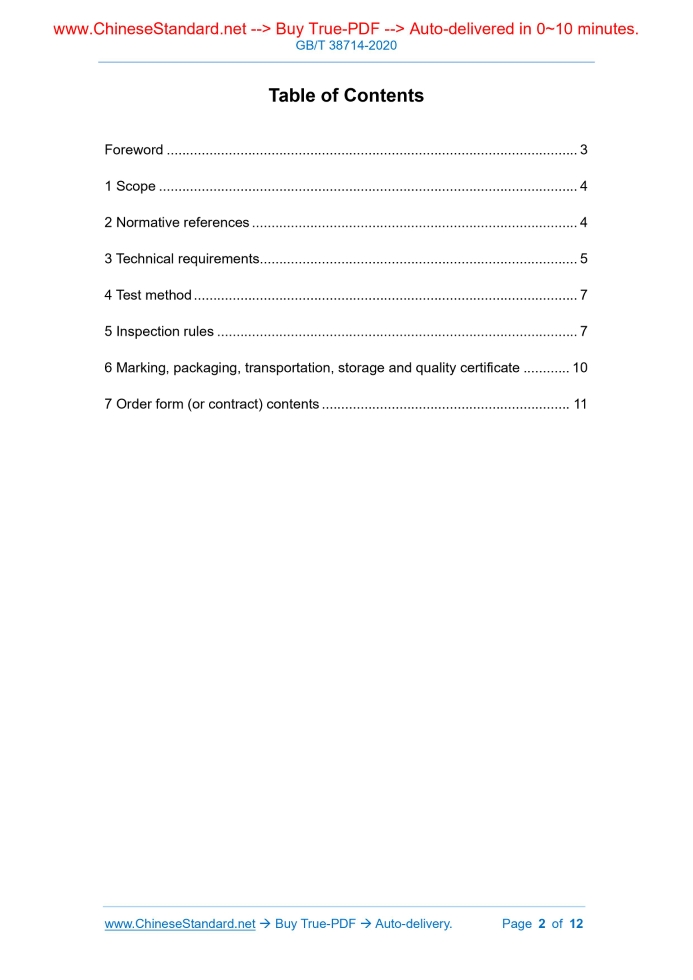

Similar standardsGB/T 38714-2020: High thermal conductivity magnesium alloy profiles---This is an excerpt. Full copy of true-PDF in English version (including equations, symbols, images, flow-chart, tables, and figures etc.), auto-downloaded/delivered in 9 seconds, can be purchased online: https://www.ChineseStandard.net/PDF.aspx/GBT38714-2020NATIONAL STANDARD OF THE PEOPLE’S REPUBLIC OF CHINA ICS 77.150.20 H 61 High thermal conductivity magnesium alloy profiles ISSUED ON: MARCH 31, 2020 IMPLEMENTED ON: FEBRUARY 01, 2021 Issued by: State Administration for Market Regulation; Standardization Administration of the People’s Republic of China. Table of ContentsForeword ... 3 1 Scope ... 4 2 Normative references ... 4 3 Technical requirements ... 5 4 Test method ... 7 5 Inspection rules ... 7 6 Marking, packaging, transportation, storage and quality certificate ... 10 7 Order form (or contract) contents ... 11 High thermal conductivity magnesium alloy profiles1 ScopeThis Standard specifies the technical requirements, test methods, inspection rules and marking, packaging, transportation, storage, quality certificate and order form (or contract) contents of high thermal conductivity magnesium alloy profiles. This Standard applies to magnesium alloy extruded profiles whose thermal conductivity is not less than 110 W·(m·K)-1 (hereinafter referred to as profiles).2 Normative referencesThe following documents are indispensable for the application of this document. For dated references, only the dated version applies to this document. For undated references, the latest edition (including all amendments) applies to this document. GB/T 4297, Inspection method for macrostructure of wrought magnesium alloy products GB/T 5153, Designation and composition of wrought magnesium and magnesium alloys GB/T 5156-2013, Magnesium alloy extruded profiles GB/T 13748 (All Parts), Chemical analysis methods of magnesium and magnesium alloys GB/T 16865, Test pieces and method for tensile test for wrought aluminium and magnesium alloys products GB/T 17432, Methods of sampling for analyzing the chemical composition of wrought aluminum and aluminum alloys GB/T 20967, Non-destructive testing - Visual testing - General principles GB/T 22588, Determination of thermal diffusivity or thermal conductivity by the flash method GB/T 32792, Packing, marking, transporting and storing of magnesium alloy wrought products 3.7.2 The surface of the profile is allowed to have defects such as squeeze marks, pressure injuries, bumps, bubbles, scrapes, scratches, humps, depressions whose depth does not exceed the negative deviation.4 Test method4.1 Chemical composition Perform the chemical analysis and arbitration of the profile according to the method that is specified in GB/T 13748. 4.2 Dimension deviation Use a measuring equipment of corresponding accuracy to measure the dimension deviation of the product. 4.3 Mechanical property Perform the vertical room temperature mechanical property test method of the profile according to the method that is specified in GB/T 16865. 4.4 Thermal conductivity Measure the thermal conductivity of the profile according to the thermal conductivity method that is specified in GB/T 22588. 4.5 Macro-structure Perform the test method of macro-structure of the profile according to the method that is specified in GB/T 4297. 4.6 Appearance quality Perform the test method of appearance quality of the profile according to the method that is specified in GB/T 20967.5 Inspection rules5.1 Inspection and acceptance 5.1.1 The profile shall be inspected by the supplier to ensure that the profile quality complies with the requirements of this Standard and the order form (or the contract); the supplier shall fill in the quality certificate. 5.1.2 The buyer shall inspect the received profiles in accordance with the provisions of this Standard. If the test result is inconsistent with the provisions of this Standard and the order form (or the contract), a written form shall be submitted to the supplier; the issue shall be decided by negotiation between the supplier and the buyer. Objections of surface quality and external dimensions shall be filed within one month from the date of receipt of the profile; objections of other properties shall be filed within three months from the date of receipt of the profile. If arbitration is required, it shall be determined through negotiation between the supplier and the buyer. 5.2 Batch Profiles shall be submitted for acceptance in batches; each batch shall consist of profiles of the same designation, the same state, the same specification, the same melting time and the same heat treatment furnace. The batch weight is not limited. 5.3 Inspection items 5.3.1 The inspection items and sampling of the profile shall comply with the provisions of Table 4. The inspection items are divided into delivery inspection items and type inspection items. 5.3.2 Each batch of profiles, before being delivered, shall be subjected to inspections of chemical composition, dimension deviation, mechanical properties, macro-structure and appearance quality. 5.3.3 In any of the following situations, type inspection shall be carried out: a) trial-production customization identification of new profiles or old profiles that are transferred to the factory; b) when the material and process of the profile are changed significantly, which may affect the performance of the profile; c) when the structure of the profile is changed significantly; d) when the production of the profile is resumed after a suspension; e) when the delivery inspection result is significantly different from the previous type inspection; f) when no type inspection has been carried out for two consecutive years; g) when it is requested by the buyer; h) when the national quality supervision institutions propose a requirement to carry out type inspection. 6.2 Packaging, transportation and storage 6.2.1 The profiles shall be protected and packed. When there are special requirements, it shall be negotiated between the supplier and the buyer and indicated in the order form (or contract). 6.2.2 Other requirements for packaging, transportation and storage of profiles shall be implemented in accordance with GB/T 32792. 6.3 Quality certificate Each batch of profiles shall be accompanied by a profile quality certificate, which indicates: a) supplier name, address, telephone, fax; b) profile name; c) designation; d) state; e) dimensions and accuracy grade; f) batch number; g) net weight and piece number; h) inspection results of each analysis item; i) inspection stamp of the supplier's technical supervision department; j) number of this Standard; k) date of packaging (or date of manufacture).7 Order form (or contract) contentsThe order form (or contract) that orders the profiles which are listed in this Standard shall include the following contents: a) profile name; b) designation; c) state; d) dimensions and allowable deviation; ......Source: Above contents are excerpted from the full-copy PDF -- translated/reviewed by: www.ChineseStandard.net / Wayne Zheng et al. Tips & Frequently Asked Questions:Question 1: How long will the true-PDF of English version of GB/T 38714-2020 be delivered?Answer: The full copy PDF of English version of GB/T 38714-2020 can be downloaded in 9 seconds, and it will also be emailed to you in 9 seconds (double mechanisms to ensure the delivery reliably), with PDF-invoice.Question 2: Can I share the purchased PDF of GB/T 38714-2020_English with my colleagues?Answer: Yes. The purchased PDF of GB/T 38714-2020_English will be deemed to be sold to your employer/organization who actually paid for it, including your colleagues and your employer's intranet.Question 3: Does the price include tax/VAT?Answer: Yes. Our tax invoice, downloaded/delivered in 9 seconds, includes all tax/VAT and complies with 100+ countries' tax regulations (tax exempted in 100+ countries) -- See Avoidance of Double Taxation Agreements (DTAs): List of DTAs signed between Singapore and 100+ countriesQuestion 4: Do you accept my currency other than USD?Answer: Yes. www.ChineseStandard.us -- GB/T 38714-2020 -- Click this link and select your country/currency to pay, the exact amount in your currency will be printed on the invoice. Full PDF will also be downloaded/emailed in 9 seconds.How to buy and download a true PDF of English version of GB/T 38714-2020?A step-by-step guide to download PDF of GB/T 38714-2020_EnglishStep 1: Visit website https://www.ChineseStandard.net (Pay in USD), or https://www.ChineseStandard.us (Pay in any currencies such as Euro, KRW, JPY, AUD).Step 2: Search keyword "GB/T 38714-2020". Step 3: Click "Add to Cart". If multiple PDFs are required, repeat steps 2 and 3 to add up to 12 PDFs to cart. Step 4: Select payment option (Via payment agents Stripe or PayPal). Step 5: Customize Tax Invoice -- Fill up your email etc. Step 6: Click "Checkout". Step 7: Make payment by credit card, PayPal, Google Pay etc. After the payment is completed and in 9 seconds, you will receive 2 emails attached with the purchased PDFs and PDF-invoice, respectively. Step 8: Optional -- Go to download PDF. Step 9: Optional -- Click Open/Download PDF to download PDFs and invoice. See screenshots for above steps: Steps 1~3 Steps 4~6 Step 7 Step 8 Step 9 |
