GB/T 3854-2017 PDF EnglishUS$80.00 · In stock · Download in 9 seconds
GB/T 3854-2017: Test method for hardness of reinforced plastics by means of a Barcol impresser Delivery: 9 seconds. True-PDF full-copy in English & invoice will be downloaded + auto-delivered via email. See step-by-step procedure Status: Valid GB/T 3854: Historical versions

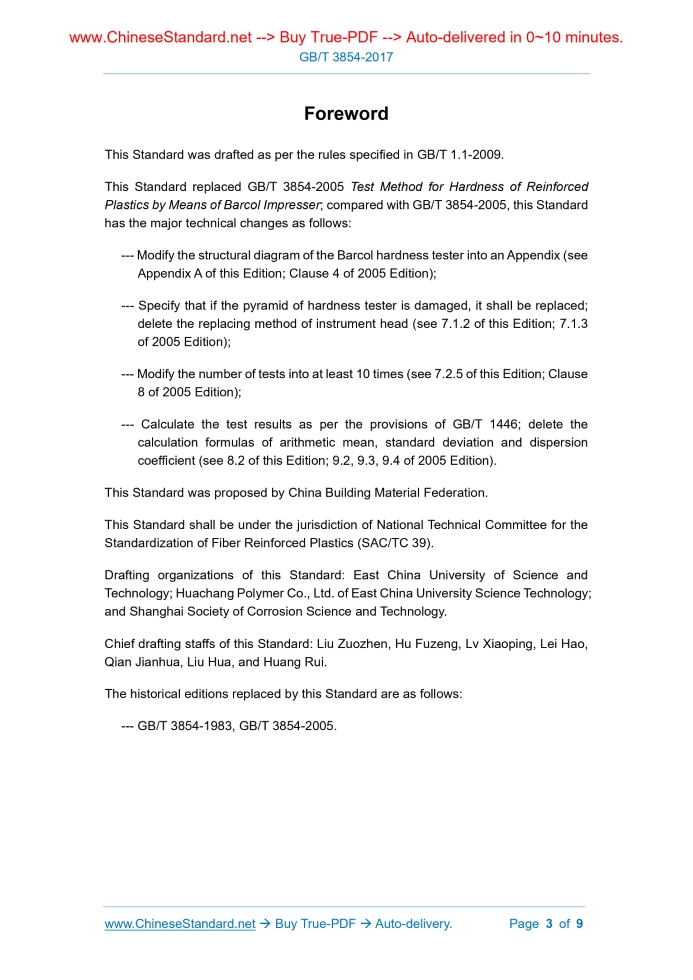

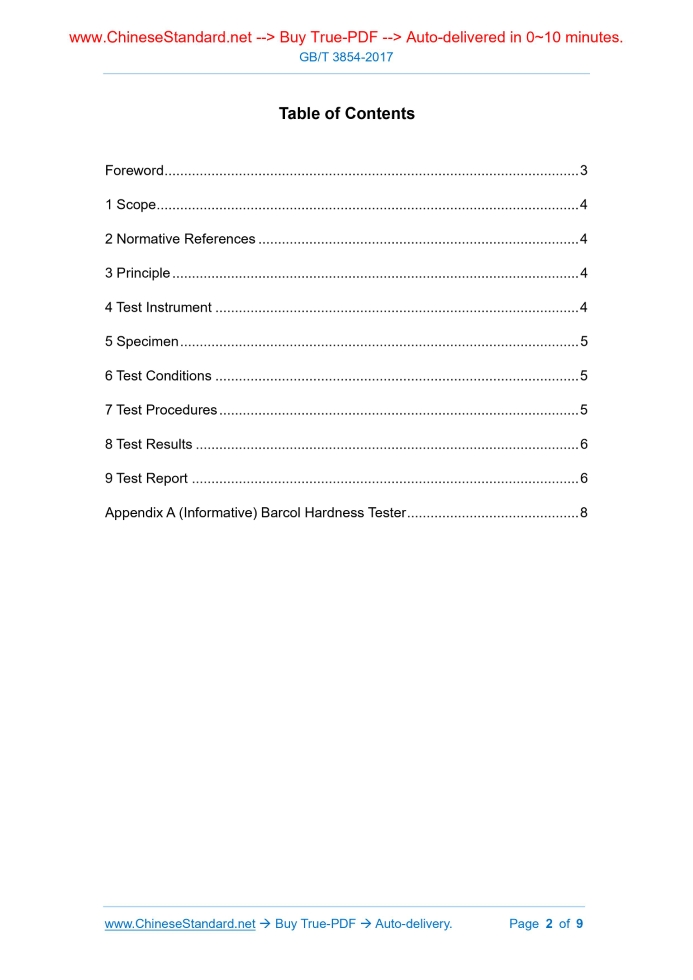

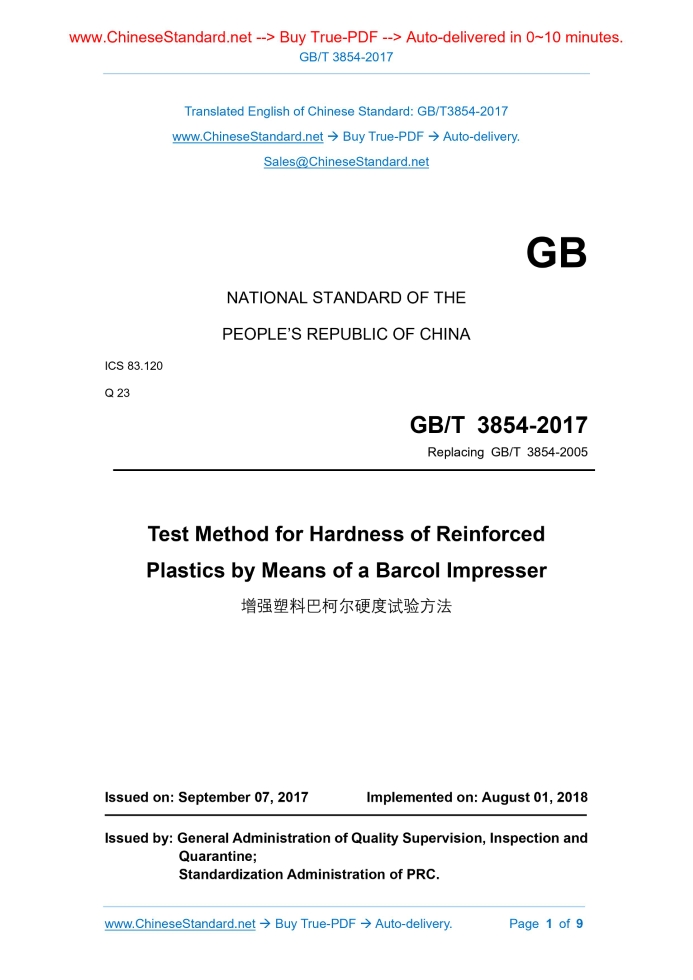

GB/T 3854-2017: Test method for hardness of reinforced plastics by means of a Barcol impresser---This is an excerpt. Full copy of true-PDF in English version (including equations, symbols, images, flow-chart, tables, and figures etc.), auto-downloaded/delivered in 9 seconds, can be purchased online: https://www.ChineseStandard.net/PDF.aspx/GBT3854-2017PEOPLE’S REPUBLIC OF CHINA ICS 83.120 Q 23 GB/T 3854-2017 Replacing GB/T 3854-2005 Test Method for Hardness of Reinforced Plastics by Means of a Barcol Impresser Issued on. September 07, 2017 Implemented on. August 01, 2018 Issued by. General Administration of Quality Supervision, Inspection and Quarantine; Standardization Administration of PRC. Table of ContentsForeword ... 3 1 Scope ... 4 2 Normative References ... 4 3 Principle ... 4 4 Test Instrument ... 4 5 Specimen ... 5 6 Test Conditions ... 5 7 Test Procedures ... 5 8 Test Results ... 6 9 Test Report ... 6 Appendix A (Informative) Barcol Hardness Tester ... 8ForewordThis Standard was drafted as per the rules specified in GB/T 1.1-2009. This Standard replaced GB/T 3854-2005 Test Method for Hardness of Reinforced Plastics by Means of Barcol Impresser; compared with GB/T 3854-2005, this Standard has the major technical changes as follows. --- Modify the structural diagram of the Barcol hardness tester into an Appendix (see Appendix A of this Edition; Clause 4 of 2005 Edition); --- Specify that if the pyramid of hardness tester is damaged, it shall be replaced; delete the replacing method of instrument head (see 7.1.2 of this Edition; 7.1.3 of 2005 Edition); --- Modify the number of tests into at least 10 times (see 7.2.5 of this Edition; Clause 8 of 2005 Edition); ---Calculate the test results as per the provisions of GB/T 1446; delete the calculation formulas of arithmetic mean, standard deviation and dispersion coefficient (see 8.2 of this Edition; 9.2, 9.3, 9.4 of 2005 Edition). This Standard was proposed by China Building Material Federation. This Standard shall be under the jurisdiction of National Technical Committee for the Standardization of Fiber Reinforced Plastics (SAC/TC 39). Drafting organizations of this Standard. East China University of Science and Technology; Huachang Polymer Co., Ltd. of East China University Science Technology; and Shanghai Society of Corrosion Science and Technology. Chief drafting staffs of this Standard. Liu Zuozhen, Hu Fuzeng, Lv Xiaoping, Lei Hao, Qian Jianhua, Liu Hua, and Huang Rui. The historical editions replaced by this Standard are as follows. --- GB/T 3854-1983, GB/T 3854-2005. Test Method for Hardness of Reinforced Plastics by Means of a Barcol Impresser1 ScopeThis Standard specifies principle, test instrument, specimen, test conditions, test procedures, test results and test report by using the Barcol hardness tester to test the hardness of reinforced rigid plastics and their products. This Standard is applicable to the determination of the Barcol hardness of the reinforced rigid plastics and their products; while the determination of the Barcol hardness of the non-reinforced rigid plastics and their products can also refer to this Standard; however, it is not applicable to the materials with Barcol hardness less than 20.2 Normative ReferencesThe following documents are essential to the application of this document. For the dated documents, only the versions with the dates indicated are applicable to this document; for the undated documents, only the latest version (including all the amendments) are applicable to this document. GB/T 1446 The Generals of Test Methods for Properties of Fiber-Reinforced Plastics3 PrincipleWhen using the Barcol hardness tester to measure the surface hardness of the materials, it indicates that press the specific pyramid into the specimen under the pressure of the standard load spring; the relative hardness of the specimen is characterized according to the depth of the press.4 Test InstrumentUse the Barcol hardness tester to measure, its structural diagram can refer to Appendix A. 7.2.1 Place the specimen on a hard and stable supporting surface (such as steel plate, glass plate, cement platform, etc.) to test; the product can be tested directly on the appropriate part of its surface. The curved specimen shall be supported stably, when applying the test pressure, please note to avoid bending and deformation of the specimen. 7.2.2 Place the pyramid sleeve vertically on the surface of the specimen; place the supporting lug on the same surface or other solid materials with the same height; ensure that the pyramid and supporting lug in the same plane. 7.2.3 Hold the hardness tester casing with hand, apply a downward pressure quickly and evenly till the dial reading reaches its maximum value; record such maximum value (some materials shall appear reading of maximum value drifting back; such reading is in non-linear relationship with time); such reading is the Barcol hardness value. When the pyramid is in contact with the tested surface, try to avoid sliding and scratching. 7.2.4 The position of the indentation shall be greater than 3mm from the edge of the specimen; the spacing of the indentation shall also be greater than 3mm. 7.2.5 Test the hardness on at least 10 different positions of the specimen.8 Test Results8.1 Single test value. x1, x2, x3, ... xn. 8.2 According to the provisions of GB/T 1446, calculate the arithmetic mean 𝑥̅, standard deviation S, dispersion coefficient CV; the results shall be retained two significant digits.9 Test ReportThe test report shall include the following contents at least. a) Specimen name, appearance quality; b) Specimen delivery organization; c) State adjustment and test environment condition of the specimen; d) Model of the Barcol hardness tester; e) Test results; f) This Standard number; ......Source: Above contents are excerpted from the full-copy PDF -- translated/reviewed by: www.ChineseStandard.net / Wayne Zheng et al. Tips & Frequently Asked Questions:Question 1: How long will the true-PDF of English version of GB/T 3854-2017 be delivered?Answer: The full copy PDF of English version of GB/T 3854-2017 can be downloaded in 9 seconds, and it will also be emailed to you in 9 seconds (double mechanisms to ensure the delivery reliably), with PDF-invoice.Question 2: Can I share the purchased PDF of GB/T 3854-2017_English with my colleagues?Answer: Yes. The purchased PDF of GB/T 3854-2017_English will be deemed to be sold to your employer/organization who actually paid for it, including your colleagues and your employer's intranet.Question 3: Does the price include tax/VAT?Answer: Yes. Our tax invoice, downloaded/delivered in 9 seconds, includes all tax/VAT and complies with 100+ countries' tax regulations (tax exempted in 100+ countries) -- See Avoidance of Double Taxation Agreements (DTAs): List of DTAs signed between Singapore and 100+ countriesQuestion 4: Do you accept my currency other than USD?Answer: Yes. www.ChineseStandard.us -- GB/T 3854-2017 -- Click this link and select your country/currency to pay, the exact amount in your currency will be printed on the invoice. Full PDF will also be downloaded/emailed in 9 seconds.Question 5: Should I purchase the latest version GB/T 3854-2017?Answer: Yes. Unless special scenarios such as technical constraints or academic study, you should always prioritize to purchase the latest version GB/T 3854-2017 even if the enforcement date is in future. Complying with the latest version means that, by default, it also complies with all the earlier versions, technically.How to buy and download a true PDF of English version of GB/T 3854-2017?A step-by-step guide to download PDF of GB/T 3854-2017_EnglishStep 1: Visit website https://www.ChineseStandard.net (Pay in USD), or https://www.ChineseStandard.us (Pay in any currencies such as Euro, KRW, JPY, AUD).Step 2: Search keyword "GB/T 3854-2017". Step 3: Click "Add to Cart". If multiple PDFs are required, repeat steps 2 and 3 to add up to 12 PDFs to cart. Step 4: Select payment option (Via payment agents Stripe or PayPal). Step 5: Customize Tax Invoice -- Fill up your email etc. Step 6: Click "Checkout". Step 7: Make payment by credit card, PayPal, Google Pay etc. After the payment is completed and in 9 seconds, you will receive 2 emails attached with the purchased PDFs and PDF-invoice, respectively. Step 8: Optional -- Go to download PDF. Step 9: Optional -- Click Open/Download PDF to download PDFs and invoice. See screenshots for above steps: Steps 1~3 Steps 4~6 Step 7 Step 8 Step 9 |
