GB/T 38443-2019: GH4145 alloy bars and forgings - General specification Delivery: 9 seconds. True-PDF full-copy in English & invoice will be downloaded + auto-delivered via email. See step-by-step procedure Status: Valid

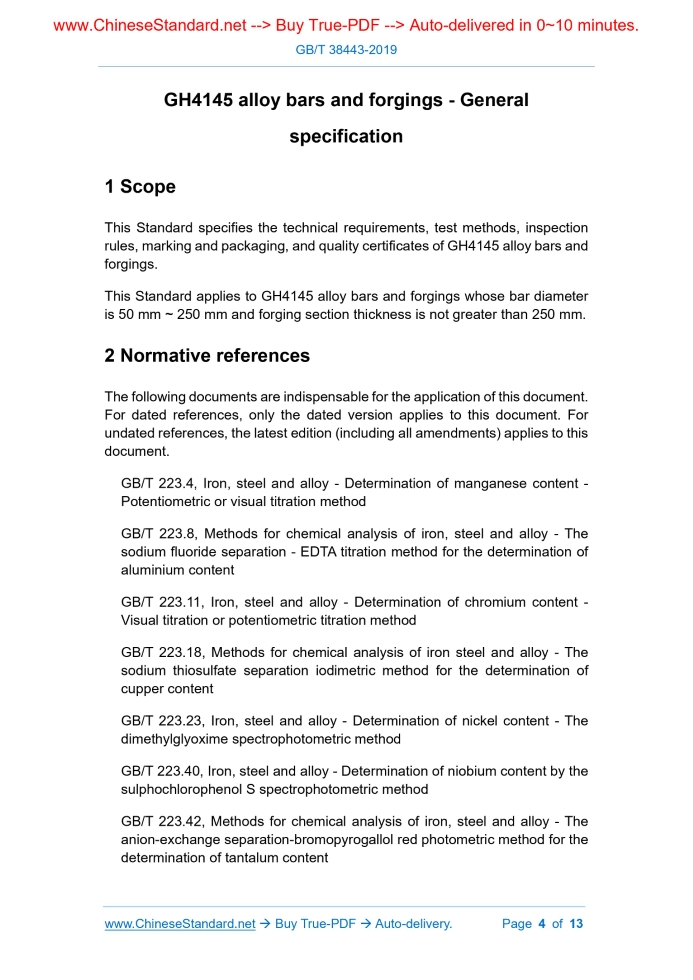

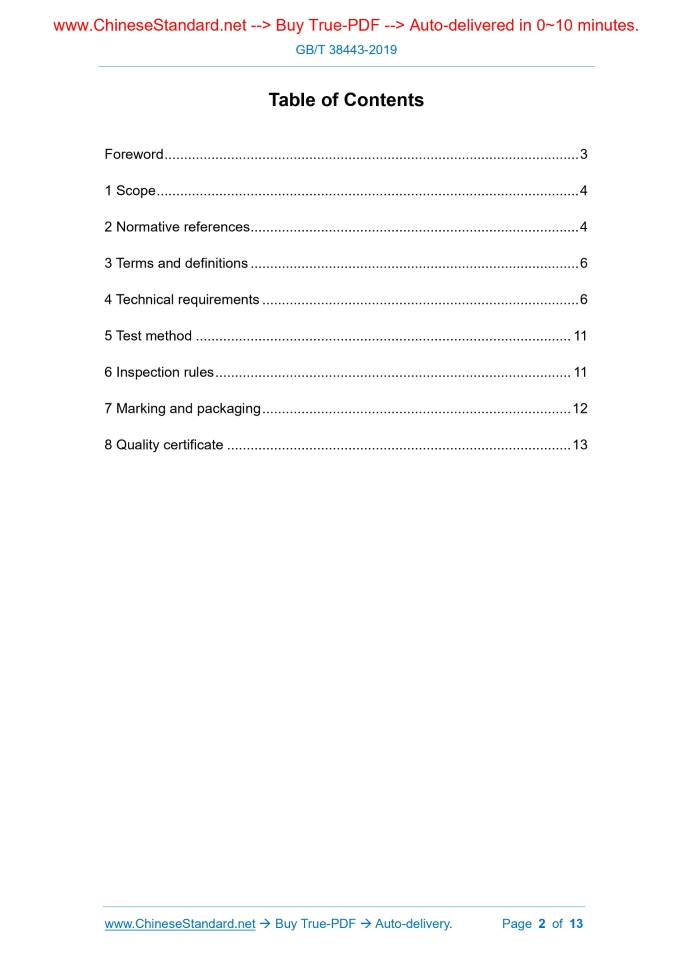

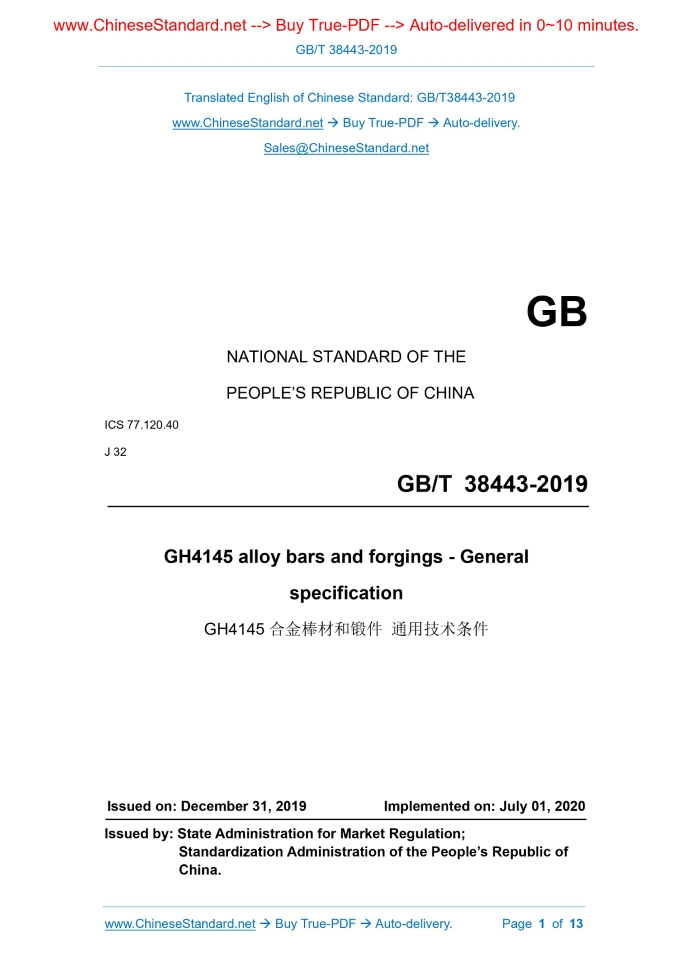

Similar standardsGB/T 38443-2019: GH4145 alloy bars and forgings - General specification---This is an excerpt. Full copy of true-PDF in English version (including equations, symbols, images, flow-chart, tables, and figures etc.), auto-downloaded/delivered in 9 seconds, can be purchased online: https://www.ChineseStandard.net/PDF.aspx/GBT38443-2019GB NATIONAL STANDARD OF THE PEOPLE’S REPUBLIC OF CHINA ICS 77.120.40 J 32 GH4145 alloy bars and forgings - General specification ISSUED ON: DECEMBER 31, 2019 IMPLEMENTED ON: JULY 01, 2020 Issued by: State Administration for Market Regulation; Standardization Administration of the People’s Republic of China. Table of ContentsForeword ... 3 1 Scope ... 4 2 Normative references ... 4 3 Terms and definitions ... 6 4 Technical requirements ... 6 5 Test method ... 11 6 Inspection rules ... 11 7 Marking and packaging ... 12 8 Quality certificate ... 13 GH4145 alloy bars and forgings - General specification1 ScopeThis Standard specifies the technical requirements, test methods, inspection rules, marking and packaging, and quality certificates of GH4145 alloy bars and forgings. This Standard applies to GH4145 alloy bars and forgings whose bar diameter is 50 mm ~ 250 mm and forging section thickness is not greater than 250 mm.2 Normative referencesThe following documents are indispensable for the application of this document. For dated references, only the dated version applies to this document. For undated references, the latest edition (including all amendments) applies to this document. GB/T 223.4, Iron, steel and alloy - Determination of manganese content - Potentiometric or visual titration method GB/T 223.8, Methods for chemical analysis of iron, steel and alloy - The sodium fluoride separation - EDTA titration method for the determination of aluminium content GB/T 223.11, Iron, steel and alloy - Determination of chromium content - Visual titration or potentiometric titration method GB/T 223.18, Methods for chemical analysis of iron steel and alloy - The sodium thiosulfate separation iodimetric method for the determination of cupper content GB/T 223.23, Iron, steel and alloy - Determination of nickel content - The dimethylglyoxime spectrophotometric method GB/T 223.40, Iron, steel and alloy - Determination of niobium content by the sulphochlorophenol S spectrophotometric method GB/T 223.42, Methods for chemical analysis of iron, steel and alloy - The anion-exchange separation-bromopyrogallol red photometric method for the determination of tantalum content GB/T 223.59, Iron, steel and alloy - Determination of phosphorus content - Bismuth phosphomolybdate blue spectrophotometric method and antimony phosphomolybdate blue spectrophotometric method GB/T 223.60, Methods for chemical analysis of iron, steel and alloy - The perchloric acid dehydration gravimetric method for the determination of silicon content GB/T 223.65, Steel, iron and alloy - Determination of cobalt content - Flame atomic absorption spectrometric method GB/T 223.68, Methods for chemical analysis of iron, steel and alloy - The potassium iodate titration method after combustion in the pipe furnace for the determination of sulfur content GB/T 223.71, Methods for chemical analysis of iron, steel and alloy - The gravimetric method after combustion in the pipe furnace for the determination of carbon content GB/T 223.73, Iron, steel and alloy - Determination of iron contents - Titanium trichloride-potassium dichromate titration method GB/T 223.84, Steel and iron - Determination of titanium content - Diantipyrylmethane spectophotometric method GB/T 228.1, Metallic materials - Tensile testing - Part 1: Method of test at room temperature GB/T 231.1, Metallic materials - Brinell hardness test - Part 1: Test method GB/T 702, Hot-rolled steel bars - Dimensions, shape, weight and tolerances GB/T 908, Forged bars for dimensions, shape, weight and tolerances GB/T 2039, Metallic materials - Uniaxial creep testing method in tension GB/T 2101, General requirement of acceptance, packaging, marking and certification for section steel GB/T 4162, Forged and rolled steel bars. Method for ultrasonic testing GB/T 6394, Determination of estimating the average grain size of metal GB/T 6402, Steel forgings - Method for ultrasonic testing GB/T 8541, Terminology of forging and stamping d) Non-vacuum induction melting + electroslag remelting; e) Electric arc melting + (external refining) + electroslag remelting; f) Electric arc melting + (external refining) + vacuum arc remelting; 4.3 Supply status 4.3.1 Bars and forgings can be delivered in hot-rolled or hot-forged state, and can also be supplied in solution treatment after forging; bars can also be supplied in polished or turned state after solution treatment; the supply status shall be indicated in the contract. 4.3.2 When bars and forgings are delivered in the heat treatment state, the heat treatment system is shown in 4.4, and the heat treatment system shall be indicated in the contract. 4.3.3 When it is necessary to supply in other heat treatment states, it shall be decided by the supplier and the buyer through consultation. 4.4 Heat treatment The supplier stipulates the heat treatment process of the product or sample in the purchase contract or agreement according to the product use requirements: a) System I. Homogenization: preserve heat at 885 °C for 24 h ± 0.5 h, air cooling; aging: preserve heat at 705 °C for 20 h ± 1 h, air cooling. b) System II. Solid solution: preserve heat at 1 150 °C for 2 h ~ 4 h, air cooling; aging: preserve heat at 845 °C for 24 h ± 1 h, air cooling or furnace cooling to 705 °C or below within 2 h or less time; preserve heat at 705 °C for 20 h ± 1 h, air cooling. c) System IIII. Solid solution: preserve heat at 980 °C for 1 h, air cooling; aging: preserve heat at 730 °C for 8 h, cool to 620 °C at 55 °C/h; preserve heat for 8 h ± 0.25 h, air cooling; the total aging time is not less than 18 h. The cooling time of furnace cooling can be adjusted to ensure the total time. Note 1: The above heat preservation time is the heat preservation time after the sample or product has been heated through. Note 2: The temperature uniformity of the heat treatment furnace does not exceed ±10 °C. 4.5 Mechanical property Bars or forgings shall be submitted for acceptance in batches. Each acceptance batch consists of bars or forgings of the same specification or drawing number, the same production batch, the same melting furnace number, and the same heat treatment batch. 6.2 Inspection items The inspection items and sampling quantity of bars or forgings shall meet the requirements of Table 3. 6.3 Re-inspection and determination rules 6.3.1 When the chemical composition analysis result is unqualified, re-sample at the unqualified position, and re-inspect the content of the unqualified element. If the re- inspection result is still unqualified, judge the batch of products as unqualified. 6.3.2 When a certain test result of mechanical properties is unqualified, take a double sample near the original sampling position, and re-inspect the unqualified item. If the re- inspection result of one sample is unqualified, judge the batch of bars or forgings as unqualified; for forgings with unqualified mechanical properties, it is allowed to have a re-heat treatment once as a new batch for acceptance. 6.3.3 If the tensile properties the bars or forgings are qualified, the hardness shall not be used as the basis for product rejection. 6.3.4 When the macro-structure and microstructure of bars are unqualified, re-sample at the unqualified parts; if the inspection result is still unqualified, judge the batch of bars as unqualified. When the macro-structure and microstructure of forgings are unqualified, judge the batch of forgings as unqualified. 6.3.5 When the ultrasonic inspection is unqualified, judge the unqualified bar or forging as unqualified. 6.3.6 When the dimensions, shape, and surface quality inspections are unqualified, judge the unqualified bar or forging as unqualified. 6.3.7 If any metallurgical defects that shall not exist in the accepted bars or forgings are found during use and processing, they shall be returned after confirmation by the buyer and the supplier.7 Marking and packaging7.1 Marking Bars shall be marked in accordance with the requirements of GB/T 2101; bars shall be subject to head and tail management and ingot number management. Forgings shall be marked as required by the buyer. ......Source: Above contents are excerpted from the full-copy PDF -- translated/reviewed by: www.ChineseStandard.net / Wayne Zheng et al. Tips & Frequently Asked Questions:Question 1: How long will the true-PDF of English version of GB/T 38443-2019 be delivered?Answer: The full copy PDF of English version of GB/T 38443-2019 can be downloaded in 9 seconds, and it will also be emailed to you in 9 seconds (double mechanisms to ensure the delivery reliably), with PDF-invoice.Question 2: Can I share the purchased PDF of GB/T 38443-2019_English with my colleagues?Answer: Yes. The purchased PDF of GB/T 38443-2019_English will be deemed to be sold to your employer/organization who actually paid for it, including your colleagues and your employer's intranet.Question 3: Does the price include tax/VAT?Answer: Yes. Our tax invoice, downloaded/delivered in 9 seconds, includes all tax/VAT and complies with 100+ countries' tax regulations (tax exempted in 100+ countries) -- See Avoidance of Double Taxation Agreements (DTAs): List of DTAs signed between Singapore and 100+ countriesQuestion 4: Do you accept my currency other than USD?Answer: Yes. www.ChineseStandard.us -- GB/T 38443-2019 -- Click this link and select your country/currency to pay, the exact amount in your currency will be printed on the invoice. Full PDF will also be downloaded/emailed in 9 seconds.How to buy and download a true PDF of English version of GB/T 38443-2019?A step-by-step guide to download PDF of GB/T 38443-2019_EnglishStep 1: Visit website https://www.ChineseStandard.net (Pay in USD), or https://www.ChineseStandard.us (Pay in any currencies such as Euro, KRW, JPY, AUD).Step 2: Search keyword "GB/T 38443-2019". Step 3: Click "Add to Cart". If multiple PDFs are required, repeat steps 2 and 3 to add up to 12 PDFs to cart. Step 4: Select payment option (Via payment agents Stripe or PayPal). Step 5: Customize Tax Invoice -- Fill up your email etc. Step 6: Click "Checkout". Step 7: Make payment by credit card, PayPal, Google Pay etc. After the payment is completed and in 9 seconds, you will receive 2 emails attached with the purchased PDFs and PDF-invoice, respectively. Step 8: Optional -- Go to download PDF. Step 9: Optional -- Click Open/Download PDF to download PDFs and invoice. See screenshots for above steps: Steps 1~3 Steps 4~6 Step 7 Step 8 Step 9 |
