GB/T 38323-2019: Digital technique application of building and residence community - Cooperation management protocol for home internet of things Delivery: 9 seconds. True-PDF full-copy in English & invoice will be downloaded + auto-delivered via email. See step-by-step procedure Status: Valid

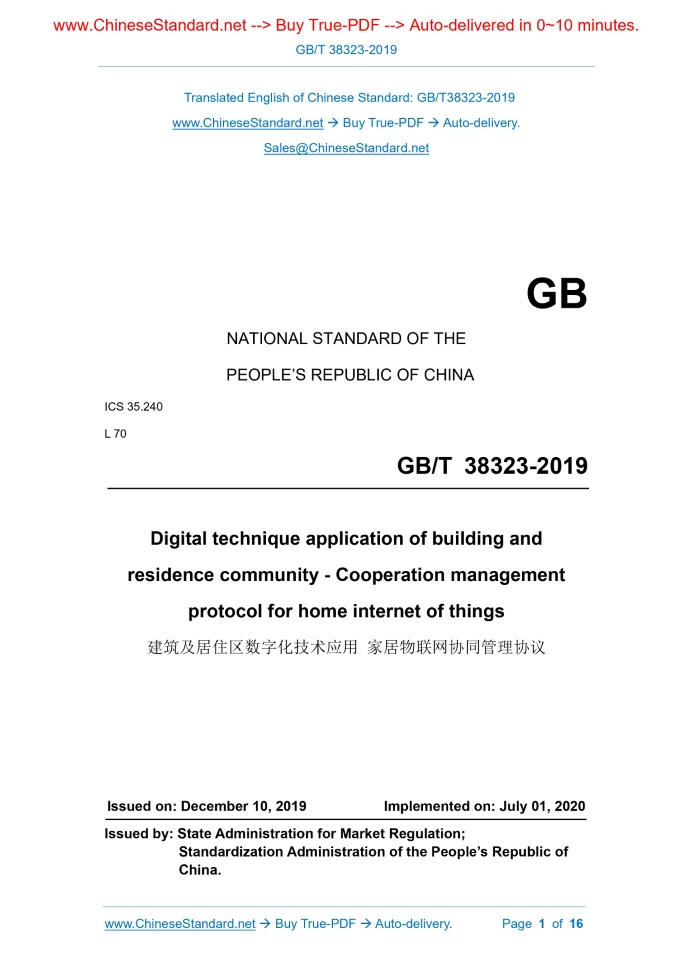

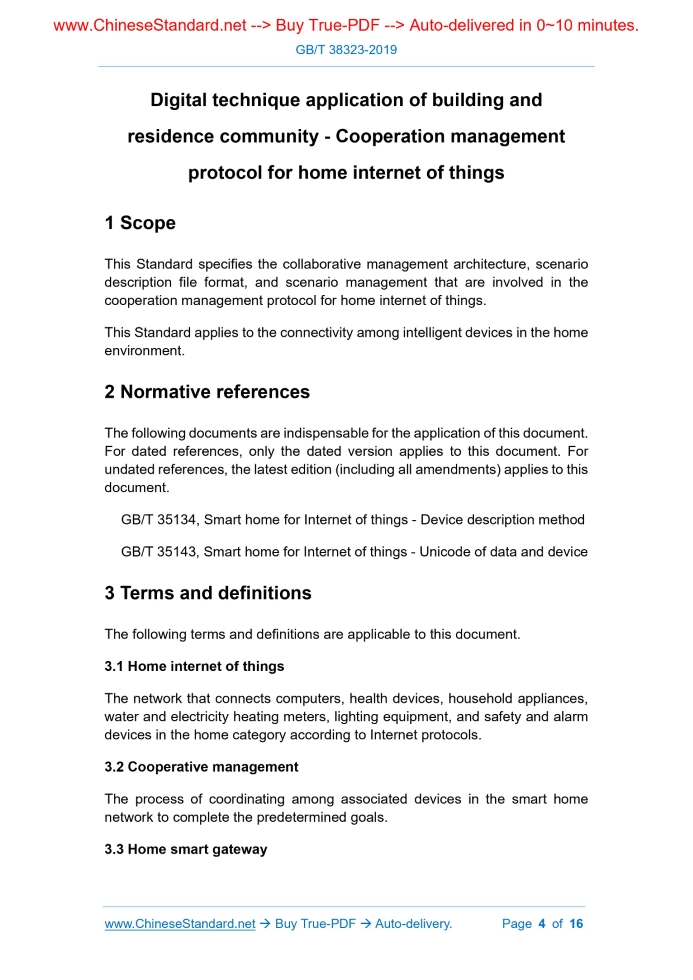

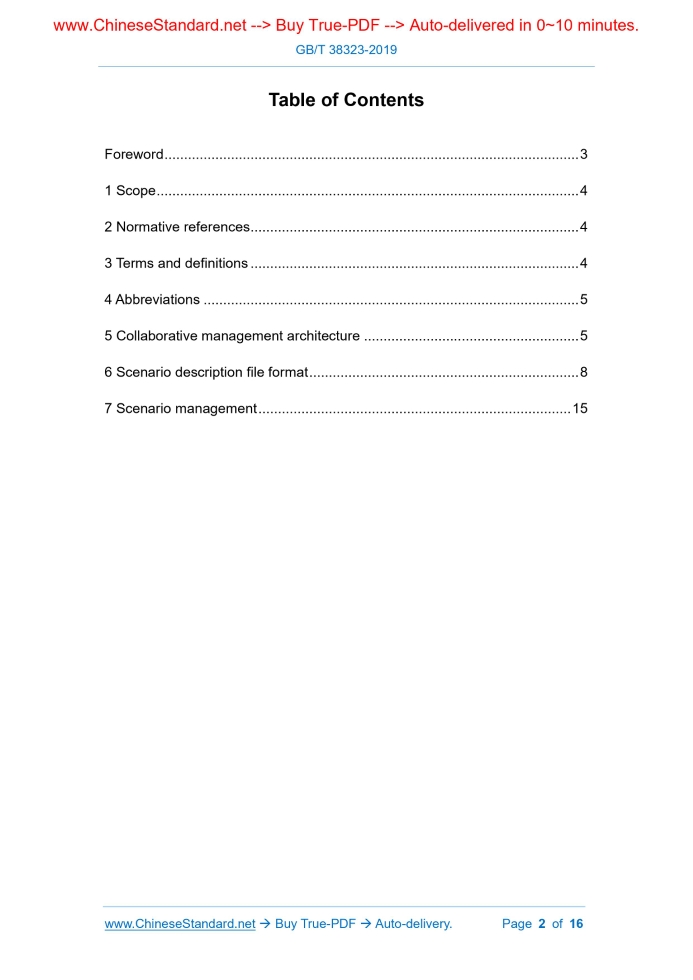

Similar standardsGB/T 38323-2019: Digital technique application of building and residence community - Cooperation management protocol for home internet of things---This is an excerpt. Full copy of true-PDF in English version (including equations, symbols, images, flow-chart, tables, and figures etc.), auto-downloaded/delivered in 9 seconds, can be purchased online: https://www.ChineseStandard.net/PDF.aspx/GBT38323-2019 GB NATIONAL STANDARD OF THE PEOPLE’S REPUBLIC OF CHINA ICS 35.240 L 70 Digital technique application of building and residence community - Cooperation management protocol for home internet of things ISSUED ON: DECEMBER 10, 2019 IMPLEMENTED ON: JULY 01, 2020 Issued by: State Administration for Market Regulation; Standardization Administration of the People’s Republic of China. Table of ContentsForeword ... 3 1 Scope ... 4 2 Normative references ... 4 3 Terms and definitions ... 4 4 Abbreviations ... 5 5 Collaborative management architecture ... 5 6 Scenario description file format ... 8 7 Scenario management ... 15 Digital technique application of building and residence community - Cooperation management protocol for home internet of things1 ScopeThis Standard specifies the collaborative management architecture, scenario description file format, and scenario management that are involved in the cooperation management protocol for home internet of things. This Standard applies to the connectivity among intelligent devices in the home environment.2 Normative referencesThe following documents are indispensable for the application of this document. For dated references, only the dated version applies to this document. For undated references, the latest edition (including all amendments) applies to this document. GB/T 35134, Smart home for Internet of things - Device description method GB/T 35143, Smart home for Internet of things - Unicode of data and device3 Terms and definitionsThe following terms and definitions are applicable to this document. 3.1 Home internet of things The network that connects computers, health devices, household appliances, water and electricity heating meters, lighting equipment, and safety and alarm devices in the home category according to Internet protocols. 3.2 Cooperative management The process of coordinating among associated devices in the smart home network to complete the predetermined goals. 3.3 Home smart gateway c) Common scenario types shall include manual trigger, timing trigger, and conditional trigger, which shall meet the following requirements: 1) Manual trigger: cause the linkage of the device or service, by manually clicking the software button or hardware switch panel, remote control, etc.; 2) Timing trigger: cause the linkage of device or service, by setting the timing time; 3) Conditional triggering: cause the linkage of device or service, by setting conditions such as device alarm, device status change event, service status change event, etc. 5.2 Collaborative architecture 5.2.1 Architecture The home internet of things collaborative management architecture shall include instruction set layer, service layer, collaboration layer, and application layer (as shown in Figure 1) and shall meet the following requirements: a) Instruction set: the control instruction that uniformly defines the device or service; b) Service layer: the device description file describes the functional services that are supported by the device; the service description file describes the application services other than the device; c) Collaboration layer: the scenario description file is defined according to the device description file and the service description file; d) Application layer: it manages the generation, storage, editing, transmission, execution and deletion of scenarios. Trigger Object Optional Trigger, including header information, multiple conditions and their logical relationships; if there is no such a field, the scenario is triggered manually Actuator Object Required Actuator, including header information, multiple actions and their logical relationships 6.2.2 File header The scenario description file header shall include information such as the version number, scenario ID, scenario name, scenario summary of the scenario description file specification. See Table 2 for details. Table 2 -- Scenario description file header field Field name Type Selection status Note Version Character string Required The version number of the scenario description file specification is divided into a major version number and a minor version number, which are represented by numbers, and are separated by a ".", such as 0.2 ID Character string Required The unique identification information of the scenario conforms to the UUID standard; the format is xxxxx-xxxx-xxxx-xxxxxxxxxxxxxxxx, 36 digits in total Name Character string Required Scenario name, which is used to identify the scenario, can be customized and modified; it is up to 16 digits Abstract Character string Optional Scenario introduction, which is used to briefly describe the characteristics of the scenario, can be customized and modified; it is up to 144 digits Type Character string Optional Scenario is divided into three types: single product scenario, recommended scenario, and custom scenario. This item is optional; if it is not filled, it is a custom scenario by default Grouping Character string Optional Scenario grouping; this item is mainly used for APP automatic menu generation. The item value conforms to the "ABC.DEF.GHI" format; multiple scenario files automatically compose a tree menu on this account 6.2.3 Trigger 6.2.3.1 Overview only in the form of a switch in the scenario editing interface; if it is not set, it is False by default Validity Boolean Optional True -- valid; False -- invalid. It indicates whether the condition is executed in the scenario execution engine. If it is not set, it is True by default 6.2.3.3 Time condition For the time condition, types such time points, multiple time points, periodic time points, time periods, multiple time periods, periodic time periods can be set. See Table 5 for specific fields of time conditions. Table 5 -- Specific fields of time condition Field name Type Selection status Note Time parameter Character string Required Format according to the setting rules of spring timer in Java programming language 6.2.3.4 Device alarm The device alarm shall be based on the device's alarm event as the triggering condition to link the relevant actions. Its specific fields are shown in Table 6. Table 6 -- Device alarm specific fields Field name Type Selection status Note Device model Character string Required Uniquely identify a device description file, device type + device model Device ID Character string Optional For device ID, according to the device description file specification, if there is this field, it means a specific device; if there is not this field, it means all devices under the model that is represented by the device model Alarm code Integer Required Uniquely identify an alarm code in the device description file; refer to the device description file specification 6.2.3.5 Device status The device status shall be based on the device's status as the triggering condition to link the relevant actions. Its specific fields are shown in Table 7. Table 7 -- Device status specific fields Field name Type Selection status Note equal to 2, it also indicates the relative delay execution order Delay time Integer Required Action delay execution time, in seconds (s); when the delay time type exists, this field is valid Action type Integer Required It represents the action type, which can be the following: 1 -- status action; 2 -- frequency action; 3 -- continuous action, this field is reserved for the future Function code Integer Required Uniquely identify a function in the device description file Comparison operation code Character string Required The value is: isEqual -- equal to Function value Character string Optional The variable value that represents the action change. When the action type is equal to 1, this field is valid; it shall be formatted according to several data types that are supported by the description file specification. Execution time Integer Optional It indicates the number of times the action is executed. When the action type is equal to 2, this field is valid Duration Integer Optional It indicates the duration of the action, in seconds (s); when the action type is equal to 3, this field is valid Text Character string Optional Additional text of this action Edit status Boolean Optional True -- editable; False -- not editable. It indicates whether the action can be edited. If it is not editable, the edit item will not be displayed in the scenario editing interface; only the text will be displayed (if set). If it is not set, it is True by default Switch setting Boolean Optional True -- only switch can be set; False -- common setting. It indicates whether this action exists only in the form of a switch in the scenario editing interface; if it is not set, it is False by default Validity Boolean Optional True -- valid; False -- invalid. It indicates whether the action is executed in the scenario execution engine. If it is not set, it is True by default 6.2.4.3 Device action ......Source: Above contents are excerpted from the full-copy PDF -- translated/reviewed by: www.ChineseStandard.net / Wayne Zheng et al. Tips & Frequently Asked Questions:Question 1: How long will the true-PDF of English version of GB/T 38323-2019 be delivered?Answer: The full copy PDF of English version of GB/T 38323-2019 can be downloaded in 9 seconds, and it will also be emailed to you in 9 seconds (double mechanisms to ensure the delivery reliably), with PDF-invoice.Question 2: Can I share the purchased PDF of GB/T 38323-2019_English with my colleagues?Answer: Yes. The purchased PDF of GB/T 38323-2019_English will be deemed to be sold to your employer/organization who actually paid for it, including your colleagues and your employer's intranet.Question 3: Does the price include tax/VAT?Answer: Yes. Our tax invoice, downloaded/delivered in 9 seconds, includes all tax/VAT and complies with 100+ countries' tax regulations (tax exempted in 100+ countries) -- See Avoidance of Double Taxation Agreements (DTAs): List of DTAs signed between Singapore and 100+ countriesQuestion 4: Do you accept my currency other than USD?Answer: Yes. www.ChineseStandard.us -- GB/T 38323-2019 -- Click this link and select your country/currency to pay, the exact amount in your currency will be printed on the invoice. Full PDF will also be downloaded/emailed in 9 seconds.How to buy and download a true PDF of English version of GB/T 38323-2019?A step-by-step guide to download PDF of GB/T 38323-2019_EnglishStep 1: Visit website https://www.ChineseStandard.net (Pay in USD), or https://www.ChineseStandard.us (Pay in any currencies such as Euro, KRW, JPY, AUD).Step 2: Search keyword "GB/T 38323-2019". Step 3: Click "Add to Cart". If multiple PDFs are required, repeat steps 2 and 3 to add up to 12 PDFs to cart. Step 4: Select payment option (Via payment agents Stripe or PayPal). Step 5: Customize Tax Invoice -- Fill up your email etc. Step 6: Click "Checkout". Step 7: Make payment by credit card, PayPal, Google Pay etc. After the payment is completed and in 9 seconds, you will receive 2 emails attached with the purchased PDFs and PDF-invoice, respectively. Step 8: Optional -- Go to download PDF. Step 9: Optional -- Click Open/Download PDF to download PDFs and invoice. See screenshots for above steps: Steps 1~3 Steps 4~6 Step 7 Step 8 Step 9 |
