GB/T 38186-2019 PDF EnglishUS$125.00 · In stock · Download in 9 seconds
GB/T 38186-2019: Performance requirements and test methods for advanced emergency braking system (AEBS) of commercial vehicles Delivery: 9 seconds. True-PDF full-copy in English & invoice will be downloaded + auto-delivered via email. See step-by-step procedure Status: Valid

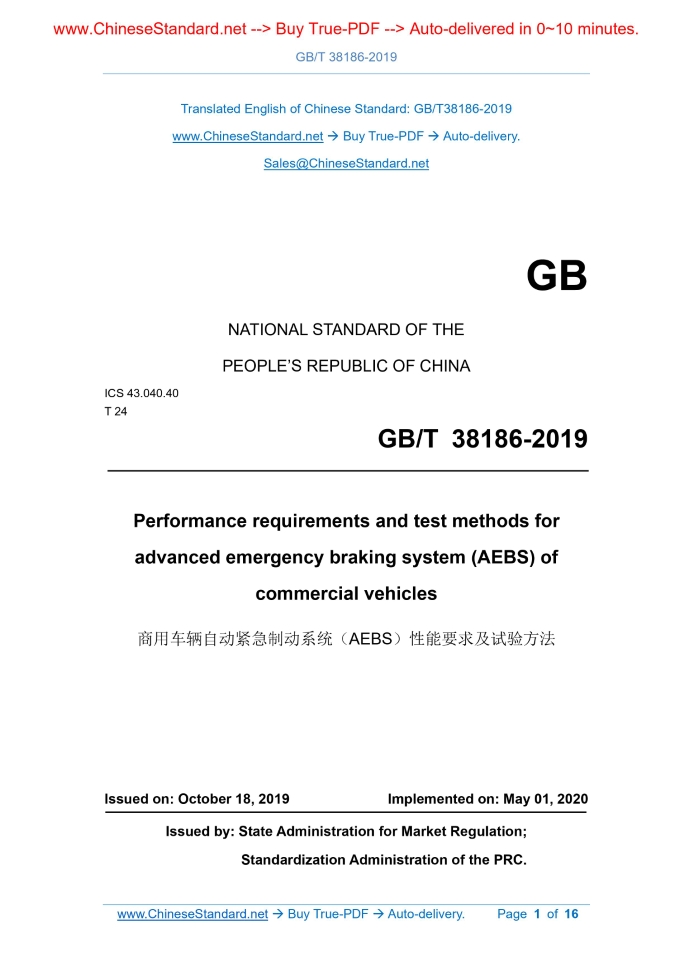

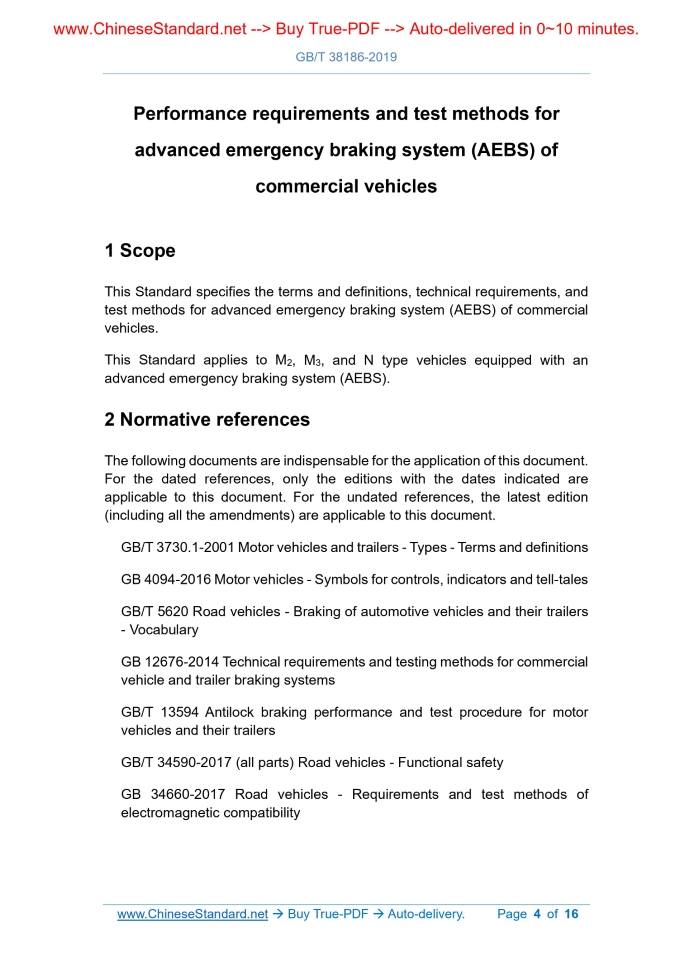

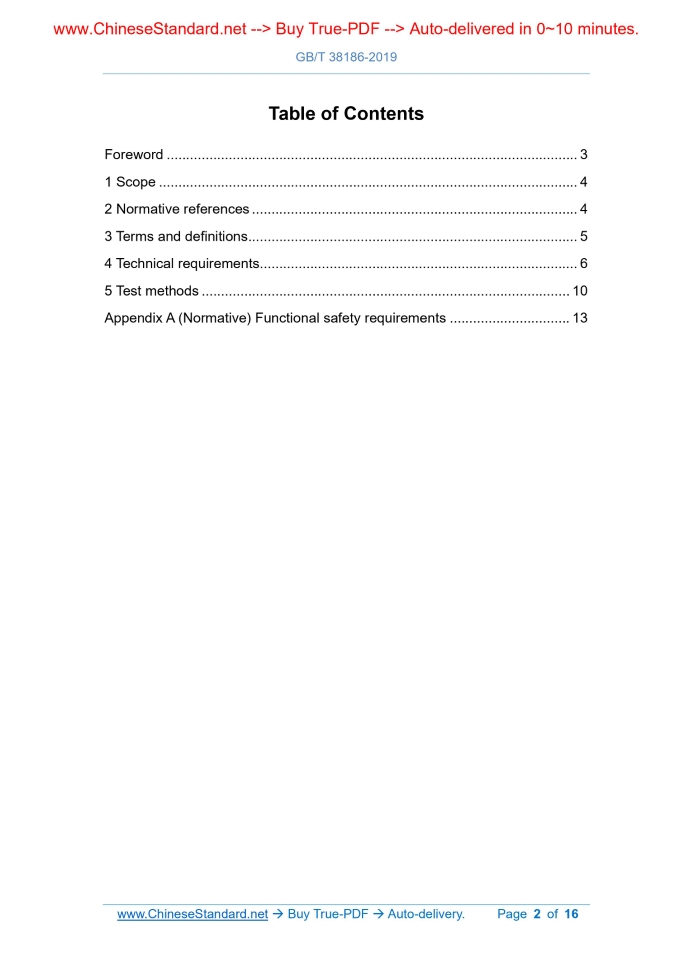

Similar standardsGB/T 38186-2019: Performance requirements and test methods for advanced emergency braking system (AEBS) of commercial vehicles---This is an excerpt. Full copy of true-PDF in English version (including equations, symbols, images, flow-chart, tables, and figures etc.), auto-downloaded/delivered in 9 seconds, can be purchased online: https://www.ChineseStandard.net/PDF.aspx/GBT38186-2019 NATIONAL STANDARD OF THE PEOPLE’S REPUBLIC OF CHINA ICS 43.040.40 T 24 Performance requirements and test methods for advanced emergency braking system (AEBS) of commercial vehicles Issued on. OCTOBER 18, 2019 Implemented on. MAY 01, 2020 Issued by. State Administration for Market Regulation; Standardization Administration of the PRC. Table of ContentsForeword... 3 1 Scope... 4 2 Normative references... 4 3 Terms and definitions... 5 4 Technical requirements... 6 5 Test methods... 10 Appendix A (Normative) Functional safety requirements... 13ForewordThis Standard is drafted in accordance with the rules given in GB/T 1.1-2009. This Standard was proposed by Ministry of Industry and Information Technology of the PRC. This Standard shall be under the jurisdiction of National Technical Committee of Auto Standardization (SAC/TC 114). Drafting organizations of this Standard. FAW Jiefang Automotive Co., Ltd., Anhui Jianghuai Automobile Group Corp., Ltd., China Automotive Technology and Research Center Co., Ltd., Dongfeng Commercial Vehicle Co., Ltd., Tsinghua University, Chongqing Vehicle Test & Research Institute Co., Ltd., Shanghai Motor Vehicle Inspection Certification & Tech Innovation Center Co., Ltd., China Automotive Engineering Research Institute Co., Ltd., WABCO Vehicle Control Systems (China) Co., Ltd., Zhejiang VIE Science & Technology Co., Ltd., Zhejiang Asia-pacific Mechanical & Electronic Co., Ltd., Jiaozuo BRK Control Technology Co., Ltd., Xiamen King Long United Automotive Industry Co., Ltd., Higer Bus Co., Ltd., Xiamen Golden Dragon Bus Co., Ltd., Beiben Trucks Group Co., Ltd., Neusoft Reach Automotive Technology (Shenyang) Co., Ltd. Main drafters of this Standard. Chen Yuchao, He Shaobin, Liu Di, Li Yang, Luo Yugong, Wang Kan, Yu Feng, Yang Liangyi, Wang Baiquan, Fu Zhiquan, Li Weibing, Lai Enming, Feng Jie, Chen Qichang, Qiu Yuanhong, Chen Dulian, Wang Yongfei, Liu Wei, Guo Liqun, Zhu Tong, Qing Peng, You Guoping, Cao Jianyong, Huang Junfu, Cheng Weitao, Song Xiaoyi, Pu Lin, Shen Geng, Liu Liren, Li Chun, Zhang Wenchao, Wang Weiguang, Fan Xiao. Performance requirements and test methods for advanced emergency braking system (AEBS) of commercial vehicles1 ScopeThis Standard specifies the terms and definitions, technical requirements, and test methods for advanced emergency braking system (AEBS) of commercial vehicles. This Standard applies to M2, M3, and N type vehicles equipped with an advanced emergency braking system (AEBS).2 Normative referencesThe following documents are indispensable for the application of this document. For the dated references, only the editions with the dates indicated are applicable to this document. For the undated references, the latest edition (including all the amendments) are applicable to this document. GB/T 3730.1-2001 Motor vehicles and trailers - Types - Terms and definitions GB 4094-2016 Motor vehicles - Symbols for controls, indicators and tell-tales GB/T 5620 Road vehicles - Braking of automotive vehicles and their trailers - Vocabulary GB 12676-2014 Technical requirements and testing methods for commercial vehicle and trailer braking systems GB/T 13594 Antilock braking performance and test procedure for motor vehicles and their trailers GB/T 34590-2017 (all parts) Road vehicles - Functional safety GB 34660-2017 Road vehicles - Requirements and test methods of electromagnetic compatibility3 Terms and definitionsThe terms and definitions defined in GB/T 5620 and the following ones apply to this document. 3.1 Advanced emergency braking system; AEBS The system which monitors the driving environment in front of the vehicle in real time and automatically starts the vehicle’s braking system to slow down the vehicle in the event of a possible collision hazard to avoid collision or mitigate collision. 3.2 Subject vehicle The vehicle subjected to the AEBS test in accordance with the requirements of this Standard. 3.3 Target The mass-produced ordinary passenger car having 4 or more seats and 2 or 4 side doors or the representative object of which the detection parameters can represent the above vehicle and which is suitable for AEBS sensing detection features. 3.4 Moving target The target which moves in the same direction at a constant speed in the center of the same lane ahead of the subject vehicle. 3.5 Stationary target The target which remains motionless in the center of the same lane ahead of the subject vehicle.4 Technical requirements4.1 General requirements 4.1.1 Vehicles equipped with AEBS shall be equipped with an antilock braking system which meets the requirements of GB/T 13594. 4.1.2 The electromagnetic compatibility of AEBS shall meet the requirements of GB 34660-2017. 4.2 Early-warning and warning signals 4.2.1 The AEBS shall be able to provide the driver with the appropriate early- warning and warning signals as follows. 4.2.2 The collision early-warning described in 4.2.1 shall be at least two signal early-warnings of acoustic, tactile, and optical signals. The timing of the early- warning shall be such that the driver can react to the risk of collision, control the vehicle in time, and premature or too frequent early-warnings are avoided to annoy the driver. 4.2.7 When the AEBS is temporarily inoperable due to environmental factors such as inclement weather, if an optical warning signal is provided to the driver, the signal shall be a constant yellow signal. The failure warning signal specified in 4.2.4 may be used. 4.3 Performance requirements 4.3.1 Basic performance When AEBS is operating normally, it shall meet the following requirements. 4.3.2 Early-warning and startup performance under stationary target conditions 4.3.2.1 TEST according to 5.4.The time setting of the collision early-warning mode described in 4.2 shall meet the following requirements. 4.3.2.2 The speed decline in the warning phase shall not exceed 15 km/h or 30% of the total speed decline of the test vehicle, whichever is higher. 4.3.2.3 The collision warning phase shall be followed by the emergency braking phase. 4.3.2.4 The total speed decline of the subject vehicle when colliding with a stationary target shall not be less than 10 km/h. 4.3.2.5 The emergency braking phase shall not begin before the time to collision is less than or equal to 3 s. 4.3.3.5 After eliminating driver interference, at least 3 of 5 tests meet the requirements of 4.3.3.1~4.3.3.4. 4.4 Warning signal after system failure TEST according to 5.6.The always-on optical warning signal in accordance with GB 4094-2016 shall be started at the latest when the vehicle is driving at a speed of more than 15 km/h for 10 s. As long as the failure still exists, after turning off the ignition switch and restarting it at rest, the vehicle shall maintain its failure warning state. 4.5 Driver intervention performance 4.6 Anti-false response performance TEST according to 5.8.The AEBS shall not send a collision early-warning and shall not activate the emergency braking function.5 Test methods5.1 Test conditions 5.1.1 The test environment shall comply with the provisions of 5.1.2 of GB 12676-2014. 5.1.2 The horizontal visual range shall ensure that the target can be observed throughout the test. 5.2 Vehicle conditions 5.3 Test target 5.3.1 The test may adopt an ordinary passenger car or a soft target. 5.3.2 Specific measures to ensure consistency and repeatability of targets shall be documented in detail in the vehicle test report. 5.4 Early-warning and startup performance under stationary target 5.5.3 Except for slight adjustment of the steering wheel to prevent the vehicle from shifting in direction, from the start of the test until the speed of the subject vehicle is equal to the target speed, the driver shall not make any adjustments to the subject vehicle. 5.6 Warning signal after system failure 5.6.1 By disconnecting the power supply of the AEBS component or the electrical connection between the AEBS components, simulate circuit failure. When simulating AEBS failure, it shall not cut off the circuit connection of the driver warning signal specified in 4.2.1 and the AEBS manual off control device specified in 4.5. 5.7 Driver intervention performance 5.7.1 TEST according to 5.5.In the warning phase, the driver steps on the accelerator pedal, turns on the turn signal, performs other means specified by the manufacturer, to check whether the response of the system can be interrupted by the active action of driver intervention. 5.8 System anti-false response performance 5.8.1 PUT two ordinary passenger cars defined in GB/T 3730.1-2001 as follows. 5.8.2 The subject vehicle, from outside at least 60 m, begins to pass through the middle of two stationary vehicles at a constant speed of (50±2)km/h. Except for slight adjustment of the steering wheel to prevent the vehicle from shifting in direction, during the test, it shall not make any adjustments to the subject vehicle. ......Source: Above contents are excerpted from the full-copy PDF -- translated/reviewed by: www.ChineseStandard.net / Wayne Zheng et al. Tips & Frequently Asked Questions:Question 1: How long will the true-PDF of English version of GB/T 38186-2019 be delivered?Answer: The full copy PDF of English version of GB/T 38186-2019 can be downloaded in 9 seconds, and it will also be emailed to you in 9 seconds (double mechanisms to ensure the delivery reliably), with PDF-invoice.Question 2: Can I share the purchased PDF of GB/T 38186-2019_English with my colleagues?Answer: Yes. The purchased PDF of GB/T 38186-2019_English will be deemed to be sold to your employer/organization who actually paid for it, including your colleagues and your employer's intranet.Question 3: Does the price include tax/VAT?Answer: Yes. Our tax invoice, downloaded/delivered in 9 seconds, includes all tax/VAT and complies with 100+ countries' tax regulations (tax exempted in 100+ countries) -- See Avoidance of Double Taxation Agreements (DTAs): List of DTAs signed between Singapore and 100+ countriesQuestion 4: Do you accept my currency other than USD?Answer: Yes. www.ChineseStandard.us -- GB/T 38186-2019 -- Click this link and select your country/currency to pay, the exact amount in your currency will be printed on the invoice. Full PDF will also be downloaded/emailed in 9 seconds.How to buy and download a true PDF of English version of GB/T 38186-2019?A step-by-step guide to download PDF of GB/T 38186-2019_EnglishStep 1: Visit website https://www.ChineseStandard.net (Pay in USD), or https://www.ChineseStandard.us (Pay in any currencies such as Euro, KRW, JPY, AUD).Step 2: Search keyword "GB/T 38186-2019". Step 3: Click "Add to Cart". If multiple PDFs are required, repeat steps 2 and 3 to add up to 12 PDFs to cart. Step 4: Select payment option (Via payment agents Stripe or PayPal). Step 5: Customize Tax Invoice -- Fill up your email etc. Step 6: Click "Checkout". Step 7: Make payment by credit card, PayPal, Google Pay etc. After the payment is completed and in 9 seconds, you will receive 2 emails attached with the purchased PDFs and PDF-invoice, respectively. Step 8: Optional -- Go to download PDF. Step 9: Optional -- Click Open/Download PDF to download PDFs and invoice. See screenshots for above steps: Steps 1~3 Steps 4~6 Step 7 Step 8 Step 9 |
