GB/T 38147-2019: Requirements of digital body graphics for clothing Delivery: 9 seconds. True-PDF full-copy in English & invoice will be downloaded + auto-delivered via email. See step-by-step procedure Status: Valid

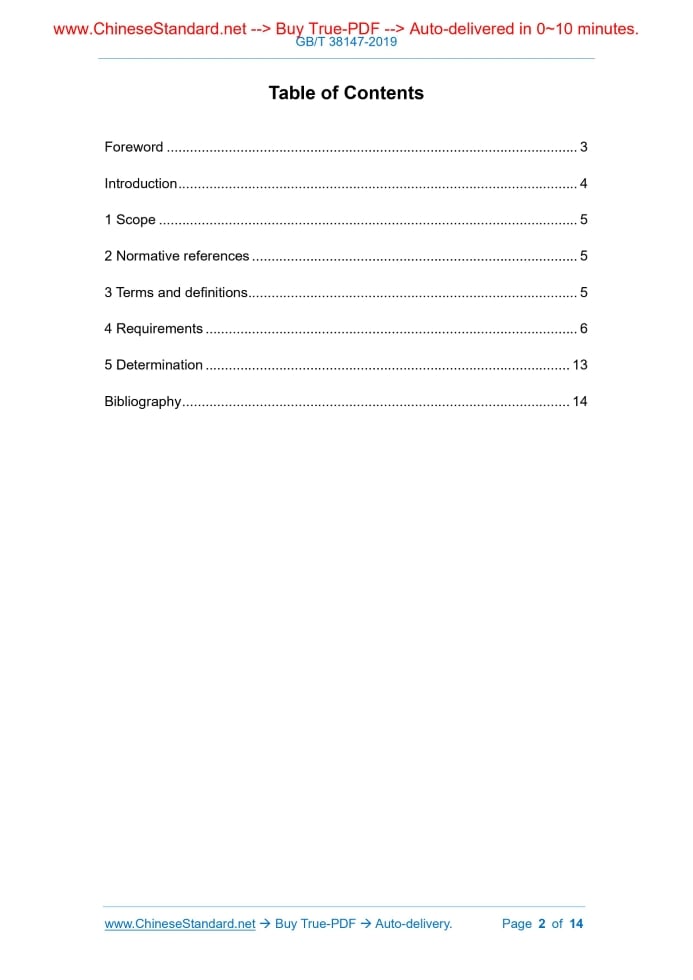

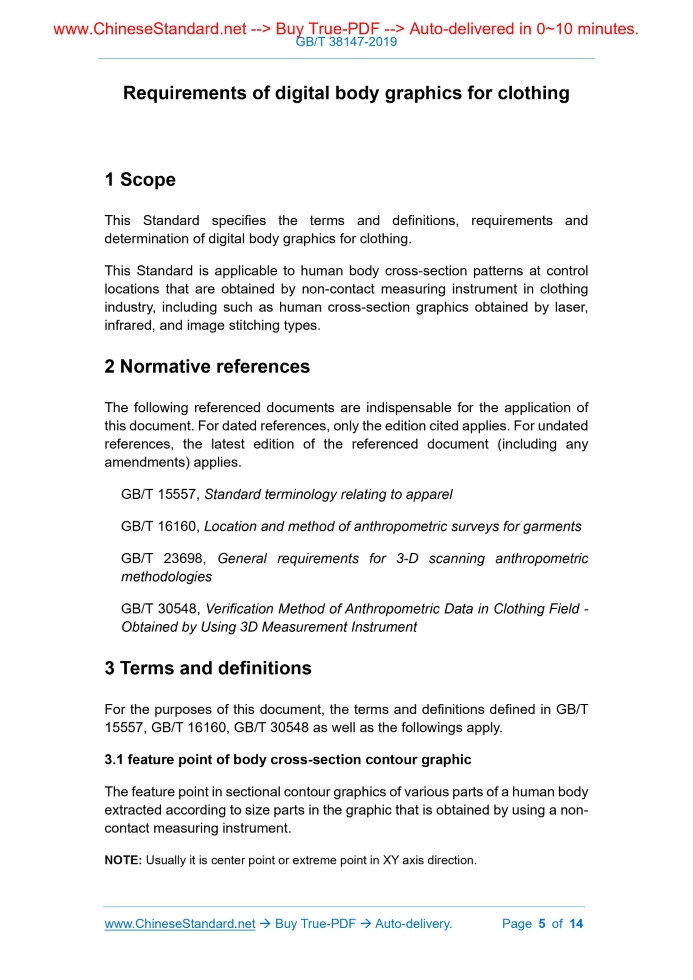

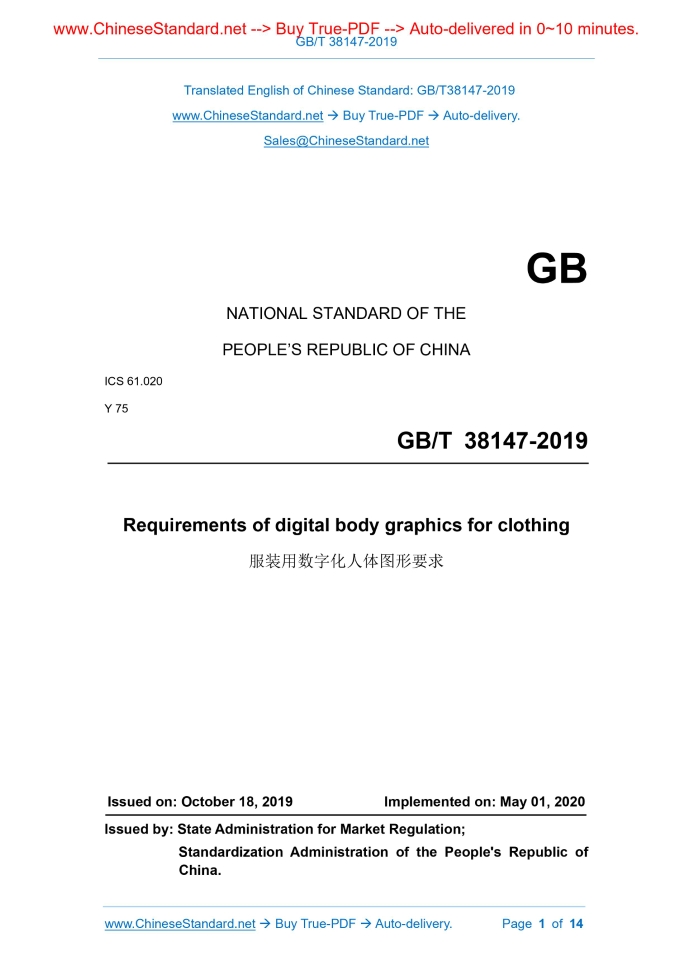

Similar standardsGB/T 38147-2019: Requirements of digital body graphics for clothing---This is an excerpt. Full copy of true-PDF in English version (including equations, symbols, images, flow-chart, tables, and figures etc.), auto-downloaded/delivered in 9 seconds, can be purchased online: https://www.ChineseStandard.net/PDF.aspx/GBT38147-2019NATIONAL STANDARD OF THE PEOPLE’S REPUBLIC OF CHINA ICS 61.020 Y 75 Requirements of digital body graphics for clothing ISSUED ON: OCTOBER 18, 2019 IMPLEMENTED ON: MAY 01, 2020 Issued by: State Administration for Market Regulation; Standardization Administration of the People's Republic of China. Table of ContentsForeword ... 3 Introduction ... 4 1 Scope ... 5 2 Normative references ... 5 3 Terms and definitions ... 5 4 Requirements ... 6 5 Determination ... 13 Bibliography ... 14 Requirements of digital body graphics for clothing1 ScopeThis Standard specifies the terms and definitions, requirements and determination of digital body graphics for clothing. This Standard is applicable to human body cross-section patterns at control locations that are obtained by non-contact measuring instrument in clothing industry, including such as human cross-section graphics obtained by laser, infrared, and image stitching types.2 Normative referencesThe following referenced documents are indispensable for the application of this document. For dated references, only the edition cited applies. For undated references, the latest edition of the referenced document (including any amendments) applies. GB/T 15557, Standard terminology relating to apparel GB/T 16160, Location and method of anthropometric surveys for garments GB/T 23698, General requirements for 3-D scanning anthropometric methodologies GB/T 30548, Verification Method of Anthropometric Data in Clothing Field - Obtained by Using 3D Measurement Instrument3 Terms and definitionsFor the purposes of this document, the terms and definitions defined in GB/T 15557, GB/T 16160, GB/T 30548 as well as the followings apply. 3.1 feature point of body cross-section contour graphic The feature point in sectional contour graphics of various parts of a human body extracted according to size parts in the graphic that is obtained by using a non- contact measuring instrument. NOTE: Usually it is center point or extreme point in XY axis direction. 3.2 body section figure After converting point clouds or solid images obtained using a non-contact measurement, a cross-section graphic of each control part taken from the image that is obtained by using software.4 Requirements4.1 Acquisition of body graphics and inspection principle Based on national standard and industry standard measurement methods, use a non-contact measuring instrument to collect samples to obtain image data. According to body size parts, section figures of different parts (bust, hip, waist, neck) are formed. Respectively check whether graphics are closed and continuous, whether the feature points are complete and the correlation is correct. Determine whether the feature points are offset and whether the offset is within the range. Finally, determine the accuracy of the graphics based on the above parameters. 4.2 Requirements for acquisition of body section figure 4.2.1 Figure acquisition instrument 4.2.1.1 Non-contact automatic human body measuring instrument for clothing. 4.2.1.2 Mobile terminal software or third-party compatible software that can collect body section figure. 4.2.2 Requirements for figure acquisition test 4.2.2.1 Selection of test sample It shall select any tested subject (normal body) who shall stand in the standard standing position. 4.2.2.2 Measurement methods According to the requirements of GB/T 23698, it shall use an automatic measuring instrument to measure the tested subject three times to obtain three sets of measurement results in total. 4.2.3 Figure acquisition methods 4.2.3.1 It can use the software tool of the measurement instrument to automatically intercept. 4.2.3.2 If there are no automatic intercept function, it can use a third-party Right hip point P42 □Yes □No Fore abdominal center point P43 □Yes □No Hind hip center point P44 □Yes □No Left hip protrusion P45 □Yes □No Right hip protrusion P46 □Yes □No 4.3.2.3 If the number of feature points of the figure of each part is consistent with Figure 1, then the feature points of the figure of the part are complete. Record as "Yes" in the checklist; otherwise determine as incomplete and record as "No". 4.3.2.4 If the position of the feature point of each part figure is consistent with Figure 1 and unique, then the feature point of the part figure is determined to be unique and recorded as "Yes" in the checklist. If there are multiple or missing feature points at the same location, it is determined that the feature points are not unique and recorded as "No" in the checklist. 4.3.3 Interrelationship requirements and inspection of feature points 4.3.3.1 In the coordinate axis of Figure 1, the angle between the line connecting the center point of each control part and the line connecting the left and right sides shall be 90° ± 2°. If the angle between the central point line of each control part and the left and right side points is 90° ± 2°, it is determined that the central point line of the part is perpendicular to the left and right side points. Record as "Yes" in the checklist (see Table 5). Record the actual angle. Otherwise, it shall be determined that it is not vertical. Record "No" in the checklist (see Table 5) and record the actual angle. 4.3.3.2 In the coordinate axis of Figure 1, the deviation of the ratio of the coordinate values of the two symmetrical points of each control part graphic shall be within a certain range. According to the allowable deviation table for the position of the symmetrical feature points of each part in the coordinate axis in Table 6, determine whether the position deviation ratio between the symmetrical feature points of the figure is within the allowable range. If it complies, determine as “Yes”, otherwise as “No”. 4.3.3.3 It shall respectively check the interrelationship between the feature points of the graphics of each part. Record in Table 5. Table 5 -- Checklist of symmetrical feature points of each part graphic Part If the left and right point lines are perpendicular Name of symmetrical feature point Sex If position deviation is within the range ......Source: Above contents are excerpted from the full-copy PDF -- translated/reviewed by: www.ChineseStandard.net / Wayne Zheng et al. Tips & Frequently Asked Questions:Question 1: How long will the true-PDF of English version of GB/T 38147-2019 be delivered?Answer: The full copy PDF of English version of GB/T 38147-2019 can be downloaded in 9 seconds, and it will also be emailed to you in 9 seconds (double mechanisms to ensure the delivery reliably), with PDF-invoice.Question 2: Can I share the purchased PDF of GB/T 38147-2019_English with my colleagues?Answer: Yes. The purchased PDF of GB/T 38147-2019_English will be deemed to be sold to your employer/organization who actually paid for it, including your colleagues and your employer's intranet.Question 3: Does the price include tax/VAT?Answer: Yes. Our tax invoice, downloaded/delivered in 9 seconds, includes all tax/VAT and complies with 100+ countries' tax regulations (tax exempted in 100+ countries) -- See Avoidance of Double Taxation Agreements (DTAs): List of DTAs signed between Singapore and 100+ countriesQuestion 4: Do you accept my currency other than USD?Answer: Yes. www.ChineseStandard.us -- GB/T 38147-2019 -- Click this link and select your country/currency to pay, the exact amount in your currency will be printed on the invoice. Full PDF will also be downloaded/emailed in 9 seconds.How to buy and download a true PDF of English version of GB/T 38147-2019?A step-by-step guide to download PDF of GB/T 38147-2019_EnglishStep 1: Visit website https://www.ChineseStandard.net (Pay in USD), or https://www.ChineseStandard.us (Pay in any currencies such as Euro, KRW, JPY, AUD).Step 2: Search keyword "GB/T 38147-2019". Step 3: Click "Add to Cart". If multiple PDFs are required, repeat steps 2 and 3 to add up to 12 PDFs to cart. Step 4: Select payment option (Via payment agents Stripe or PayPal). Step 5: Customize Tax Invoice -- Fill up your email etc. Step 6: Click "Checkout". Step 7: Make payment by credit card, PayPal, Google Pay etc. After the payment is completed and in 9 seconds, you will receive 2 emails attached with the purchased PDFs and PDF-invoice, respectively. Step 8: Optional -- Go to download PDF. Step 9: Optional -- Click Open/Download PDF to download PDFs and invoice. See screenshots for above steps: Steps 1~3 Steps 4~6 Step 7 Step 8 Step 9 |
