GB/T 38117-2019: Electric Vehicles Product Description - Emergency Rescue Delivery: 9 seconds. True-PDF full-copy in English & invoice will be downloaded + auto-delivered via email. See step-by-step procedure Status: Valid

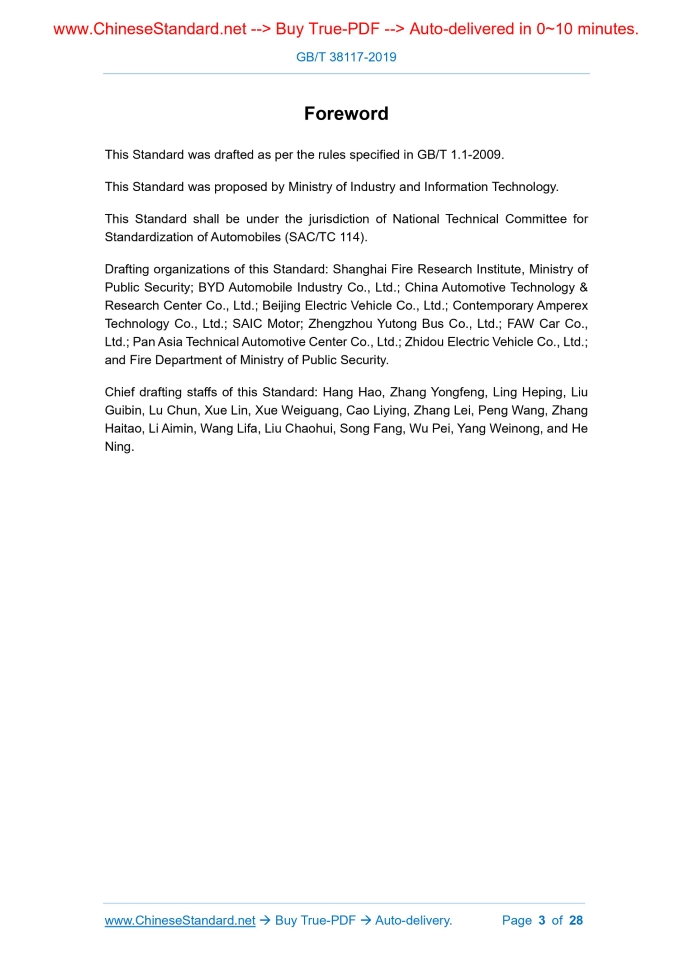

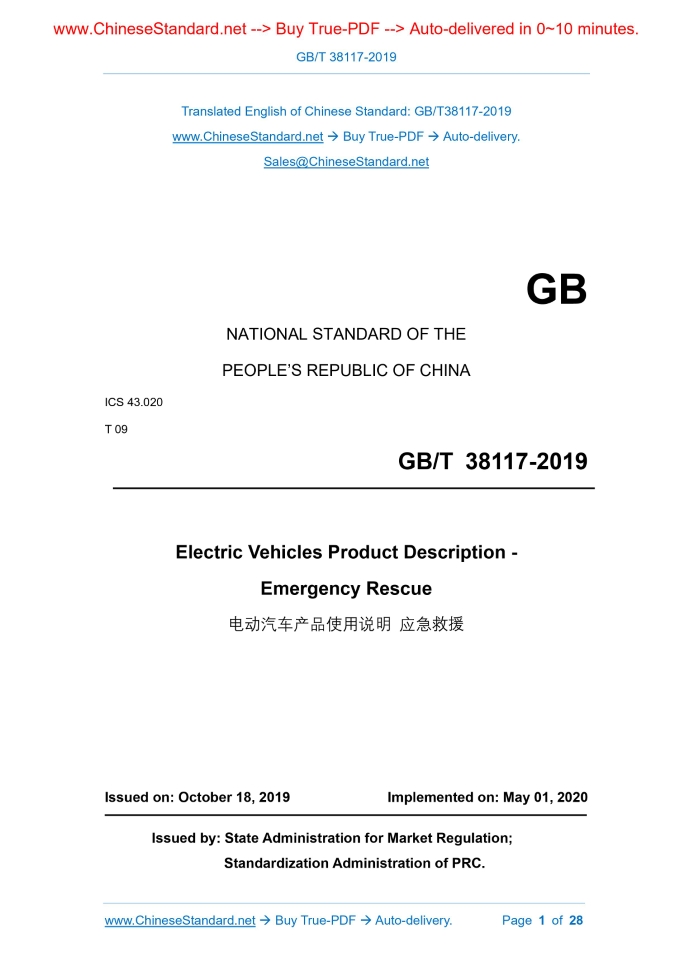

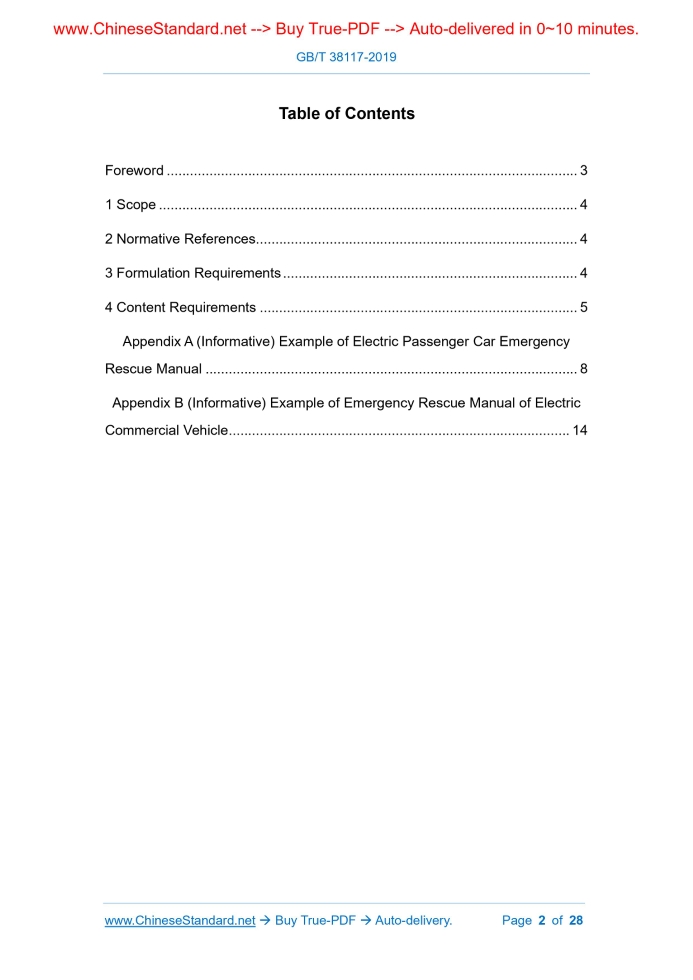

Similar standardsGB/T 38117-2019: Electric Vehicles Product Description - Emergency Rescue---This is an excerpt. Full copy of true-PDF in English version (including equations, symbols, images, flow-chart, tables, and figures etc.), auto-downloaded/delivered in 9 seconds, can be purchased online: https://www.ChineseStandard.net/PDF.aspx/GBT38117-2019NATIONAL STANDARD OF THE PEOPLE’S REPUBLIC OF CHINA ICS 43.020 T 09 Electric Vehicles Product Description - Emergency Rescue ISSUED ON: OCTOBER 18, 2019 IMPLEMENTED ON: MAY 01, 2020 Issued by: State Administration for Market Regulation; Standardization Administration of PRC. Table of ContentsForeword ... 3 1 Scope ... 4 2 Normative References ... 4 3 Formulation Requirements ... 4 4 Content Requirements ... 5 Appendix A (Informative) Example of Electric Passenger Car Emergency Rescue Manual ... 8 Appendix B (Informative) Example of Emergency Rescue Manual of Electric Commercial Vehicle ... 14ForewordThis Standard was drafted as per the rules specified in GB/T 1.1-2009. This Standard was proposed by Ministry of Industry and Information Technology. This Standard shall be under the jurisdiction of National Technical Committee for Standardization of Automobiles (SAC/TC 114). Drafting organizations of this Standard: Shanghai Fire Research Institute, Ministry of Public Security; BYD Automobile Industry Co., Ltd.; China Automotive Technology & Research Center Co., Ltd.; Beijing Electric Vehicle Co., Ltd.; Contemporary Amperex Technology Co., Ltd.; SAIC Motor; Zhengzhou Yutong Bus Co., Ltd.; FAW Car Co., Ltd.; Pan Asia Technical Automotive Center Co., Ltd.; Zhidou Electric Vehicle Co., Ltd.; and Fire Department of Ministry of Public Security. Chief drafting staffs of this Standard: Hang Hao, Zhang Yongfeng, Ling Heping, Liu Guibin, Lu Chun, Xue Lin, Xue Weiguang, Cao Liying, Zhang Lei, Peng Wang, Zhang Haitao, Li Aimin, Wang Lifa, Liu Chaohui, Song Fang, Wu Pei, Yang Weinong, and He Ning. Electric Vehicles Product Description - Emergency Rescue1 ScopeThis Standard specifies the contents and formulation requirements for the emergency rescue in the electric vehicle product description. This Standard is applicable to the contents and formulation of the emergency rescue in the electric vehicle product description.2 Normative ReferencesThe following documents are essential to the application of this document. For the dated documents, only the versions with the dates indicated are applicable to this document; for the undated documents, only the latest version (including all the amendments) are applicable to this document. GB/T 2893.1 Graphical Symbols - Safety Colors and Safety Signs - Part 1: Design Principles for Safety Signs and Safety Markings GB/T 5296.1 Instructions for Use of Products of Consumer Interest -- Part 1: General Principles GB/T 19596 Terminology of Electric Vehicles GB/T 24548 Fuel Cell Electric Vehicles -- Terminology3 Formulation Requirements3.1 The emergency rescue part of the electric vehicle product description shall form a separate manual; the paper version of it shall be accompanied by the vehicle; its contents and format can refer to Appendixes A and B. 3.2 The emergency rescue part of the electric vehicle product description shall include the following contents such as the electric vehicles’ product information, safety sign information, emergency rescue disposal procedure information, other information deemed necessary by the vehicle manufacturer, etc.; and it shall be formulated in the perspective view of the vehicle. 4.1.4.3 In addition to the requirements in 4.1.4.1, the fuel cell electric vehicle shall also include the information such as fuel cell system, on-board hydrogen supply system and location where leakage may occur, etc. When the information concerning the position is involved, it shall be given in the side perspective view and top-down perspective view of the vehicle. 4.1.4.4 The information on the type, rated voltage and rated capacity of the electric vehicle’s power battery; the number, size, voltage, capacity and weight of the battery pack; the rated voltage and rated capacity of the battery system shall be given. 4.1.5 Emergency device information The name, function, position and use of all emergency device and escape device in electric vehicle products shall be stated. The position and use method shall be illustrated in a top-down perspective view and side perspective view of vehicle; while the appearance shall be illustrated in the form of physical photograph. 4.2 Safety sign information All safety signs related to emergency rescue of the vehicle shall be given with an explanation. 4.3 Emergency rescue disposal procedure information The emergency rescue disposal procedure information of the electric vehicle product shall include but not limited to the following information: a) Relevant information such as types of protective equipment required for the emergency rescue personnel and the minimum requirements for protective performance; b) The operation manner in which the vehicle is stopped, and illustrate graphically; c) Procedures for high-voltage disconnection, the appearance, position and operation steps of all components and operation method for high-voltage disconnection shall be illustrate graphically; d) Fuel cell electric vehicles shall also provide equipment and methods required for hydrogen leakage and hydrogen fame detection; e) The parts that are difficult for the emergency rescue personnel to cut and expand, and the parts that can’t be cut, expanded and pierced shall be illustrated graphically; f) The emergency disposal methods and precautions of waterlogged vehicle and safety distance of 2m~3m from the fire source, hold the nozzle with the left hand. The nozzle is aligned with the root of the flame; the right hand presses the handle hard for extinguishing. B.1.5.5 Fire extinguishing system Function: When encountering the open flame or the temperature reaches 175°C, the fire extinguishing system can be automatically started for extinguishing. Position: The fire-extinguishing sound and light indicator is installed on the sub-dash. Use method: Manually start: press the manual start button; automatically start; when encountering the open flame or the temperature reaches 175°C, it can be automatically started. Fire extinguisher control panel description: The fire extinguisher has 3 indicator lights, as shown in Figure B.19. Key: 1 -- yellow fault indicator light; 2 -- red feedback indicator light; 3 -- manual start button; 4 -- green power indicator light. Figure B.19 -- Fire Extinguishing System NOTE: The operation of this product is only for reference; the specific physical operation instructions shall prevail. Extinguish ......Source: Above contents are excerpted from the full-copy PDF -- translated/reviewed by: www.ChineseStandard.net / Wayne Zheng et al. Tips & Frequently Asked Questions:Question 1: How long will the true-PDF of English version of GB/T 38117-2019 be delivered?Answer: The full copy PDF of English version of GB/T 38117-2019 can be downloaded in 9 seconds, and it will also be emailed to you in 9 seconds (double mechanisms to ensure the delivery reliably), with PDF-invoice.Question 2: Can I share the purchased PDF of GB/T 38117-2019_English with my colleagues?Answer: Yes. The purchased PDF of GB/T 38117-2019_English will be deemed to be sold to your employer/organization who actually paid for it, including your colleagues and your employer's intranet.Question 3: Does the price include tax/VAT?Answer: Yes. Our tax invoice, downloaded/delivered in 9 seconds, includes all tax/VAT and complies with 100+ countries' tax regulations (tax exempted in 100+ countries) -- See Avoidance of Double Taxation Agreements (DTAs): List of DTAs signed between Singapore and 100+ countriesQuestion 4: Do you accept my currency other than USD?Answer: Yes. www.ChineseStandard.us -- GB/T 38117-2019 -- Click this link and select your country/currency to pay, the exact amount in your currency will be printed on the invoice. Full PDF will also be downloaded/emailed in 9 seconds.How to buy and download a true PDF of English version of GB/T 38117-2019?A step-by-step guide to download PDF of GB/T 38117-2019_EnglishStep 1: Visit website https://www.ChineseStandard.net (Pay in USD), or https://www.ChineseStandard.us (Pay in any currencies such as Euro, KRW, JPY, AUD).Step 2: Search keyword "GB/T 38117-2019". Step 3: Click "Add to Cart". If multiple PDFs are required, repeat steps 2 and 3 to add up to 12 PDFs to cart. Step 4: Select payment option (Via payment agents Stripe or PayPal). Step 5: Customize Tax Invoice -- Fill up your email etc. Step 6: Click "Checkout". Step 7: Make payment by credit card, PayPal, Google Pay etc. After the payment is completed and in 9 seconds, you will receive 2 emails attached with the purchased PDFs and PDF-invoice, respectively. Step 8: Optional -- Go to download PDF. Step 9: Optional -- Click Open/Download PDF to download PDFs and invoice. See screenshots for above steps: Steps 1~3 Steps 4~6 Step 7 Step 8 Step 9 |
