GB/T 38018-2019: Footwear - Test method for soles - Fatigue resistance Delivery: 9 seconds. True-PDF full-copy in English & invoice will be downloaded + auto-delivered via email. See step-by-step procedure Status: Valid

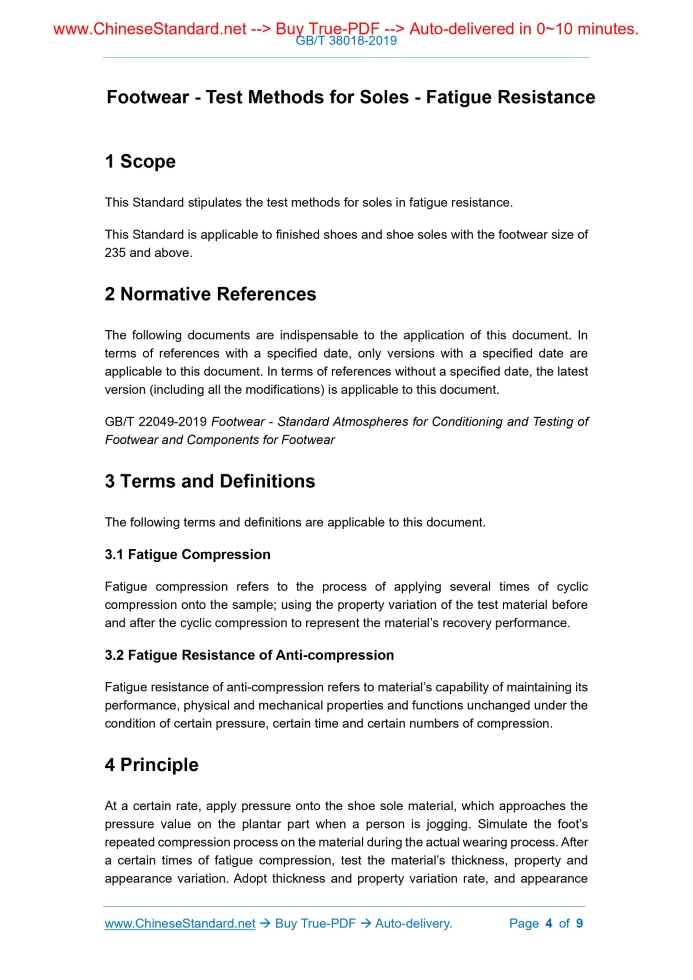

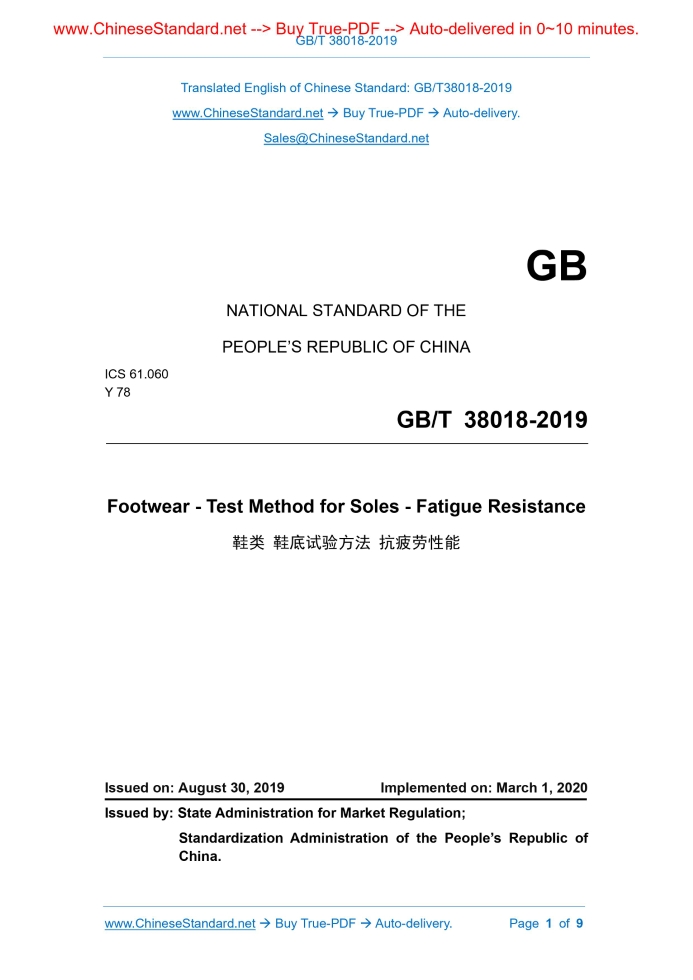

Similar standardsGB/T 38018-2019: Footwear - Test method for soles - Fatigue resistance---This is an excerpt. Full copy of true-PDF in English version (including equations, symbols, images, flow-chart, tables, and figures etc.), auto-downloaded/delivered in 9 seconds, can be purchased online: https://www.ChineseStandard.net/PDF.aspx/GBT38018-2019NATIONAL STANDARD OF THE PEOPLE’S REPUBLIC OF CHINA ICS 61.060 Y 78 Footwear - Test Method for Soles - Fatigue Resistance ISSUED ON: AUGUST 30, 2019 IMPLEMENTED ON: MARCH 1, 2020 Issued by: State Administration for Market Regulation; Standardization Administration of the People’s Republic of China. Table of ContentsForeword ... 3 1 Scope ... 4 2 Normative References ... 4 3 Terms and Definitions ... 4 4 Principle ... 4 5 Test Equipment ... 5 6 Sample and Conditioning ... 6 7 Test Procedures ... 7 8 Result Expression ... 8 9 Test Report ... 8 Footwear - Test Methods for Soles - Fatigue Resistance1 ScopeThis Standard stipulates the test methods for soles in fatigue resistance. This Standard is applicable to finished shoes and shoe soles with the footwear size of 235 and above.2 Normative ReferencesThe following documents are indispensable to the application of this document. In terms of references with a specified date, only versions with a specified date are applicable to this document. In terms of references without a specified date, the latest version (including all the modifications) is applicable to this document. GB/T 22049-2019 Footwear - Standard Atmospheres for Conditioning and Testing of Footwear and Components for Footwear3 Terms and DefinitionsThe following terms and definitions are applicable to this document. 3.1 Fatigue Compression Fatigue compression refers to the process of applying several times of cyclic compression onto the sample; using the property variation of the test material before and after the cyclic compression to represent the material’s recovery performance. 3.2 Fatigue Resistance of Anti-compression Fatigue resistance of anti-compression refers to material’s capability of maintaining its performance, physical and mechanical properties and functions unchanged under the condition of certain pressure, certain time and certain numbers of compression.4 PrincipleAt a certain rate, apply pressure onto the shoe sole material, which approaches the pressure value on the plantar part when a person is jogging. Simulate the foot’s repeated compression process on the material during the actual wearing process. After a certain times of fatigue compression, test the material’s thickness, property and appearance variation. Adopt thickness and property variation rate, and appearance Figure 1 -- Sketch Map of Punch Hammer Shape Used for Fatigue 5.1.4 Equipment’s compression rate: 6 times/min ~ 240 times/min, adjustable. 5.1.5 Driver’s force value (force value sensor): measuring range: 0 N ~ 5,000 N, accurate to 0.01 N. The minimum sampling frequency of force value is 100 Hz. 5.1.6 Data acquisition system: adopt a specific program to record the whole process of data acquisition from the force-sensing system. 5.2 Thickness Measuring Instrument Measuring range: 0 mm ~ 50 mm, accurate to 0.01 mm. Compression diameter: (10 ± 0.5) mm; intensity of pressure: (29.3 ± 0.1) kPa.6 Sample and Conditioning6.1 Sample 6.1.1 Sample quantity Sample of whole shoe (remove the upper band) or shoe sole shall be not less than 1 pair. 6.1.2 Sample preparation 6.1.2.1 Cutting of upper band In terms of whole shoe, along the bottom line of the upper part, cut off the upper part of the shoe. If there is an inner sole, double-sided adhesive tape may be used to fasten the inner sole onto the internal surface of the shoe sole (so as to guarantee that the inner sole will not have any displacement during the impact process). NOTE: whole shoe sole includes all the material layers between human feet and the ground, such as external sole, midsole and insole, etc. 6.1.2.2 Selection of compression location On the internal surface of the shoe sole (the surface that touches feet, for example, the surface of insole or inner sole), select a compression location and mark it: ---Location of forefoot: select Point B, which is 75% ± 2 mm of the insole length of the whole shoe. This point shall be equidistant with the internal side and the external side of the insole. In addition, take this point as the center to make a circle with the diameter of 30 mm; ---Location of heel: select Point A, which is 12% ± 2 mm of the insole length of the whole shoe. This point shall be equidistant with the internal side and the 7.4 Select test rate: (120 ± 12) times/min, or, other test frequencies may also be selected in accordance with the actual demand. 7.5 Set up the times of test compression into 50,000, or, the times of compression may also be set up in accordance with the actual demand. 7.6 Initiate continuous compression mode; conduct continuous compression test on the sample. 7.7 After the compression test is completed, remove the compressed sample from the equipment; place it under the environmental condition stipulated in 6.2 for (24 ± 1) h. Determine the shoe sole thickness and other properties (such as impact shock attenuating property and resilience property) of the forefoot and the heel in the corresponding locations after the fatigue compression.8 Result Expression8.1 In accordance with Formula (1), respectively calculate the thickness variation rate of the forefoot and the heel of the shoe sole, accurate to 0.1%: Where, d1---thickness of sample after fatigue compression, expressed in (mm); d0---thickness of sample before fatigue compression, expressed in (mm). 8.2 Describe and record appearance variation of the shoe sole. 8.3 In accordance with demands, evaluate the variation of other properties (such as impact shock attenuating property and resilience property) of the shoe sole.9 Test ReportTest report shall at least include the following content: a) Serial No. of this Standard; b) Specification, model and manufacturer information of test samples; c) Model of test equipment; d) Compression force value and compression frequency selected during the test; e) Impact location (forefoot and heel) selected during the test; ......Source: Above contents are excerpted from the full-copy PDF -- translated/reviewed by: www.ChineseStandard.net / Wayne Zheng et al. Tips & Frequently Asked Questions:Question 1: How long will the true-PDF of English version of GB/T 38018-2019 be delivered?Answer: The full copy PDF of English version of GB/T 38018-2019 can be downloaded in 9 seconds, and it will also be emailed to you in 9 seconds (double mechanisms to ensure the delivery reliably), with PDF-invoice.Question 2: Can I share the purchased PDF of GB/T 38018-2019_English with my colleagues?Answer: Yes. The purchased PDF of GB/T 38018-2019_English will be deemed to be sold to your employer/organization who actually paid for it, including your colleagues and your employer's intranet.Question 3: Does the price include tax/VAT?Answer: Yes. Our tax invoice, downloaded/delivered in 9 seconds, includes all tax/VAT and complies with 100+ countries' tax regulations (tax exempted in 100+ countries) -- See Avoidance of Double Taxation Agreements (DTAs): List of DTAs signed between Singapore and 100+ countriesQuestion 4: Do you accept my currency other than USD?Answer: Yes. www.ChineseStandard.us -- GB/T 38018-2019 -- Click this link and select your country/currency to pay, the exact amount in your currency will be printed on the invoice. Full PDF will also be downloaded/emailed in 9 seconds.How to buy and download a true PDF of English version of GB/T 38018-2019?A step-by-step guide to download PDF of GB/T 38018-2019_EnglishStep 1: Visit website https://www.ChineseStandard.net (Pay in USD), or https://www.ChineseStandard.us (Pay in any currencies such as Euro, KRW, JPY, AUD).Step 2: Search keyword "GB/T 38018-2019". Step 3: Click "Add to Cart". If multiple PDFs are required, repeat steps 2 and 3 to add up to 12 PDFs to cart. Step 4: Select payment option (Via payment agents Stripe or PayPal). Step 5: Customize Tax Invoice -- Fill up your email etc. Step 6: Click "Checkout". Step 7: Make payment by credit card, PayPal, Google Pay etc. After the payment is completed and in 9 seconds, you will receive 2 emails attached with the purchased PDFs and PDF-invoice, respectively. Step 8: Optional -- Go to download PDF. Step 9: Optional -- Click Open/Download PDF to download PDFs and invoice. See screenshots for above steps: Steps 1~3 Steps 4~6 Step 7 Step 8 Step 9 |
