GB/T 38008-2019: Gate valves of thermoplastics materials

---This is an excerpt. Full copy of true-PDF in English version (including equations, symbols, images, flow-chart, tables, and figures etc.), auto-downloaded/delivered in 9 seconds, can be purchased online: https://www.ChineseStandard.net/PDF.aspx/GBT38008-2019

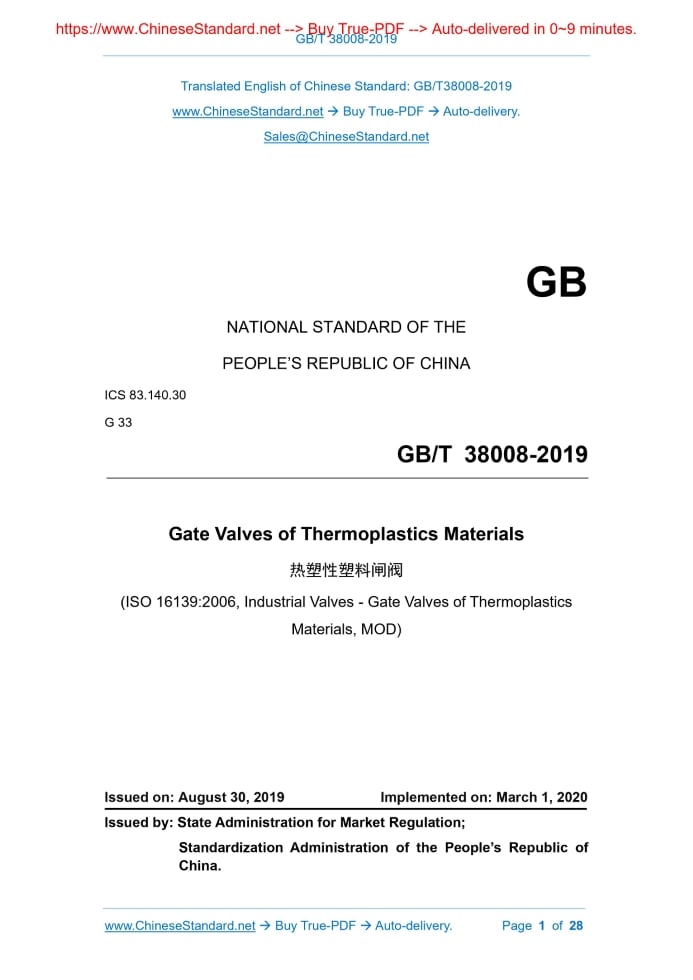

GB NATIONAL STANDARD OF THE PEOPLE’S REPUBLIC OF CHINA ICS 83.140.30 G 33 Gate Valves of Thermoplastics Materials (ISO 16139.2006, Industrial Valves - Gate Valves of Thermoplastics Materials, MOD) Issued on. AUGUST 30, 2019 Implemented on. MARCH 1, 2020 Issued by. State Administration for Market Regulation; Standardization Administration of the People’s Republic of China.

Table of Contents

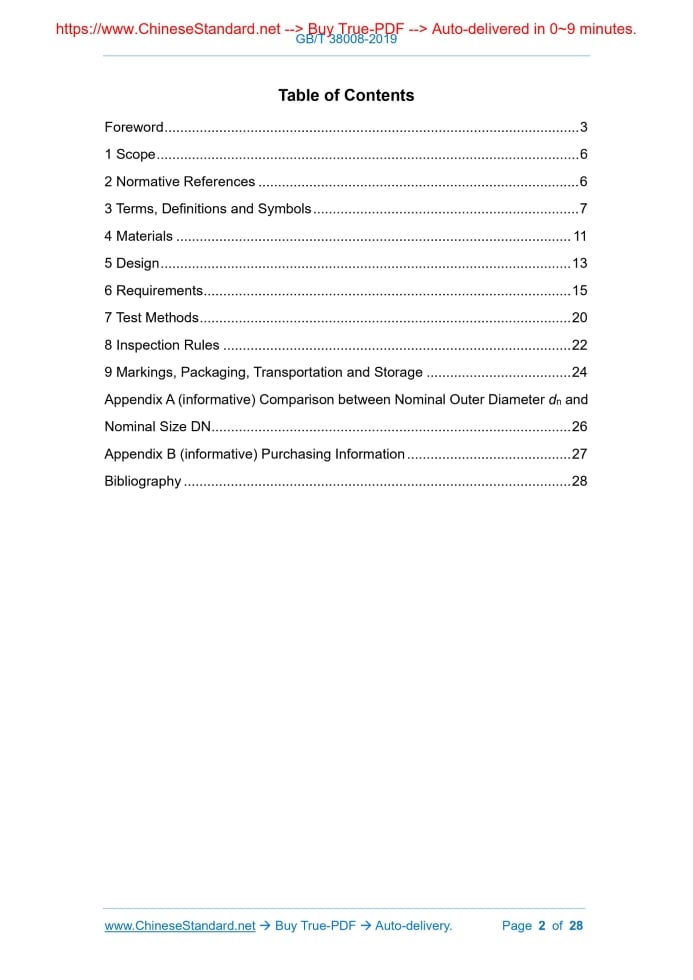

Foreword... 3 1 Scope... 6 2 Normative References... 6 3 Terms, Definitions and Symbols... 7 4 Materials... 11 5 Design... 13 6 Requirements... 15 7 Test Methods... 20 8 Inspection Rules... 22 9 Markings, Packaging, Transportation and Storage... 24 Appendix A (informative) Comparison between Nominal Outer Diameter dn and Nominal Size DN... 26 Appendix B (informative) Purchasing Information... 27 Bibliography... 28

Foreword

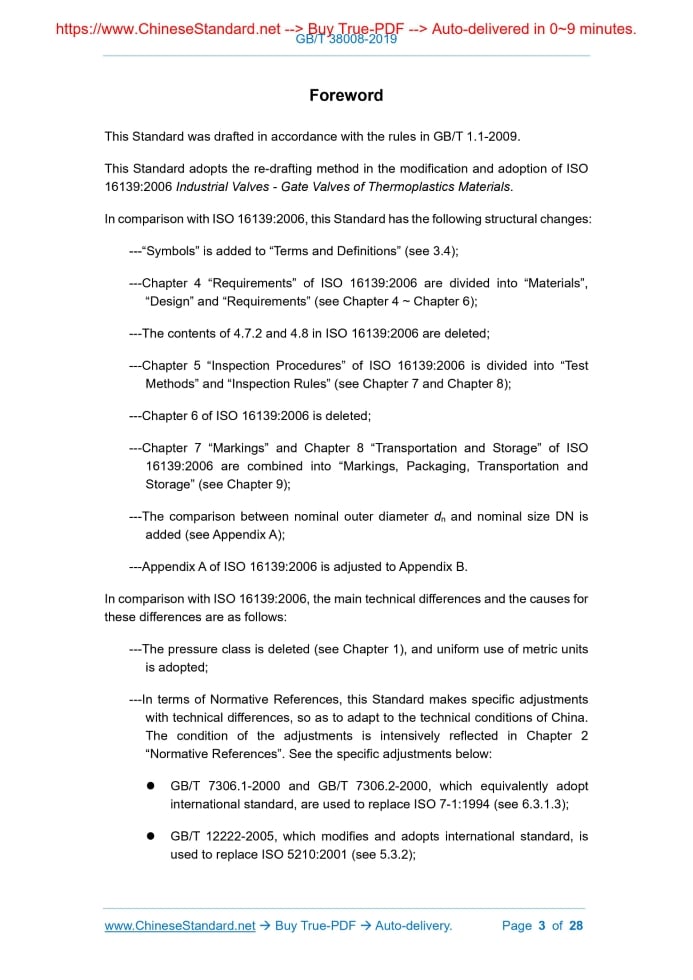

This Standard was drafted in accordance with the rules in GB/T 1.1-2009. This Standard adopts the re-drafting method in the modification and adoption of ISO 16139.2006 Industrial Valves - Gate Valves of Thermoplastics Materials. In comparison with ISO 16139.2006, this Standard has the following structural changes. ---“Symbols” is added to “Terms and Definitions” (see 3.4); ---Chapter 4 “Requirements” of ISO 16139.2006 are divided into “Materials”, “Design” and “Requirements” (see Chapter 4 ~ Chapter 6); ---The contents of 4.7.2 and 4.8 in ISO 16139.2006 are deleted; ---Chapter 5 “Inspection Procedures” of ISO 16139.2006 is divided into “Test Methods” and “Inspection Rules” (see Chapter 7 and Chapter 8); ---Chapter 6 of ISO 16139.2006 is deleted; ---Chapter 7 “Markings” and Chapter 8 “Transportation and Storage” of ISO 16139.2006 are combined into “Markings, Packaging, Transportation and Storage” (see Chapter 9); ---The comparison between nominal outer diameter dn and nominal size DN is added (see Appendix A); ---Appendix A of ISO 16139.2006 is adjusted to Appendix B. In comparison with ISO 16139.2006, the main technical differences and the causes for these differences are as follows. ---The pressure class is deleted (see Chapter 1), and uniform use of metric units is adopted; ---In terms of Normative References, this Standard makes specific adjustments with technical differences, so as to adapt to the technical conditions of China. The condition of the adjustments is intensively reflected in Chapter 2 “Normative References”. See the specific adjustments below.  GB/T 7306.1-2000 and GB/T 7306.2-2000, which equivalently adopt international standard, are used to replace ISO 7-1.1994 (see 6.3.1.3);  GB/T 12222-2005, which modifies and adopts international standard, is used to replace ISO 5210.2001 (see 5.3.2);  GB/T 27726-2011, which modifies and adopts international standard, is used to replace ISO 9393-2.2005 (see 6.4);  Appendix A of GB/T 28494-2012, which modifies and adopts international standard, is used to replace EN 12570.2000 (see 5.4.2);  Appendix B of GB/T 28494-2012, which modifies and adopts international standard, is used to replace ISO 8233.1998 (see 7.8);  Appendix C of GB/T 28494-2012, which modifies and adopts international standard, is used to replace ISO 8659.1999 (see 7.9);  ISO 228-1.2000, ISO 898-1.1999, ISO/TR 10358.1993, ISO 12092.2000, ISO 12162.1995, EN 558-1.1995, EN 558-2.1995, EN 736-1.1995, EN 736-2.1997, EN 736-3.1999, EN 1092-1.2001, EN 1267.1997, EN 1759- 1.2004, EN 12107.1997 and EN 12266-1.2003, which are not quoted in the Standard, are deleted;  The reference of GB/T 2828.1-2012 is added (see 8.3.2);  The reference GB/T 2918-2018 is added (see 7.1);  The reference of GB/T 8806-2008 is added (see 7.3);  The reference of GB/T 17219 is added (see 6.11);  The reference of GB/T 19278-2018 is added (see Chapter 3);  The reference of GB/T 21300-2007 is added (see 7.10);  The reference of GB/T 30832-2014 is added (see 7.6); ---The requirements for shell materials “PPO/PPE, PPSU and PA” are added (see 4.1); ---The requirements of 4.1.2 b) in ISO 16139.2006 are modified. in accordance with the definitions of terms in GB/T 19278-2018, the dimensional requirements for clearway valve, full bore valve and reduced bore valve are provided (see 6.3.2); ---The number of cycles of fatigue strength of gate valves with dn < 63 mm is raised from 5,000 times to 15,000 times; the number of cycles of fatigue strength of gate valves dn ≥ 63 mm is 5,000 times, which is consistent with that in ISO 16139.2006 (see 6.9). This Standard makes the following editorial modifications. ---The title of this Standard is modified into Gate Valves of Thermoplastics Materials; ---The specifications and dimensions are expressed in nominal outer diameter dn (see Chapter 1); ---This Standard incorporates the amendments of ISO 16139.2006 / FD Amd I and modifies the derating factor fr. The clauses involved in these amendments have been marked by a vertical double line () on the outer margin (see Table 1 of 4.3.2). Please be noted that certain content of this document might involve patents. The institution issuing this document does not undertake the responsibility of identifying these patents. This Standard was proposed by China National Light Industry Council. This Standard shall be under the jurisdiction of National Technical Committee 48 on Plastic Products of Standardization Administration of China (SAC/TC 48). The main drafting organizations of this Standard. Shanghai Sanshang Xinbang Technology Co., Ltd.; Beijing Building Materials Testing Academy Co., Ltd. (National Water-saving Appliance Product Quality Supervision and Inspection Center); Yonggao Co., Ltd.; Zhejiang Zhongcai Pipes Technology Co., Ltd.; NAM SOK Building Material & Plastic Products (Shenzhen) Co., Ltd.; Cangzhou Mingzhu Plastics Co., Ltd.; Shanghai White Butterfly Pipe Technology Co., Ltd.; China Lesso Group Holdings Limited; Baolu Seven Star Pipe Industry Co., Ltd.; Shanghai Tianli Industry (Group) Co., Ltd.; Zhejiang Xinda Plastic Pipe Co., Ltd. The main drafters of this Standard. Zhu Liping, Li Yanjun, Huang Jian, Wang Baiti, Wu Chuhua, Chi Yongsheng, Chai Gang, Li Tongyi, Xu Hongyue, Ruan Chengfu, Cheng Linke, Zhang Xuehua. Gate Valves of Thermoplastics Materials

1 Scope

This Standard specifies the terms, definitions and symbols, materials, design, requirements, test methods, inspection rules, markings, packaging, transportation and storage of gate valves of thermoplastics materials (hereinafter referred to as gate valves).

2 Normative References

The following documents are indispensable to the application of this document. In terms of references with a specified date, only versions with a specified date are applicable to this document. In terms of references without a specified date, the latest version (including all the modifications) is applicable to this document. GB/T 2828.1-2012 Sampling Procedures for Inspection by Attribute - Part 1.Sampling Schemes Indexed by Acceptance Quality Limit (AQL) for Lot-by-lot Inspection (ISO 2859-1.1999, IDT)

3 Terms, Definitions and Symbols

What is defined in GB/T 19278-2018, and the following terms and definitions are applicable to this document.

4 Materials

The selection of materials for other various components, such as. sealing element, stem and wedge, shall ensure that the performance of the gate valve complies with the requirements specified in Chapter 6.These materials shall not adversely affect the performance of the gate valve.

5 Design

The wall thickness of pressure-bearing components, such as. shell and wedge, may be calculated with reference to GB/T 150.3-2011, and shall be greater than the wall thickness of pipes of the same material, the same pipe series and the same specifications, and satisfy the requirements of 6.4, 6.5 and 6.9.

6 Requirements

The manufacturer shall provide the nominal value of the flow coefficient and flow resistance coefficient of the gate valve. The actually measured value of the flow coefficient cannot be less than 90% of the provided value; the actually measured value of the flow resistance coefficient cannot be greater than 110% of the provided value. The light transmittance of gate valve shall be ≤ 0.2%.

7 Test Methods

In accordance with GB/T 8806-2008, conduct the measurement. The minimum flow area shall be calculated in accordance with the measured dimensions. In accordance with Appendix C in GB/T 28494-2012, conduct the cyclic test of fatigue strength of gate valve opening and closing, and shall comply with the following requirements.

8 Inspection Rules

In accordance with the stipulations of Table 6, group the gate valves by size.

9 Markings, Packaging, Transportation and Storage

Under general circumstances, each packaging box shall contain gate valves of the same variety and specifications. Under other circumstances, it may be negotiated by the demand-side and the supply-side. ......
