GB/T 3780.8-2019: Carbon black -- Part 8: Determination of heating loss Delivery: 9 seconds. True-PDF full-copy in English & invoice will be downloaded + auto-delivered via email. See step-by-step procedure Status: Valid GB/T 3780.8: Historical versions

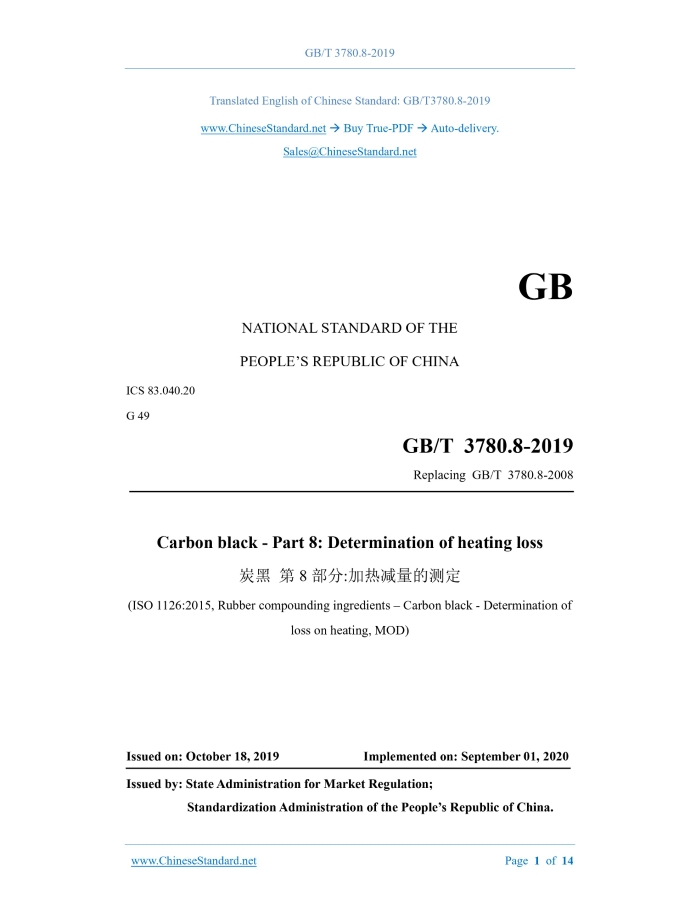

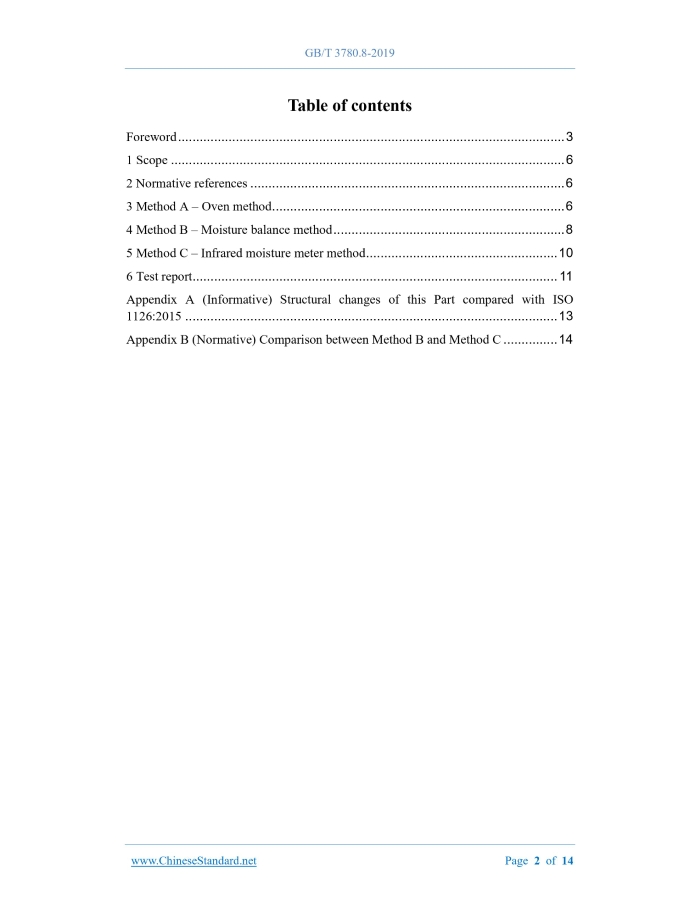

Similar standardsGB/T 3780.8-2019: Carbon black -- Part 8: Determination of heating loss---This is an excerpt. Full copy of true-PDF in English version (including equations, symbols, images, flow-chart, tables, and figures etc.), auto-downloaded/delivered in 9 seconds, can be purchased online: https://www.ChineseStandard.net/PDF.aspx/GBT3780.8-2019GB NATIONAL STANDARD OF THE PEOPLE’S REPUBLIC OF CHINA ICS 83.040.20 G 49 Replacing GB/T 3780.8-2008 Carbon black - Part 8: Determination of heating loss (ISO 1126:2015, Rubber compounding ingredients – Carbon black - Determination of loss on heating, MOD) ISSUED ON: OCTOBER 18, 2019 IMPLEMENTED ON: SEPTEMBER 01, 2020 Issued by: State Administration for Market Regulation; Standardization Administration of the People’s Republic of China. Table of ContentsForeword ... 3 1 Scope ... 6 2 Normative references ... 6 3 Method A – Oven method ... 6 4 Method B – Moisture balance method ... 8 5 Method C – Infrared moisture meter method ... 10 6 Test report... 11 Appendix A (Informative) Structural changes of this Part compared with ISO 1126:2015 ... 13 Appendix B (Normative) Comparison between Method B and Method C ... 14 Carbon black - Part 8: Determination of heating loss WARNING – Personnel who uses this Part shall have hands-on experience in formal laboratory work. This Part does not address all possible security issues. It is the responsibility of the user to take appropriate safety and health measures and to ensure compliance with the conditions which are set by the relevant national regulations.1 ScopeThis Part of the GB/T 3780 stipulates the determination of carbon black heating loss by oven method (method A), moisture balance method (method B), and infrared moisture meter method (method C), of which method A is the arbitration method. This Part applies to carbon black for use in rubber products, acetylene carbon black and colour carbon black, and also applies to the preparation of sample drying conditions for carbon black prior to other tests. Note: The loss of heating loss is mainly water, and may also be other traces of volatile substances.2 Normative referencesThe following referenced documents are indispensable for the application of this document. For dated references, only the edition cited applies to this document. For undated references, the latest edition (including any amendment) applies to this document. GB/T 3778, Carbon black for use in rubber products GB/T 3782, Acetylene black GB/T 7044, Colour carbon black GB/T 8170, Rules of rounding off for numerical values & expression and judgment of limiting values3 Method A – Oven method3.1 Principle Spread a certain amount of carbon black evenly on the bottom of the weighing bottle; heat it in an oven at 125 °C for 1 h; then, place the weighing bottle in a desiccator to cool to room temperature and weigh; calculate the heating loss. 3.2 Instruments and equipment 3.2.1 Oven, gravitational convection, temperature controlled at (125±1) °C, temperature uniformity ≤ ±5 °C. 3.2.2 Weighing bottle, short, 30 mm in height, 60 mm in diameter, equipped with a ground glass cover. When the test requires more samples, an open container shall be used, and the sample thickness shall not exceed 10 mm during the heating process. 3.2.3 Analytical balance, resolution of 0.1 mg. 3.2.4 Desiccator, equipped with an effective desiccant. 3.3 Sample 3.3.1 Different types of carbon black shall be sampled according to the provisions of GB/T 3778, GB/T 3782 or GB/T 7044, respectively. 3.3.2 The collected samples shall be placed in a closed sample container, and the samples shall be brought to room temperature before the test. 3.4 Test steps 3.4.1 Perform two tests in parallel. 3.4.2 Put the weighing bottle and the cap in an oven at 125 °C; open the cap and dry for 30 minutes. Then, move the weighing bottle and the cap into a desiccator and cool to room temperature. Weigh the mass (m0) of the bottle and the cap, accurate to 0.1 mg. 3.4.3 Spread about 2 g of carbon black for use in rubber products or colour carbon black (1 g of acetylene carbon black or powdered carbon black) evenly on the bottom of the weighing bottle; cover and weigh (m1), accurate to 0.1 mg. 3.4.4 Put the sample weighed in 3.4.3 into the oven; uncover; dry at 125 °C for 1 h. 3.4.5 Cover the weighing bottle cap and transfer it to a desiccator; remove the cap and cool to room temperature; cover the cap and re-weigh (m2), accurate to 0.1 mg. When taking the weighing bottle out of the oven or desiccator, or during the transfer process, the bottle cap shall be covered to avoid loss of carbon black due to air flow. 3.5 Test data processing 4.3 Sample 4.3.1 Different types of carbon black shall be sampled according to the provisions of GB/T 3778, GB/T 3782 and GB/T 7044, respectively. 4.3.2 The collected samples shall be placed in a closed sample container, and the samples shall be brought to room temperature before the test. 4.4 Test steps 4.4.1 Install the moisture balance according to the instrument manual, and set the temperature to 125 °C. At the set temperature, dry the empty weighing plate for 30 min and cool to room temperature before proceeding to the sample determination. 4.4.2 Spread about 10 g of carbon black for use in rubber products or colour carbon black (2 g of acetylene carbon black or powdered carbon black) evenly on the weighing plate of the moisture balance, and weigh the mass (m3), accurate to 1 mg. 4.4.3 Gently close the upper cover of the moisture balance, and start the instrument to start heating the sample. 4.4.4 Under this drying condition, after continuing to dry for a period of time, if the mass change displayed on the moisture balance display within 30 s is less than 1 mg, the sample has been dried, stop heating and record the mass value (m4) on the display. 4.5 Test data processing 4.5.1 The heating loss H of carbon black is expressed in mass fraction, and the value is expressed in percentage (%), calculated by Formula (2): Where: m3 – the numerical value of sample mass before heating, in grams (g); m4 – the numerical value of sample mass after heating, in grams (g). 4.5.2 Keep two decimal places for the calculation results; round off the value according to the provisions of GB/T 8170. 4.5.3 The reading of the result can also be read according to the displayed value of the instrument, and rounded off according to the provisions of GB/T 8170. Figure 1 – Schematic diagram of infrared moisture meter 5.3 Sample 5.3.1 Different types of carbon black shall be sampled according to the provisions of GB/T 3778, GB/T 3782 and GB/T 7044, respectively. 5.3.2 The collected samples shall be placed in a closed sample container, and the samples shall be brought to room temperature before the test. 5.4 Test steps 5.4.1 Perform two tests in parallel. 5.4.2 Install the infrared moisture meter according to the instrument manual, and set the temperature to 125 °C. 5.4.3 Spread about 10 g of carbon black for use in rubber products or colour carbon black (2 g of acetylene black or powdered carbon black) evenly on the sample plate of the infrared moisture meter, accurate to 1 mg. 5.4.4 Place the sample plate under the 185 W infrared lamp of the infrared moisture meter, so that the distance between the upper edge of the sample plate and the center of the lamp surface is 75 mm ± 2 mm. 5.4.5 Start the instrument and irradiate the sample with infrared rays. 5.4.6 When the value displayed on the digital display drops by ≤0.05% per minute, irradiate for another 2 minutes, and the displayed value is the heating loss. 5.5 Test data processing Express the heating loss of carbon black by the value displayed on the digital display, take the average value, and round off the value according to the provisions of GB/T 8170. 5.6 Precision The difference between the two determination results shall not exceed 11.71% of the average value.6 Test reportThe test report shall at least give the following aspects: a) identification and serial number of the sample; ......Source: Above contents are excerpted from the full-copy PDF -- translated/reviewed by: www.ChineseStandard.net / Wayne Zheng et al. Tips & Frequently Asked Questions:Question 1: How long will the true-PDF of English version of GB/T 3780.8-2019 be delivered?Answer: The full copy PDF of English version of GB/T 3780.8-2019 can be downloaded in 9 seconds, and it will also be emailed to you in 9 seconds (double mechanisms to ensure the delivery reliably), with PDF-invoice.Question 2: Can I share the purchased PDF of GB/T 3780.8-2019_English with my colleagues?Answer: Yes. The purchased PDF of GB/T 3780.8-2019_English will be deemed to be sold to your employer/organization who actually paid for it, including your colleagues and your employer's intranet.Question 3: Does the price include tax/VAT?Answer: Yes. Our tax invoice, downloaded/delivered in 9 seconds, includes all tax/VAT and complies with 100+ countries' tax regulations (tax exempted in 100+ countries) -- See Avoidance of Double Taxation Agreements (DTAs): List of DTAs signed between Singapore and 100+ countriesQuestion 4: Do you accept my currency other than USD?Answer: Yes. www.ChineseStandard.us -- GB/T 3780.8-2019 -- Click this link and select your country/currency to pay, the exact amount in your currency will be printed on the invoice. Full PDF will also be downloaded/emailed in 9 seconds.Question 5: Should I purchase the latest version GB/T 3780.8-2019?Answer: Yes. Unless special scenarios such as technical constraints or academic study, you should always prioritize to purchase the latest version GB/T 3780.8-2019 even if the enforcement date is in future. Complying with the latest version means that, by default, it also complies with all the earlier versions, technically.How to buy and download a true PDF of English version of GB/T 3780.8-2019?A step-by-step guide to download PDF of GB/T 3780.8-2019_EnglishStep 1: Visit website https://www.ChineseStandard.net (Pay in USD), or https://www.ChineseStandard.us (Pay in any currencies such as Euro, KRW, JPY, AUD).Step 2: Search keyword "GB/T 3780.8-2019". Step 3: Click "Add to Cart". If multiple PDFs are required, repeat steps 2 and 3 to add up to 12 PDFs to cart. Step 4: Select payment option (Via payment agents Stripe or PayPal). Step 5: Customize Tax Invoice -- Fill up your email etc. Step 6: Click "Checkout". Step 7: Make payment by credit card, PayPal, Google Pay etc. After the payment is completed and in 9 seconds, you will receive 2 emails attached with the purchased PDFs and PDF-invoice, respectively. Step 8: Optional -- Go to download PDF. Step 9: Optional -- Click Open/Download PDF to download PDFs and invoice. See screenshots for above steps: Steps 1~3 Steps 4~6 Step 7 Step 8 Step 9 |
